Generic ZQ01337 7-in-1 StagPanduan Pengguna Sistem e Light

Perkenalan

This manual provides detailed instructions for the safe and effective use of your Generic ZQ01337 7-in-1 Stage Light System. This versatile lighting unit is designed for various events, including parties, DJ sets, clubs, and stage performances. Please read this manual thoroughly before operation and retain it for future reference.

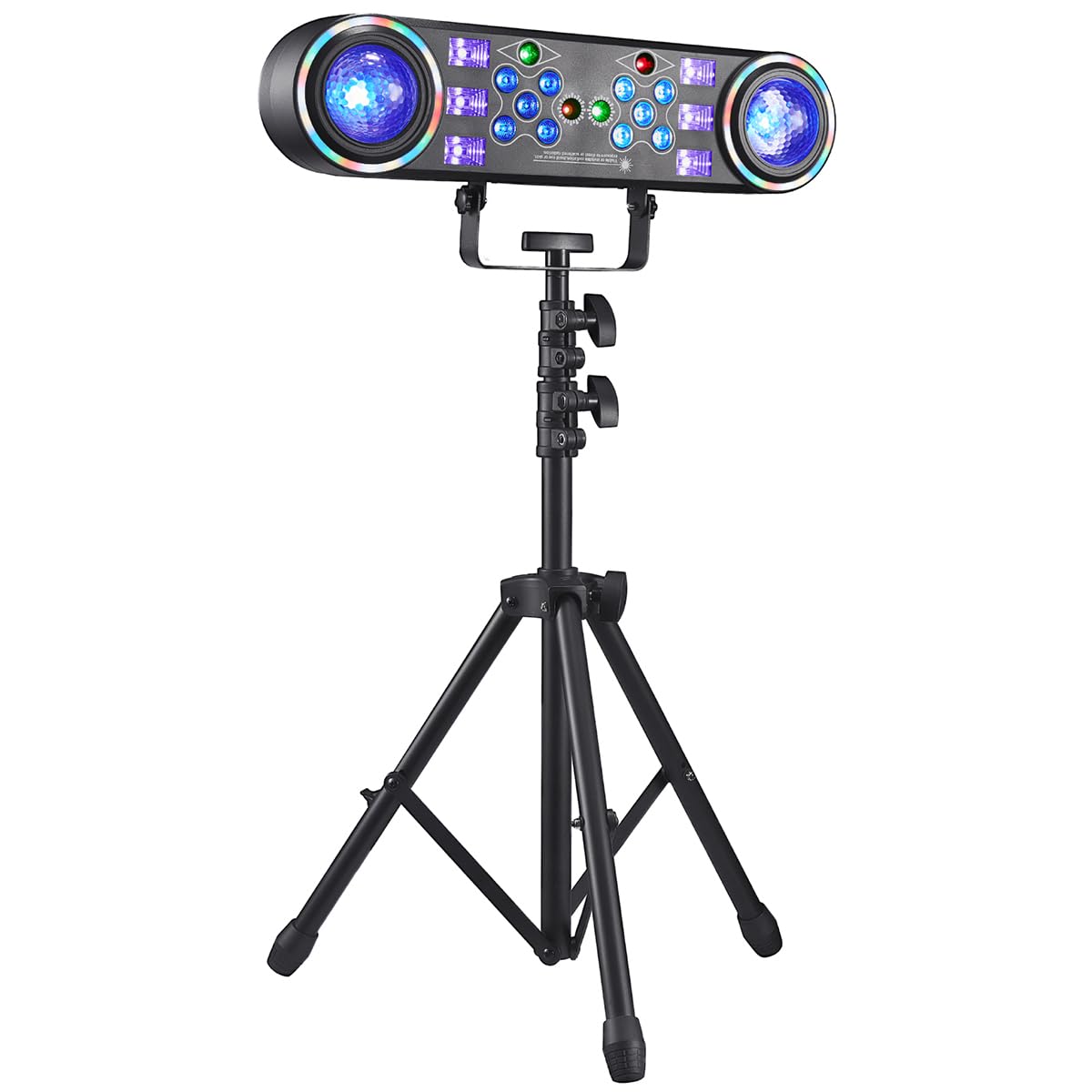

Gambar 1: Lebihview of the Generic ZQ01337 7-in-1 Stage Light System.

Isi Paket

Pastikan semua barang yang tercantum di bawah ini termasuk dalam paket Anda. Jika ada barang yang hilang atau rusak, silakan hubungi layanan pelanggan.

• 7 dalam 1 Stage Light System Unit
• Dudukan Lampu
• Kabel listrik
• User Manual (dokumen ini)

Petunjuk Keselamatan Penting

Untuk mengurangi risiko sengatan listrik, kebakaran, atau cedera, selalu ikuti tindakan pencegahan keselamatan dasar berikut:

• Baca semua petunjuk sebelum menggunakan produk.
• Jangan biarkan unit terkena hujan atau kelembapan.
• Do not open the housing. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel.
• Ensure the unit is placed on a stable surface or securely mounted to the stand.
• Jauhkan dari bahan yang mudah terbakar.
• Cabut unit dari stopkontak saat tidak digunakan atau sebelum membersihkan.
• Do not look directly into the light source when the unit is operating.
• Pastikan ventilasi yang baik di sekitar unit untuk mencegah panas berlebih.

Panduan Pengaturan

1. Merakit Dudukan: Carefully unpack the light stand components. Follow the stand's specific instructions to assemble it securely. Ensure all locking mechanisms are tightened.
2. Mount the Light Unit: Attach the 7-in-1 Stage Light System to the top of the assembled stand using the provided mounting hardware. Ensure it is firmly secured and balanced.
3. Penempatan: Place the assembled light system in the desired location, ensuring it is stable and has adequate clearance for ventilation.
4. Hubungkan Daya: Insert the power cable into the power input port on the light unit, then plug the other end into a standard electrical outlet (AC 100-240V, 50/60Hz).
5. Nyalakan Daya Pertama: Locate the power switch on the unit and turn it to the "ON" position. The lights should illuminate, indicating the unit is receiving power.

Petunjuk Pengoperasian

The ZQ01337 offers multiple lighting effects and control modes. Familiarize yourself with the control panel or remote control (if included) to navigate these options.

Panel Kontrol Berakhirview

The control panel typically includes a display screen and several buttons (e.g., MODE, UP, DOWN, ENTER) to select and adjust settings.

Mode Pencahayaan

• Mode otomatis: The light system cycles through various pre-programmed patterns and colors automatically.
• Mode Aktivasi Suara: The lights respond to ambient sound or music. Adjust sensitivity if available.
• Mode Strobo: Produces rapid flashes of light. Speed can often be adjusted.
• UV (Blacklight) Mode: Emits ultraviolet light, causing certain materials to glow.
• Disco Ball Effect: Projects rotating patterns, simulating a traditional disco ball.
• Colorful/RGB Mode: Allows selection of specific colors or color combinations (Red, Green, Blue, White, etc.).
• Modus DMX: For professional control using a DMX controller (requires DMX cables and a compatible controller, not included). Refer to the DMX channel chart in the specifications for details.

Menyesuaikan Pengaturan

Use the UP/DOWN buttons to navigate through options and the ENTER button to confirm selections. The MODE button typically switches between main operating modes.

Pemeliharaan

Regular maintenance ensures the longevity and optimal performance of your stage light system.

• Pembersihan: Disconnect power before cleaning. Use a soft, dry cloth to wipe the exterior of the unit. For lenses, use a soft, lint-free cloth and a mild glass cleaner if necessary. Do not use abrasive cleaners or solvents.
• Ventilasi: Ensure ventilation openings are clear of dust and debris. Periodically use compressed air to clear vents.
• Penyimpanan: When not in use for extended periods, store the unit in its original packaging or a protective case in a cool, dry place, away from direct sunlight and extreme temperatures.
• Pemeriksaan Kabel: Regularly inspect the power cable and any other connected cables for signs of damage. Replace damaged cables immediately.

Penyelesaian Masalah

If you encounter issues with your stage light system, refer to the following common problems and solutions:

Spesifikasi

Garansi dan Dukungan

This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the retailer.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Generic customer service through your purchase platform or the contact information provided by the seller.

Note: Protection plans may be available for purchase separately. These plans are offered by third parties and are not directly associated with the manufacturer's warranty.
