MCombo HL198M3 3-Seater Power Reclining Sofa Instruction Manual

Perkenalan

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your MCombo HL198M3 3-Seater Power Reclining Sofa. Please read this manual thoroughly before use to ensure proper function and longevity of your product.

Informasi Keselamatan

Always follow basic safety precautions when using electrical appliances to reduce the risk of electric shock, fire, or injury. This sofa features an anti-forward-tip mechanism to enhance stability during operation. Ensure all connections are secure before use.

• Jauhkan anak-anak dan hewan peliharaan dari bagian yang bergerak pada kursi malas.
• Jangan izinkan siapa pun untuk duduk di sandaran kaki saat sandaran kaki tersebut diperpanjang.
• Avoid placing hands or feet near the reclining mechanism.
• Pastikan kabel listrik tidak terjepit atau rusak.
• Unplug the sofa from the power outlet before cleaning or maintenance.

Pengaturan dan Perakitan

Your MCombo HL198M3 sofa requires partial assembly. It is recommended that two people assemble this product. All necessary tools are included.

Membuka Kemasan dan Identifikasi Komponen

Carefully unpack all components and verify against the included parts list. The sofa arrives in multiple boxes. Components include left backrest, right backrest, middle backrest, left base, middle base, right base, armrests, accessories box, and instruction manual.

Image: MCombo 3-Seater Power Reclining Sofa, showcasing its design and certifications.

Langkah-langkah Perakitan

1. Remove Protective Round Bar: Locate and remove the protective round bar from the base units.
2. Install Anti-forward-tipping Parts and Support Legs: Attach the anti-forward-tipping brackets and support legs to the underside of each base unit. Ensure they are securely fastened.
3. Wooden High Legs Assembly: Turn the armrests upside down and ensure the wooden high legs are securely tightened.
4. Bases Assembly: Connect the left base with the middle base, and then connect the right base. Ensure all base units lock properly together.
5. Perakitan Sandaran Tangan: Insert the two brackets on each armrest downwards into the corresponding slots on the base units. Once secure, fully depress them.
6. Backrests Assembly: Align the backrest brackets with the base brackets and press down to secure each backrest. Ensure a firm connection.
7. Koneksi Kawat: Connect all chair wiring, ensuring each connection is firm. Then, connect the power adapter and plug it into a wall outlet.
8. Tempel Velcro: Pull out and paste the Velcro strips to secure the cushions.

Panduan Video Perakitan

Petunjuk Pengoperasian

Your MCombo HL198M3 sofa features power reclining mechanisms, adjustable headrests, and convenient charging ports.

Power Reclining and Adjustable Headrest

Each seat is equipped with independent button controls. Use the buttons on the side of the armrest to adjust the recline position and the headrest angle. The sofa offers standard TV modes and a 145° recline for comfort. The headrest can be adjusted from 0-90° for optimal neck support.

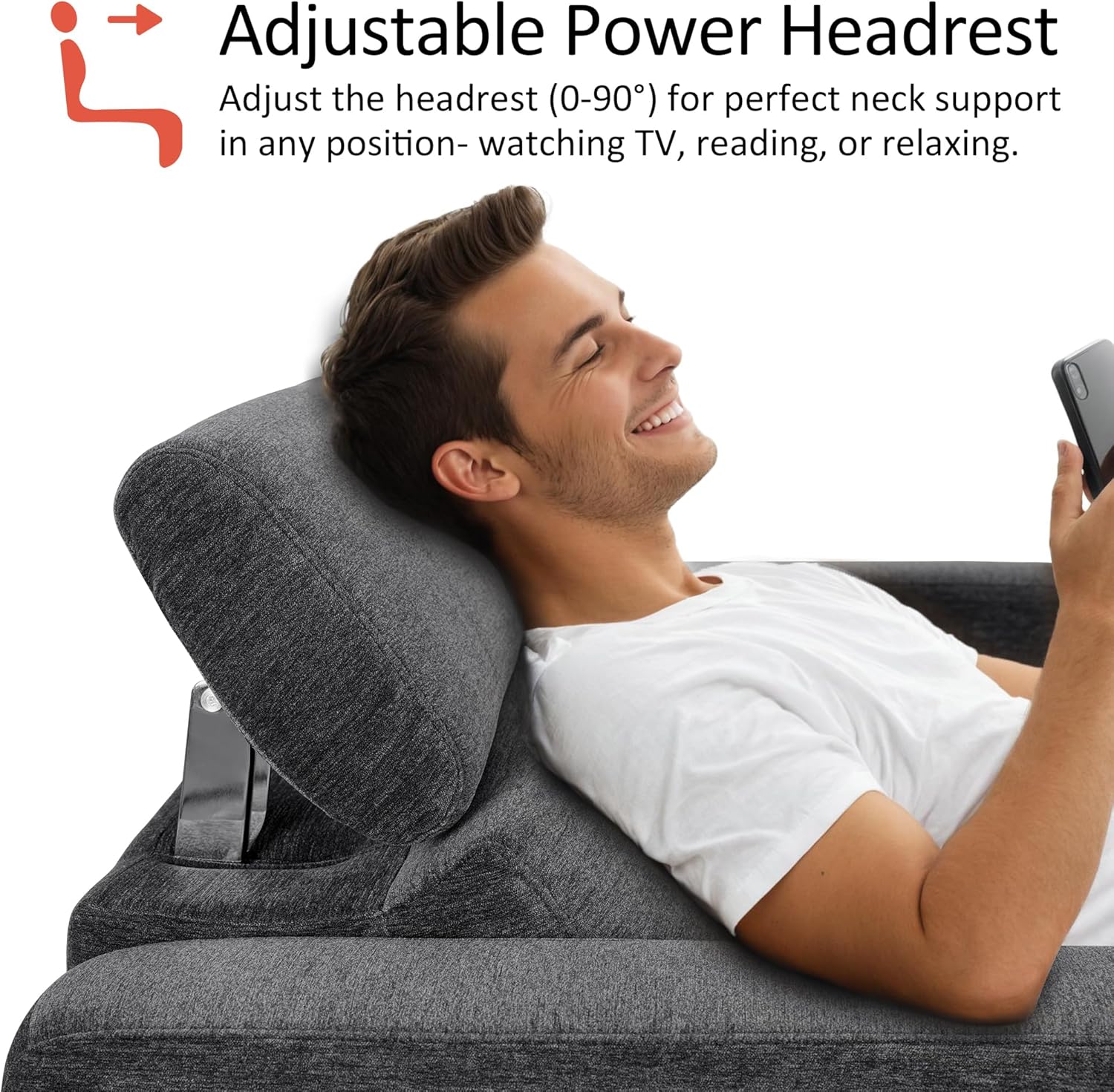

Image: Close-up of the adjustable power headrest, showing its range of motion for neck support.

One-Touch Reset Function

The user-friendly controller includes a home button. Pressing this button will return the chair to its upright position from any reclined state within a maximum of 22 seconds.

Image: The control panel with the one-touch reset button, USB, and Type-C ports.

USB A & C Charge Ports

Dual USB and Type-C charge ports are conveniently located on both armrests, allowing you to charge your phone or tablet while relaxing.

Zero Wall Hugger Feature

The sofa's forward-gliding mechanism allows it to recline fully even when placed close to a wall, optimizing space in your living area.

Image: Diagram illustrating the true zero-clearance design, allowing the sofa to recline close to a wall.

Panduan Video Pengoperasian

Pemeliharaan

To maintain the appearance and functionality of your MCombo sofa, follow these care instructions:

• Pembersihan: Wipe clean with a dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Tumpahan: Segera bersihkan tumpahan dengan kain bersih dan kering. Jangan digosok.
• Perawatan Kain: The chenille fabric is designed for durability and fade resistance. Regular light vacuuming can help remove dust and debris.
• Perawatan Mekanisme: Periodically check all bolts and screws to ensure they are tight. Lubricate moving parts of the reclining mechanism if necessary, using a silicone-based lubricant.
• Paparan sinar matahari: Hindari paparan sinar matahari langsung dalam jangka waktu lama untuk mencegah memudarnya kain.

Penyelesaian Masalah

If you encounter any issues with your MCombo Power Reclining Sofa, refer to the following common solutions:

• Sofa Not Reclining:
  • Check if the power cord is securely plugged into both the sofa and the wall outlet.
  • Ensure the power adapter is correctly connected to the sofa's wiring.
  • Verify that the power switch (if present) is in the 'ON' position.
  • Confirm that the wall outlet is functional by plugging in another appliance.
• Sandaran Kepala Tidak Dapat Disetel:
  • Check all electrical connections related to the headrest mechanism.
  • Ensure no obstructions are preventing the headrest from moving.
• Suara-suara Tidak Biasa Selama Pengoperasian:
  • Inspect the reclining mechanism for any loose parts or obstructions.
  • Apply a silicone-based lubricant to moving metal parts if squeaking occurs.
• Port USB Tidak Mengisi Daya:
  • Ensure the sofa is powered on and plugged in.
  • Cobalah kabel USB atau perangkat lain untuk mengesampingkan kemungkinan kerusakan pada aksesori.

If the issue persists after attempting these steps, please contact MCombo customer support for further assistance.

Spesifikasi

Image: Detailed dimensions of the MCombo 3-Seater Power Reclining Sofa.

Gambar: Potongan melintang view showing CertiPUR-US certified high-density sponge filling for health, safety, and comfort.

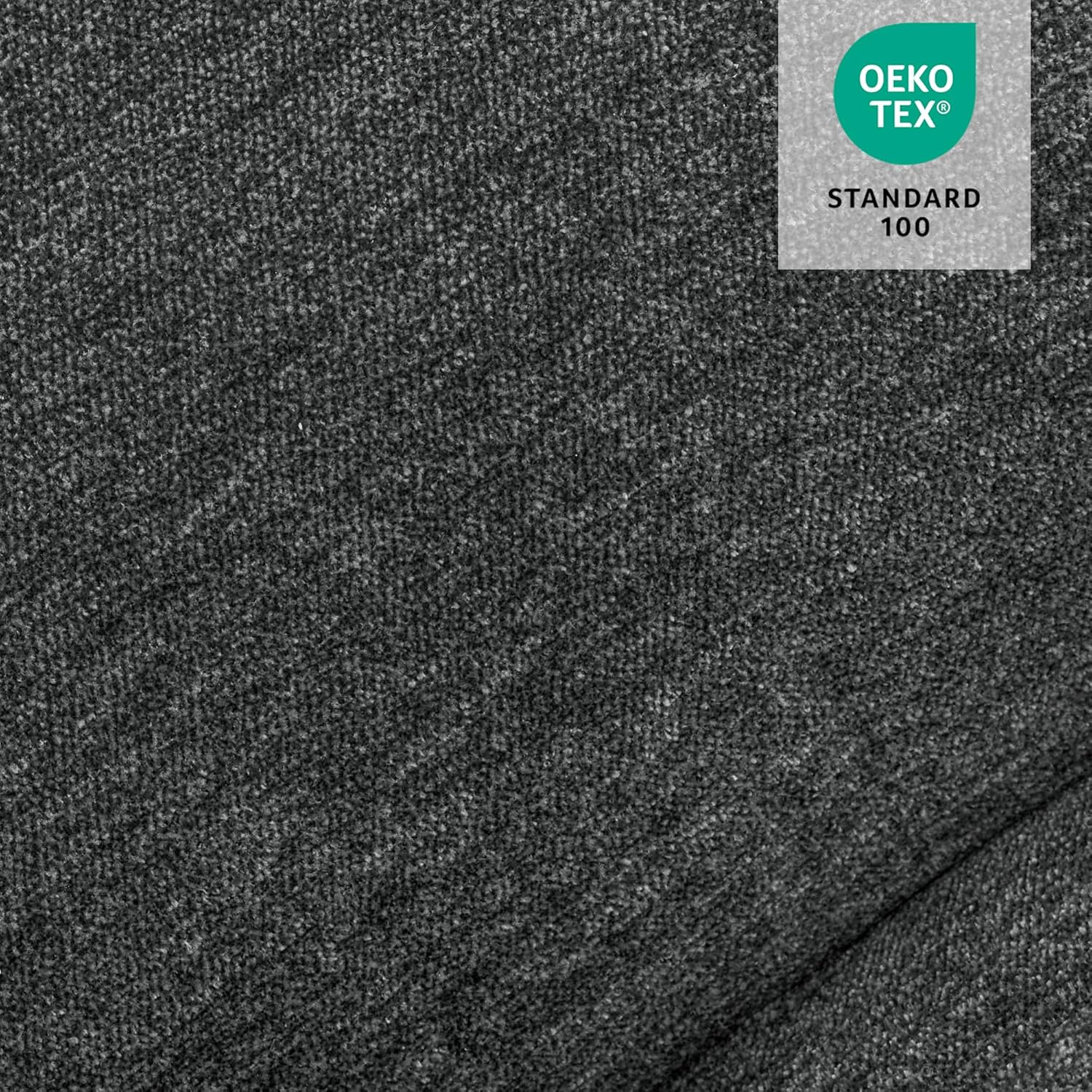

Image: Close-up of the OEKO-TEX Standard 100 certified fabric, highlighting its quality and safety.

Informasi Garansi

Your MCombo HL198M3 Power Reclining Sofa is backed by a Garansi terbatas 2 tahun. This warranty covers free replacements for:

• Reclining Mechanisms
• Sistem Kelistrikan
• Pelapis & Bantal
• Struktur Rangka Kayu/Logam

Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact customer support.

Dukungan Pelanggan

For any questions, assistance, or warranty claims regarding your MCombo HL198M3 Power Reclining Sofa, please contact MCombo customer support. You can typically find contact information on the MCombo official websitus atau melalui pengecer Anda.

MCombo is committed to providing quality products and excellent customer service. We value your feedback and are here to help.
