VEVOR Automatic Clay Pigeon Thrower Instruction Manual

Informasi Keselamatan Penting

Please read and understand all instructions and safety warnings before operating the VEVOR Automatic Clay Pigeon Thrower. Failure to follow these instructions may result in serious injury or property damage.

• Always wear appropriate eye and ear protection when operating or near the thrower.
• Keep hands, feet, and all body parts clear of the launch arm and target path at all times. The launch arm stores significant energy and can cause severe injury.
• Ensure no one is in the target's flight path or within the operating range of the thrower.
• Use only a 12V deep cycle battery to power the device. Ensure correct polarity when connecting.
• Secure the thrower firmly to the ground using the provided ground stakes to prevent movement during operation.
• Always disarm the thrower by turning off the power and releasing the launch arm tension when not in use or unattended.
• Do not modify the thrower in any way. Use only original VEVOR replacement parts.

Produk Selesaiview

The VEVOR Automatic Clay Pigeon Thrower, Model NH114-L, is an automatic skeet and trap launcher designed for shooting sports. It features a large target capacity, adjustable launch angles, and hands-free operation via a foot pedal. Its robust carbon steel and aluminum alloy construction ensures durability for outdoor use.

Image: The VEVOR Automatic Clay Pigeon Thrower, showcasing its blue and orange components, target magazine, and launch arm.

Isi Paket

Verifikasi bahwa semua komponen berikut disertakan dalam paket Anda:

• 1 x VEVOR Clay Target Thrower (Main Unit)
• 1 x Foot Pedal with extended cable
• 4 x Support Legs (may be pre-attached)
• 2 x Taruhan Tanah
• 1 x Orange Safety Ring
• Perlengkapan Perakitan (baut, mur, ring)

Petunjuk Pengaturan

Step 1: Unpacking and Initial Assembly

Carefully remove all components from the packaging. If the support legs are not pre-attached, fasten them securely to the main unit using the provided hardware. Ensure all connections are tight.

Step 2: Positioning and Securing the Thrower

Place the thrower on a stable, level surface in an open area, ensuring a clear and safe flight path for targets. Insert the two ground stakes through the designated holes in the support legs and drive them firmly into the ground. This prevents the thrower from shifting during operation.

Image: The VEVOR Clay Pigeon Thrower positioned outdoors, demonstrating the use of ground stakes for enhanced stability.

Langkah 3: Menghubungkan Daya

Connect the thrower to a 12V deep cycle battery (not included) using the provided power cables. Ensure the red clamp terhubung ke terminal positif (+) dan cl hitamamp connects to the negative (-) terminal of the battery. Verify all connections are secure before proceeding.

Image: The VEVOR Clay Pigeon Thrower connected to an external 12V battery, illustrating the power connection setup.

Petunjuk Pengoperasian

Loading Clay Targets

Load up to 50 standard clay targets into the vertical magazine. Ensure the targets are stacked correctly and can move freely downwards without obstruction. Do not force targets into the magazine.

Image: A user loading multiple clay targets into the vertical magazine of the VEVOR thrower, demonstrating its 50-clay capacity.

Adjusting Launch Angle and Distance

The thrower features an adjustment knob to modify the launch angle. By tightening or loosening this knob, you can control the trajectory and throwing distance of the clay targets. The thrower is capable of launching targets over 55 yards.

Image: A close-up of the adjustment knob on the VEVOR thrower, with an inset showing a shooter and a clay target in flight, illustrating adjustable launch distance.

Launching Targets with the Foot Pedal

Once the thrower is powered on and targets are loaded, step on the foot pedal to initiate an automatic launch. The thrower will launch a target approximately every 2 seconds. Release the foot pedal to stop the launching sequence.

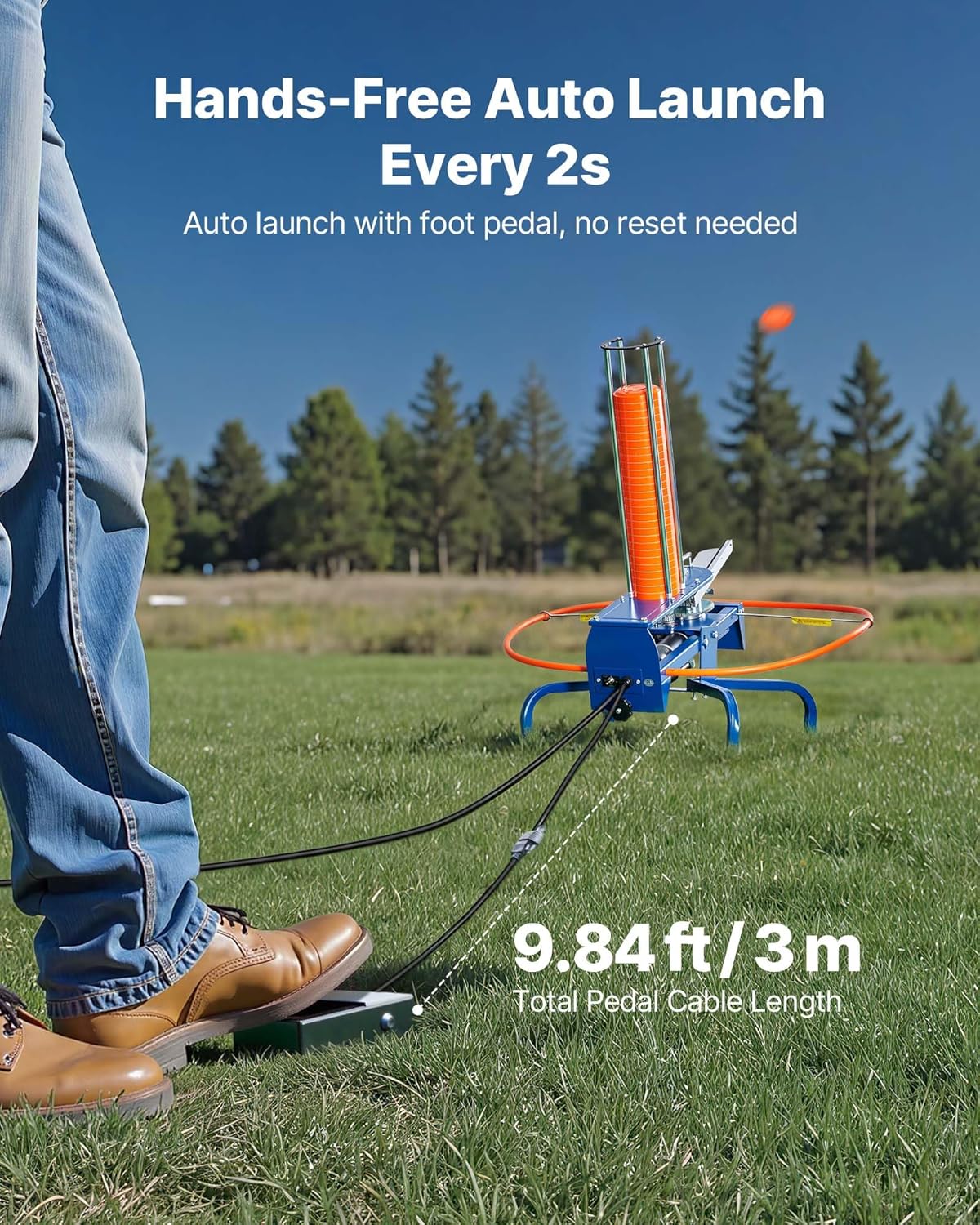

Image: A user's foot on the extended foot pedal of the VEVOR thrower, demonstrating hands-free automatic target launching.

Safety Procedure When Not in Use

When you are finished using the thrower or if it will be unattended, always follow these steps to ensure safety:

1. Flip the power switch to the "OFF" position.
2. Step on the foot pedal to release any tension in the launch arm, allowing it to rest in a relaxed, safe state.
3. Lepaskan baterai.

Image: A three-step visual guide demonstrating how to safely disarm the thrower: turning off the switch, pressing the foot pedal to release tension, and showing the launch arm in a relaxed position.

Pemeliharaan

Regular maintenance ensures the longevity and optimal performance of your VEVOR Clay Pigeon Thrower.

• Pembersihan: After each use, clean the thrower to remove any dirt, dust, or broken clay fragments. Pay special attention to the launch arm mechanism and target feeding area.
• Inspeksi: Periodically inspect all moving parts, bolts, and connections for wear, damage, or looseness. Tighten any loose fasteners.
• Pelumasan: Apply a suitable lubricant to moving components, such as the launch arm pivot points and gear mechanisms, to ensure smooth operation and prevent corrosion.
• Penyimpanan: Store the thrower in a dry, protected area away from extreme temperatures and moisture when not in use.

Penyelesaian Masalah

If you encounter issues with your VEVOR Clay Pigeon Thrower, refer to the following common problems and solutions:

• Thrower does not launch:
  • Check the battery connection and ensure the battery is adequately charged.
  • Pastikan sakelar daya berada pada posisi "ON".
  • Ensure the foot pedal cable is securely connected to the thrower.
• Inconsistent or weak throws:
  • Check for any obstructions in the launch path or within the target feeding mechanism.
  • Ensure clay targets are loaded correctly and are not damaged or warped.
  • Inspect the launch arm for any damage or excessive wear.
  • Pastikan baterai memiliki daya yang cukup.
• Thrower moves during operation:
  • Ensure the ground stakes are fully inserted and the thrower is on a stable, level surface.
  • Re-tighten any loose bolts on the support legs.

Spesifikasi

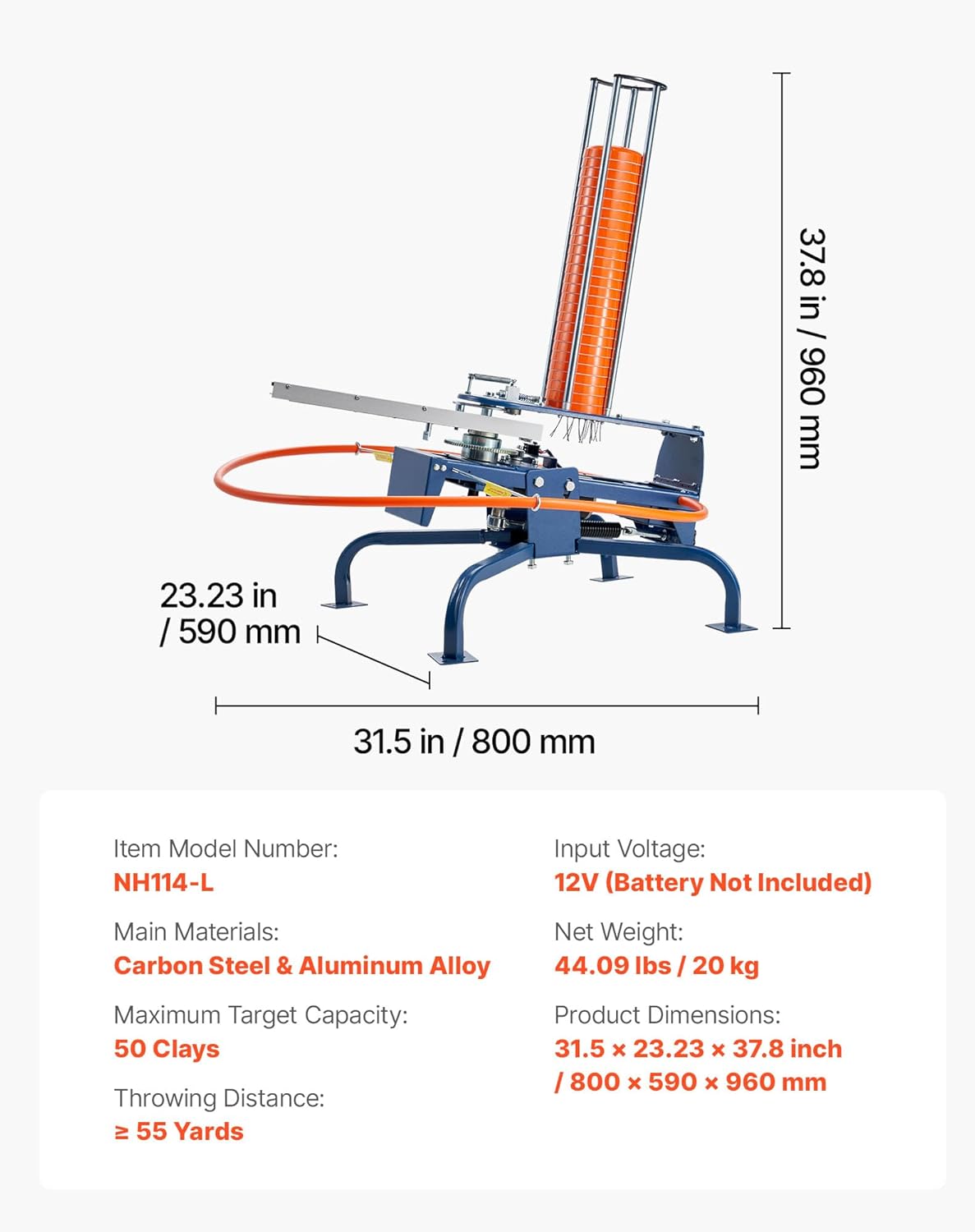

Image: A diagram illustrating the key dimensions of the VEVOR Clay Pigeon Thrower, including height, width, and depth.

Garansi dan Dukungan

For detailed warranty information, product registration, or technical support, please visit the official VEVOR website or contact VEVOR customer service. Please retain your purchase receipt as proof of purchase for any warranty claims.

You can find additional resources and contact information at the Toko VEVOR di Amazon.
