MOMAX Magnetic Power Bank 5000mAh (Model: IP116A) User Manual

Perkenalan

Thank you for choosing the MOMAX Magnetic Power Bank 5000mAh. This ultra-slim, Magsafe-compatible portable charger is designed to provide convenient and fast charging for your iPhone 12/13/14/15/16/17 series and other compatible devices. Please read this manual carefully to ensure proper use and optimal performance of your power bank.

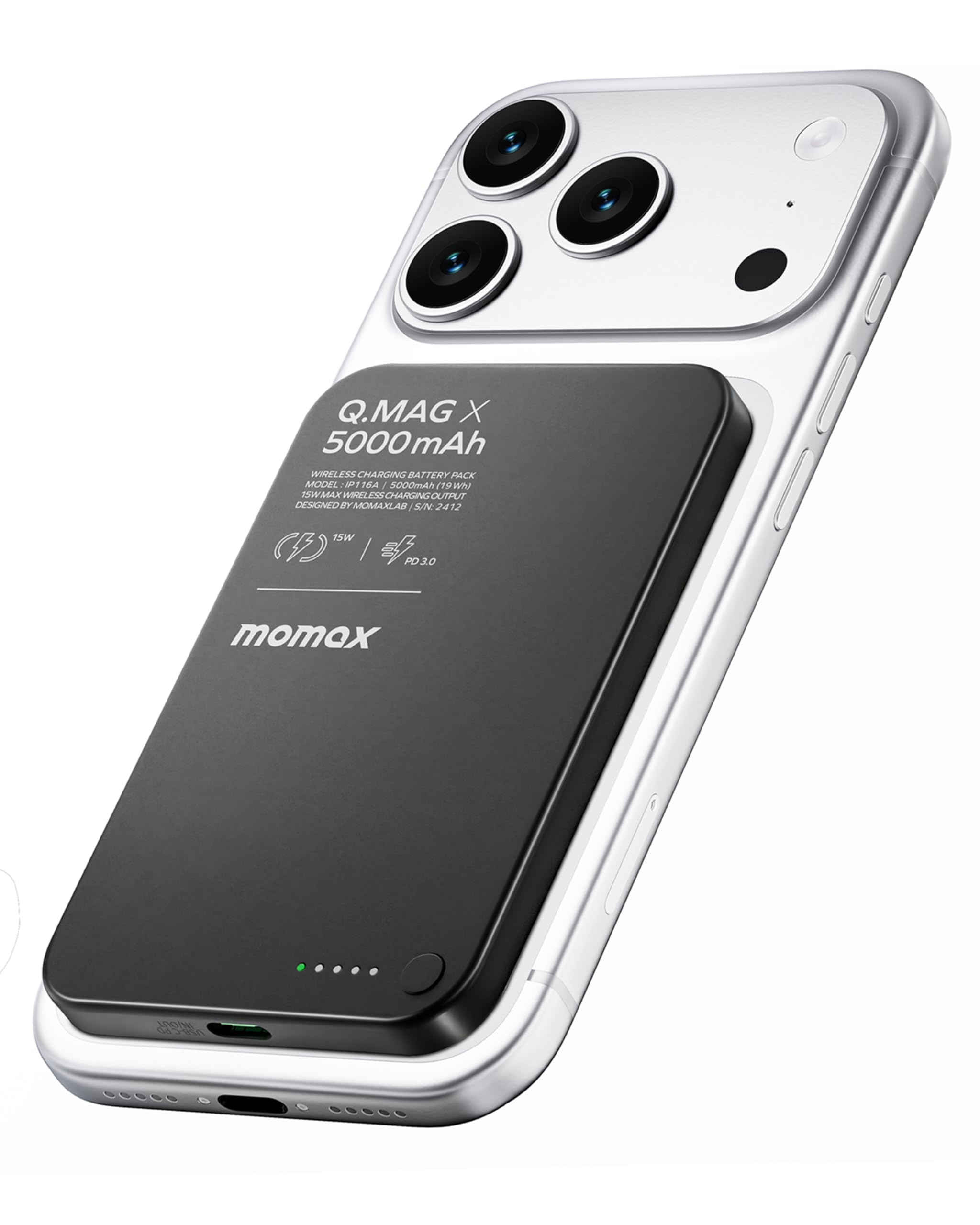

Figure 1: MOMAX Magnetic Power Bank 5000mAh attached to a smartphone.

Fitur Produk

• Desain Ultra Ramping: At only 0.3 inches (8.3mm) thick, this power bank is designed for portability and comfort, fitting easily in your hand or pocket.
• Kapasitas 5000mAh: Provides substantial power, capable of charging an iPhone 12/13/14/15/16/17 Pro up to 1.7 times.
• Daya Tarik Magnetik yang Kuat: Equipped with N52 magnets for secure attachment and precise alignment, ensuring efficient wireless charging.
• Pengisian Daya Cepat dengan Kabel & Nirkabel: Supports up to 15W wireless charging (max. 7.5W for iPhone) and 20W PD USB-C wired charging, allowing simultaneous charging of two devices.
• Perlindungan Keamanan Tingkat Lanjut: Features built-in safeguards against overcharging, short circuits, and temperature fluctuations for reliable use.

Figure 2: The MOMAX power bank offers quick magnetic attachment and is flight-approved.

Figure 3: Demonstrating the ultra-slim design of the power bank.

Figure 4: Visual representation of the 5000mAh capacity and internal safety features.

Figure 5: Illustration of the strong magnetic alignment for efficient charging.

Isi Paket

Silakan periksa paket untuk item berikut:

• MOMAX Magnetic Power Bank 5000mAh (Model: IP116A)
• Kabel Pengisi Daya USB-C ke USB-C
• Panduan Pengguna

Pengaturan

1. Tagihan Awal: Before first use, fully charge your MOMAX Magnetic Power Bank. Connect the provided USB-C cable to the power bank's USB-C port and the other end to a compatible USB power adapter (not included). The LED indicators on the power bank will show the charging status.
2. Indikasi Pengisian Penuh: All LED indicators will be solid when the power bank is fully charged.

Petunjuk Pengoperasian

Mengisi Daya Power Bank

Untuk mengisi ulang power bank:

1. Connect the USB-C cable to the power bank's input port.
2. Connect the other end of the cable to a USB wall charger or computer USB port.
3. The LED indicators will illuminate to show the charging progress.

Mengisi Daya Perangkat Anda

The MOMAX Magnetic Power Bank offers both wireless and wired charging options.

Pengisian Daya Nirkabel (Kompatibel dengan MagSafe)

1. Ensure your device is MagSafe compatible (iPhone 12 series or later) or has a magnetic case.
2. Align the power bank with the back of your device. The strong magnets will automatically snap it into place.
3. Pengisian daya nirkabel akan dimulai secara otomatis. Indikator LED pada power bank akan menunjukkan sisa daya.

Figure 6: Wireless charging compatibility with MagSafe iPhones and magnetic cases.

Pengisian Daya Kabel (USB-C)

1. Hubungkan salah satu ujung kabel USB-C ke port output USB-C pada power bank.
2. Hubungkan ujung kabel lainnya ke port pengisian daya perangkat Anda.
3. Wired charging will begin. The power bank supports up to 20W Power Delivery (PD) for fast charging compatible devices.

Figure 7: Wired charging via USB-C for fast power delivery.

Informasi Keselamatan

Untuk memastikan pengoperasian yang aman, harap perhatikan hal berikut:

• Jangan biarkan power bank terkena suhu ekstrem, sinar matahari langsung, atau api.
• Jangan membongkar, memodifikasi, atau memperbaiki perangkat sendiri.
• Jauhkan bank daya dari air dan cairan lainnya.
• Gunakan hanya kabel dan adaptor pengisian daya yang bersertifikat.
• Hindari menjatuhkan atau membenturkan bank daya ke benturan keras.
• Jauhkan dari jangkauan anak-anak.

Pemeliharaan

• Bersihkan power bank dengan kain lembut dan kering. Jangan gunakan bahan kimia keras atau bahan abrasif.
• Simpan power bank di tempat yang sejuk dan kering saat tidak digunakan.
• Jika power bank tidak akan digunakan dalam jangka waktu lama, isi dayanya hingga sekitar 50% setiap tiga bulan untuk memperpanjang masa pakai baterai.

Penyelesaian Masalah

Q1: Why is my power bank providing fewer charges than expected?

Selama penggunaan, sebagian energi hilang karena tegangantage conversion (3.7V - 5V) and internal heat. This is typical across the industry, resulting in a usable capacity of approximately 60-80% of the stated capacity. For specific parameters, please refer to the specifications section.

Q2: How can I estimate the number of charges for my device?

You can estimate the number of charges using the formula: (Power Bank Capacity × 0.5) ÷ Device Battery Capacity = Number of Charges. For instance, charging a 3,000mAh device using a 5,000mAh wireless power bank would offer approximately 0.83 charges.

Q3: Can I take it on a plane? Why is my phone overheating?

Yes, this power bank has passed the UN38.3 test and is generally airline approved. Always check airline and FAA policies before flying. It's normal for wireless charging to warm up slightly, especially during intensive use. To minimize overheating, reduce phone usage and close high-power apps while charging.

Figure 8: Common questions and answers regarding power bank usage.

Spesifikasi

Figure 9: Detailed specifications and certifications for the power bank.

Video Produk Resmi

Garansi dan Dukungan

The MOMAX Magnetic Power Bank 5000mAh comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use.

For warranty claims, technical support, or any inquiries, please contact MOMAX customer service through the retailer where you purchased the product or visit the official MOMAX websitus untuk informasi kontak.

Harap simpan bukti pembelian Anda untuk layanan garansi.
