Northmas Electric Knife Sharpener

1. Pendahuluan

Thank you for choosing the Northmas Electric Knife Sharpener, Model S868. This device is designed to restore the sharpness of your kitchen knives quickly and efficiently, providing professional results at home. It features a 2-stage sharpening system for both coarse sharpening and fine polishing, suitable for various non-serrated kitchen knives. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Petunjuk Keselamatan Penting

• Read all instructions before using the sharpener.
• Keep the sharpener away from water or other liquids. Do not immerse the unit in water.
• Selalu cabut steker rautan dari stopkontak saat tidak digunakan, sebelum membersihkan, atau sebelum melakukan perawatan apa pun.
• Do not operate the sharpener with a damaged cord or plug, or if the unit malfunctions or has been damaged in any way. Contact customer service for assistance.
• Peralatan ini tidak ditujukan untuk digunakan oleh orang (termasuk anak-anak) dengan keterbatasan fisik, sensorik, atau mental, atau kurang pengalaman dan pengetahuan, kecuali mereka telah diberi pengawasan atau petunjuk mengenai penggunaan peralatan oleh orang yang bertanggung jawab atas keselamatan mereka.
• Anak-anak harus diawasi untuk memastikan mereka tidak bermain-main dengan peralatan tersebut.
• Use the sharpener on a stable, flat, and dry surface.
• Always hold the knife handle firmly during sharpening. Keep fingers away from the sharpening slots.
• Do not attempt to sharpen serrated knives, scissors, or ceramic knives with this device.
• Avoid excessive pressure when sharpening, as this can damage the knife blade or the sharpener.

3. Isi Paket

Verifikasi bahwa semua item ada dalam paket:

• 1 x Northmas Electric Knife Sharpener (Model S868)
• 1 x Adaptor Daya
• 1 x Panduan Pengguna

Image: Northmas Electric Knife Sharpener, power adapter, and packaging.

4. Produk Lebihview

The Northmas Electric Knife Sharpener features a two-stage sharpening system to restore and refine knife edges.

• Crude Stage (Stagdan 1): Designed for quick sharpening of dull or damaged blades. This stage uses coarser abrasives to reshape the edge.
• Fine Stage (Stagdan 2): Used for polishing the knife edge, removing burrs, and achieving a smooth, razor-sharp finish.

Image: The two sharpening stages, labeled 'Crude' for quick sharpen and 'Fine' for removing burrs.

Image: Internal components highlighting the motor designed for stable and continuous operation.

5. Pengaturan

1. Unpack the sharpener and all accessories.
2. Place the sharpener on a stable, flat, and dry surface. Ensure the power switch faces you for easy access.
3. Connect the power adapter to the sharpener's input port, then plug the adapter into a suitable 100-240V AC power outlet.

Image: The sharpener connected to its power adapter and plugged into an electrical outlet.

Image: Suction cups on the base of the sharpener provide stability during use.

6. Petunjuk Pengoperasian

Follow these steps to sharpen your knives effectively:

1. Nyalakan: Turn on the sharpener using the power switch.
2. Stage 1: Crude Sharpening (for dull knives):
   • Place the knife blade into the 'Crude' slot at an oblique angle, ensuring the blade touches the outside wall of the slot.
   • Gently pull the knife from the heel to the tip through the slot. Maintain light, consistent pressure.
   • Repeat this process 2-5 times for each side of the blade.
3. Stage 2: Fine Polishing (for refining edge and removing burrs):
   • Move the knife to the 'Fine' slot.
   • Gently pull the knife from the heel to the tip through the slot, maintaining light, consistent pressure.
   • Repeat this process 2-3 times for each side of the blade.
4. Clean Knife: After sharpening, wipe the knife blade with a clean, damp kain untuk menghilangkan partikel logam.
5. Matikan Daya: Turn off the sharpener and unplug it from the power outlet.

Catatan Penting:

• Always pull the knife towards you; never push it away from you through the slots.
• Do not saw the knife back and forth in the slots.
• For best results, use the Crude stage only when necessary. For regular maintenance, the Fine stage may be sufficient.
• This sharpener is suitable for Chef Knives, Fruit Knives, and Bone Chopping Knives. It is NOT suitable for serrated knives.

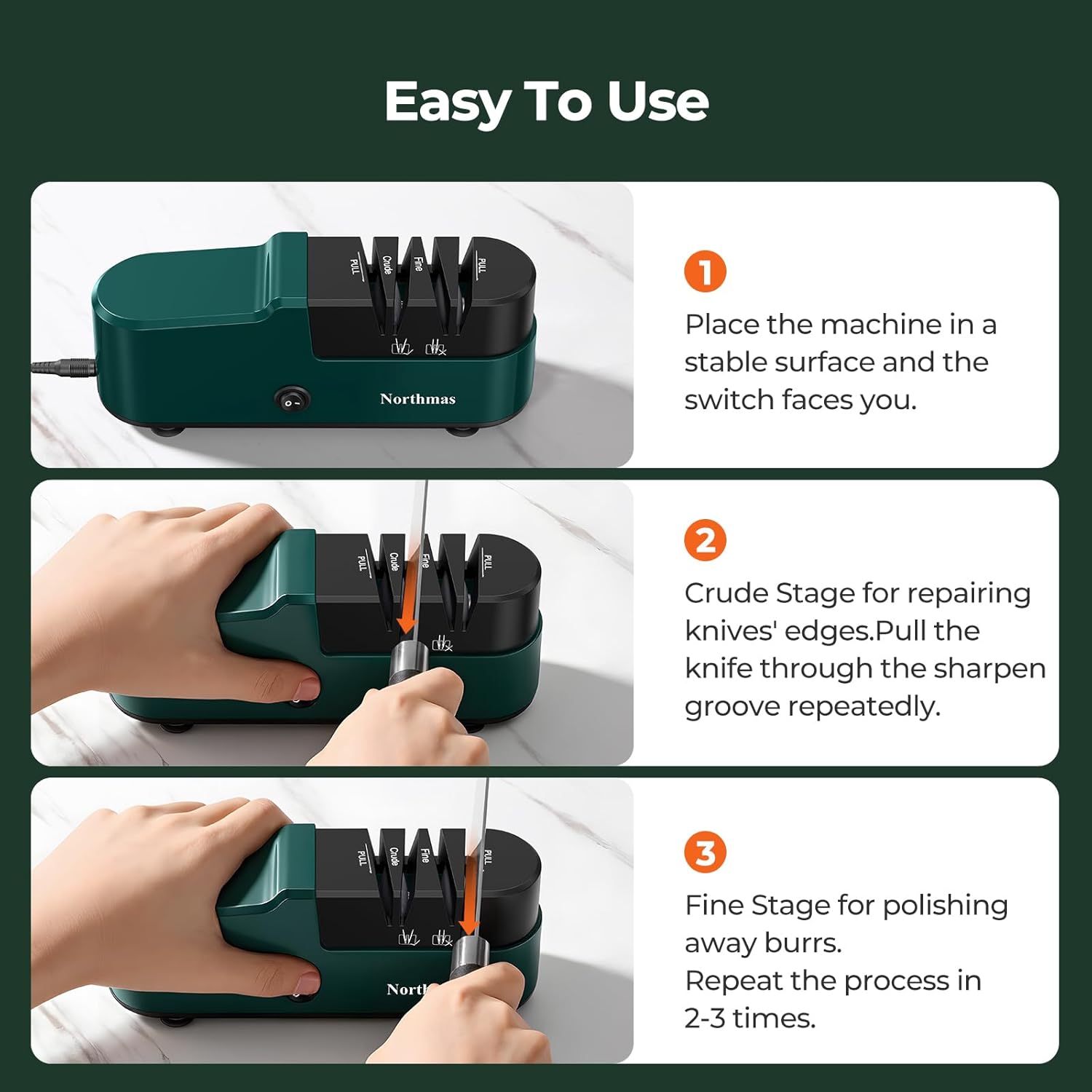

Image: Step-by-step guide for using the sharpener, illustrating knife placement and pulling motion.

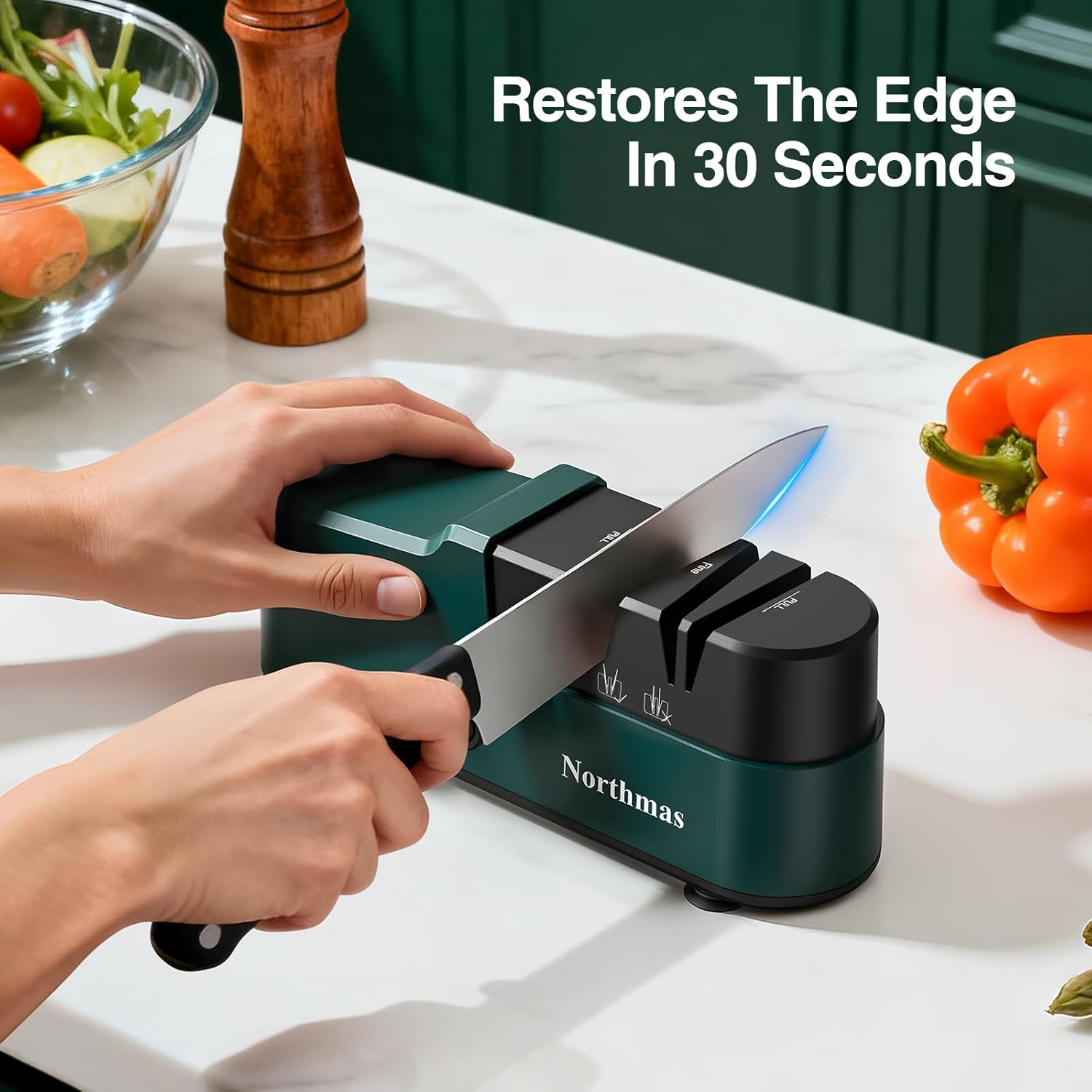

Image: A user demonstrating the correct technique for sharpening a knife with the device.

Image: Visual guide to compatible knife types for sharpening.

7. Pemeliharaan

Proper maintenance ensures the longevity and performance of your sharpener.

• Pembersihan: After each use, ensure the sharpener is unplugged. Use a dry cloth to wipe down the exterior. Do not use abrasive cleaners or immerse the unit in water.
• Penyimpanan: Store the sharpener in a dry, cool place, away from direct sunlight and out of reach of children.
• Sharpening Wheels: The sharpening wheels are designed for long-term use. If you notice a significant decrease in sharpening effectiveness over time, contact customer service.

8. Penyelesaian masalah

9. Spesifikasi

10. Garansi dan Dukungan Pelanggan

Northmas provides the following support for this product:

• Jaminan: 12 months of free new item replacement or refund service.
• Layanan Purnajual: 24 months of dedicated after-sales support.

If you encounter any quality problems or require assistance, please contact Northmas customer service. Refer to your purchase documentation for specific contact details or visit the official Northmas weblokasi.
