Fafeicy Smart Lock for Glass Doors User Manual

1. Pendahuluan

This manual provides detailed instructions for the installation, operation, and maintenance of your Fafeicy Smart Lock. Please read this manual thoroughly before installation and use to ensure proper function and security. This smart lock offers multiple unlocking methods and is designed for various door types, including glass, wooden, and sliding doors.

2. Produk Lebihview

2.1 Komponen

• Main Lock Body
• Sub Lock Body
• Installation Slabs (2)
• Soft Enamel Cards (2)
• Kunci (2)
• User Manual (dokumen ini)
• Sekrup Instalasi (10)

2.2 Fitur Utama

• Berbagai Metode Membuka Kunci: Fingerprint, Password, Swiping Card, Mechanical Key, and Remote Unlocking.
• Virtual Password Technology: Input random numbers before or after your actual password to prevent theft.
• Smart Voice Functionality: Voice navigation for setup and daily use, with integrated doorbell function and security alarms.
• Masa Pakai Baterai Tahan Lama: Powered by 4 AA batteries, operating for over 6 months with normal usage. Includes low battery warning.
• Catu Daya Darurat: Type-C interface for temporary power when batteries are depleted.
• Konstruksi Tahan Lama: Made from ABS Plastics and Aluminum Alloy for enhanced security.
• Instalasi serbaguna: Suitable for frameless glass doors, single or double doors, left or right opening doors, and sliding doors.

Gambar: Lebih dariview of the Fafeicy Smart Lock, showing its main body and sub-body from various angles, highlighting the sleek design and integrated keypad/fingerprint sensor.

3. Spesifikasi

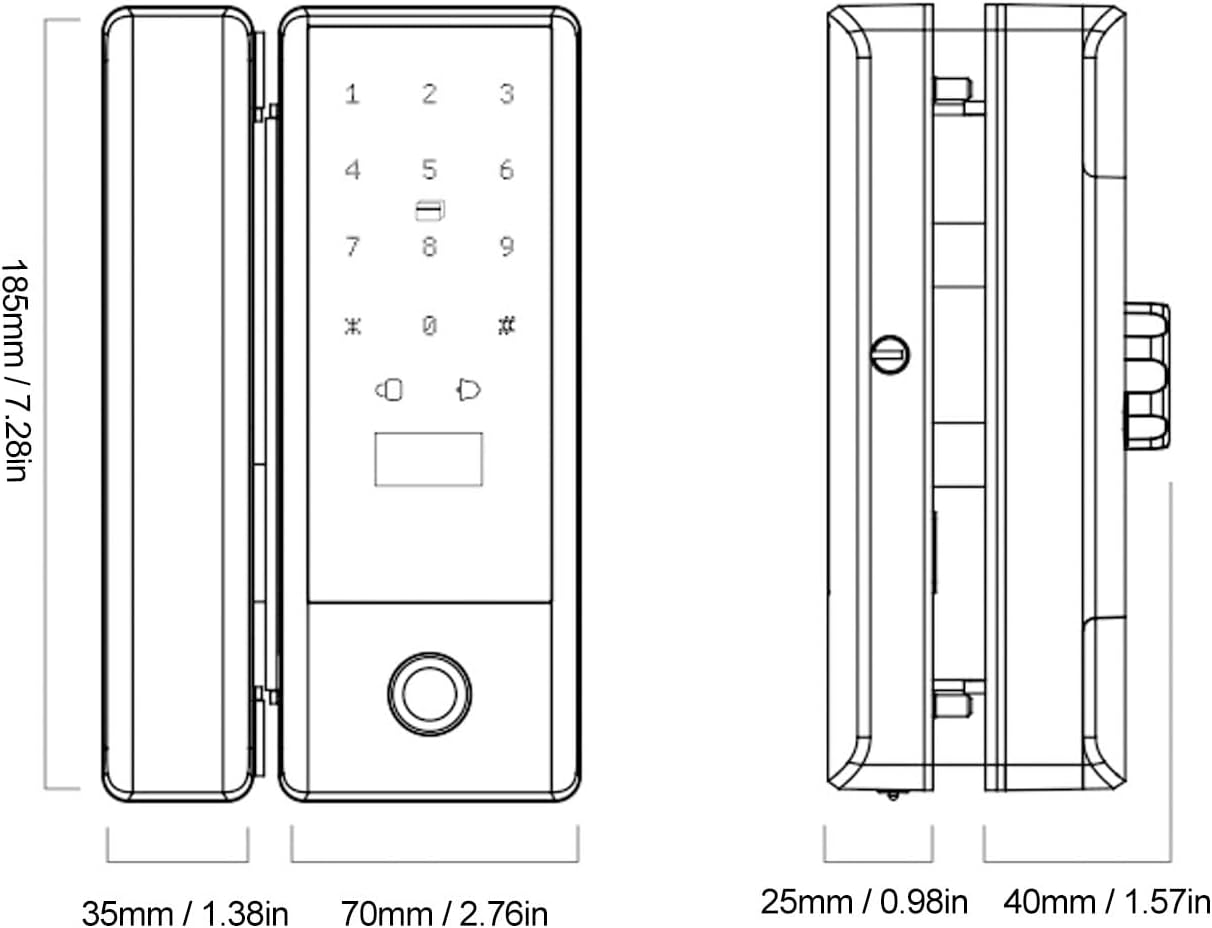

Image: Detailed dimensions of the Fafeicy Smart Lock, showing measurements for height, width, and depth of both the main and sub-lock bodies.

4. Pengaturan

4.1 Instalasi

The Fafeicy Smart Lock is designed for versatile installation on various door types. Ensure your door meets the specified thickness and crevice space requirements.

1. Siapkan Pintu: For 8mm glass doors, an additional thick plate is required for proper fitting. For framed double opening glass doors, drilling holes may be necessary, and the metal frame might need to be hollow if its width is more than 50mm.
2. Posisikan Kunci: Place the main lock body and sub lock body on the door, ensuring correct alignment for your door type (single opening, double opening, frameless, or framed).
3. Amankan Kuncinya: Use the provided installation slabs and screws to firmly attach both lock bodies to the door. Ensure the double hook locking latch engages correctly.
4. Test Mechanism: After installation, manually check the locking and unlocking mechanism to ensure smooth operation.

Image: Illustrations demonstrating various installation scenarios for the smart lock, including single opening with glass or wall sides, frameless double opening, and framed double opening glass doors, along with door thickness and seam size requirements.

Gambar: Close-up view of the double hook locking latch, illustrating its robust design for secure locking and suitability for push-pull, sliding, and partition doors.

4.2 Pemasangan Baterai

The lock requires 4 AA dry batteries (not included).

1. Locate the battery compartment on the interior side of the lock.
2. Buka penutup ruang baterai.
3. Masukkan 4 baterai AA, pastikan polaritas yang benar (+/-).
4. Tutup penutup ruang baterai dengan rapat.

4.3 Konfigurasi Awal

Upon first power-up, the lock will typically enter an initial setup mode. Follow the voice prompts to set up the administrator fingerprint or password. This administrator account is crucial for adding other users and managing lock settings.

5. Operasi

5.1 Metode Pembukaan Kunci

• Sidik jari: Place a registered finger on the fingerprint sensor. The lock will unlock upon successful recognition.
• Kata sandi: Enter your registered password on the keypad, followed by the '#' key.
• Swiping Card: Present a registered IC card to the card reader area on the lock.
• Kunci Mekanik: Jika terjadi keadaan darurat atau baterai habis, gunakan kunci mekanis yang disediakan untuk membuka pintu.
• Membuka Kunci Jarak Jauh: (If applicable and configured) Use the associated remote control or mobile application to unlock.

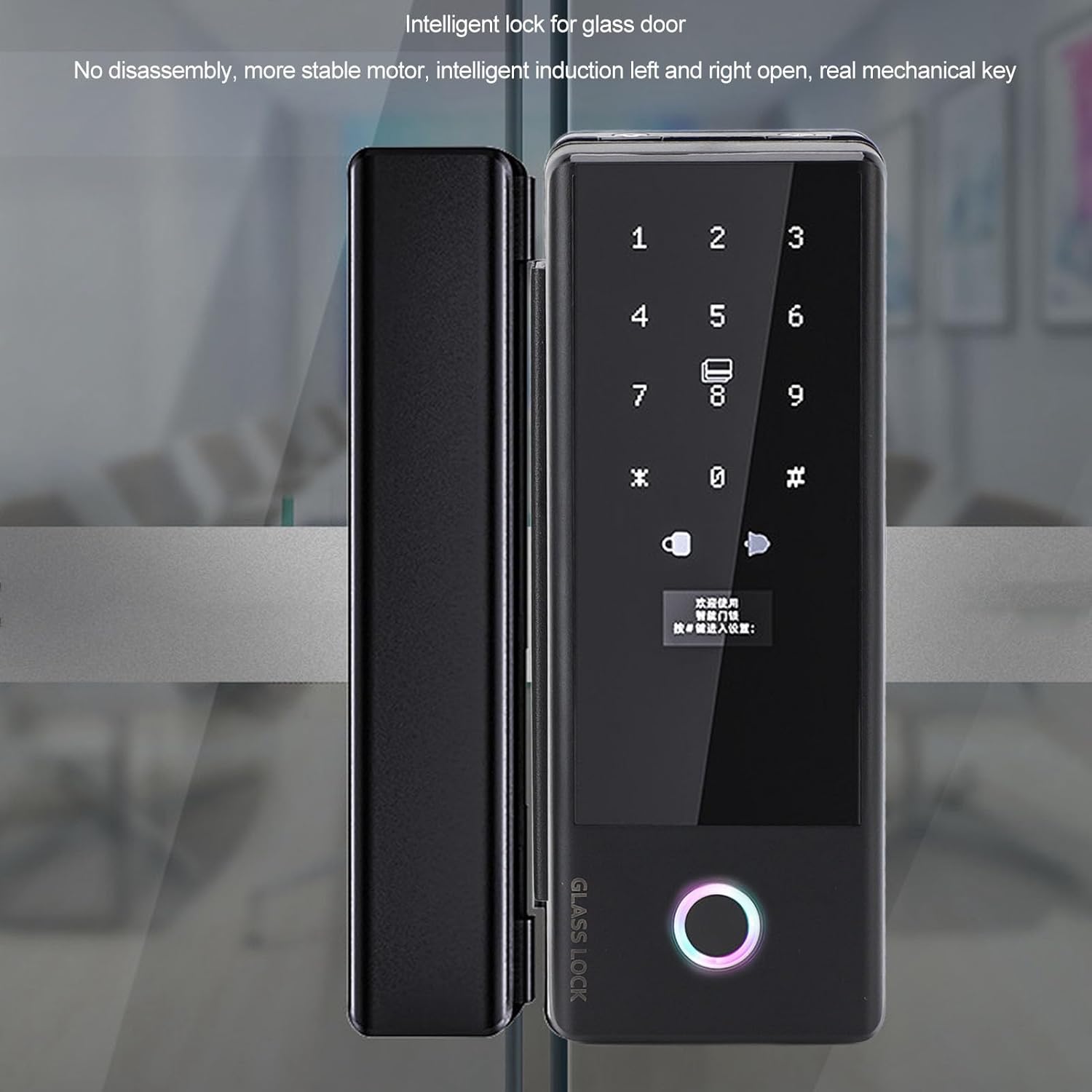

Image: The Fafeicy Smart Lock installed on a glass door, showcasing the illuminated keypad and fingerprint sensor ready for user interaction.

5.2 Kata Sandi Virtual

To enhance security, the virtual password feature allows you to enter random digits before or after your actual password. For example, if your password is '123456', you can enter '987123456012#' where '987' and '012' are random numbers. The lock will identify the correct password sequence within the longer input.

5.3 Fungsi Suara

The lock provides voice guidance for all operations, including setup, adding users, and daily unlocking. It also features a built-in doorbell function and real-voice alarms for security events.

6. Pemeliharaan

6.1 Penggantian Baterai

The lock will issue a low battery warning after approximately 200 unlocks when batteries are low. Replace all 4 AA batteries promptly to ensure continuous operation. If batteries are completely depleted, use the Type-C emergency charging port to temporarily power the lock and unlock it, then replace the batteries.

6.2 Pembersihan

Wipe the lock's surface with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electronic components.

7. Penyelesaian masalah

• Kunci tidak merespons: Periksa level baterai. Jika lemah, ganti baterai atau gunakan daya darurat Tipe-C.
• Sidik jari tidak dikenali: Pastikan jari Anda bersih dan kering. Coba daftarkan ulang sidik jari Anda jika masalah berlanjut.
• Password yang terlupakan: Use a registered fingerprint, IC card, or mechanical key to unlock. Refer to the full manual (if provided separately) for password reset procedures.
• Voice prompts unclear: Check the volume settings if adjustable, or ensure no obstructions are covering the speaker.
• Lock mechanism stuck: Ensure proper installation and alignment. Do not force the lock. If issues persist, contact support.

8. Informasi Garansi

Specific warranty details are typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for information regarding the warranty period and terms of service for your Fafeicy Smart Lock.

9. Dukungan

For technical assistance, installation queries, or further support, please contact Fafeicy customer service through the retailer where you purchased the product or visit the official Fafeicy websitus untuk informasi kontak.
