SEESII Brushless Mini Chainsaw 6 Inch Instruction Manual

1. Pengaturan

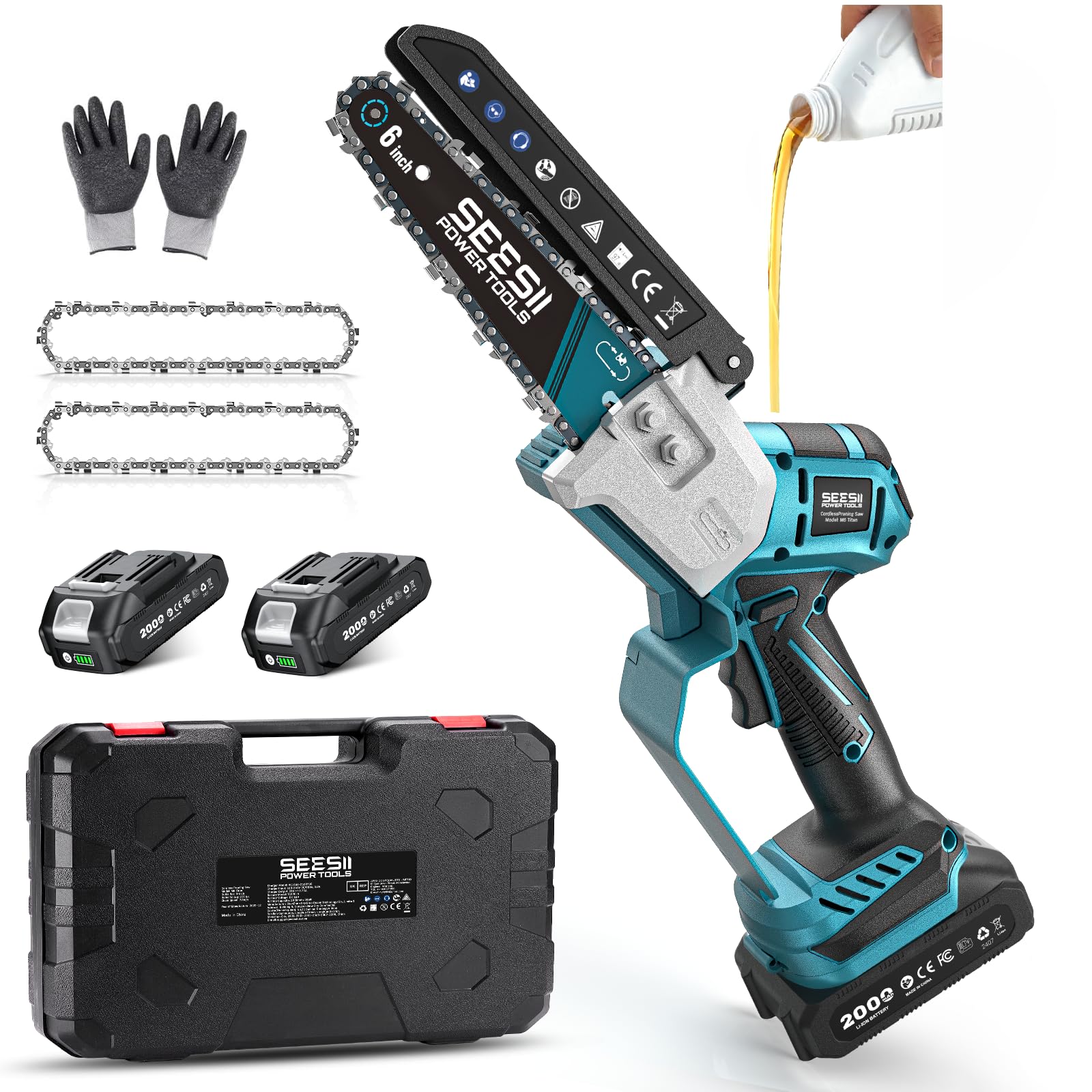

1.1 Isi Paket

Before beginning, ensure all components are present in your SEESII Mini Chainsaw package:

• 1 x SEESII Mini Chainsaw
• Baterai 2x2000mAh
• 2 x 6-inch Chains (one pre-installed)
• 1 x penutup batang
• 1 x Wrench (for chain installation)
• 1 x Botol Minyak
• 1 x Pengisi Daya
• 1 x Sepasang Sarung Tangan
• 1 x Kacamata Pengaman
• 1 x Panduan Pengguna

1.2 Pengisian dan Pemasangan Baterai

The chainsaw operates on 2 x 2000 mAh batteries. Ensure batteries are fully charged before use. The charger is included in the package.

To install a battery, align it with the battery slot at the base of the chainsaw handle and slide it in until it clicks securely into place.

1.3 Chain Installation and Adjustment

The chainsaw comes with one chain pre-installed. If you need to install or replace the chain:

1. Loosen the nuts on the side cover using the provided wrench and remove the cover.
2. Carefully remove the old chain and guide bar.
3. Place the new chain onto the guide bar, paying close attention to the direction of the cutting teeth. The arrows on the chain should point in the direction of rotation.
4. Install the guide bar and chain onto the chainsaw's drive sprocket. Ensure there is no gap when the guide plate is installed.
5. Replace the side cover and loosely tighten the nuts.
6. Adjust the chain tension by turning the tensioning screw clockwise until the chain is snug but can still be pulled slightly away from the bar (exposing 4-5 drive links).
7. Fully tighten the nuts to secure the cover and guide bar.

1.4 Automatic Oiler Setup

The chainsaw features an automatic chain oiler. Fill the transparent oil tank with appropriate chainsaw bar and chain oil (not included) using the provided oil bottle. The transparent tank allows for easy monitoring of oil levels.

2. Petunjuk Pengoperasian

2.1 Tindakan pencegahan keselamatan

Always wear the provided gloves and safety goggles when operating the chainsaw. The chainsaw is equipped with a safety lock, a splash guard, and a guide protector to minimize injury risk.

2.2 Operasi Dasar

To start the chainsaw, press the safety lock button and then pull the trigger. Release the trigger to stop the chain. The ergonomic design allows for comfortable one-handed operation.

2.3 Kinerja Pemotongan

The 1000W brushless motor provides a chain speed of 7.8 m/s, allowing it to cut through a 15 cm (6-inch) diameter log in approximately 8 seconds. It is ideal for pruning branches, cutting firewood, and various DIY projects.

3. Pemeliharaan

3.1 Perawatan Rantai

Regularly check the chain tension and adjust as needed. Sharpen the chain using the provided files or replace it with a new 6-inch chain when dull. An extra chain is included in your package.

3.2 Pembersihan

After each use, clean the chainsaw, especially the guide bar and chain, to remove sawdust and debris. Use the included brush for effective cleaning.

3.3 Oiler Maintenance

Keep the automatic oil tank filled with appropriate bar and chain oil. Regularly check the transparent tank to ensure sufficient oil supply for continuous lubrication during operation.

4. Penyelesaian masalah

The SEESII Mini Chainsaw is designed with comprehensive safety features to prevent common issues:

• Di bawah volumetage Perlindungan: The chainsaw will automatically shut off if the battery voltage drops too low, protecting the battery and motor. Recharge the battery.
• Perlindungan Beban Berlebih: If the motor is under excessive strain, the chainsaw will stop to prevent damage. Reduce the load or check for obstructions.
• Perlindungan dari Panas Berlebih: To prevent damage from prolonged use, the chainsaw may temporarily shut down if it overheats. Allow it to cool down before resuming operation.

For any other issues, refer to the detailed user manual or contact customer service.

5. Spesifikasi

6. Garansi & Dukungan

The SEESII Brushless Mini Chainsaw comes with a Garansi pabrik 24 bulan. For any product inquiries, technical support, or warranty claims, please contact SEESII customer service. Our friendly customer service team is ready to assist you.
