Perkenalan
This manual provides detailed instructions for the safe and efficient operation of your Reshow Portable Cassette Tape Player. Please read this manual thoroughly before using the device and retain it for future reference.
Produk Selesaiview
The Reshow Portable Cassette Tape Player is designed for playing audio cassette tapes. It features a built-in speaker for direct listening and a headphone jack for private audio. The device can be powered via USB-C or batteries, offering portability and convenience.

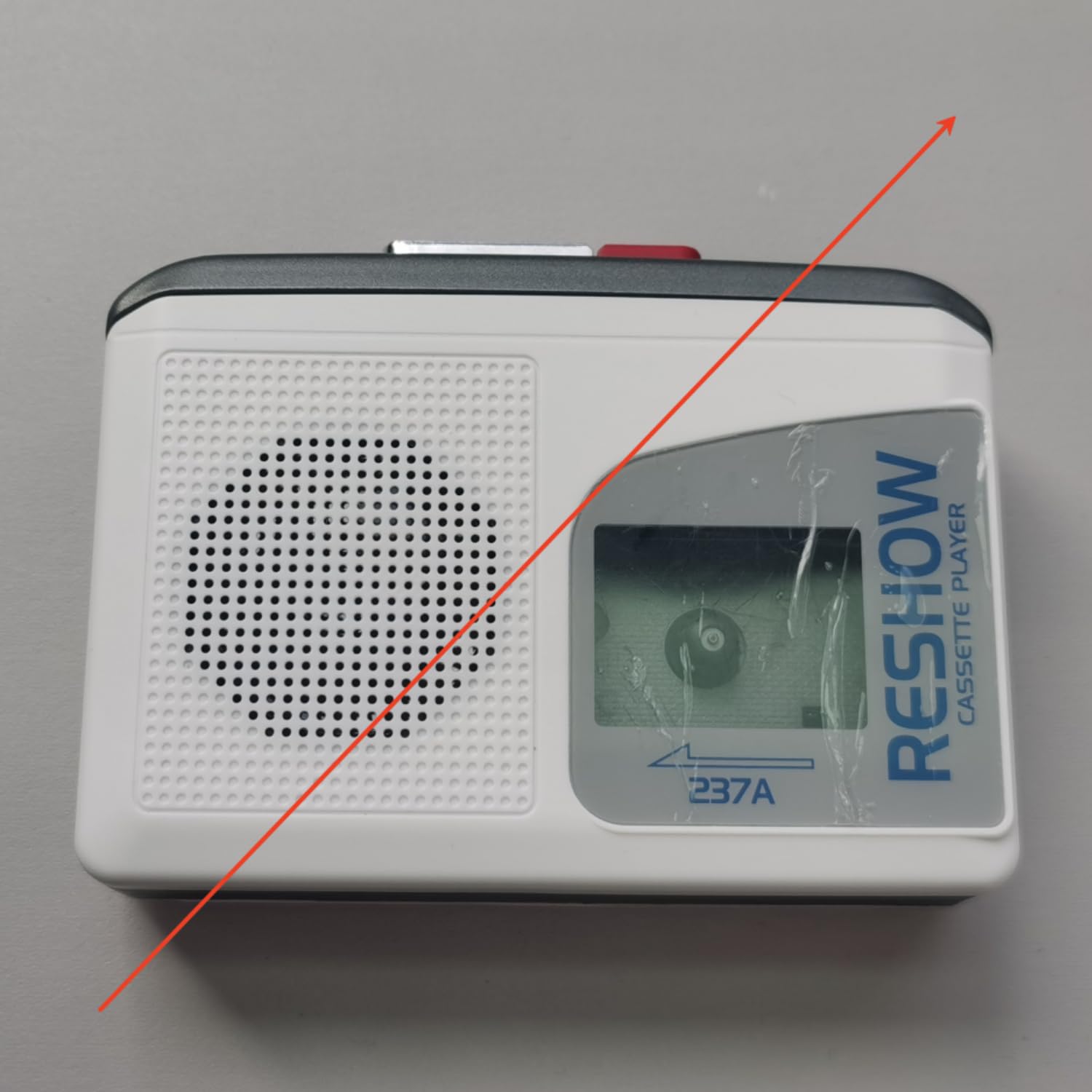

Image: The Reshow Portable Cassette Tape Player, a compact device for playing audio cassettes.
Gambar: Depan view of the Reshow Cassette Player showing the cassette window and playback controls.
Informasi Keselamatan
- Jangan biarkan perangkat terkena air atau kelembapan berlebihan.
- Hindari suhu ekstrem.
- Jangan mencoba membongkar atau memperbaiki perangkat sendiri. Hubungi teknisi servis yang berkualifikasi.
- Use only the specified power source (USB-C cable or appropriate batteries).
- Jauhkan dari jangkauan anak-anak.
Isi Paket
Verifikasi bahwa semua item ada dalam paket:
- Reshow Portable Cassette Tape Player
- Kabel Daya USB-C
- Panduan Pengguna
Pengaturan
Menyalakan Perangkat
The cassette player can be powered in two ways:
- Daya USB-C: Connect the provided USB-C cable to the USB-C port on the side of the player and plug the other end into a compatible USB power adapter (not included) or a computer USB port.
- Daya Baterai: Open the battery compartment on the back of the player. Insert 2 AA batteries (not included), ensuring correct polarity (+/-). Close the battery compartment securely.
Gambar: Samping view of the Reshow Cassette Player, highlighting the USB-C power input and headphone jack.
Loading a Cassette Tape
- Press the 'OPEN' button or slide the latch to open the cassette compartment door.
- Insert a standard audio cassette tape with the exposed tape facing upwards and the side you wish to play facing the front.
- Tutup pintu ruang kaset secara perlahan hingga berbunyi klik.
Petunjuk Pengoperasian
Kontrol Pemutaran Ulang
- MAINKAN (►): Press this button to start playing the cassette tape.
- BERHENTI (■): Tekan tombol ini untuk menghentikan pemutaran.
- MAJU CEPAT (FF): Press this button to quickly advance the tape. Press STOP to disengage.
- PUTAR ULANG (MUNDUR): Press this button to quickly rewind the tape. Press STOP to disengage.
- VOLUME: Rotate the volume dial (typically on the side) to adjust the audio output level.
Using the Built-in Speaker
The built-in speaker will automatically activate when no headphones are connected to the headphone jack. Adjust the volume dial to your desired listening level.
Menggunakan Headphone
To listen privately, plug a standard 3.5mm headphone jack into the headphone port on the side of the player. The built-in speaker will automatically mute. Adjust the volume dial for comfortable listening.
Pemeliharaan
Pembersihan
- Usap bagian luar pemutar musik dengan kain lembut dan kering.
- Jangan gunakan cairan pembersih atau bahan abrasif.
- Periodically clean the tape head and pinch roller using a specialized cassette head cleaning kit to ensure optimal sound quality and tape longevity.
Penyimpanan
When not in use, store the cassette player in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if the device will not be used for an extended period to prevent leakage.
Penyelesaian Masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Tidak ada daya | Batteries are dead or incorrectly inserted; USB-C cable not connected properly. | Replace batteries or check USB-C connection. |
| Tidak ada suara | Volume too low; headphones connected; tape head dirty. | Increase volume; unplug headphones; clean tape head. |
| Tape not playing/moving | Tape is jammed; tape compartment not closed; batteries low. | Check tape for damage; ensure compartment is closed; replace batteries. |
| Kualitas suara buruk | Dirty tape head; worn-out tape. | Clean tape head; try a different tape. |
Spesifikasi
- Merek: Tampilkan ulang
- Model: B0GSPR9NFW
- Sumber Daya: USB-C (DC 5V) or 2 x AA Batteries
- Keluaran Audio: Speaker internal, jack headphone 3.5 mm
- Media yang Kompatibel: Standard Audio Cassette Tapes
- UPC-nya: 797465915221
Garansi dan Dukungan
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Reshow websitus. Simpan struk pembelian Anda sebagai bukti pembelian.
