Perkenalan
The Mr. Coffee 12-Cup Electric Coffee Grinder and Spice Grinder (Model IDS77) is designed to provide freshly ground coffee beans with variable grind settings. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance.

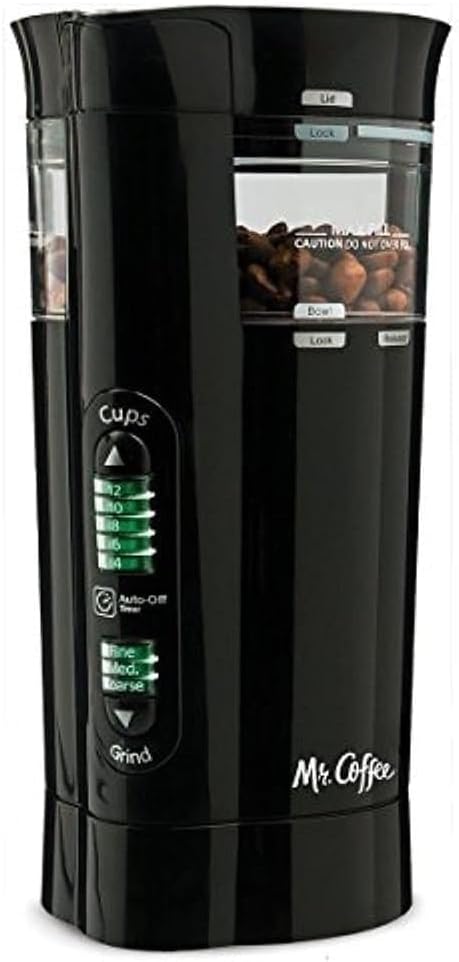

Figure 1: Assembled Mr. Coffee 12-Cup Electric Coffee Grinder.
Informasi Keselamatan Penting
- Baca semua petunjuk sebelum menggunakan alat ini.
- Jangan merendam alat dalam air atau cairan lainnya.
- Pengawasan ketat diperlukan saat peralatan apa pun digunakan oleh atau di dekat anak-anak.
- Cabut dari stopkontak saat tidak digunakan, sebelum memasang atau melepas komponen, dan sebelum membersihkan.
- Hindari kontak dengan bagian yang bergerak.
- Jangan mengoperasikan alat apa pun dengan kabel atau steker yang rusak, atau setelah alat mengalami malfungsi atau terjatuh atau rusak dengan cara apa pun.
- Penggunaan perlengkapan yang tidak direkomendasikan atau dijual oleh produsen dapat menyebabkan kebakaran, sengatan listrik, atau cedera.
- Jangan gunakan di luar ruangan.
- Jangan biarkan kabel menggantung di tepi meja atau meja dapur, atau menyentuh permukaan panas.
- Jangan menaruhnya di atas atau di dekat kompor gas atau listrik yang panas, atau di dalam oven yang sedang dipanaskan.
- Jangan gunakan alat untuk tujuan selain penggunaan rumah tangga.
Fitur Produk
- Automatic Coffee and Spice Grinder: Features variable settings for Coarse, Medium, or Fine grinds.
- Chamber Maid Cleaning System: Sweeps chamber walls to reduce mess and waste, ensuring thorough cleaning.
- Ruang Penggilingan yang Dapat Dilepas: Allows for easy filling, optimal pouring, and hassle-free cleaning.
- Exact Measure: Precisely grinds for 4 to 12 cups of coffee.
- 3 Pengaturan Penggilingan: Choose between Coarse, Medium, or Fine depending on your brewing method.
- Panjang Kabel: 25 inci.
Figure 2: Key features of the Mr. Coffee Electric Coffee Grinder.
Pengaturan
1. Membongkar dan Membersihkan Awal
Carefully remove all packaging materials. Wash the removable grinding chamber and lid in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the grinder base with a damp kain.
2. Assembling the Grinder
Place the clean, dry grinding chamber back into the grinder base. Ensure it is securely seated. Place the lid onto the grinding chamber and twist it clockwise until it locks into place. The grinder will not operate unless the lid is properly secured.
3. Filling with Coffee Beans
Open the flip-open lid on the grinding chamber. Fill the chamber with fresh, whole coffee beans. Do not fill past the 'MAX FILL' line indicated on the chamber. Refer to the 'Coffee Measurement Chart' in the Operating section for recommended quantities.
Figure 3: Filling the grinding chamber with coffee beans.
Petunjuk Pengoperasian
1. Select Cup Quantity
Plug the grinder into a standard electrical outlet. Use the 'Cups' arrow buttons (up/down) to select the desired number of cups (4, 6, 8, 10, or 12). The corresponding LED indicator will illuminate.
2. Select Grind Setting
Use the 'Grind' arrow buttons (up/down) to select your preferred grind setting: Fine, Medium, or Coarse. The corresponding LED indicator will illuminate.
Figure 4: Adjusting cup quantity and grind settings.
3. Start Grinding
Press and hold the 'Grind' button located on the top of the lid. The grinder will begin operation. Release the button to stop grinding manually, or allow the automatic shut-off timer to complete the cycle based on your selected settings.
Bagan Pengukuran Kopi
| Untuk menyeduh | Ground Coffee (Tbsp.) |
|---|---|
| 12 Cangkir | 9 sdm. |
| 10 Cangkir | 7.5 sdm. |
| 8 Cangkir | 6.5 sdm. |
| 6 Cangkir | 4.5 sdm. |
| 4 Cangkir | 3 sdm. |
Note: 1 level tablespoon (Tbsp.) = 5 gr. / 0.17 oz. Use more or less coffee to suit your taste.
Figure 5: Freshly ground coffee from the grinder.
Perawatan dan Pembersihan
1. Cleaning the Grinding Chamber
After each use, unplug the grinder. Remove the lid and then twist the grinding chamber counter-clockwise to remove it from the base. Empty any remaining ground coffee. The removable grinding chamber can be washed in warm, soapy water or placed on the top rack of a dishwasher. The Chamber Maid Cleaning System helps dislodge grounds from the chamber walls during removal.
2. Cleaning the Lid and Base
Bersihkan tutupnya dengan iklanamp cloth. The grinder base should only be wiped with a damp cloth; never immerse the base in water or any other liquid.
3. Penyimpanan
Ensure all parts are completely dry before reassembling and storing the grinder. The power cord can be wrapped around the base for compact storage.
Penyelesaian Masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Penggiling tidak menyala. | Tidak terpasang. | Pastikan kabel daya terpasang dengan benar ke stopkontak yang berfungsi. |
| Tutup tidak terpasang dengan benar. | Ensure the lid is twisted clockwise until it locks into place. The safety interlock prevents operation if the lid is open. | |
| Grinding chamber not properly seated. | Ensure the removable grinding chamber is correctly placed and locked into the base. | |
| Penggilingan tidak konsisten. | Overfilling the chamber. | Do not fill coffee beans past the 'MAX FILL' line. |
| Waktu penggilingan tidak cukup. | Allow the grinder to run for the full automatic cycle or hold the button longer for a finer grind. | |
| Grounds stick to chamber walls. | Static electricity or coffee oils. | Utilize the Chamber Maid Cleaning System by twisting the chamber after grinding. Clean the chamber regularly. |
Spesifikasi
| Fitur | Detil |
|---|---|
| Nomor Model | ID77 |
| Merek | Tuan Kopi |
| Warna | Hitam |
| Gaya | 3 Grind Settings |
| Dimensi Produk | 5"P x 4"L x 9"T |
| Penggunaan yang Direkomendasikan | Grinding coffee beans and spices |
| Kekuatan | 120VAC, 60Hz, 170W |
| Bahan | Plastik |
| Berat Barang | 0.01 ons |
Garansi dan Dukungan
Garansi Terbatas
This Mr. Coffee IDS77 Electric Coffee Grinder comes with a Garansi terbatas 1 tahun from the date of purchase. This warranty covers defects in material and workmanship under normal household use. It does not cover damage resulting from misuse, accident, alteration, or commercial use.
Dukungan Pelanggan
For warranty claims, technical assistance, or product inquiries, please contact Mr. Coffee Customer Service. Contact information can typically be found on the official Mr. Coffee websitus atau pada kemasan produk.
