Buku Panduan Penggunaan Pengukus Makanan Monix Salutemax

1. Pendahuluan

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and care of your Monix Salutemax Food Steamer. Please read all instructions carefully before first use and retain this manual for future reference. This appliance is designed for domestic use only.

Image 1.1: The Monix Salutemax Food Steamer, fully assembled and in use, showcasing its two transparent steaming baskets filled with various foods such as vegetables and meat.

2. Petunjuk Keselamatan Penting

Saat menggunakan peralatan listrik, tindakan pencegahan keselamatan dasar harus selalu diikuti untuk mengurangi risiko kebakaran, sengatan listrik, dan cedera pada orang, termasuk yang berikut ini:

1. Baca semua petunjuk sebelum menggunakan alat ini.
2. Jangan sentuh permukaan yang panas. Gunakan gagang atau kenop.
3. To protect against electrical shock, do not immerse the cord, plugs, or the base unit in water or other liquid.
4. Pengawasan ketat diperlukan saat peralatan apa pun digunakan oleh atau di dekat anak-anak.
5. Cabut steker dari stopkontak saat tidak digunakan dan sebelum membersihkan. Biarkan dingin sebelum memasang atau melepas komponen, dan sebelum membersihkan alat.
6. Jangan mengoperasikan peralatan apa pun dengan kabel atau steker yang rusak atau setelah peralatan tersebut mengalami kegagalan fungsi atau telah rusak dengan cara apa pun.
7. Penggunaan aksesori tambahan yang tidak direkomendasikan oleh produsen alat dapat menyebabkan cedera.
8. Jangan gunakan di luar ruangan.
9. Jangan biarkan kabel menggantung di tepi meja atau meja dapur, atau menyentuh permukaan panas.
10. Jangan menaruhnya di atas atau di dekat kompor gas atau listrik yang panas, atau di dalam oven yang sedang dipanaskan.
11. Kehati-hatian yang ekstrim harus digunakan saat memindahkan peralatan yang berisi minyak panas atau cairan panas lainnya.
12. Selalu pasang steker ke alat terlebih dahulu, lalu colokkan kabel ke stopkontak. Untuk melepas, putar kontrol ke posisi "off", lalu cabut steker dari stopkontak.
13. Jangan menggunakan alat ini untuk tujuan lain selain yang dimaksudkan.
14. This appliance has no automatic shut-off feature. Always monitor the cooking process and manually turn off the appliance when finished.

3. Produk Lebihview

The Monix Salutemax Food Steamer consists of several key components designed for efficient and healthy cooking:

• Unit dasar: Berisi elemen pemanas dan wadah air.
• Tandon air: Area within the base unit where water is added for steaming.
• Steam Baskets (2): Transparent baskets for holding food during steaming. These can be stacked.
• Tutup: Transparent lid to cover the top basket, trapping steam.
• Tombol kontrol: Digunakan untuk mengatur waktu pengukusan.
• Lampu Indikator: Menyala saat alat sedang beroperasi.

Image 3.1: The Monix Salutemax Food Steamer, fully assembled with its two transparent baskets and lid, ready for use. This view highlights the appliance's structure without food.

4. Pengaturan

Sebelum penggunaan pertama, dan untuk setiap penggunaan selanjutnya, ikuti langkah-langkah berikut:

1. Membongkar: Carefully remove all packaging materials from the steamer.
2. Komponen Bersih: Wash the steam baskets, lid, and water reservoir with warm, soapy water. Rinse thoroughly and dry. Wipe the base unit with a damp kain.
3. Penempatan: Place the base unit on a stable, heat-resistant, and level surface, away from walls or other appliances to allow for proper steam ventilation.
4. Isi Reservoir Air: Fill the water reservoir in the base unit with clean tap water. Do not exceed the maximum fill line. Ensure the water level is sufficient for the desired cooking time.
5. Merakit Keranjang: Place the lower steam basket onto the base unit. If using both baskets, place the second basket on top of the first.

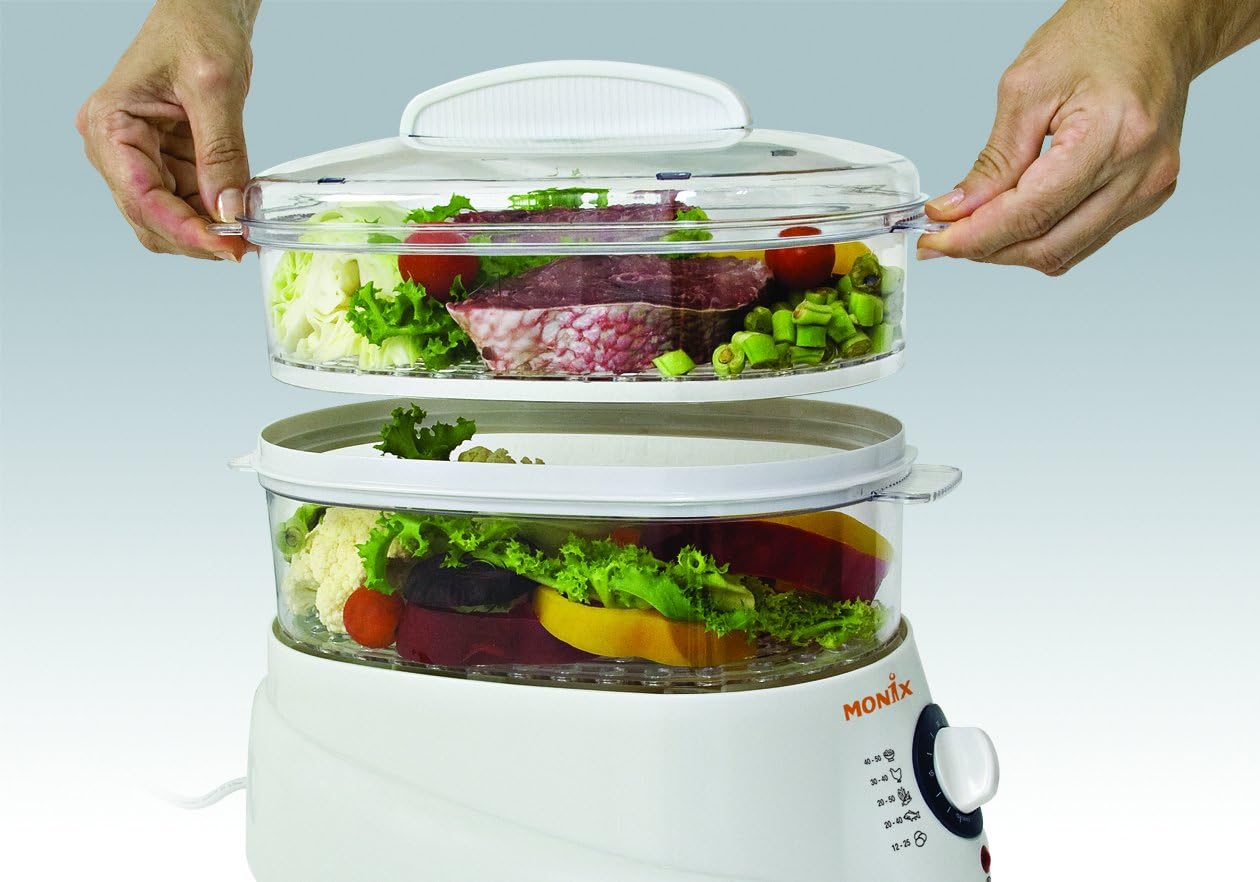

Image 4.1: A pair of hands carefully placing the upper transparent steam basket, filled with food, onto the lower basket of the Monix Salutemax Food Steamer, demonstrating the assembly process.

5. Petunjuk Pengoperasian

Once the steamer is set up, follow these steps to begin steaming:

1. Menyiapkan makanan: Wash and prepare your food items. Cut larger items into smaller, uniform pieces for even cooking.
2. Load Baskets: Place food loosely into the steam baskets. Do not overfill, as this can impede steam circulation and result in uneven cooking. Place foods requiring longer cooking times in the lower basket.
3. Tempat Tutup: Securely place the transparent lid on top of the uppermost steam basket.
4. Menyambungkan: Sambungkan kabel daya ke stopkontak listrik yang sesuai.
5. Setel Timer: Turn the control knob clockwise to set the desired steaming time. The indicator light will illuminate, signifying that the steamer has started operating.
6. Proses Mengukus: Water in the reservoir will heat up and produce steam, which will rise through the baskets to cook the food.
7. Penyelesaian: When the set time elapses, the steamer will stop heating. The indicator light will turn off. As this model does not have an automatic shut-off, it is recommended to manually turn the knob to the 'off' position (0) and unplug the appliance.
8. Melayani: Carefully remove the lid (steam will be hot) and then the baskets using oven mitts. Serve food immediately.

Image 5.1: A detailed close-up of the Monix Salutemax Food Steamer's control knob, showing the timer settings from 0 to 60 minutes and corresponding icons for different food types (meat, chicken, vegetables, fish, eggs) with suggested cooking ranges.

6. Panduan Memasak

The following are general guidelines for steaming times. Actual times may vary based on food quantity, size, and desired doneness. Refer to the control knob for visual cues.

• Daging: Sekitar 40-50 menit
• Ayam: Sekitar 30-40 menit
• Sayuran: Approximately 20-50 minutes (e.g., softer vegetables like broccoli 20-30 min, harder vegetables like carrots 30-50 min)
• Ikan: Sekitar 20-40 menit
• Telur: Sekitar 12-25 menit

Selalu pastikan makanan dimasak hingga mencapai suhu internal yang aman.

7. Perawatan dan Pembersihan

Regular cleaning ensures optimal performance and extends the life of your steamer. Always unplug the appliance and allow it to cool completely before cleaning.

1. Air Kosong: Discard any remaining water from the reservoir.
2. Komponen Cuci: The steam baskets, lid, and water reservoir are dishwasher safe or can be washed by hand with warm, soapy water. Rinse thoroughly to remove all soap residue.
3. Unit Dasar Bersih: Bersihkan bagian luar unit dasar dengan adamp kain. Jangan merendam unit dasar di dalam air atau cairan lainnya.
4. Kerak: Over time, mineral deposits (limescale) may build up in the water reservoir. To descale, fill the reservoir with a mixture of equal parts water and white vinegar. Run the steamer for 20-30 minutes. Unplug, let cool, then empty and rinse thoroughly. Repeat if necessary.
5. Penyimpanan: Ensure all parts are completely dry before storing the steamer in a cool, dry place.

8. Penyelesaian masalah

If you encounter any issues with your Monix Salutemax Food Steamer, refer to the following common problems and solutions:

9. Spesifikasi
