Perkenalan
Terima kasih sudah membeliasing the Beldray 1500W Steam Mop. This manual provides important information regarding the safe operation, maintenance, and troubleshooting of your steam mop. Please read this manual thoroughly before first use and retain it for future reference.
Petunjuk Keselamatan
Selalu ikuti tindakan pencegahan keselamatan dasar saat menggunakan peralatan listrik untuk mengurangi risiko kebakaran, sengatan listrik, dan cedera pribadi.
- Jangan merendam peralatan dalam air atau cairan lainnya.
- Do not leave the steam mop unattended while plugged in.
- Jauhkan dari jangkauan anak-anak.
- Gunakan hanya seperti yang dijelaskan dalam manual ini.
- Do not use on unsealed wooden floors or floors that are sensitive to heat and moisture.
- Selalu cabut steker alat saat tidak digunakan dan sebelum dibersihkan.
Komponen Produk
Keseluruhan View: The Beldray 1500W Steam Mop in its upright position, showcasing its sleek design and green accents.
Sisi Profile: A view of the steam mop from the side, highlighting the water tank and handle design.

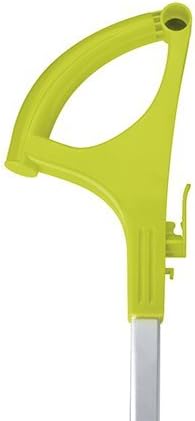

Pegangan Ergonomis: Close-up of the comfortable, green handle designed for easy grip and control during cleaning.

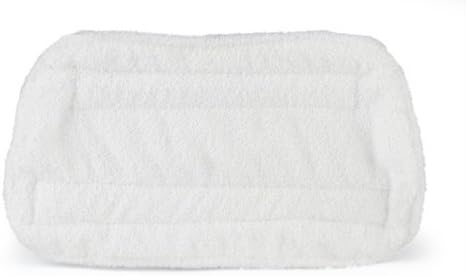

Kain Pembersih Microfiber: One of the two included washable microfiber cloths, designed to attach to the mop head for effective cleaning.

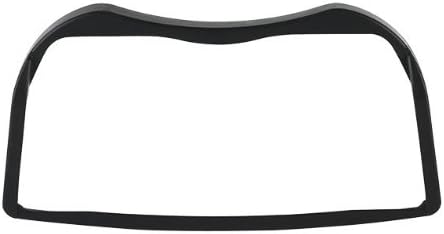

Carpet Glider: The carpet glider attachment, used to refresh carpets and rugs with steam.
Pengaturan
- Assemble the Mop: Connect the handle to the main body of the steam mop until it clicks into place.
- Attach Cleaning Cloth: Securely attach a clean microfiber cleaning cloth to the mop head. Ensure it covers the entire base.
- Isi Tangki Air: Using the provided funnel, fill the water tank with distilled or de-mineralized water. Do not overfill. The tank capacity is designed for approximately 20 minutes of continuous steaming.
- Menyambungkan: Sambungkan kabel daya ke stopkontak listrik yang sesuai.
Siap Digunakan: The steam mop assembled and prepared for operation, showing the mop head with a cleaning cloth attached.
Petunjuk Pengoperasian
- Nyalakan: Once plugged in, the steam mop will begin to heat up. It heats up in under 30 seconds.
- Aktivasi Uap: The steam will be generated automatically once the unit is heated. There is no separate steam button.
- Membersihkan Lantai Keras: Glide the mop slowly and evenly over the floor surface. The 130-degree Celsius steam and 0.5 bar pressure will effectively clean and sanitize.
- Using Carpet Glider: For refreshing carpets, attach the carpet glider over the mop head with the cleaning cloth. Move the mop back and forth over the carpet. This is for refreshing only, not deep cleaning.
- Mengisi ulang: If steam production stops, unplug the unit and allow it to cool before refilling the water tank.
- Matikan: Setelah selesai, cabut alat pel uap dari stopkontak.
Dalam operasi: The Beldray steam mop being used on a tiled floor, demonstrating its ease of movement and effective cleaning.
Pemeliharaan
- Kain Pembersih: The microfiber cleaning cloths are washable. Remove them after each use and wash them according to their care instructions.
- Tangki Air: Kosongkan sisa air dari tangki setelah digunakan.
- Penyimpanan: Store the steam mop in a cool, dry place. Ensure the power cord is neatly wrapped.
- Kerak: If you notice a decrease in steam production, the unit may require descaling. Consult the manufacturer's website for specific descaling instructions, as this is not detailed in the product description.
Penyelesaian Masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Tidak ada uap yang dihasilkan. | No water in tank; Unit not plugged in; Unit not heated up. | Fill water tank; Ensure unit is securely plugged in; Wait for 30 seconds for unit to heat. |
| Reduced steam output. | Penumpukan mineral (kerak kapur). | Perform descaling procedure (refer to manufacturer's websitus). |
| Mop not gliding smoothly. | Cleaning cloth is too wet or dirty. | Replace or wash cleaning cloth. Ensure not over-saturated. |
Spesifikasi
- Model: B009T5TYR2
- Merek: Beldray
- Kekuatan: 1500W
- Berat: Sekitar 3 lbs (1.36 kg)
- Waktu pemanasan: Kurang dari 30 detik
- Waktu Kerja: Up to 20 minutes (per full tank)
- Tekanan uap: 0.5 Batang
- Suhu Uap: 130°C (266°F)
- Aksesoris yang disertakan: 2 x Cleaning Cloths, 1 x Funnel, 1 x Carpet Glider
- Tanggal Pertama Tersedia: 10 Desember 2013
Dukungan Pelanggan
For further assistance, warranty information, or to purchase replacement parts, please visit the official Beldray webatau hubungi departemen layanan pelanggan mereka. Lihat kemasan produk Anda untuk detail kontak spesifik.
