URMET Synthesi CCD + MHP 1T Video Module 1745/21 Instruction Manual

Perkenalan

This manual provides detailed instructions for the installation, operation, and maintenance of the URMET Synthesi CCD + MHP 1T Video Module, model 1745/21. This video module is designed for 4+N cable systems and features an integrated micro-HP amplifier, two call buttons, manual adjustment capabilities, and infrared illumination for enhanced visibility.

Produk Selesaiview

URMET Synthesi Video Module in original packaging

Gambar 1: URMET Synthesi Video Module 1745/21 as supplied in its original packaging, showing the front panel design.

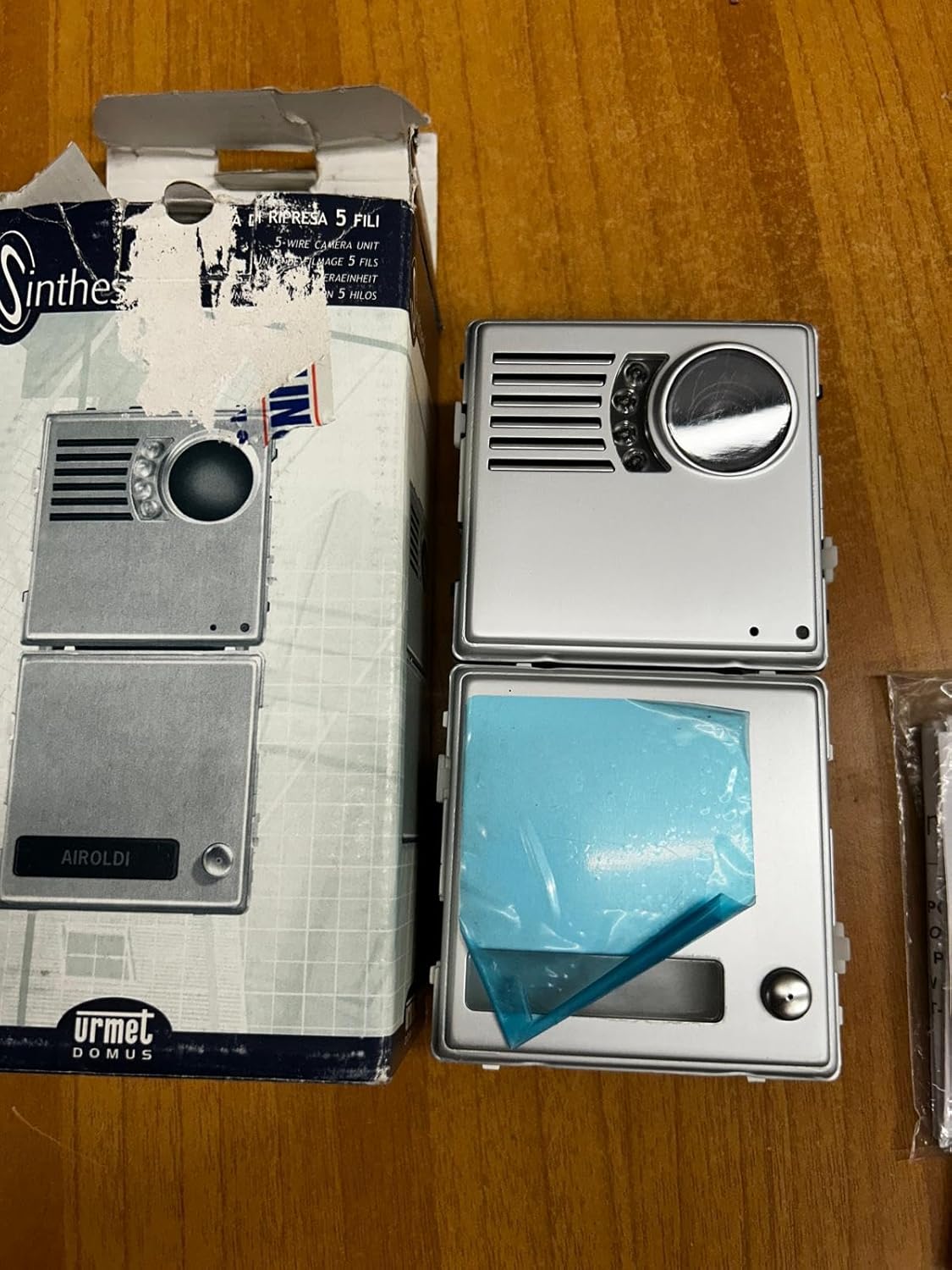

URMET Synthesi Video Module with included accessories and documentation

Gambar 2: Contents of the URMET Synthesi Video Module package, including the module, wiring accessories, and instruction leaflets.

Pengaturan dan Instalasi

The URMET Synthesi 1745/21 video module is designed for 5-wire installations without the need for a coaxial cable. Proper installation is crucial for optimal performance. It is recommended that installation be performed by a qualified technician.

Identifikasi Komponen

Depan view of URMET Synthesi Video Module showing camera, infrared LEDs, and call buttons

Gambar 3: Front panel of the video module, highlighting the CCD camera lens, infrared illumination LEDs, microphone/speaker grille, and two call buttons.

Belakang view of URMET Synthesi Video Module showing wiring terminals and adjustment potentiometers

Gambar 4: Belakang view of the video module, displaying the terminal block for wiring connections and potentiometers for manual adjustments (e.g., audio levels, camera focus).

Petunjuk Pengkabelan

Connect the module using a 4+N cable system. Refer to the detailed wiring diagram provided in the separate installation guide (typically included with the product or available from URMET). Ensure all connections are secure and correctly polarized. The module integrates a micro-HP amplifier, simplifying audio connections.

Pemasangan

Mount the module securely in the designated Synthesi frame. Ensure it is protected from direct weather exposure if installed outdoors, or use an appropriate weather-resistant housing.

Petunjuk Pengoperasian

The URMET Synthesi 1745/21 video module provides visual and audio communication for your intercom system.

Membuat Panggilan

Press one of the two call buttons on the front panel (refer to Figure 3) to initiate a call to the corresponding indoor unit. The integrated micro-HP amplifier ensures clear audio transmission.

Video and Audio Communication

Once a call is established, the CCD camera provides video feed to the indoor monitor. The integrated microphone and speaker facilitate two-way audio communication. Infrared illumination automatically activates in low-light conditions to ensure clear video even at night.

Penyesuaian

The module features manual adjustment options, typically accessible via potentiometers on the rear (refer to Figure 4). These adjustments may include camera focus, video brightness, and audio volume levels. Consult the detailed wiring and adjustment guide for specific procedures.

Pemeliharaan

Regular maintenance ensures the longevity and optimal performance of your URMET Synthesi video module.

Pembersihan

Gently wipe the front panel, especially the camera lens and infrared LEDs, with a soft, damp kain.
Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface or optical components.
Ensure no moisture enters the module's internal components.

Inspeksi

Periksa secara berkala semua sambungan kabel untuk memastikan kekencangannya dan tanda-tanda korosi.
Ensure the module is securely mounted and that its housing is intact.

Penyelesaian Masalah

If you encounter issues with your URMET Synthesi video module, refer to the following common problems and solutions:

Masalah	Kemungkinan Penyebab	Larutan
No video on indoor monitor	Loose video wiring connection. Pasokan daya tidak mencukupi. Camera fault.	Check all video signal wires for secure connections. Verify power supply to the module and system. Contact URMET support if wiring and power are confirmed good.
Tidak ada audio atau kualitas audionya buruk	Loose audio wiring connection. Microphone or speaker obstruction. Audio level adjustment.	Check audio wiring. Ensure microphone and speaker grilles are clear of debris. Adjust audio potentiometers on the rear of the module (Figure 4).
Call buttons not responding	Incorrect wiring for call buttons. Kerusakan tombol.	Verify call button wiring according to the installation diagram. If wiring is correct, the button may require replacement.
Kualitas gambar buruk di malam hari	Infrared LEDs obstructed or faulty. Camera lens dirty.	Clean the camera lens and infrared LEDs. Ensure no physical obstructions are blocking the LEDs.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact URMET technical support.

Spesifikasi

Fitur	Detil
Pabrikan	URMET
Nomor Bagian	1745/21
Dimensi Produk	0.03 x 0.03 x 0.03 cm; 9.07 g
ASIN	B00LPDRU7M
Baterai Diperlukan	TIDAK
Tanggal Pertama Tersedia	21 Februari 2020
Kompatibilitas Sistem	4+N Cable System, 5-wire installation (no coaxial cable)
Fitur	Integrated micro-HP amplifier, 2 call buttons, manual adjustment, infrared illumination

Garansi dan Dukungan

For warranty information, please refer to the documentation provided with your purchase or contact URMET directly. URMET provides technical support for their products.

For technical assistance, spare parts, or further inquiries, please visit the official URMET website or contact their customer service department. Ensure you have your product model number (1745/21) and purchase details available when seeking support.

URMET 1745/21
