Perkenalan
This manual provides detailed instructions for the safe and effective use of your Performance Tool W1930 Telescoping Magnetic Flashlight. This versatile tool combines a telescoping magnetic head with a multi-function flashlight, designed for use in dimly-lit or hard-to-reach areas. Please read this manual thoroughly before operation and retain it for future reference.
Fitur Produk
- Fungsionalitas serbaguna: Combines a flashlight with a magnetic pickup tool.
- Jangkauan yang Diperluas: Telescopes to over 27 inches (68 cm) for accessing confined spaces.
- Powerful Magnet: Flexible magnet with a 1.5 lb lifting capacity for retrieving small metal objects.
- Pencahayaan Terang: Equipped with six bright white LEDs for enhanced visibility.
- Konstruksi Tahan Lama: Made from impact-resistant aluminum with a stainless steel extension.
- Kenyamanan: Includes batteries and a lanyard for easy carrying.

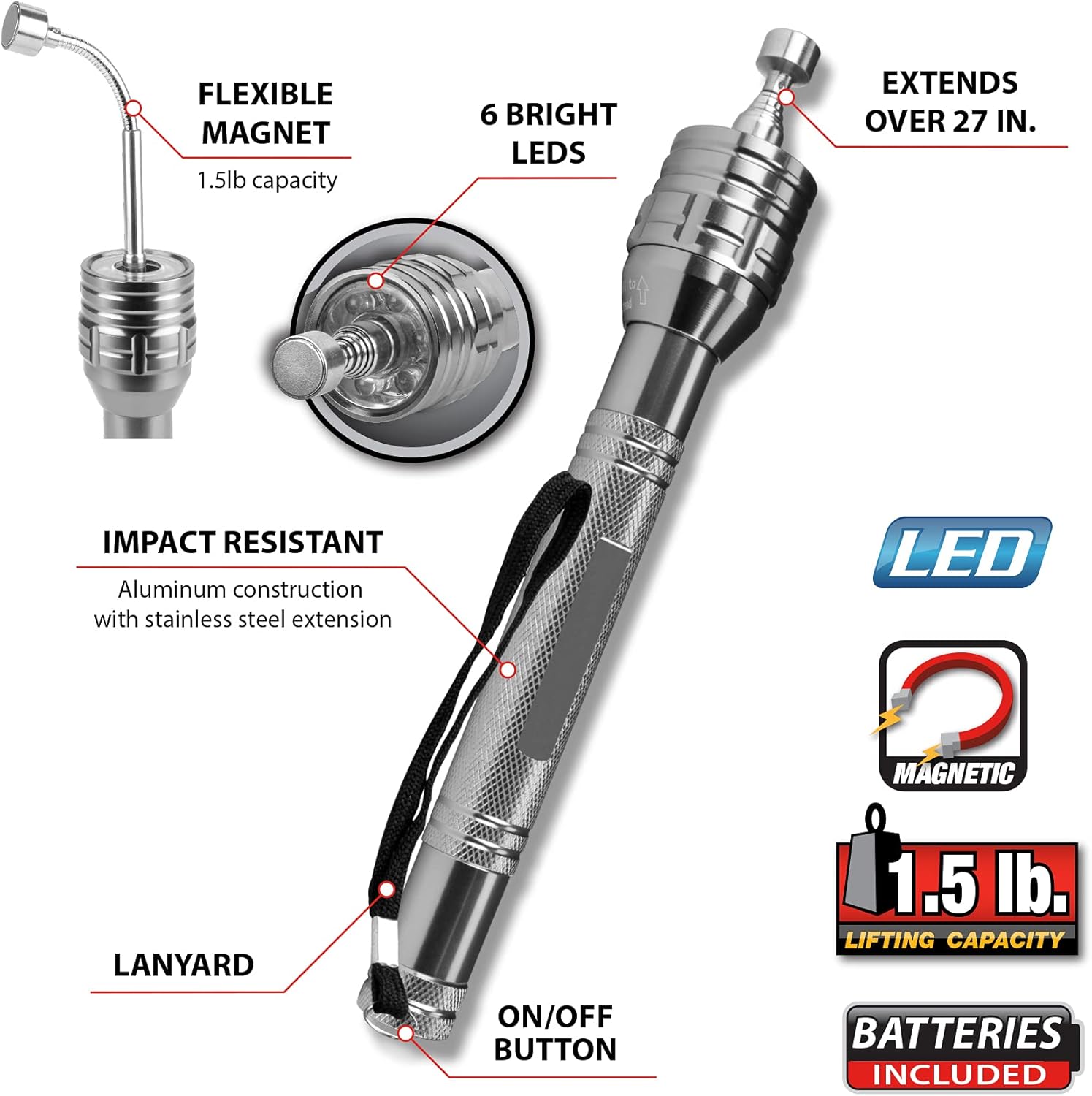

Figure 1: Key features of the W1930 Telescoping Magnetic Flashlight.
Pengaturan dan Pemasangan Baterai
- Membongkar: Carefully remove the tool from its packaging. Inspect for any damage.
- Pemasangan Baterai: The W1930 requires 4 hearing aid batteries (button cell type).
- Buka tutup ekor senter.
- Insert the batteries according to the polarity markings inside the battery compartment. Ensure proper contact.
- Kencangkan kembali penutup ekor dengan rapat.
Penting: Ensure batteries are correctly oriented. Incorrect installation can prevent operation. If the light does not function, verify battery placement and charge.
Gambar 2: Depan view of the W1930 flashlight.
Petunjuk Pengoperasian
- Mengaktifkan Senter: Press the ON/OFF button located on the tail cap to turn the LEDs on or off.
- Extending the Magnetic Pickup:
- Hold the main body of the tool firmly.
- Gently pull the head outward to expose the magnetic tip.
- Continue pulling the magnetic tip straight out from the body to extend the telescoping shaft to the desired length (up to 27 inches).
- Using the Magnetic Tip: Position the magnetic tip near the metallic object you wish to retrieve. The magnet will attract and hold objects up to 1.5 lbs.
- Retracting the Tool: Gently push the telescoping shaft back into the body until fully retracted.
Figure 3: The W1930 tool in its fully extended position.
Figure 4: Detail of the flexible magnetic tip.
Pemeliharaan
- Pembersihan: Wipe the tool with a clean, dry cloth. Do not use abrasive cleaners or solvents.
- Penyimpanan: Store the tool in a dry environment, away from extreme temperatures and direct sunlight.
- Penggantian Baterai: If the flashlight dims or stops working, replace all batteries with new ones of the correct type and polarity.
- Inspeksi: Periodically inspect the telescoping mechanism and magnetic tip for any signs of wear or damage.
Penyelesaian Masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Senter tidak menyala. |
|
|
| Flashlight flickers or is dim. |
|
|
| Magnetic tip does not pick up objects. |
|
|
Spesifikasi
| Nomor Model | W1930 |
| Merek | Alat Kinerja |
| Bahan | Aluminium, Baja Tahan Karat |
| Warna | Perak |
| Panjang Diperpanjang | Lebih dari 27 inci (68 cm) |
| Magnetic Pull Force | 1.5 pon |
| Sumber Cahaya | 6 LED Putih |
| Berat Barang | 4.8 ons |
| Dimensi Produk | 3.5 x 1.5 x 11.5 inci (saat dilipat) |
Garansi dan Dukungan
The Performance Tool W1930 is backed by a Lifetime Warranty. For warranty claims or technical support, please refer to the contact information provided on the product packaging or visit the official Performance Tool weblokasi.
Note: Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
