DEWALT 20V MAX XR Reciprocating Saw

Produk Selesaiview

The DEWALT 20V MAX XR Brushless Compact Reciprocating Saw (DCS367B) is designed for efficient cutting in various applications. Its brushless motor provides extended runtime and durability. The compact design allows access to tight spaces, while the variable speed trigger offers precise control. This tool is compatible with all DEWALT 20V MAX batteries and chargers (sold separately).

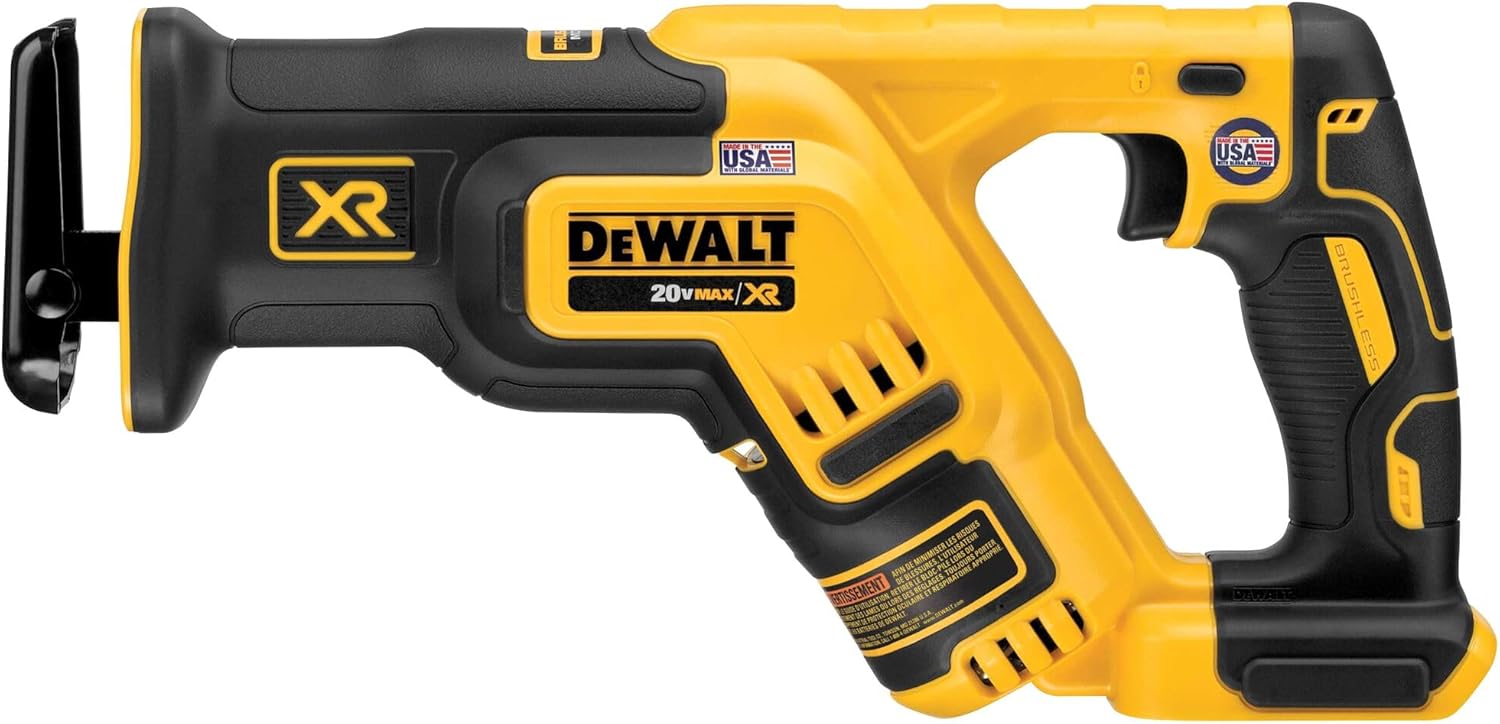

Gambar 1: Secara keseluruhan view of the DEWALT 20V MAX XR Reciprocating Saw (DCS367B).

Fitur Utama

• Motor Tanpa Sikat: Provides up to 2.5X longer runtime and enhanced durability.
• Desain Kompak: At 14.5 inches in length, it fits easily between studs and in tight spots.
• Ringan: Weighs just 5 lbs (tool only) for reduced user fatigue.
• Pemicu Kecepatan Variabel: Delivers up to 2,900 SPM for precise control across different materials.
• 4-Position Blade Clamp: Keyless lever-action for quick and easy blade changes, enhancing cutting versatility.
• Lampu LED: Menerangi area kerja yang gelap untuk meningkatkan visibilitas.

Aturan Keselamatan Umum

Selalu ikuti tindakan pencegahan keselamatan dasar untuk mengurangi risiko kebakaran, sengatan listrik, dan cedera pribadi saat menggunakan peralatan listrik.

• Baca semua petunjuk sebelum mengoperasikan alat.
• Kenakan alat pelindung diri (APD) yang sesuai, termasuk pelindung mata, pelindung pendengaran, dan sarung tangan.
• Ensure the workpiece is stable and secured before cutting.
• Keep hands and body clear of the blade during operation.
• Jangan mengoperasikan perkakas listrik di lingkungan yang mudah meledak, seperti di dekat cairan, gas, atau debu yang mudah terbakar.
• Jauhkan anak-anak dan orang di sekitar saat mengoperasikan perkakas listrik.
• Selalu lepaskan baterai sebelum melakukan penyesuaian apa pun, mengganti aksesori, atau menyimpan alat.

Pengaturan

Attaching and Changing the Blade

The DCS367B features a keyless 4-position blade clamp for quick and versatile blade changes.

1. Pastikan unit baterai telah dilepas dari alat.
2. Angkat bilahnya clamp lever (Figure 2, Item A) and insert the blade fully into the clamp.
3. Release the lever. Tug on the blade to ensure it is securely locked in place.
4. To remove the blade, lift the blade clamp lever and pull the blade out.

Figure 2: Inserting a blade into the 4-position blade clamp.

Figure 3: The 4-position blade clamp allows for horizontal or vertical blade orientation.

Instalasi Baterai

This tool requires a DEWALT 20V MAX battery pack (sold separately).

1. Align the battery pack with the receptacle on the tool's base.
2. Geser baterai ke dalam alat hingga terkunci dengan aman di tempatnya.
3. Untuk melepasnya, tekan tombol pelepas baterai dan tarik keluar unit baterai.

Figure 4: Battery and charger are sold separately.

Petunjuk Pengoperasian

Menyalakan/Mematikan

The tool is equipped with a variable speed trigger and a safety lock-off button.

1. To start the tool, depress the lock-off button (Figure 5, Item B) and then squeeze the variable speed trigger (Figure 5, Item C).
2. To stop the tool, release the variable speed trigger.
3. The variable speed trigger allows you to control the cutting speed by varying the pressure applied.

Figure 5: Variable speed trigger and lock-off button for controlled operation.

Teknik pemotongan

For optimal performance and safety, observe the following cutting techniques:

• Always ensure the shoe is firmly against the workpiece before starting a cut.
• Berikan tekanan yang stabil dan merata. Jangan memaksakan alat tersebut.
• For plunge cuts, ensure the blade is clear of the workpiece before starting the tool, then slowly pivot the tool into the material.
• Use appropriate blades for the material being cut (wood, metal, plastic).

Demonstration of Cutting in Tight Spaces

Video 1: A user demonstrates the DEWALT reciprocating saw cutting through wood in a confined area, highlighting its compact design and ease of handling.

Cutting 4x4 Treated Wood

Video 2: A user demonstrates the DEWALT reciprocating saw cutting through a 4x4 treated wood post, showcasing its power and efficiency for demanding tasks.

Cutting Large Logs

Video 3: A user demonstrates the DEWALT reciprocating saw cutting through a large log, illustrating its capability for heavier-duty wood cutting.

sepatu berputar

The tool features a pivoting shoe that helps maintain contact with the workpiece, providing stability and control during cuts. This also helps to extend blade life by allowing the user to utilize different sections of the blade.

Figure 6: The compact design allows for cutting in tight spaces, such as between studs.

Pemeliharaan

Regular maintenance ensures the longevity and optimal performance of your DEWALT reciprocating saw.

• Pembersihan: Keep the tool's ventilation slots clean to prevent overheating. Use a soft brush or compressed air to remove dust and debris. Do not use solvents or harsh chemicals.
• Perawatan Pisau: Always use sharp, undamaged blades. Dull or bent blades can cause kickback and reduce cutting efficiency. Replace blades as needed.
• Perawatan Baterai: Store battery packs in a cool, dry place away from direct sunlight and extreme temperatures. Do not store battery packs in the tool.
• Inspeksi: Periodically inspect the tool for any signs of damage, loose screws, or worn parts. If damage is found, have the tool serviced by a qualified repair technician.

Penyelesaian Masalah

If you encounter issues with your reciprocating saw, refer to the following common troubleshooting steps:

Spesifikasi Teknis

Garansi dan Dukungan

Informasi Garansi

This DEWALT tool comes with a 3-year limited warranty. For specific terms and conditions, please refer to the warranty card included with your product or visit the official DEWALT weblokasi.

Dukungan Pelanggan

For technical assistance, service, or to locate a service center, please visit the official Toko DEWALT di Amazon or contact DEWALT customer service directly.
