Einhell Power X-Change 18V Cordless Grout Cleaner GE-CC 18 Li Solo

1. Informasi Keselamatan Penting

Please read this instruction manual carefully before operating the Einhell GE-CC 18 Li Solo Cordless Grout Cleaner. Keep these instructions in a safe place for future reference. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Gunakan Pelindung Mata: Always wear appropriate safety goggles or safety glasses with side shields when operating the grout cleaner to protect against flying debris.
• Kenakan Sarung Tangan Pelindung: Use sturdy work gloves to protect your hands.
• Jaga Area Kerja Tetap Bersih: Ensure the area you are working in is free from other people, children, and pets.
• Periksa Kendala: Before starting, inspect the area for any loose stones, wires, or other objects that could be thrown by the rotating brush.
• Keamanan Baterai: This tool is part of the Power X-Change family. Use only original Einhell Power X-Change batteries and chargers. Do not expose batteries to heat or fire. Do not short-circuit batteries.
• Pegangan yang aman: Always maintain a firm grip on the tool with both hands during operation.
• Two-Point Safety Switch: The tool is equipped with a two-point safety switch to prevent accidental activation. Ensure you understand its operation before use.

2. Produk Lebihview dan Komponen

The Einhell GE-CC 18 Li Solo is a cordless grout cleaner designed for effective removal of weeds, moss, and dirt from paving joints. It features an adjustable telescopic handle and interchangeable brushes for various cleaning tasks.

• Main Handle with Safety Switch: Ergonomically designed for comfortable and secure operation.
• Adjustable Telescopic Long Handle: Allows for upright working posture, reducing strain.
• Infinitely Adjustable Second Handle (Auxiliary Handle): Memberikan kontrol dan kenyamanan tambahan.
• Guide Wheel: Assists in maintaining a consistent cleaning depth and direction.
• Kepala sikat: Houses the rotating brush.
• Sikat yang Dapat Diganti: Includes one nylon brush for light cleaning and one steel brush for tougher debris.
• Kompartemen Baterai: For Einhell Power X-Change 18V batteries (battery and charger sold separately).

Figure 2.1: Einhell GE-CC 18 Li Solo Cordless Grout Cleaner (Battery and Charger Not Included)

Figure 2.2: Important Note: Battery and Charger are NOT included with this model.

Figure 2.3: Included replaceable brushes: Nylon brush (left) for lighter tasks and Steel brush (right) for tougher debris.

3. Pengaturan

3.1 Memasang Pegangan Bantu

1. Slide the auxiliary handle onto the telescopic shaft.
2. Adjust its position for comfortable operation and tighten the locking mechanism.

Gambar 3.1: Menyesuaikan pegangan tambahan untuk kenyamanan dan kontrol optimal.

3.2 Installing/Changing the Brush

1. Pastikan alat dimatikan dan baterai dilepas.
2. Locate the brush attachment point at the bottom of the tool.
3. Align the desired brush (nylon or steel) with the spindle and secure it according to the tool's mechanism (refer to the diagram for specific locking details).
4. Ensure the brush is firmly seated before use.

Figure 3.2: Detail of the brush attachment mechanism.

3.3 Memasukkan Baterai

1. Pastikan baterai terisi penuh.
2. Slide the 18V Power X-Change battery into the battery compartment until it clicks into place.
3. Untuk melepasnya, tekan tombol pelepas pada baterai dan geser keluar.

4. Petunjuk Pengoperasian

4.1 Menghidupkan dan Menghentikan Alat

• Untuk memulai: Press and hold the safety lock-off button (usually on the side of the main handle), then squeeze the trigger switch.
• Untuk Berhenti: Release the trigger switch. The brush will stop rotating.

4.2 Cleaning Technique

1. Select the appropriate brush for the task (nylon for light growth, steel for stubborn weeds/moss).
2. Adjust the telescopic handle and auxiliary handle to a comfortable working height that allows you to stand upright.
3. Position the guide wheel along the edge of the paving or directly in the grout line.
4. Start the tool and gently guide the rotating brush along the grout lines. Allow the brush to do the work; avoid pressing down too hard.
5. Move the tool slowly and steadily to ensure thorough cleaning.
6. For optimal results, work in small sections.

Figure 4.1: Proper operating posture with the adjustable handle.

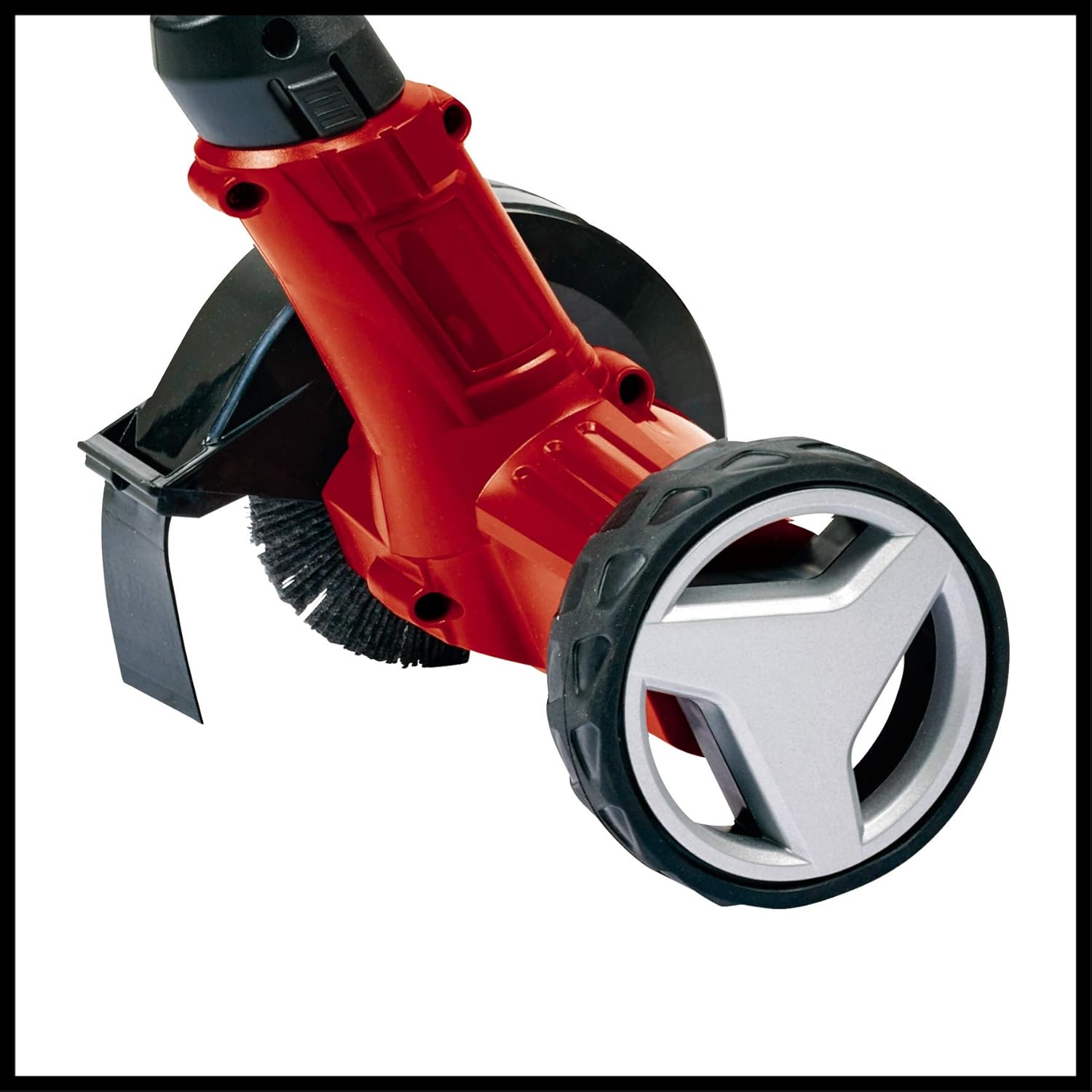

Figure 4.2: The guide wheel helps maintain consistent cleaning along grout lines.

5. Pemeliharaan

Regular maintenance ensures the longevity and optimal performance of your grout cleaner.

• Membersihkan Alat: After each use, remove the battery and clean the tool housing with a damp kain. Jangan gunakan bahan kimia keras atau pembersih abrasif.
• Inspeksi dan Penggantian Sikat: Regularly inspect the brushes for wear and damage. Replace worn brushes promptly to maintain cleaning effectiveness and prevent damage to the tool. Refer to section 3.2 for brush replacement instructions.
• Perawatan Baterai: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods. Charge batteries before long storage periods.
• Penyimpanan: Store the grout cleaner in a dry, secure location out of reach of children.

6. Penyelesaian masalah

7. Spesifikasi

8. Garansi dan Dukungan

For detailed warranty information, product registration, and customer support, please refer to the official Einhell website or contact your local Einhell service center. Keep your purchase receipt as proof of purchase.

Einhell Resmi Weblokasi: www.einhell.com
