Ferm TDM1025 Bench Pillar Corded Electric Drill User Manual

Perkenalan

Thank you for choosing the Ferm TDM1025 Bench Pillar Corded Electric Drill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new drill. Please read these instructions carefully before use and keep them for future reference.

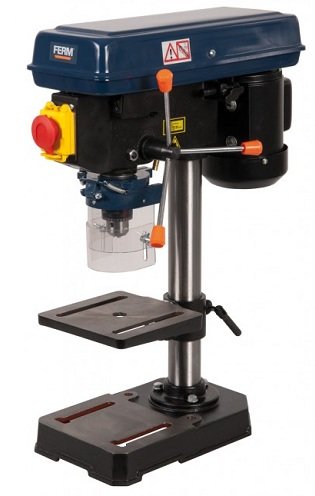

Image: Ferm TDM1025 Bench Pillar Corded Electric Drill. This image shows the complete drill press assembly, including the base, column, motor head, and work table.

Petunjuk Keselamatan

Selalu ikuti tindakan pencegahan keselamatan dasar untuk mengurangi risiko kebakaran, sengatan listrik, dan cedera pribadi saat mengoperasikan peralatan listrik.

Aturan Keselamatan Umum:

• Keselamatan Area Kerja: Jaga area kerja tetap bersih dan terang. Area yang berantakan atau gelap mengundang kecelakaan.
• Keamanan Listrik: Jangan biarkan peralatan listrik terkena hujan atau kondisi basah. Hindari kontak langsung tubuh dengan permukaan yang diarde atau diarde.
• Keamanan Pribadi: Stay alert, watch what you are doing, and use common sense. Do not operate tools while tired or under the influence of drugs, alcohol, or medication.
• Peralatan Pelindung Diri: Always wear eye protection. Use dust masks, non-skid safety shoes, hard hats, or hearing protection as appropriate for the conditions.
• Penggunaan dan Perawatan Alat: Jangan memaksakan perkakas listrik. Gunakan perkakas listrik yang sesuai dengan kebutuhan Anda. Cabut steker dari sumber listrik sebelum melakukan penyesuaian, mengganti aksesori, atau menyimpan perkakas listrik.
• Benda Kerja yang Aman: Selalu clamp or secure the workpiece to prevent movement during drilling.
• Guard Usage: Ensure the transparent guard is always in place and properly adjusted for safe working.

Pengaturan

Membongkar:

Carefully remove all components from the packaging. Inspect for any damage that may have occurred during transit. Retain packaging materials for future transport or storage.

Perakitan:

1. Basis dan Kolom: Securely attach the column to the cast iron base using the provided fasteners. Ensure it is stable and upright.
2. Drill Head: Mount the drill head assembly onto the top of the column. Tighten all securing bolts.
3. Meja kerja: Slide the work table onto the column and secure it at a comfortable working height. Ensure the table locking mechanism functions correctly.
4. Pemasangan Chuck: Insert the chuck into the spindle taper. Tap it firmly with a soft mallet to ensure a secure fit.
5. Guard Attachment: Attach the transparent guard to the drill head, ensuring it can be easily adjusted and provides adequate protection.

Sambungan Daya:

Connect the drill to a standard 230V AC power outlet. Ensure the power switch is in the "OFF" position before plugging in the tool.

Petunjuk Pengoperasian

Installing Drill Bits:

1. Ensure the drill is unplugged.
2. Open the chuck jaws using the chuck key.
3. Masukkan mata bor ke dalam chuck, pastikan posisinya di tengah dan terpasang sepenuhnya.
4. Tighten the chuck jaws firmly with the chuck key. Remove the chuck key immediately after tightening.

Adjusting Work Table:

• Penyesuaian Ketinggian: Loosen the table locking handle, adjust the table to the desired height, and then firmly tighten the handle.
• Penyesuaian Sudut: The table can be tilted from 0 to 45 degrees. Loosen the tilt locking bolt, set the desired angle, and re-tighten the bolt.

Pengaturan Kecepatan:

The drill features 5 speed settings (580-2650 RPM) for optimal performance across various materials. Adjust the belt position on the pulleys inside the drill head to change the speed. Refer to the speed chart inside the pulley cover for recommended settings.

Laser Guidance:

Activate the cross laser guidance system for precise drilling alignment. The laser projects a crosshair onto the workpiece, indicating the exact drilling point.

Drilling Procedure:

1. Kencangkan benda kerja dengan kuat ke meja kerja menggunakan klem.amps.
2. Adjust the table height and angle as needed.
3. Select the appropriate drilling speed.
4. Turn on the drill.
5. Slowly lower the drill bit into the workpiece using the feed handle, applying steady, even pressure.
6. Once drilling is complete, retract the drill bit from the workpiece before turning off the drill.

Pemeliharaan

Regular maintenance ensures the longevity and safe operation of your drill.

• Pembersihan: After each use, clean the drill thoroughly to remove dust, chips, and debris. Use a soft brush or compressed air. Do not use solvents that may damage plastic parts.
• Pelumasan: Periodically apply a light machine oil to moving parts, such as the column and spindle, to ensure smooth operation.
• Inspeksi Kabel: Periksa kabel daya secara berkala untuk melihat tanda-tanda kerusakan, sobekan, atau serat yang terkelupas. Segera ganti kabel yang rusak.
• Perawatan Chuck: Keep the chuck jaws clean and free of debris to ensure proper grip on drill bits.
• Ketegangan Sabuk: Check the drive belt tension periodically. Adjust if necessary to prevent slippage and ensure consistent speed.

Penyelesaian Masalah

Spesifikasi

Garansi dan Dukungan

Informasi Garansi:

Ferm products are manufactured to high quality standards and are guaranteed against defects in materials and workmanship. Please refer to the warranty card included with your product for specific terms and conditions, including warranty period and coverage details. Keep your purchase receipt as proof of purchase.

Dukungan Pelanggan:

For technical assistance, spare parts, or warranty claims, please contact your local Ferm dealer or authorized service center. You can also visit the official Ferm websitus untuk informasi lebih lanjut dan sumber daya dukungan.

Note: Specific contact details are not provided in this manual. Please refer to your product packaging or the manufacturer's websitus untuk informasi dukungan terkini.
