1. Informasi Keselamatan
Read all instructions carefully before operating the Fetco CBS-61H coffee brewer. Failure to follow these instructions may result in injury or damage to the equipment.
- Sambungan Listrik: This equipment requires a VAC: 120/208-240, Phase: 3 electrical supply with Amps: 25.5-29.7 and KW: 9.0-12.1. It requires a 4 + ground connection. Use only copper wire for power supply connection.
- Instalasi: This equipment must be installed in compliance with all applicable federal, state, and local plumbing codes. Installation should be performed by a qualified technician.
- Permukaan Panas: The coffee brewer contains hot water and heating elements. Exercise caution to avoid burns.
- Pembersihan: Disconnect power before cleaning. Do not immerse the unit in water.
- Kebersihan: This unit is sanitation listed and conforms to NSF STD. 4. Maintain regular cleaning schedules to ensure sanitary operation.
Gambar 1.1: Product rating label for the Fetco CBS-61H coffee brewer, showing model number, serial number, electrical configuration, and certifications. This label confirms the unit's specifications and compliance with safety standards.
2. Produk Lebihview
The Fetco CBS-61H 6000 Series Single Coffee Brewer is designed for commercial use, providing efficient and consistent coffee brewing. This model features a 3-gallon capacity, making it suitable for high-demand environments. Its robust construction ensures durability and reliable performance.

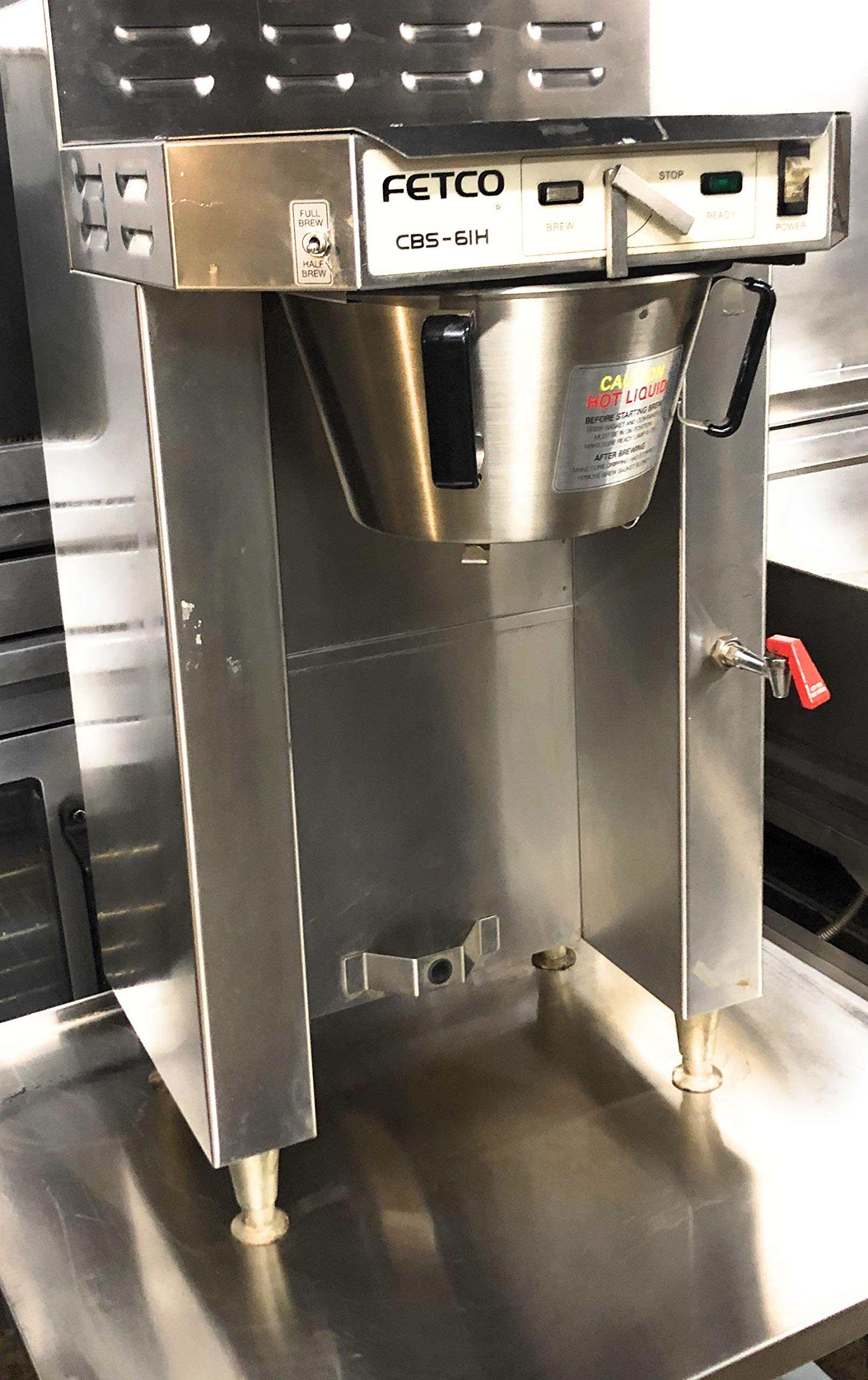

Gambar 2.1: Depan view of the Fetco CBS-61H 6000 Series Single Coffee Brewer. This image displays the overall design and primary components of the brewing unit.
3. Pengaturan
3.1 Membongkar
Carefully remove the brewer from its packaging. Inspect the unit for any shipping damage. Retain packaging materials for future transport or service.
3.2 Penempatan
Place the brewer on a stable, level surface capable of supporting its weight when full. Ensure adequate clearance around the unit for ventilation and access.
3.3 Koneksi Listrik
Connect the brewer to a dedicated electrical circuit matching the specifications: VAC: 120/208-240, Phase: 3, Amps: 25.5-29.7, KW: 9.0-12.1, with a 4 + ground connection. This connection must be performed by a licensed electrician using copper wiring only, adhering to all local and national electrical codes.
3.4 Koneksi Air
Connect the brewer to a potable cold water supply using a dedicated shut-off valve. Ensure water pressure is within the recommended range (typically 20-75 psi). Install a water filter system if water quality is a concern, as mineral buildup can affect performance and warranty.
3.5 Pembilasan Awal
Before first use, perform an initial rinse cycle to flush out any manufacturing residues. Refer to the operating instructions for initiating a brew cycle without coffee.
4. Petunjuk Pengoperasian
4.1 Menghidupkan
Ensure the brewer is properly connected to power and water. Turn the main power switch to the "ON" position. The unit will begin heating water to the optimal brewing temperature.
4.2 Preparing for Brewing
- Insert a clean brew basket liner into the brew basket.
- Add the desired amount of ground coffee to the brew basket. Ensure coffee is evenly distributed.
- Slide the brew basket securely into its position under the spray head.
- Place an empty coffee server (e.g., a 3-gallon thermal server) beneath the brew basket.
4.3 Initiating a Brew Cycle
Once the water is at temperature (indicated by a ready light or display), press the "BREW" button to start the brewing cycle. The brewer will dispense hot water over the coffee grounds. Do not remove the brew basket or server during the brewing process.
4.4 After Brewing
When the brew cycle is complete, carefully remove the coffee server. Allow the brew basket to cool slightly before removing and discarding the used coffee grounds and liner. Clean the brew basket after each use.
5. Pemeliharaan
Regular maintenance ensures optimal performance and extends the life of your Fetco CBS-61H brewer. Always disconnect power before performing any cleaning or maintenance.
5.1 Pembersihan Harian
- Wipe down all exterior surfaces with a damp kain dan deterjen ringan.
- Clean the brew basket and spray head. Remove any coffee residue.
- Kosongkan dan bersihkan baki tetesan.
5.2 Pembersihan Mingguan
- Thoroughly clean all removable parts, including the brew basket and spray head, using a commercial coffee equipment cleaner.
- Inspect water lines and connections for leaks or wear.
5.3 Descaling (As Needed)
Mineral buildup (scale) can affect heating efficiency and water flow. Descale the brewer regularly, depending on water hardness and usage. Use a commercial descaling solution specifically designed for coffee equipment and follow the manufacturer's instructions. Consult the Fetco service manual or a qualified technician for detailed descaling procedures.
6. Penyelesaian masalah
This section provides solutions to common operational issues. For problems not listed here, contact Fetco customer support or a qualified service technician.
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Mesin pembuat kopi tidak menyala. | Tidak ada aliran listrik; pemutus sirkuit terputus. | Check power cord connection. Reset circuit breaker. Verify electrical supply. |
| Air tidak memanas. | Heating element issue; low water level. | Ensure water supply is connected and turned on. Contact service if heating element is suspected. |
| Kopi diseduh terlalu lambat. | Clogged spray head; mineral buildup; incorrect grind size. | Clean spray head. Descale the brewer. Use appropriate coffee grind. |
| Kebocoran air dari unit. | Loose water connection; damaged seal. | Check all water connections for tightness. Contact service for seal replacement. |
7. Spesifikasi
- Model: CBS-61H
- Seri: Seri 6000
- Kapasitas: 3 Galon
- Electrical Configuration: VAC: 120/208-240, Phase: 3, Amps: 25.5-29.7, KW: 9.0-12.1, Heating: 3 X 4 KW
- Pembumian: 4 + ground
- Nomor seri: 03244001
- Pabrikan: FOOD EQUIPMENT TECHNOLOGIES COMPANY, INC.
- Alamat: 640 Heathrow Drive, Lincolnshire, IL 60069-0199, USA
- Weblokasi: www.fetco.com
- U.S. Phone: (800) 338-2699
- Telepon Internasional: (847) 821-1177
- Sertifikasi: UL Listed, NSF STD. 4
- Asal: Dibuat di AS
- Status Paten: Paten ditunda
- ASIN: B072J4KLD8
- Tanggal Pertama Tersedia: 18 Mei 2017
8. Garansi & Dukungan
For warranty information, technical support, or service inquiries, please contact Fetco directly. Ensure you have your model number (CBS-61H) and serial number (03244001) available when contacting support.
- Fetco Weblokasi: www.fetco.com
- Layanan Pelanggan AS: (800) 338-2699
- Layanan Pelanggan Internasional: (847) 821-1177
Fetco offers various protection plans. For details on available plans, please refer to your purchase documentation or contact Fetco customer service.
