MOXA AWK-1137C-US-T 802.11n Wireless AP Client User Manual

1. Pendahuluan

This manual provides essential information for the installation, configuration, operation, and maintenance of the MOXA AWK-1137C-US-T 802.11n Wireless AP Client. This device is designed for industrial wireless applications, offering reliable 802.11n connectivity in challenging environments with a wide operating temperature range.

2. Informasi Keselamatan

• Always disconnect power before cleaning or servicing the device.
• Pastikan grounding yang tepat untuk mencegah bahaya listrik.
• Operasikan perangkat dalam rentang suhu dan kelembapan yang ditentukan.
• Jangan biarkan perangkat terkena kelembapan atau suhu ekstrem.
• Hanya personel berkualifikasi yang boleh melakukan pemasangan dan pemeliharaan.

3. Isi Paket

Verifikasi bahwa paket Anda berisi item berikut:

• MOXA AWK-1137C-US-T Wireless AP Client unit
• Panduan Instalasi Cepat
• Documentation CD (or link to online resources)
• Mounting kit (if applicable)
• Power adapter or terminal block (if applicable)

Jika ada barang yang hilang atau rusak, harap segera hubungi vendor Anda.

4. Perangkat Keras Berakhirview

The AWK-1137C-US-T features robust industrial design. Key components typically include:

• Port Ethernet: Untuk koneksi jaringan kabel.
• Konektor Antena: For external antennas to optimize wireless signal.
• Masukan Daya: Terminal block for DC power input.
• Indikator LED: Provide status information for power, WLAN, and Ethernet activity.
• Tombol Reset: For restoring factory default settings.

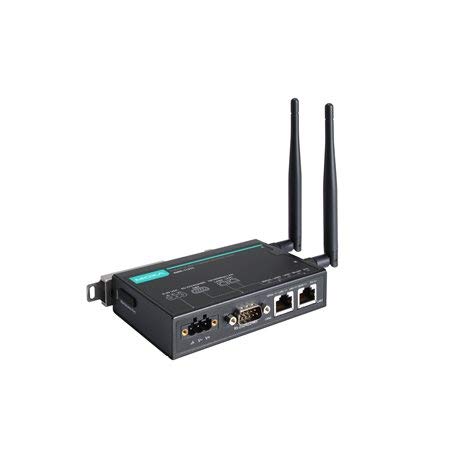

Figure 1: MOXA AWK-1137C-US-T Wireless AP Client. This image shows the compact industrial design of the device, typically featuring antenna ports, Ethernet connections, and power input.

5. Pengaturan

5.1 Pemasangan

The AWK-1137C-US-T supports DIN-rail mounting. Attach the DIN-rail kit to the device and snap it onto a standard DIN-rail. Ensure the device is securely fastened to prevent vibration or accidental dislodgement.

5.2 Sambungan Daya

1. Connect a suitable DC power source (e.g., 12-48 VDC) to the device's power input terminal block.
2. Ensure correct polarity (+ and -) as indicated on the device.
3. Tighten the screws on the terminal block to secure the power wires.

5.3 Koneksi Jaringan

1. Connect an Ethernet cable from your network switch or router to the Ethernet port on the AWK-1137C-US-T.
2. Attach appropriate antennas to the antenna connectors. Ensure they are securely tightened.

5.4 Konfigurasi Awal

Untuk mengakses perangkat web-antarmuka manajemen berbasis:

1. Connect a computer directly to the device's Ethernet port or ensure it is on the same network segment.
2. Configure your computer's IP address to be in the same subnet as the device's default IP address (refer to the Quick Installation Guide for the default IP).
3. Buka sebuah web browser and enter the device's default IP address.
4. Masuk menggunakan nama pengguna dan kata sandi default (lihat Panduan Instalasi Cepat).
5. Change the default password immediately for security.

6. Operasi

Mode Pengoperasian 6.1

The AWK-1137C-US-T can operate in various modes, including Access Point (AP) and Client mode. Select the appropriate mode based on your network requirements.

• Mode Titik Akses (AP): The device acts as a central hub for wireless clients to connect.
• Modus Klien: The device connects to an existing Access Point, extending wired network connectivity wirelessly.

6.2 Pengaturan Nirkabel

Configure the following wireless parameters via the web antarmuka:

• SSID: The name of your wireless network.
• Saluran: Select an appropriate wireless channel to avoid interference.
• Pita: Configure for 2.4 GHz or 5 GHz operation, depending on the model and environment.
• Daya Pancar: Adjust the output power for optimal coverage and compliance.

6.3 Pengaturan Keamanan

Implement strong wireless security to protect your network:

• Enkripsi: Use WPA2/WPA3-PSK or Enterprise for robust security.
• Password/Passphrase: Choose a strong, unique password.
• Penyaringan Alamat MAC: Optionally restrict access to specific devices.

7. Pemeliharaan

7.1 Pembaruan Firmware

Regularly check the MOXA website for the latest firmware updates. Firmware updates can provide new features, performance improvements, and security patches. Follow the instructions provided with the firmware package for a safe update process.

7.2 Pembersihan

Clean the device periodically with a soft, dry cloth. Do not use liquid or aerosol cleaners. Ensure the device is powered off before cleaning.

7.3 Pertimbangan Lingkungan

Ensure the operating environment remains within the specified temperature and humidity limits (-40 to 75°C). Avoid placing the device near heat sources or in direct sunlight.

8. Penyelesaian masalah

8.1 Tidak Ada Daya

• Check the power cable connection and ensure the power source is active.
• Verifikasi volume catu dayatage is within the device's specified range.
• Inspect the power input terminal block for loose connections.

8.2 Tidak Ada Koneksi Jaringan

• Check Ethernet cable connections and ensure they are properly seated.
• Verify that the network switch or router is functioning correctly.
• For wireless connections, ensure the SSID, security settings, and channel match the connected AP/client.
• Check the LED indicators for network activity.

8.3 Kecepatan Nirkabel Lambat

• Ensure antennas are properly connected and positioned for optimal signal.
• Check for sources of interference (e.g., other wireless devices, microwave ovens).
• Adjust the wireless channel to a less congested one.
• Verify that the device is operating in 802.11n mode and not a slower standard.

8.4 Mengatur Ulang ke Pengaturan Pabrik

If configuration issues persist, you may need to reset the device to its factory default settings. Locate the reset button (often recessed) and press and hold it for approximately 5-10 seconds while the device is powered on. The device will reboot with default settings.

9. Spesifikasi

10. Garansi dan Dukungan

10.1 Informasi Garansi

MOXA products typically come with a standard warranty. For detailed warranty terms and conditions, please refer to the official MOXA webLihat situs web atau kartu garansi yang disertakan dengan produk Anda. Simpan bukti pembelian Anda untuk klaim garansi.

10.2 Dukungan Teknis

For technical assistance, product documentation, or driver downloads, please visit the official MOXA support website. You can also contact MOXA's customer support team directly through the contact information provided on their weblokasi.
