SEAC Driver Wrist Dive Computer User Manual

Perkenalan

The SEAC Driver is a wrist-mounted dive computer designed for both recreational diving and freediving. It provides essential information such as dive depth, time, temperature, and ascent/descent rates. This manual will guide you through the proper setup, operation, and maintenance of your device, ensuring safe and effective use during your underwater activities.

Fitur Utama

• Simultaneous display of dive speed, ascent speed, temperature, dive time, surface time, and current depth.
• Adjustable settings for freshwater or saltwater environments.
• MSST (Minimum Surface Recovery Time) function for calculating required surface intervals and rehydration warnings.
• Option to deactivate all light and sound alarms while maintaining continuous dive profile monitoring on the display.
• Comprehensive logbook memory, organized by sessions and individual dives, with data download capability.

Pengaturan

Initial Activation and Basic Settings

Upon first use or after a battery change, the device will prompt you to set the basic parameters.

1. Tekan dan tahan tombol MODE tombol untuk masuk ke menu pengaturan.
2. Gunakan LAMPU Dan MENGATUR ULANG buttons to navigate through options and adjust values.
3. Set the current time (12-hour or 24-hour format) and date.
4. Select your preferred unit of measurement (metric or imperial).
5. Confirm settings by pressing the MODE tombol.

Gambar: Depan view of the SEAC Driver Wrist Dive Computer, displaying the digital screen and control buttons. This image shows the general appearance of the device.

Fungsi Tombol

The SEAC Driver features four primary buttons for navigation and control.

Gambar: Samping view of the SEAC Driver dive computer, highlighting the placement of the control buttons on the left and right sides of the watch face. These buttons are used for menu navigation and setting adjustments.

• LAMPU: Activates backlight; navigates up in menus.
• ARAH: Changes operating modes; confirms selections.
• MAKS: Displays maximum values; navigates down in menus.
• SETEL ULANG: Resets certain functions; navigates right in menus.

Freshwater/Saltwater Setting

The SEAC Driver allows you to select between freshwater and saltwater modes for accurate depth and decompression calculations.

1. Navigate to the "Water Type" setting in the menu.
2. Choose "Fresh" or "Salt" based on your diving environment.
3. Konfirmasikan pilihan Anda.

Mode Operasi

Mode Menyelam

The device automatically switches to dive mode when submerged to a certain depth. In this mode, it displays critical dive parameters.

• Kedalaman Saat Ini: Indicates your real-time depth.
• Waktu Menyelam: Shows the elapsed time of your current dive.
• Suhu: Displays the water temperature.
• Ascent/Descent Rate: Provides visual or audible indicators for safe ascent/descent rates.

Freediving Mode

For freediving, the computer tracks specific metrics relevant to breath-hold diving.

• Kedalaman Maksimum: Records the deepest point reached during a freedive.
• Dive Duration: Measures the total time spent underwater for each freedive.
• Surface Interval: Calculates the time spent on the surface between dives, crucial for recovery.
• MSST Function: Utilizes the Minimum Surface Recovery Time calculation to advise on safe surface intervals.

Image: The SEAC Driver dive computer worn on a diver's wrist, visible over a wetsuit and gloves, demonstrating its practical use during water activities.

Logbook Mode

The logbook stores detailed information about your past dives.

1. To access the logbook, press the MODE button from the surface screen.
2. Menggunakan LAMPU Dan MENGATUR ULANG to scroll through individual dives or dive sessions.
3. Each entry typically includes date, time, maximum depth, dive duration, and water temperature.

Manajemen Alarm

The SEAC Driver features customizable alarms for various dive parameters.

• Alarms can be set for maximum depth, dive time, and ascent rate.
• Light and sound alarms can be individually activated or deactivated through the settings menu.
• Even with alarms deactivated, the display continues to show the dive profile untuk pemantauan berkelanjutan.

Pemeliharaan

Pembersihan dan Penyimpanan

After each use, rinse the dive computer thoroughly with fresh water to remove salt, sand, and chlorine. Allow it to air dry completely before storage.

• Jangan gunakan pembersih kimia atau pelarut.
• Simpan perangkat di tempat sejuk dan kering, jauh dari sinar matahari langsung.

Penggantian Baterai

The SEAC Driver uses a user-replaceable battery. When the low battery indicator appears, replace the battery promptly to ensure proper function.

1. Carefully open the battery compartment cover on the back of the device using the appropriate tool.
2. Remove the old battery and insert a new, compatible battery, ensuring correct polarity.
3. Securely close the battery compartment, ensuring the O-ring seal is clean and properly seated to maintain water resistance.

Image: Close-up of the back of the SEAC Driver dive computer, showing the stainless steel case back with the SEAC logo, model information, and the battery compartment cover. This area is crucial for battery replacement and maintaining water resistance.

Penyelesaian Masalah

If you encounter issues with your SEAC Driver, consider the following common solutions:

• Tampilan Tidak Berfungsi: Check the battery level. If low, replace the battery. Ensure the battery is inserted with correct polarity.
• Pembacaan yang Tidak Akurat: Verify that the freshwater/saltwater setting is correct for your environment. Ensure the device's sensors are clean and free from obstructions.
• Tombol Tidak Responsif: Ensure the device is dry and free of debris around the buttons. If underwater, some buttons may require a firmer press.
• Data Download Issues: Ensure the USB cable is securely connected to both the computer and the device. Check for necessary drivers or software updates for your computer.

For persistent issues, refer to the official SEAC support resources or contact customer service.

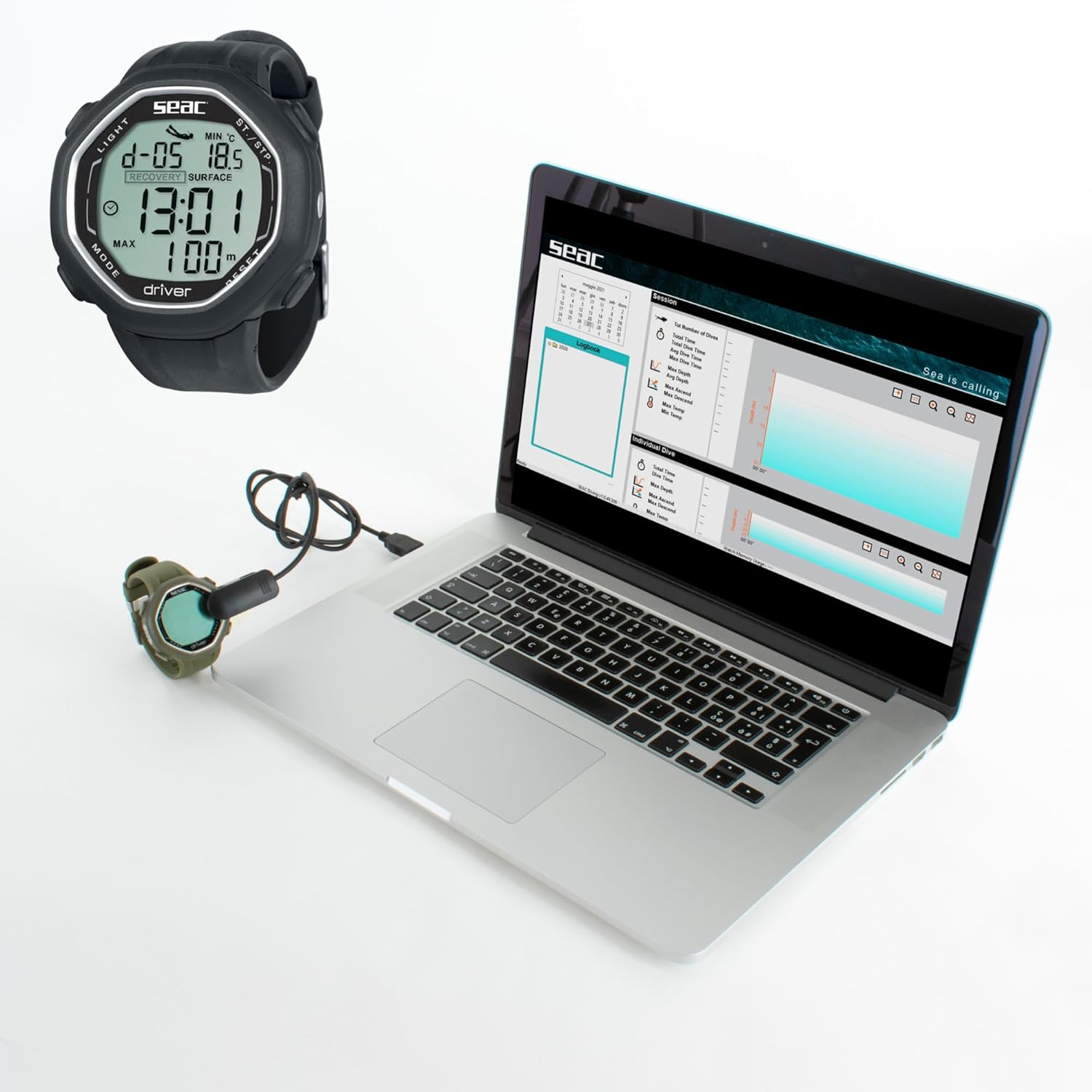

Image: The SEAC Driver dive computer connected via a USB cable to a laptop, illustrating the data download process for logbook analysis. The laptop screen shows a graphical interface for dive data.

Spesifikasi

Garansi dan Dukungan

For detailed warranty information, please refer to the documentation included with your product or visit the official SEAC weblokasi.

For technical support, service, or to purchase accessories, please contact SEAC customer service directly. Contact information can typically be found on the manufacturer's weblokasi.
