Gree XK-60 Wired Programmable Controller User Manual

For U-Match Systems

Perkenalan

This manual provides detailed instructions for the installation, operation, and maintenance of the Gree XK-60 Wired Programmable Controller. This controller is designed to interface with Gree U-Match air conditioning systems, offering precise control over your indoor climate. Please read this manual thoroughly before installation and operation to ensure proper use and optimal performance.

Produk Selesaiview

The Gree XK-60 is a wired, programmable controller featuring a backlit LCD display and intuitive button controls. It allows users to manage various functions of their U-Match system, including operating modes, temperature settings, fan speeds, and programmable timers.

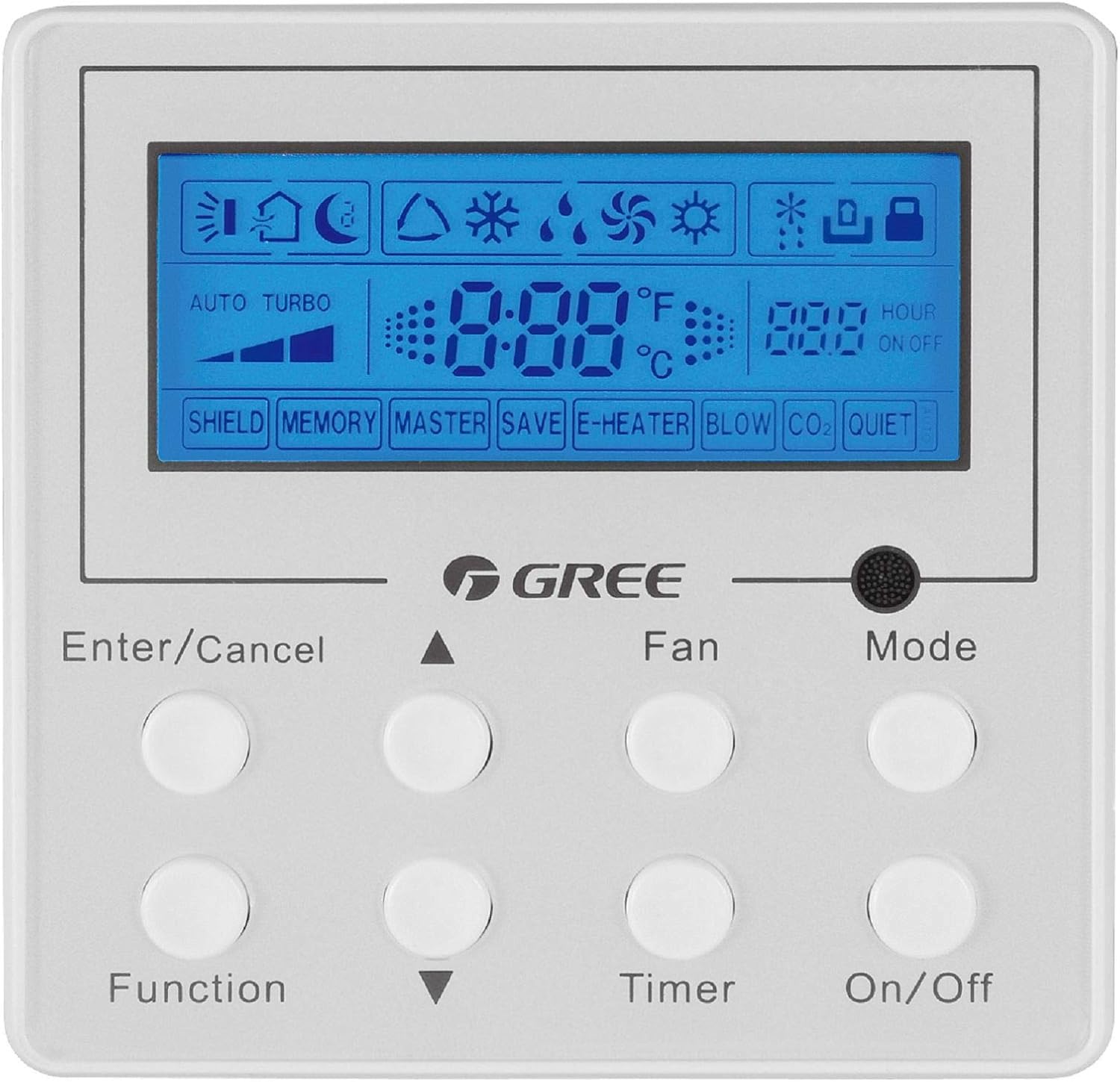

Gree XK-60 Wired Programmable Controller

Deskripsi Gambar: Bagian depan view of the Gree XK-60 wired programmable controller. The controller is white with a blue backlit LCD screen at the top. Below the screen are eight circular white buttons arranged in two rows of four. Text labels are printed below each button or pair of buttons. The GREE logo is centered between the screen and the buttons. The screen displays various icons for operating modes, fan speed, temperature, and timer settings.

Informasi Keselamatan

Instalasi dan Pengaturan

Memasang Pengontrol

The XK-60 controller is designed for wall mounting. Choose a location that is easily accessible, away from direct sunlight, heat sources, and drafts, which could affect temperature readings.

Petunjuk Pengkabelan

The controller connects to the indoor unit via a wired connection.

  1. Turn off the main power supply to the U-Match system.
  2. Open the wiring cover on the indoor unit and locate the control terminal block.
  3. Connect the communication wires from the XK-60 controller to the designated terminals on the indoor unit's control board. Refer to the U-Match system's indoor unit installation manual for specific wiring diagrams.
  4. Pastikan semua sambungan terpasang dengan aman dan terpolarisasi dengan benar.
  5. Close the wiring cover and restore power to the system.

Catatan: Incorrect wiring can damage the controller or the U-Match system. If you are unsure, consult a professional technician.

Petunjuk Pengoperasian

The Gree XK-60 controller features an LCD display and eight control buttons.

Fungsi Tombol

Indikator Tampilan LCD

Operasi Dasar

  1. Daya Hidup/Mati: Tekan tombol Aktif/Nonaktif tombol untuk menghidupkan atau mematikan sistem.
  2. Pilih Modus: Tekan tombol Mode button repeatedly to cycle through available operating modes (Auto, Cool, Dry, Heat, Fan).
  3. Atur Suhu: Dalam mode Dingin atau Panas, gunakan Panah Atas (▲) or Panah Bawah (▼) tombol untuk mengatur suhu yang diinginkan.
  4. Sesuaikan Kecepatan Kipas: Tekan tombol Penggemar button repeatedly to select the desired fan speed (Auto, Low, Medium, High).
  5. Setel Timer: Tekan tombol Pengatur waktu button to enter timer setting mode. Use the Panah Atas (▲) or Panah Bawah (▼) buttons to set the desired ON or OFF time, then press Masuk/Batal untuk mengonfirmasi.

Fungsi Lanjutan

To access advanced functions like "SHIELD" or "QUIET" mode, press the Fungsi button. Use the arrow buttons to navigate through options and Masuk/Batal to select or confirm. Refer to the U-Match system's specific feature documentation for detailed explanations of each advanced function.

Pemeliharaan

Membersihkan Pengontrol

System Filter Maintenance

While the controller itself does not require filter maintenance, regular cleaning or replacement of the U-Match indoor unit's air filters is crucial for optimal system performance and air quality. Refer to your U-Match indoor unit manual for filter maintenance instructions.

Penyelesaian Masalah

If you encounter issues with your Gree XK-60 controller, refer to the following common problems and solutions.

MasalahKemungkinan PenyebabLarutan
Layar pengontrol kosong.No power to the unit or controller.Check the main power supply to the U-Match system. Ensure wiring connections are secure.
Kontroler tidak merespons penekanan tombol.Temporary software glitch or communication error.Turn off power to the system for a few minutes, then restore power. If the issue persists, check wiring.
Pembacaan suhu tidak akurat.Controller located near a heat source or draft.Relocate the controller if possible, or ensure no external factors are influencing the sensor.
System not operating in selected mode.Communication error with indoor unit or system fault.Check for error codes on the indoor unit. Consult a qualified technician if the problem persists.

For complex issues or error codes not listed, contact a qualified HVAC technician or Gree customer support.

Spesifikasi

Garansi dan Dukungan

For warranty information and technical support, please refer to the documentation provided with your Gree U-Match system or contact Gree customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

Gree Customer Support: Visit the official Gree website or contact your local distributor for support.
