Progress Lighting Tobin Collection 1-Light Etched White Glass Modern Bath Vanity Light

Perkenalan

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Progress Lighting Tobin Collection 1-Light Etched White Glass Modern Bath Vanity Light. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The Tobin vanity light features a modern design with tubular arms and an etched white glass shade, finished in Brushed Nickel. It is designed to provide functional and aesthetic lighting for your bathroom space.

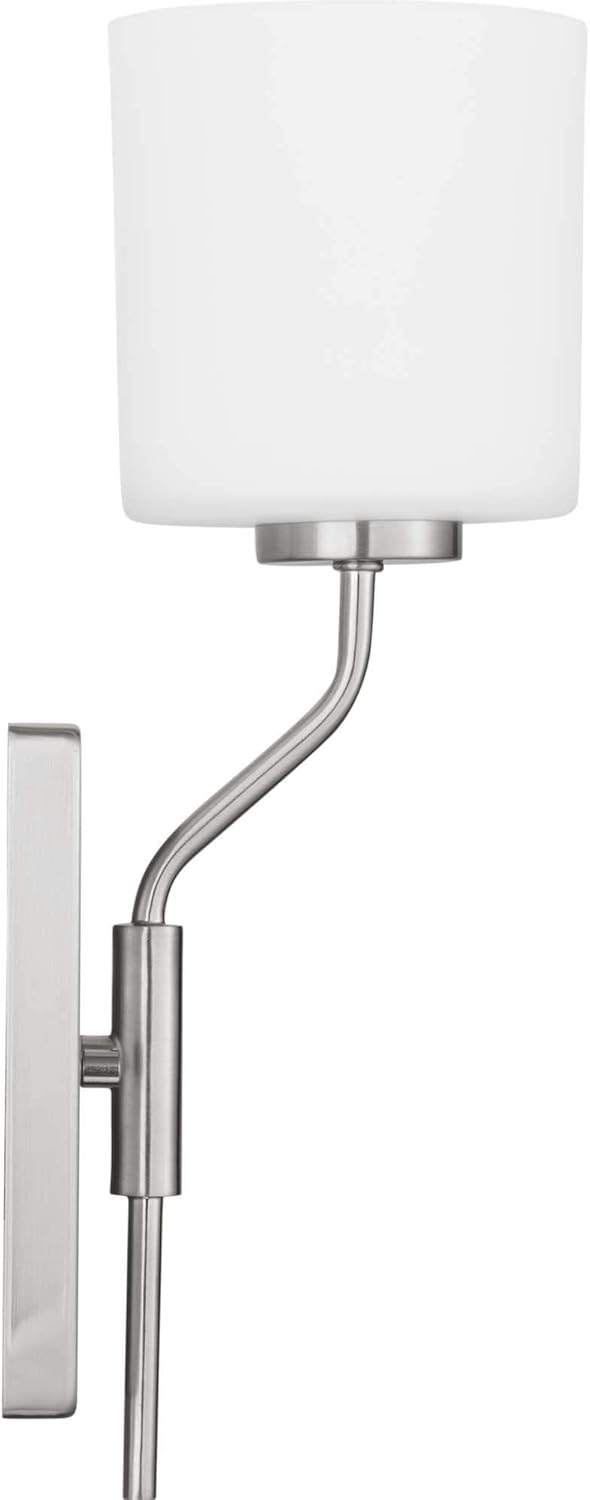

Figure 1: Progress Lighting Tobin 1-Light Vanity Light.

Informasi Keselamatan

• PERINGATAN: Risiko sengatan listrik. Putuskan aliran listrik di kotak sekering atau pemutus sirkuit sebelum pemasangan atau perawatan.
• Semua sambungan listrik harus sesuai dengan peraturan, ketentuan setempat, atau Kode Listrik Nasional (NEC). Hubungi teknisi listrik yang berkualifikasi jika Anda tidak terbiasa dengan sambungan kabel listrik yang benar.
• Perlengkapan ini hanya ditujukan untuk penggunaan di dalam ruangan.
• Gunakan hanya jenis bohlam dan wattage specified for this fixture. Exceeding the recommended wattage may cause overheating and damage.
• Tangani komponen kaca dengan hati-hati untuk mencegah kerusakan.
• Ensure the fixture is securely mounted to a structural element of the building.
• This product is UL Listed, ensuring it meets specific safety standards.

Isi Paket

Carefully unpack your new fixture and lay out all parts on a clear area. Ensure all components listed below are present before discarding packaging materials.

• Fixture Body (with tubular arm and backplate)
• Naungan Kaca Putih Terukir
• Mounting Hardware (crossbar, mounting screws, wire nuts)
• Lembar Instalasi

Spesifikasi

Gambar 2: Dimensi Produk.

Pengaturan dan Instalasi

Sebelum Anda memulai: Ensure power is turned off at the circuit breaker. Read all instructions thoroughly.

1. Siapkan Permukaan Pemasangan: Ensure the electrical box is securely installed and capable of supporting the fixture's weight.
2. Pasangkan Pelat Pemasangan: Secure the mounting crossbar to the electrical box using the provided screws.
3. Koneksi Kawat: Connect the fixture's wires to the corresponding house wires (black to black, white to white, ground to ground) using the provided wire nuts. Ensure all connections are secure.
4. Pasang Perlengkapan: Carefully align the fixture's backplate with the mounting screws on the crossbar. Secure the fixture in place with the decorative nuts or screws.
5. Pasang Penutup Kaca: Place the etched white glass shade over the socket and secure it according to the specific design (e.g., with a threaded ring or set screws).
6. Pasang Bohlam: Insert one E26 medium base bulb (max 100W incandescent or equivalent LED) into the socket.

This fixture can be mounted with the light facing upwards or downwards, depending on your preference and desired lighting effect.

Figure 3: Mounting Options (Up or Down).

Panduan Video Instalasi

Petunjuk Pengoperasian

Once installed, restore power at the circuit breaker. The fixture is operated via a standard wall switch (not included). If connected to a compatible dimmer switch, the light output can be adjusted. Ensure the bulb used is dimmable if you intend to use a dimmer switch.

Pemeliharaan

• Pembersihan: Always turn off power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents as they may damage the finish.
• Naungan Kaca: The etched white glass shade can be removed for cleaning. Wash with mild soap and water, rinse thoroughly, and dry completely before reattaching.
• Penggantian Bohlam: Ensure power is off and the bulb has cooled before attempting to replace it. Use an E26 medium base bulb, not exceeding 100 watts.

Penyelesaian Masalah

Garansi dan Dukungan

Produk Progress Lighting ini dilindungi oleh garansi. Garansi Terbatas 1 tahun. This warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support.

For warranty claims or technical assistance, please refer to the contact information provided on your purchase receipt or visit the official Progress Lighting weblokasi.
