AKG CBL301 Boundary Layer Microphone User Manual

Perkenalan

The AKG CBL301 is a triple-element, low-profile boundary layer microphone designed for use in conference rooms and meeting spaces. It features user controls for talk/mute functionality, LED indicators, and screw terminals for audio input/output. The microphone is engineered for straightforward installation and reliable operation.

Fitur Utama:

• Pro rendahfile design for discreet placement
• Triple-element cardioid microphone for clear audio capture
• Touch-sensitive control for talk/mute functions
• RGB LED ring indicators for visual status feedback
• RF interference suppression for stable performance

Apa yang ada di dalam kotak

Buka kemasan dengan hati-hati dan pastikan semua barang ada:

• CBL301 Microphone
• Batang Berulir
• Sekrup
• kacang sayap
• End Seal and Table Seal

Petunjuk Pengaturan

Follow these steps to properly set up your AKG CBL301 microphone:

1. Penempatan: Position the microphone on a flat, stable surface in your conference or meeting area. The low-profile design allows for discreet integration.
2. Pemasangan (Opsional): For permanent installation, use the provided threaded rod, screws, wingnut, and seals to secure the microphone to the table surface. This minimizes disruption and ensures stability.
3. Konektivitas: Connect the microphone to your audio system using an appropriate XLR cable (not included) via the screw terminals. Ensure secure connections for optimal audio transmission.
4. Kekuatan: The microphone is powered via a corded electric connection. Ensure it is connected to a compatible power source (3.3 Volts).

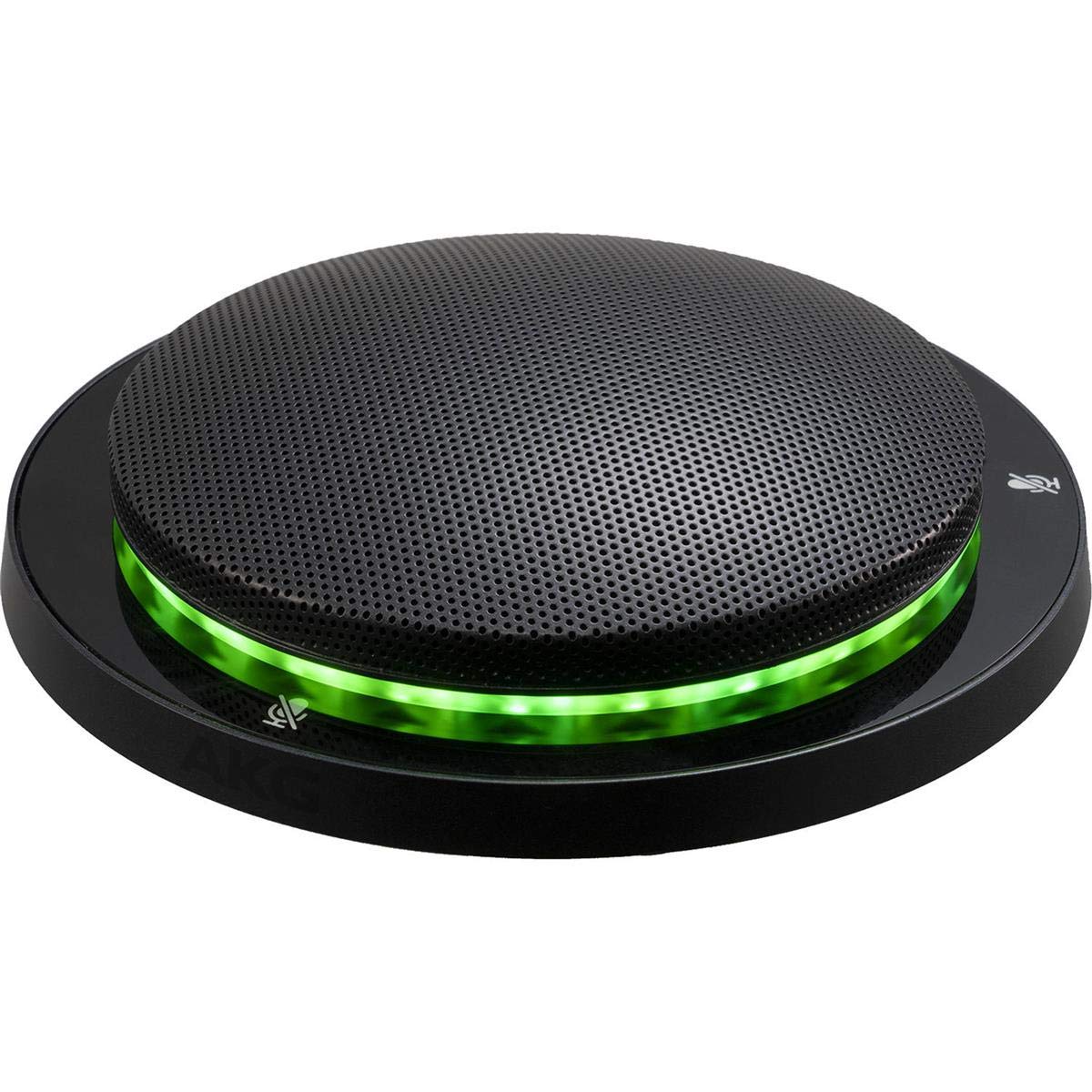

Sebuah sisi view of the AKG CBL301 microphone, illustrating its low-profile form factor. The illuminated green LED ring indicates the microphone's active status, and the AKG logo is visible on the base.

Petunjuk Pengoperasian

The CBL301 features intuitive touch controls and LED indicators for easy operation:

1. Nyalakan: Once connected to power, the microphone will initialize.
2. Talk/Mute Control: To toggle between talk and mute states, gently touch the designated area on the microphone's surface.
3. Indikator LED: The RGB LED ring provides visual feedback on the microphone's status:
   • Hijau: Microphone is active and picking up audio.
   • Merah: Mikrofon dimatikan.
   • Biru: (Specific status, refer to advanced settings if applicable, or typically indicates a specific mode).
4. Coverage Configuration: The microphone's pickup pattern is user-configurable from 270 to 360 degrees. Consult your audio system's documentation for specific adjustments if required.

This image displays the AKG CBL301 microphone from a top-down perspective, highlighting its circular, low-profile design and the perforated grille covering the microphone elements. The touch-sensitive mute/unmute icons are visible around the perimeter.

Pemeliharaan

Proper maintenance ensures the longevity and performance of your CBL301 microphone:

• Pembersihan: Use a soft, dry cloth to wipe the microphone's surface. Avoid abrasive cleaners, solvents, or excessive moisture, which can damage the finish or internal components.
• Penyimpanan: Saat tidak digunakan dalam jangka waktu lama, simpan mikrofon di lingkungan yang bersih dan kering, jauh dari suhu dan kelembapan ekstrem.
• Perawatan Kabel: Ensure all cables are free from kinks or damage. Replace any damaged cables immediately to prevent performance issues or safety hazards.

Penyelesaian Masalah

If you encounter issues with your CBL301 microphone, refer to the following common solutions:

• Tidak Ada Keluaran Suara:
  • Periksa semua sambungan kabel untuk memastikannya aman.
  • Verify the microphone is not muted (check LED indicator for red light).
  • Confirm the audio system's input is correctly configured and volume levels are adequate.
  • Ensure the microphone is receiving power.
• Suara Terdistorsi:
  • Periksa sambungan kabel yang longgar.
  • Ensure the microphone is not placed too close to sound sources, causing clipping.
  • Verify the audio system's input gain is not set too high.
• Indikator LED Tidak Berfungsi:
  • Confirm the microphone is properly powered.
  • If the microphone functions but the LED does not, contact support.

If the problem persists after attempting these solutions, please contact AKG customer support.

Spesifikasi

Informasi Garansi

This product is covered by a manufacturer's warranty. For detailed information regarding warranty terms, conditions, and registration, please refer to the official AKG website or contact AKG customer support directly. Please retain your proof of purchase for warranty claims.

Mendukung

For technical assistance, product inquiries, or service requests, please visit the official AKG support website or contact their customer service department. Contact information can typically be found on the AKG websitus atau dalam kemasan produk.
