1. Pendahuluan
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Bosch KDN43VB40I 347 L 4 Star Inverter Frost-Free Double Door Refrigerator. Please read this manual thoroughly before using the appliance to ensure safe and efficient operation.
The Bosch KDN43VB40I refrigerator features a 2-door top freezer design, engineered for 7 days of freshness. It includes an automatic holiday mode, a Vario Inverter compressor, and 5 intelligent sensors to enhance energy efficiency by 30%. Key features include a Vitafresh crisper with humidity control, an Air fresh filter, 16 hours of cooling retention, a multi-airflow system, and a door airflow system. This appliance is also designed to work with UPS systems.
Gambar 1.1: Depan view of the Bosch KDN43VB40I Double Door Refrigerator.
2. Pengaturan dan Instalasi
2.1 Membongkar
Carefully remove all packaging materials. Ensure that all included components are present: 1 Refrigerator Unit, User Manual, and 1 Egg Tray. Inspect the appliance for any damage incurred during transit. Report any damage to your retailer immediately.
2.2 Penempatan
Place the refrigerator on a firm, level surface away from direct sunlight, heat sources (like stoves or radiators), and moisture. Ensure adequate ventilation around the unit. Maintain a minimum clearance of 10 cm (4 inches) from the back and sides for proper air circulation.
- Dimensi (P x L x T): 65x65x175 sentimeter
- Berat Barang: 75 kg

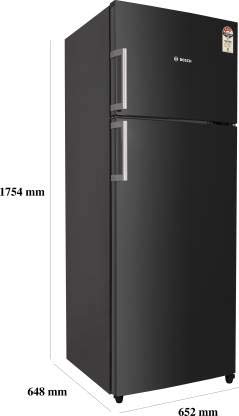

Figure 2.1: Refrigerator dimensions for proper placement. The height is approximately 1754 mm, width 652 mm, and depth 648 mm.
2.3 Sambungan Daya
Connect the refrigerator to a dedicated power outlet. Ensure the power supply matches the appliance's requirements:
- Jil.tage: 240 Volt
- Apatage: 160 Watt
The appliance is designed to work with UPS systems, providing continuous operation during power outagyaitu.
2.4 Start-up Awal
After connecting to power, allow the refrigerator to stand for at least 2-4 hours before loading food. This allows the refrigerant to settle. Set the temperature controls to the recommended settings (refer to the Operating section) and allow the appliance to cool for several hours before storing food items.
3. Petunjuk Pengoperasian
3.1 Kontrol Suhu
The refrigerator features intuitive temperature controls. Refer to the control panel located inside the refrigerator compartment for specific settings. The Vario Inverter compressor and 5 intelligent sensors automatically adjust cooling based on internal and external conditions to maintain optimal temperatures and energy efficiency.

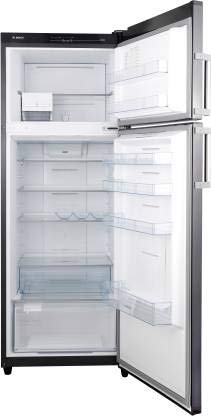

Gambar 3.1: Interior view of the refrigerator compartment, showing shelves and storage areas.
3.2 Freezer Compartment Usage
The top freezer compartment is designed for freezing and long-term storage of frozen foods. Ensure packages are sealed properly to prevent freezer burn.

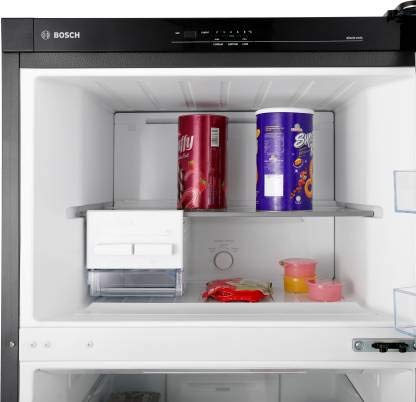

Gambar 3.2: Interior view of the freezer compartment, showing storage shelves and ice maker.
3.3 Fitur Khusus
- Vitafresh Crisper with Humidity Control: This drawer maintains optimal humidity levels to keep fruits and vegetables fresh for longer periods. Adjust the humidity slider as needed for different produce types.
- Air Fresh Filter: Helps to neutralize odors inside the refrigerator, keeping the air clean and fresh.
- Automatic Holiday Mode: Activates an energy-saving mode when you are away for an extended period, maintaining a higher temperature in the refrigerator compartment while keeping the freezer at its normal setting.
- Sistem Aliran Udara Ganda: Ensures even distribution of cold air throughout the refrigerator, maintaining consistent temperatures and rapid cooling.
- Door Airflow System: Specifically designed to cool items stored in the door shelves effectively.
- Cooling Retention: The refrigerator can retain cooling for up to 16 hours during power outages, protecting your food.
4. Pemeliharaan
4.1 Membersihkan Kulkas
Pembersihan rutin membantu menjaga kebersihan dan efisiensi. Selalu cabut steker kulkas sebelum membersihkan.
- Bersihkan bagian dalam dengan larutan deterjen ringan dan air hangat. Lap hingga benar-benar kering.
- Removable shelves and drawers can be washed in warm soapy water.
- Lap permukaan luar dengan lembut, damp kain. Hindari pembersih atau pelarut abrasif.
- Bersihkan segel pintu secara teratur untuk memastikan segel yang rapat dan mencegah kehilangan energi.
4.2 Pencairan
Kulkas ini dilengkapi sistem pencairan bebas bunga es, sehingga tidak perlu pencairan manual. Penumpukan es dikelola secara otomatis oleh sistem.
5. Panduan Pemecahan Masalah
Sebelum menghubungi layanan pelanggan, harap lihat masalah umum berikut dan solusinya:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Kulkas tidak dingin | Kabel daya tercabut; termostat disetel terlalu tinggi; pintu tidak tertutup rapat; muatan makanan berlebihan. | Periksa sambungan daya; atur termostat ke pengaturan yang lebih rendah; pastikan pintu tertutup rapat; kurangi jumlah makanan jika terlalu penuh. |
| Kebisingan yang tidak biasa | Kulkas tidak rata; barang-barang bergetar di dalam; kebisingan kompresor (normal). | Sesuaikan kaki penyeimbang; susun ulang barang; kebisingan kompresor adalah normal selama pengoperasian. |
| Air di lantai/di dalam | Saluran pembuangan tersumbat; pintu tidak tertutup rapat. | Clear drain tube (refer to full manual); check door seal for obstructions or damage. |
| Pintu tidak tertutup sepenuhnya | Paket makanan terhalang; paking pintu kotor atau rusak; lemari es tidak rata. | Rearrange items; clean or replace gasket; level the refrigerator. |
Jika masalah berlanjut setelah mencoba solusi ini, hubungi dukungan pelanggan Bosch.
6. Spesifikasi Produk
| Fitur | Detil |
|---|---|
| Merek | Bosch |
| Model | KDN43VB40I |
| Kapasitas | 347 liter |
| Efisiensi Energi | Peringkat 4 Bintang (2019) |
| Konsumsi Energi Tahunan | 221 Kilowatt Jam |
| Kapasitas Makanan Segar Kulkas | 266 liter |
| Kapasitas Freezer | 81 liter |
| Jenis Instalasi | Freestanding |
| Faktor Bentuk | Pintu Ganda, Freezer di Bagian Atas |
| Fitur Khusus | Inverter, Vitafresh crisper with Humidity control, Air fresh filter, 16 hours cooling retention, Multi airflow system, Door airflow system, Works on UPS, Automatic holiday mode, 5 intelligent sensors |
| Warna | Hitam Metalik |
| Jil.tage | 240 Volt |
| Apatage | 160 Watt |
| Sistem Pencairan | Bebas Embun Beku |
| Tipe Rak | Kaca yang Diperkeras |
| Sertifikasi | Bintang Energi |
| Bahan | Besi tahan karat |
| Komponen yang Termasuk | 1 Refrigerator Unit, User Manual, Egg Tray |
| Berat Barang | 75 kg |
| Dimensi Barang (PxLxT) | 65x65x175 sentimeter |
| Pabrikan | BSH HOUSEHOLD APPLIANCES MANUFACTURING PVT LTD |
| Tanggal Pertama Tersedia | 24 April 2019 |
7. Informasi Garansi
Your Bosch KDN43VB40I Refrigerator comes with a limited warranty:
- Garansi Produk: 1 tahun sejak tanggal pembelian.
- Garansi Kompresor: 10 tahun dari tanggal pembelian.
Please retain your purchase receipt as proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions. For full terms and conditions, please refer to the warranty card included with your appliance or contact Bosch customer support.
8. Dukungan Pelanggan
For technical assistance, service requests, or any inquiries regarding your Bosch refrigerator, please contact:
- Layanan Pelanggan Bosch: 18002661800
- Pabrikan: BSH HOUSEHOLD APPLIANCES MANUFACTURING PVT LTD
When contacting support, please have your model number (KDN43VB40I) and purchase date available.
