Gigaset E290A Cordless Phone with Answering Machine User Manual

Perkenalan

The Gigaset E290A is a cordless telephone designed for ease of use, featuring an integrated answering machine. It combines a modern design with functions specifically developed for users with visual, auditory, or tactile needs. The large keys, highly readable backlit display, and ergonomic handset shape ensure comfortable operation for all ages. This manual provides essential information for setting up, operating, and maintaining your Gigaset E290A.

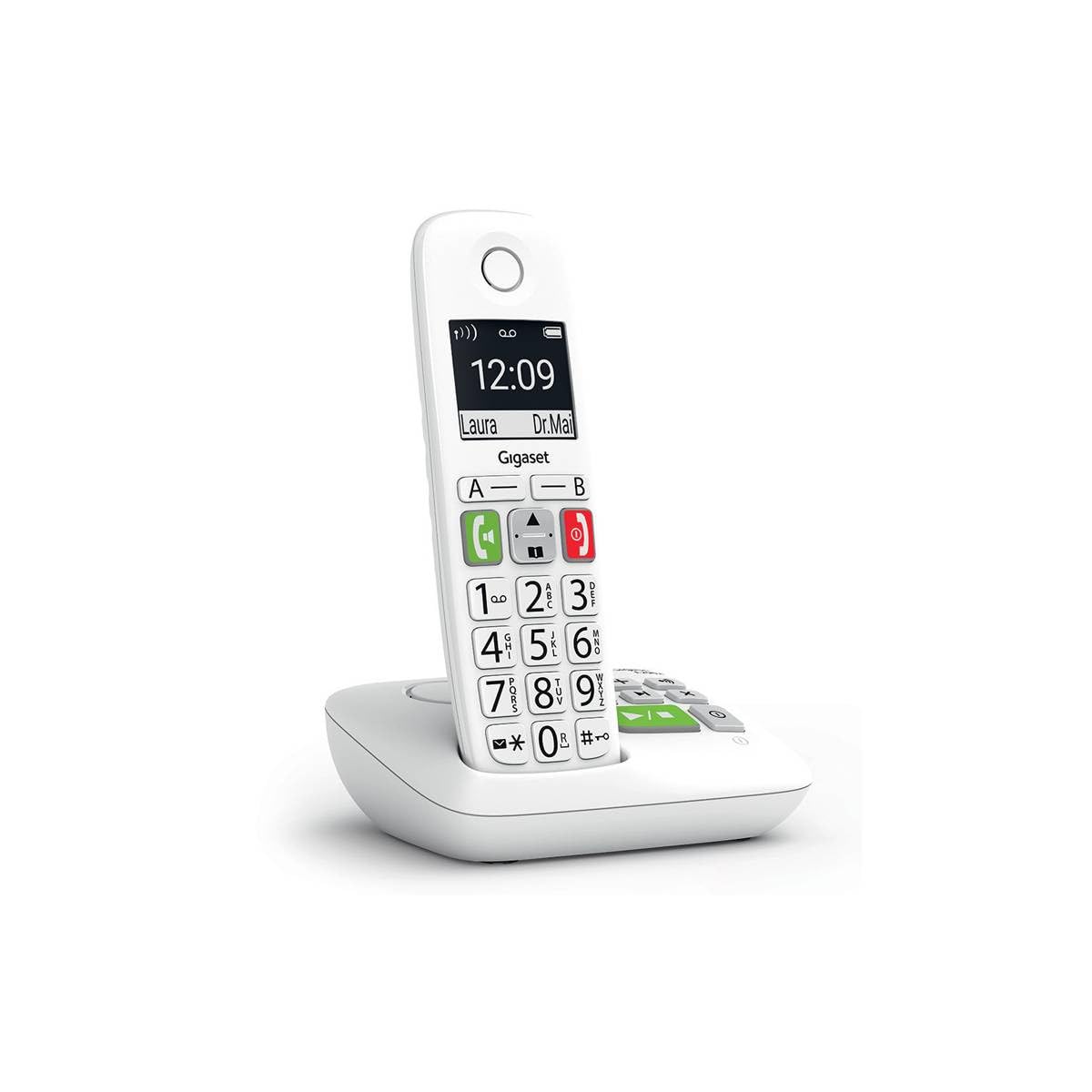

Image: The Gigaset E290A cordless phone, showing the handset and base station.

Informasi Keselamatan

• Use only the power adapter and telephone cord supplied with the device.
• Jangan biarkan ponsel terkena suhu ekstrem, sinar matahari langsung, atau kelembapan tinggi.
• Avoid placing the phone near heat sources or in areas with strong electromagnetic fields.
• Use only approved rechargeable batteries. Do not dispose of batteries in fire.
• Jangan membuka perangkat casing. Repairs should only be performed by authorized service personnel.
• Jauhkan telepon dari jangkauan anak-anak.

Isi Paket

Verifikasi bahwa paket Anda berisi item berikut:

• 1 Gigaset E290A Handset
• 1 Gigaset E290A Base Station with integrated answering machine
• 1 Power Adapter for the base station
• 1 Kabel Saluran Telepon
• 2 Baterai Isi Ulang AAA
• 1 Penutup Baterai
• Panduan Pengguna ini

Pengaturan

1. Menghubungkan Stasiun Pangkalan

1. Connect the power adapter to the base station and plug it into a wall outlet.
2. Connect the telephone line cord to the base station and plug the other end into your telephone wall socket.
3. Place the base station on a flat, stable surface, away from other electronic devices that might cause interference.

Image: The Gigaset E290A base station, illustrating the connection points for power and telephone line.

2. Inserting Batteries into the Handset

1. Buka penutup kompartemen baterai di bagian belakang handset.
2. Insert the two supplied AAA rechargeable batteries, ensuring correct polarity (+/-).
3. Tutup penutup ruang baterai.
4. Place the handset on the base station to charge. The display will indicate charging status. Allow at least 8 hours for the initial charge.

3. Mendaftarkan Ponsel

The handset is usually pre-registered to the base station. If not, or if you are adding an additional handset:

1. On the base station, press and hold the registration/paging key for approximately 3 seconds. The base station will enter registration mode.
2. On the handset, navigate to the menu, select Pengaturan, Kemudian Pendaftaran, and follow the on-screen prompts. You may need to enter a PIN (default is 0000).
3. Once registered, the handset display will show the internal number (e.g., "HS 1").

Petunjuk Pengoperasian

Membuat dan Menerima Panggilan

• Melakukan Panggilan: Enter the phone number using the large keypad and press the green call key (📞).
• Menerima Panggilan: When the phone rings, press the green call key (📞) untuk menjawab.
• Mengakhiri Panggilan: Press the red end call key (⛔).
• Panggilan bebas genggam: During a call, press the hands-free key (🔊) to activate the speakerphone.

Image: Close-up of the Gigaset E290A handset, highlighting the large, easy-to-read keys for dialing.

Using the Answering Machine

The Gigaset E290A features an integrated digital answering machine with up to 30 minutes of recording time.

• Mengaktifkan/Menonaktifkan: Access the answering machine menu on the handset or press the dedicated key on the base station.
• Memutar Pesan: Press the play key on the base station or navigate through the handset menu.
• Merekam Pengumuman: Follow the menu prompts to record your personal greeting.

Buku telepon

Store up to 150 contacts in the phonebook.

• Menambahkan Kontak: Go to the phonebook menu, select "New Entry," and enter the name and number.
• Quick Dial Keys: The phone has two direct access keys (A and B) for quickly calling two pre-stored numbers. Assign these numbers via the phonebook settings.

Pemblokiran Panggilan

Block unwanted calls by adding up to 32 numbers to a blacklist. You can also block anonymous calls.

• Adding to Blacklist: From the call list or phonebook, select a number and choose the "Block" option.
• Blocking Anonymous Calls: Enable this feature in the call blocking settings to automatically reject calls from hidden numbers.

Image: Illustration of the call blocking feature on the Gigaset E290A, showing how to manage unwanted calls.

Pengaturan Audio

• Audio Boost Mode: Activate this mode for an even louder volume, facilitating high-definition listening.
• Kompatibilitas Alat Bantu Dengar: The phone is compatible with hearing aids. You can also adjust the frequency range to suit personal hearing capabilities.

Pengaturan Tampilan

• Jumbo Mode: In Jumbo mode, all dialed digits appear in large characters on the 34 x 37 mm backlit black and white display, which has increased contrast for optimal readability.
• Navigasi Menu: Menu navigation is also simplified with an adapted character size.

Image: The Gigaset E290A display showing large characters in Jumbo Mode for enhanced readability.

Pemeliharaan

• Pembersihan: Bersihkan handset dan stasiun pangkalan dengan kain lembut dan lembut.amp kain. Jangan gunakan pembersih atau pelarut yang bersifat abrasif.
• Perawatan Baterai: To maintain battery life, fully discharge and recharge the handset batteries periodically. If the phone will not be used for an extended period, remove the batteries.
• Penyimpanan: Simpan ponsel di tempat yang sejuk dan kering saat tidak digunakan.

Penyelesaian Masalah

Spesifikasi

Garansi dan Dukungan

For warranty information, please refer to the warranty card included with your product or visit the official Gigaset website. Information regarding spare parts availability and software updates is not provided in this manual.

For technical support, frequently asked questions, or to download the full detailed manual, please visit the Gigaset Communication Store or the official Gigaset support weblokasi.
