Perkenalan
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Beldray BEL0904 Airpower Cordless Vacuum Cleaner. Please read this manual thoroughly before first use and retain it for future reference.
The Beldray Airpower cordless vacuum cleaner is designed for swift and powerful cleaning, effectively removing dirt and grime from various surfaces. Its lightweight and compact design, combined with a brushless motor, offers strong suction and ease of use.
Petunjuk Keselamatan Penting
Selalu ikuti tindakan pencegahan keselamatan dasar saat menggunakan peralatan listrik untuk mengurangi risiko kebakaran, sengatan listrik, atau cedera.
- Pastikan voltage yang tertera pada label peringkat sesuai dengan volume listrik Andatage sebelum menghubungkan alat.
- Do not immerse the electrical components of the vacuum cleaner in water or any other liquid.
- Perangkat ini hanya ditujukan untuk penggunaan rumah tangga. Jangan gunakan untuk tujuan komersial.
- Jauhkan alat ini dari jangkauan anak-anak. Pengawasan ketat diperlukan saat digunakan di dekat anak-anak.
- Jangan mengambil bahan yang mudah terbakar atau meledak, abu panas, atau benda besar dan tajam.
- Regularly check the power cord and plug for damage. If damaged, do not use the appliance.
- Unplug the vacuum cleaner from the power supply before cleaning or performing any maintenance.
- Gunakan hanya perlengkapan tambahan yang direkomendasikan pabrik pembuat.
Komponen Produk
Familiarize yourself with the parts of your Beldray Airpower Cordless Vacuum Cleaner:
- Unit Utama (Vakum Genggam)
- Tabung Ekstensi
- Motorized Floor Brush with LED Lights
- Alat Pembersih Celah dan Sikat 2-in-1
- Flexi Brush Tool
- Dudukan Dinding
- Adaptor Pengisian Daya
Image: The Beldray BEL0904 Airpower Cordless Vacuum Cleaner shown in its full stick configuration and also in an upright, stored position, highlighting its compact design.
Image: A hand detaching the main handheld vacuum unit from its wall-mounted charging and storage bracket.
Pengaturan
Perakitan
- Buka kemasan semua komponen dari kotak.
- Attach the extension tube to the main handheld unit by aligning the connectors and pushing until it clicks into place.
- Connect the motorized floor brush to the other end of the extension tube, ensuring it clicks securely.
- For handheld use, attach the desired accessory (2-in-1 tool or flexi brush) directly to the main unit.
Mengisi Baterai
Before first use, fully charge the vacuum cleaner for approximately 4-5 hours. The battery indicator lights on the main unit will show the charging status.
- Connect the charging adapter to the charging port on the main unit.
- Plug the adapter into a suitable mains power outlet.
- The LED indicators will illuminate during charging and turn off or change color when fully charged (refer to specific indicator behavior in the operating section).
Image: The Beldray Airpower vacuum cleaner stored upright against a wall, demonstrating its compact storage capability.
Gambar: Detail view of the Beldray Airpower vacuum cleaner securely attached to its wall mount for convenient storage and charging.
Petunjuk Pengoperasian
Menghidupkan/Mematikan dan Mode Hisap
Press the power button on the main unit to turn the vacuum cleaner on. Press it again to turn off. Some models may have multiple suction modes (e.g., standard and max); press the mode selection button to switch between them.

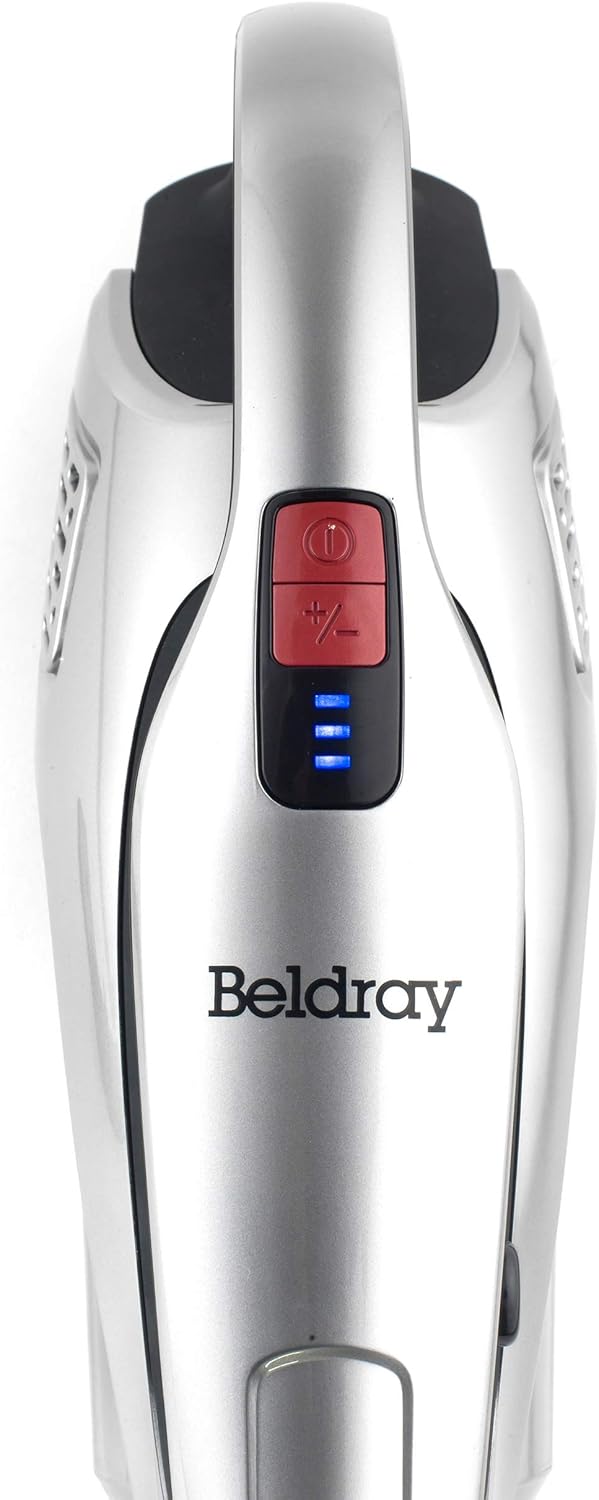

Gambar: Dari atas ke bawah view of the vacuum's handle, displaying the power button, mode selection button, and blue LED battery indicator lights.
Menggunakan Penyedot Debu
- Pembersihan Lantai: Use the motorized floor brush for carpets and hard floors. The integrated LED lights illuminate the cleaning path, making dirt more visible.
- Handheld Cleaning: Detach the main unit from the extension tube to use it as a handheld vacuum. Attach the 2-in-1 crevice and brush tool or the flexi brush tool for cleaning furniture, car interiors, stairs, or hard-to-reach areas.
- Daya Tahan Baterai: The vacuum provides up to 30 minutes of operating time on a full charge, depending on the suction mode used.
Image: A close-up of the vacuum's floor head, showing its LED lights illuminating a hard floor surface during operation.
Image: The vacuum's floor head with LED lights active, positioned on a carpeted stair, demonstrating its use on different floor types.
Image: A user operating the Beldray Airpower vacuum in handheld mode, cleaning dust from a bookshelf.
Image: The handheld vacuum being used to clean crumbs and debris from a sofa cushion.
Image: The handheld vacuum with an attachment being used to clean carpeted stairs.
Image: The handheld vacuum unit, accompanied by a graphic indicating its capability of up to 30 minutes of continuous operation.
Pemeliharaan
Mengosongkan Wadah Debu
Empty the dust container regularly to maintain optimal suction performance. It has a 0.5-liter capacity.
- Pastikan penyedot debu dimatikan dan dilepas dari pengisi daya.
- Locate the dust container release button on the main unit.
- Press the button and detach the dust container.
- Pegang wadah debu di atas tempat sampah dan buka penutup bawahnya untuk mengosongkan isinya.
- Tutup penutupnya dan pasang kembali wadah debu ke unit utama, pastikan terpasang dengan aman hingga berbunyi klik.
Image: A hand demonstrating the process of emptying collected debris from the vacuum's dust container into a waste bin.
Membersihkan Filter
The filters should be cleaned regularly, ideally after every few uses, or when suction power decreases.
- Buang wadah debu seperti dijelaskan di atas.
- Carefully remove the filters from inside the dust container.
- Tap the filters gently over a bin to remove loose dust. For a deeper clean, rinse the filters under cold running water.
- Allow the filters to air dry completely for at least 24 hours before reinserting them. Do not use the vacuum with wet filters.
Membersihkan Rol Sikat
Periodically check the brush roll in the motorized floor brush for tangled hair or debris. Use scissors to cut away any tangled hair and remove it.
Penyelesaian Masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Vakum tidak menyala. | Baterai tidak terisi. | Isi daya baterai hingga penuh. |
| Daya hisap rendah. | Dust container is full; Filters are clogged; Blockage in nozzle/tube/brush roll. | Empty dust container; Clean or replace filters; Remove any blockages. |
| Rol sikat tidak berputar. | Tangled hair or debris; Motor protection activated. | Clean brush roll; Check for blockages in the brush head. |
| Waktu pengoperasian yang singkat. | Battery not fully charged; Battery degradation. | Ensure full charge; Contact customer support if battery life significantly reduced. |
Spesifikasi
- Nama Model: Beldray® BEL0904 AIRPOWER Cordless Vacuum Cleaner
- Kekuatan: 180W
- Jil.tage: 22.2 tahun
- Daya Hisap: Tekanan 14 kPa
- Kapasitas Wadah Debu: 0.5 liter
- Tingkat Kebisingan: 64dB
- Dimensi Produk: 45.28x10.24x7.87 inci
- Berat Barang: 4.8 pon
- Fitur Khusus: Compact, Lightweight, LED Lights, Brushless Motor
- Warna: Merah
Garansi dan Dukungan
Untuk informasi garansi, pendaftaran produk, atau dukungan teknis, silakan merujuk ke situs resmi Beldray. websitus web atau hubungi layanan pelanggan mereka. Simpan bukti pembelian Anda untuk klaim garansi.
Weblokasi: www.beldray.com (Harap dicatat: Ini adalah tempat penampung generik URL. Refer to your product packaging or official documentation for the exact support websitus.)
