JVC KD-TD71BT CD Receiver and PAC SWI-RC Interface User Manual

1. Produk Lebihview

This manual provides instructions for the JVC KD-TD71BT CD Receiver and the PAC SWI-RC Steering Wheel Control Interface. The JVC KD-TD71BT is a car audio receiver featuring Bluetooth connectivity, front USB and AUX inputs, and Amazon Alexa compatibility. The PAC SWI-RC allows for the retention of factory steering wheel control functions when installing an aftermarket radio.

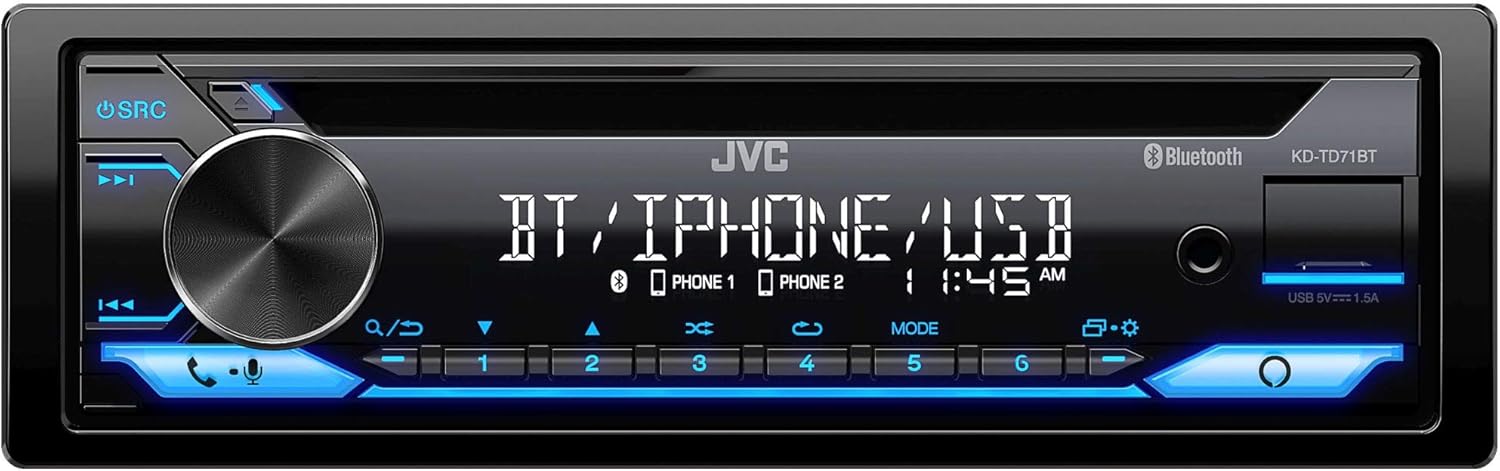

Gambar 1: Depan view of the JVC KD-TD71BT CD Receiver, showing the display, control knob, and various buttons.

2. Apa yang ada di dalam kotak

Verifikasi bahwa semua komponen tersedia sebelum memulai instalasi.

JVC KD-TD71BT CD Receiver
PAC SWI-RC Steering Wheel Control Interface
Wired Microphone (for JVC KD-TD71BT)
Rangkaian Kabel dan Konektor
Perangkat Keras Pemasangan

3. Fitur Utama

Kompatibel dengan Amazon Alexa: Integrate voice commands for various functions.
Teknologi Nirkabel Bluetooth: Supports hands-free calling (HFP 1.7) and audio streaming (A2DP, AVRCP) with JVC Streaming DJ (up to 5 BT-Audio connections). Includes a wired microphone.
Front USB Input: Provides up to 1.5A charging and supports FLAC (96kHz/24bit), MP3, WMA, WAV, AAC playback.
Front AUX Input: Untuk menghubungkan perangkat audio eksternal.
Kontrol Audio: 13-Band Graphic EQ with 11 Preset EQ Settings, Time Alignment, Space Enhancement, Sound Lift, K2 Technology, Loudness Control, Bass Boost Control.
Pra-Keluar: 1 Pair 2.5V Pre-Outs (Rear/Subwoofer Selectable) with High-Pass and Low-Pass Filters, and Subwoofer Level Control.
Menampilkan: 2-Line VA (Vertical Alignment) LCD Display with Music Sync Illumination Effect.
Steering Wheel Control Retention: The PAC SWI-RC retains factory steering wheel control functions (volume, mode, track) for compatible radios.
Memori Non-Volatile: The PAC SWI-RC retains programming even if the vehicle's battery is disconnected.

4. Informasi Keselamatan

Read all instructions carefully before installation and use. Improper installation or operation can lead to serious injury or damage. Always consult a professional for installation if you are unsure.

Jangan mengoperasikan unit dengan cara yang dapat mengganggu konsentrasi Anda dalam mengemudi.
Pastikan semua kabel terhubung dengan benar untuk mencegah korsleting atau kerusakan.
Avoid installing the unit in locations exposed to direct sunlight, high temperatures, or excessive moisture.
Gunakan hanya sekering yang ditentukan.
Jaga volume pada tingkat di mana Anda masih dapat mendengar suara lalu lintas di luar.

5. Pengaturan dan Instalasi

Professional installation is recommended. Disconnect the vehicle's negative battery terminal before starting any electrical work.

5.1 JVC KD-TD71BT CD Receiver Installation

Follow the wiring diagram provided with your unit. Connect the power, ground, speaker, and accessory wires correctly. Secure the unit in the dashboard opening using the supplied mounting hardware.

Belakang view of the JVC KD-TD71BT CD Receiver showing wiring harnesses and ports

Gambar 2: Belakang view of the JVC KD-TD71BT CD Receiver, illustrating the various wiring harness connections and audio output ports.

5.2 PAC SWI-RC Steering Wheel Control Interface Installation

The SWI-RC connects between your vehicle's factory steering wheel control wiring and the JVC KD-TD71BT's wired remote input. Refer to the specific vehicle application guide provided by PAC for detailed wiring instructions for your vehicle model.

Identify the steering wheel control wires in your vehicle.
Connect the SWI-RC's wires to the vehicle's wiring and the JVC receiver's wired remote input.
Program the SWI-RC according to the PAC instructions to map the steering wheel buttons to the desired functions on the JVC receiver.

PAC SWI-RC Steering Wheel Control Interface box and components

Figure 3: The PAC SWI-RC Steering Wheel Control Interface packaging and included components, including the main module and wiring harness.

Close-up of PAC SWI-RC Steering Wheel Control Interface module and wiring

Gambar 4: Gambaran detail view of the PAC SWI-RC module and its multi-colored wiring harness, essential for connecting to the vehicle's electrical system.

6. Petunjuk Pengoperasian

6.1 JVC KD-TD71BT Basic Operation

Daya Hidup/Mati: Tekan tombol SRC untuk menghidupkan unit. Tekan dan tahan tombol SRC untuk mematikannya.
Kontrol Volume: Rotate the large rotary knob to adjust the volume.
Pemilihan Sumber: Press the SRC button repeatedly to cycle through available sources (CD, Tuner, Bluetooth, USB, AUX, Alexa).

6.2 Operasi Bluetooth

Pasangan: Enable Bluetooth on your smartphone. Select 'KD-TD71BT' from the device list. Confirm the pairing code if prompted.
Streaming Audio: Once paired, select Bluetooth as the source. Play audio from your smartphone, and it will stream to the receiver. Use the receiver's controls or your phone to manage playback (play/pause, skip track).
Panggilan Bebas Genggam: When a call comes in, the display will show the caller ID. Press the phone button to answer, or press and hold to reject. Use the wired microphone for clear communication.
JVC Streaming DJ: Connect up to 5 Bluetooth audio devices simultaneously. Switch between devices for audio playback.

6.3 USB/AUX Operation

Kabel USB: Connect a USB storage device to the front USB port. The unit will automatically switch to the USB source and begin playback.
AUX: Hubungkan pemutar audio eksternal ke input AUX depan menggunakan kabel stereo 3.5 mm. Pilih AUX sebagai sumber.

6.4 Integrasi Amazon Alexa

To use Amazon Alexa, ensure your smartphone is connected via Bluetooth and the JVC Alexa app is installed and configured. Press the dedicated Alexa button on the receiver to activate Alexa and issue voice commands for music, navigation, and more.

6.5 Pengaturan Audio

Access the audio menu to adjust sound settings:

Equalizer: Select from 11 preset EQ settings or customize the 13-band graphic equalizer.
Penyelarasan Waktu: Adjust the sound output timing for each speaker to create an optimal sound stage.
Space Enhancement / Sound Lift: Digital sound processing features to enhance the listening experience.
K2 Technology: JVC's proprietary technology to reproduce the original master sound by expanding the bit rate and frequency range.
Loudness Control / Bass Boost: Enhance low and high frequencies at lower volumes.

6.6 Steering Wheel Control (via SWI-RC)

Once the PAC SWI-RC is correctly installed and programmed, your vehicle's factory steering wheel buttons will control corresponding functions on the JVC KD-TD71BT, such as:

Volume Naik/Turun
Lacak Atas/Bawah
Pemilihan Mode/Sumber
Menjawab/Mengakhiri Panggilan

7. Pemeliharaan

Pembersihan: Gunakan kain lembut dan kering untuk membersihkan panel depan unit. Untuk kotoran yang membandel,ampBilas kain dengan air. Hindari pembersih atau pelarut abrasif.
Slot CD: Keep the CD slot free of dust and debris. Do not insert foreign objects.
Koneksi: Periksa secara berkala semua sambungan kabel untuk memastikan semuanya terpasang dengan aman.

8. Penyelesaian masalah

Masalah	Kemungkinan Penyebab	Larutan
Tidak ada daya	Sekring putus; kabel salah; aki kendaraan lemah.	Periksa dan ganti sekring; verifikasi sambungan kabel; isi daya baterai kendaraan.
Tidak ada suara	Volume too low; speaker wires disconnected; incorrect source selected.	Increase volume; check speaker connections; select correct audio source.
Pemasangan Bluetooth gagal	Bluetooth not enabled on phone; incorrect device selected; interference.	Ensure phone Bluetooth is on; select 'KD-TD71BT'; move closer to unit; restart both devices.
Kontrol roda kemudi tidak berfungsi	SWI-RC incorrectly wired; SWI-RC not programmed; radio not compatible.	Verify SWI-RC wiring; reprogram SWI-RC; ensure JVC unit has wired remote input.
Perangkat USB tidak dikenali	Tidak kompatibel file format; damaged USB device; device requires too much power.	Memeriksa file formats; try a different USB device; ensure device is self-powered if needed.

9. Spesifikasi

Fitur	Spesifikasi
Merek	JVC
Nomor Model	KD-TD71BT
Dimensi Produk	17x15.25x9.75 inci
Berat Barang	5 pon
Teknologi Konektivitas	Tambahan, Bluetooth, USB
Tipe Pengendali	Amazon Alexa, Android
Fitur Khusus	Equalizer, Pandora, Spotify
Perangkat yang Kompatibel	Smartphone, Pembicara
Jenis Konektor	Jack 3.5mm, USB
Mode Keluaran Audio	Mono, Stereo
Keluaran Wattage	50 Watts (MOS-FET 50W x 4 Power Output, 22W RMS x 4)

10. Garansi dan Dukungan

This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact JVC customer service or visit the official JVC website. For support regarding the PAC SWI-RC interface, please refer to PAC Audio's official documentation and support channels.
