Blaupunkt BTW Pro+ Bluetooth Truly Wireless Earbuds User Manual

1. Pendahuluan

This manual provides detailed instructions for the use and care of your Blaupunkt BTW Pro+ Bluetooth Truly Wireless Earbuds. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. Apa yang ada di dalam kotak

• 1 Pair of Earbuds (Blaupunkt BTW Pro+)
• 1 Tempat Pengisian Daya
• Kabel Pengisi USB 1
• 3 Pasang Gel Telinga (XS, S, dan L)
• 1 Panduan Pengguna
• Sports Ear Hooks (additional accessory)

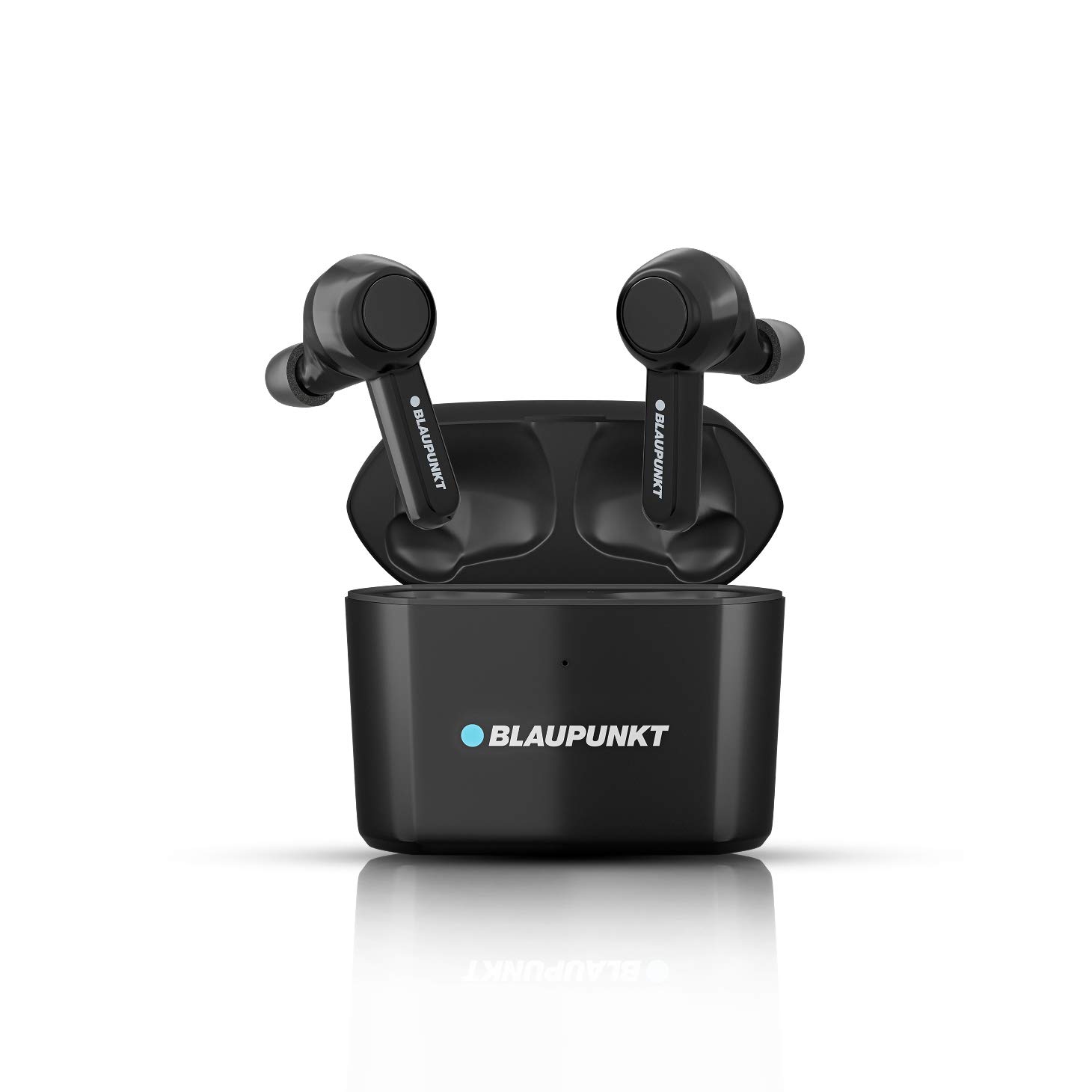

Image: The Blaupunkt BTW Pro+ earbuds shown with their charging case.

3. Fitur Utama

• Dual Microphone: Equipped with two microphones for ultra-clear conversations, one for clear sound and the other for blocking external noise.
• Qualcomm aptX Technology: Designed for high-resolution audio, supporting 16-bit music quality to capture the smallest details.
• Waktu Siaga Panjang: The charging case has a 790mAh battery, and each earbud has a 70mAh battery, providing extended usage.
• Sweat Proof and Water Proof (IPX7): Protects against heavy splashing and rain, allowing use in various conditions.
• Unique Ultrasoft Memory Foam Ear Tips: Comes with super soft and ultra-comfortable memory foam ear gels for extended wear without discomfort.
• Sports Ear Hook: An additional accessory to convert the earbuds into sports earphones for a secure fit during physical activity.
• Dukungan Asisten Suara: Connects with Google Assistant or Siri for hands-free control.
• Kontrol Sentuh: Intuitive touch controls for managing music, calls, and voice assistant.
• 9.2mm Dynamic Speaker: Large dynamic speaker unit combined with a PET film diaphragm for enhanced sound performance.

Gambar: Sebuah internal view highlighting the 9.2mm dynamic speaker for enhanced sound.

Image: Diagram illustrating the dual-mic technology with ENC filter for clear conversations.

Image: Icon indicating IPX7 water resistance.

4. Pengaturan

4.1 First Time Pairing

1. Lepaskan kedua earbud dari casing pengisi daya.
2. Wait a few seconds for the left and right earbuds to pair with each other.
3. Once a red and white blinking light is visible on either earbud, they are ready to pair with your device.
4. Aktifkan Bluetooth di ponsel cerdas atau perangkat Anda.
5. Select "Blaupunkt Pro+ (R)" from the list of available devices.
6. Confirm the pairing request on your phone by clicking "Pair" to enable the role switch function.
7. The earbuds support auto-pairing. They will automatically connect to the last paired device when removed from the case and disconnect when placed back into the case.

4.2 Mengenakan Earbud

1. Hold the earbud from the top.
2. Place the earbud into your ear.
3. Rotate the earbud approximately 45 degrees or to a slightly vertical position for a comfortable fit.
4. Gently push the earbud so it fits perfectly into your ear canal.

Image: A four-step visual guide demonstrating the correct way to insert and fit the earbuds into the ear.

The unique ultrasoft memory foam ear tips are designed to create a custom, comfortable fit for your ear canal, reducing irritation and fatigue during long wear. They will adjust to the shape of your ear canal and return to their original size when removed.

Image: Shows the memory foam ear gels and the optional sports ear hook for a secure fit.

5. Petunjuk Pengoperasian

5.1 Kontrol Musik

• Putar/Jeda: Sentuh sekali pada salah satu earbud.
• Lagu Sebelumnya: Click and hold the left earbud touch button for 2 seconds.
• Lagu Berikutnya: Click and hold the right earbud touch button for 2 seconds.
• Kurangi Volume: Single touch on the left earbud.
• Tingkatkan Volume: Single touch on the right earbud.

Image: A visual representation of the touch control functions for music playback, calls, and voice assistant.

5.2 Kontrol Panggilan

• Panggilan Penjemputan: Sentuh sekali pada salah satu earbud.
• Tutup Panggilan: Double touch on either earbud.
• Tolak Panggilan: Touch and hold for 2 seconds on either earbud.

5.3 Asisten Suara

• Aktifkan Asisten Suara (Siri/Google Assistant): Triple click on the right earbud.

5.4 Modus Mono

The earbuds can be used in both mono and stereo modes. To use in mono mode, simply take out only one earbud from the charging case. You can then take calls and listen to music using a single earbud.

6. Pemeliharaan

6.1 Pengisian daya

• Place the earbuds back into their charging case to charge them.
• Hubungkan wadah pengisi daya ke sumber listrik menggunakan kabel pengisi daya USB yang disediakan.
• The charging case also supports wireless charging (wireless charger sold separately).
• Ensure the charging contacts on the earbuds and inside the case are clean and dry for efficient charging.

Image: Illustrates the wireless charging capability of the Blaupunkt BTW Pro+ charging case.

6.2 Pembersihan

• Bersihkan earbud dan casing pengisi daya secara teratur dengan kain yang lembut, kering, dan tidak berbulu.
• Lepaskan ujung telinga dan bersihkan secara terpisah dengan sabun lembut dan air jika perlu, pastikan benar-benar kering sebelum dipasang kembali.
• Hindari penggunaan pembersih atau pelarut yang bersifat abrasif.

6.3 Tahan Air

The earbuds are IPX7 rated, meaning they are protected against the effects of temporary immersion in water (up to 1 meter for 30 minutes). They are sweat-proof and can withstand heavy splashing and rain. However, they are not designed for swimming or prolonged submersion.

Image: Earbuds submerged in a glass of water, visually representing their IPX7 water resistance.

7. Penyelesaian masalah

• Earbud tidak dapat dipasangkan satu sama lain: Ensure both earbuds are fully charged and removed from the case simultaneously. If issues persist, try resetting them (refer to the full user manual for specific reset instructions).
• Earbud tidak terhubung ke perangkat:
  1. Pastikan Bluetooth diaktifkan pada perangkat Anda.
  2. Check if the earbuds are already connected to another device.
  3. Lupakan perangkat tersebut dari pengaturan Bluetooth ponsel Anda dan coba pasangkan lagi.
  4. Pastikan earbud terisi dayanya.
• Volume rendah atau kualitas suara buruk:
  1. Sesuaikan volume pada perangkat dan earbud Anda.
  2. Ensure the ear tips are properly fitted and creating a good seal in your ear canal. Try different sized ear tips.
  3. Clean the ear tips and speaker mesh to remove any debris.
• Masalah pengisian daya:
  1. Pastikan kabel pengisian daya tersambung dengan aman ke casing dan sumber daya.
  2. Periksa apakah kontak pengisian daya pada earbud dan wadahnya bersih.
  3. If using wireless charging, ensure the case is correctly placed on a compatible wireless charger.

8. Spesifikasi

9. Garansi dan Dukungan

This product comes with a standard brand warranty. For specific warranty details, duration, and terms, please refer to the warranty card included in your product packaging or visit the official Blaupunkt weblokasi.

For any support, queries, or service requests, please contact Blaupunkt customer service. Contact information can typically be found in the included user manual or on the brand's official weblokasi.

For further information regarding EMI options or return/replacement policies, please refer to the product detail page on the retailer's websitus tempat Anda membeli barang tersebut.
