1. Produk Lebihview
Deskripsi Produk
The Performance Tool W7548 is a versatile sharpening tool designed for a wide range of tasks, including deburring, tool sharpening, finishing, and shaping. Constructed from heat-treated high carbon steel, this tool is engineered for durability and reliable performance over time. It features proprietary XL oversized handles that provide a comfortable grip, enhanced control, and reduced hand fatigue, making it suitable for professional use. With an overall length of 13.25 inches, it offers ample working space for various surfaces.
Fitur Utama
- High Carbon Steel: Made from heat-treated high carbon steel for long-lasting durability and reliable performance.
- Alat Serbaguna: Ideal for deburring, tool sharpening, finishing, shaping, and other applications.
- XL Oversized Handles: Proprietary handles designed for comfortable grip, better control, and reduced hand fatigue.
- Mudah digunakan: Designed for user-friendliness with an overall length of 13.25 inches for ampruang kerja.
- Performa Tahan Lama: Superior durability and extended service life ensure a reliable and versatile sharpening tool.
Image: Performance Tool W7548 8-inch Round File with XL Oversized Handle. This image shows the full length of the file, highlighting its ergonomic black and red handle and the round file bilah.
2. Informasi Keselamatan
Always prioritize safety when using hand tools. Failure to follow these guidelines may result in injury or damage to the tool or workpiece.
- Perlindungan Mata: Selalu kenakan kacamata keselamatan atau kacamata pelindung untuk melindungi mata Anda dari serpihan yang beterbangan.
- Pelindung tangan: Wear appropriate work gloves to protect your hands from sharp edges and friction.
- Benda Kerja yang Aman: Ensure the material you are working on is securely clamped or held to prevent movement during filing.
- Pegangan yang Benar: Maintain a firm, controlled grip on the file handle to prevent slipping.
- Direction of Stroke: Files cut on the forward stroke. Do not apply excessive pressure on the return stroke, as this can dull the file gigi.
- Membersihkan File: Pertahankan file teeth clean using a file card or wire brush to prevent clogging and maintain cutting efficiency.
- Alat Pemeriksaan: Before each use, inspect the file for any damage, such as a loose handle or broken teeth. Do not use a damaged tool.
- Penyimpanan: Toko files properly to protect their teeth from damage and prevent injury. Do not store files loose in a toolbox where they can rub against other tools.
3. Pengaturan
Membongkar
Carefully remove the Performance Tool W7548 file from its packaging. Retain the packaging for future storage or transport if needed.

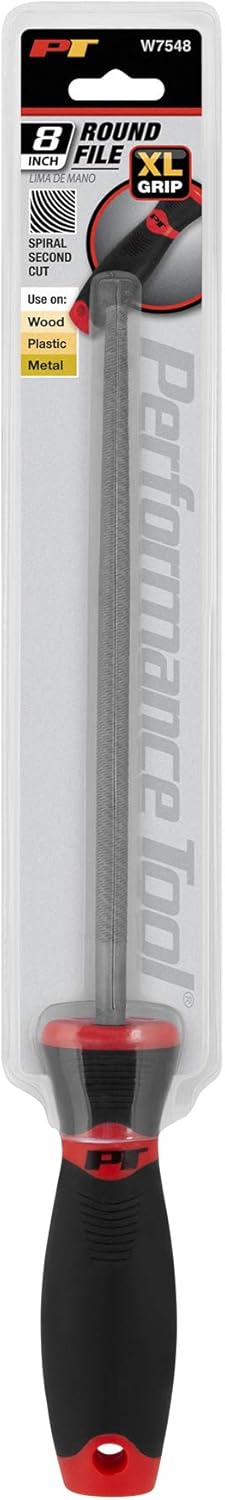

Image: Performance Tool W7548 8-inch Round File in retail packaging. The file is visible through clear plastic packaging, displaying the product label with model number W7548 and 'XL Grip' feature.
Inspeksi Awal
Before first use, visually inspect the file for any manufacturing defects or shipping damage. Check that the handle is securely attached and that the file teeth appear uniform and sharp. Ensure there are no signs of rust or corrosion.
4. Petunjuk Pengoperasian
General Filing Technique
- Benda Kerja yang Aman: Always secure the material to be filed in a vise or with clamps to prevent it from moving during operation.
- Pegangan: Tahan file firmly with one hand on the handle and the other hand guiding the tip of the file (if comfortable and safe for the application).
- Pukulan ke Depan: Apply even pressure on the forward stroke, pushing the file across the workpiece. This is where the cutting action occurs.
- Return Stroke: Angkat file slightly or relieve pressure on the return stroke to avoid dulling the teeth.
- Membersihkan File: Secara teratur membersihkan file gigi dengan file card or stiff brush to remove accumulated material (filings or 'pins') which can scratch the workpiece and reduce cutting efficiency.
Aplikasi Spesifik
- Penghilangan gerinda: Gunakan file to remove sharp edges or burrs left after cutting or machining operations. Use light, controlled strokes along the edge.
- Membentuk: For shaping curves or enlarging holes, the round profile dari ini file is particularly effective. Use a rotating motion or follow the contour of the desired shape.
- Penajaman: While primarily for deburring and shaping, this file can be used for rough sharpening of certain tools, maintaining the correct angle and applying consistent pressure.
Image: Close-up of the Performance Tool W7548 8-inch Round File's teeth. This image provides a detailed view of the spiral cut pattern on the file's surface, essential for its cutting action.
5. Pemeliharaan
Pembersihan
Setelah setiap penggunaan, bersihkan file thoroughly to remove any metal filings or debris lodged between the teeth. A file card or stiff wire brush is recommended for this purpose. Clogged teeth reduce the file's effectiveness and can scratch the workpiece.
Penyimpanan
Simpan file in a dry environment to prevent rust. Ideally, store files separately or in a tool roll to protect the teeth from damage. Do not allow files to rub against each other or other tools, as this can dull their cutting edges.
6. Penyelesaian masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| File not cutting effectively | Teeth are clogged with material (pinning). File teeth are dull. Incorrect filing technique. | Bersihkan file dengan file kartu. Mengganti file if excessively dull. Ensure pressure is applied only on the forward stroke. |
| Goresan pada benda kerja | Filings stuck in teeth (pinning). Applying pressure on return stroke. | Bersihkan file secara menyeluruh. Angkat file or relieve pressure on the return stroke. |
| Pegangan terasa longgar | Handle attachment has loosened over time. | Discontinue use immediately. Attempt to re-secure the handle if possible, or replace the tool. A loose handle is a safety hazard. |
7. Spesifikasi
| Atribut | Detil |
|---|---|
| Pabrikan | Alat Kinerja |
| Nomor Bagian | W7548 |
| Berat Barang | 5.6 ons |
| Dimensi Produk | 1.8x1x16 inci |
| Negara Asal | Cina |
| Nomor Model Barang | W7548 |
| Ukuran | Bulat 8 inci File |
| Warna | Hitam, Merah |
| Menyelesaikan | High Carbon |
| Bahan | Steel, XL oversized handle (Alloy Steel for handle) |
| Membentuk | Bulat |
| Sumber Daya | Bertenaga Tangan |
| Jumlah Paket Barang | 1 |
| Fitur Khusus | Mudah untuk Dipasang |
| Komponen yang Termasuk | Putaran 8 inci File w/XL Handle |
| Tanggal Pertama Tersedia | 10 Oktober 2020 |
8. Garansi dan Dukungan
Performance Tool products are manufactured to high standards and are designed for durability. For specific warranty information regarding your W7548 file, please refer to the product packaging or contact Performance Tool customer service directly.
For additional support, product information, or to explore other Performance Tool products, please visit the official Performance Tool store:
