HOFTRONIC LED Batten 60cm 20W 4000K Instruction Manual

1. Pendahuluan

Thank you for choosing the HOFTRONIC LED Batten 60cm 20W. This integrated LED tube lamp provides efficient and neutral white illumination (4000K) with a brightness of 2400 lumens. Its slim design (2.5 cm height) allows for versatile installation in various indoor environments such as garages, basements, offices, and warehouses. This manual provides essential information for safe installation, operation, and maintenance of your LED batten.

The LED batten features integrated Samsung SMD LED chips, ensuring flicker-free light and a high Color Rendering Index (CRI) of >80 for natural color reproduction. It is designed for easy surface mounting with included clips and a quick connector system for electrical wiring.

Image: The LED batten's lightweight and ultra-thin design, measuring only 25mm in height, facilitating easy installation in dry indoor environments.

2. Informasi Keselamatan Penting

Harap baca semua petunjuk dengan saksama sebelum pemasangan dan penggunaan. Simpan panduan ini untuk referensi di kemudian hari.

• Putuskan Daya: Selalu pastikan catu daya utama dimatikan di pemutus sirkuit sebelum mencoba melakukan pemasangan, perawatan, atau pembersihan apa pun.
• Instalasi Berkualitas: Electrical installation should be performed by a qualified electrician if you are unsure about the process.
• Hanya untuk penggunaan dalam ruangan: This product has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is suitable for dry indoor environments only. Do not expose to moisture or water.
• Tidak dapat diredupkan: This LED batten is not dimmable. Do not connect it to a dimmer switch.
• Ventilasi: Ensure adequate ventilation around the fixture. Do not cover the fixture with insulating material.
• Permukaan pemasangan: Mount the fixture on a stable, non-flammable surface. Maintain a minimum distance of 20cm from flammable materials.
• Kerusakan: Do not use the product if any part is damaged. Contact customer support for replacement parts.
• Pembuangan: Buang produk tersebut secara bertanggung jawab sesuai dengan peraturan setempat tentang limbah elektronik.

3. Isi Paket

Pastikan semua komponen ada dan tidak rusak:

• 1x HOFTRONIC LED Batten 60cm 20W (Model: 496460)
• 2x Klip Pemasangan
• 2x Sekrup
• 2x Colokan Dinding
• 1x Quick Connector (for electrical wiring)

4. Pengaturan dan Instalasi

The HOFTRONIC LED Batten is designed for easy surface mounting. Follow these steps for installation:

4.1 Persiapan

1. Matikan Daya: Sebelum memulai, pastikan pasokan listrik utama ke area instalasi dimatikan di pemutus sirkuit.
2. Pilih Lokasi: Select a suitable indoor location for mounting the LED batten. Ensure the surface is flat and stable.
3. Alat Kumpulkan: You will need a drill, screwdriver, and possibly a pencil for marking.

4.2 Mounting the Batten

1. Tandai Lubang Bor: Hold the LED batten in the desired position on the ceiling or wall. Mark the positions for the two mounting clips. The clips should be placed approximately 50cm apart, centered along the length of the batten.
2. Lubang Bor: Drill two holes at the marked positions. Insert the wall plugs into the drilled holes.
3. Pasang Klip: Secure the mounting clips to the ceiling/wall using the provided screws. Ensure they are firmly attached.
4. Pasang Bilah: Gently push the LED batten into the mounting clips until it clicks securely into place.

Gambar: Belakang view of the LED batten, illustrating the mounting clips and the quick connector system for electrical wiring.

4.3 Koneksi Listrik

1. Siapkan Kabel: Strip approximately 10-12mm of insulation from the live (brown/black), neutral (blue), and earth (green/yellow) wires from your power supply.
2. Use Quick Connector: The LED batten features a quick connector system at the rear. Open the levers on the quick connector.
3. Hubungkan Kabel: Insert the stripped wires into the corresponding terminals of the quick connector (L for Live, N for Neutral, Earth symbol for Earth). Close the levers to secure the wires. Ensure a firm connection.
4. Pengkabelan yang Aman: Ensure all wiring is neatly tucked away and not pinched.

Penting: This fixture operates on 230V. Ensure your electrical supply matches this requirement. If you are unsure about electrical wiring, consult a qualified electrician.

5. Operasi

Once installed and wired correctly, operating the HOFTRONIC LED Batten is straightforward:

1. Pulihkan Daya: Switch on the main power supply at the circuit breaker.
2. Aktifkan Cahaya: Use the wall switch connected to the fixture to turn the LED batten on or off.

The LED batten provides a neutral white light (4000K) with a wide 110° beam angle, ensuring uniform illumination without shadows. It is not dimmable.

Image: Illustration showing the difference between diffuse and non-diffuse light, highlighting the even light distribution of the HOFTRONIC LED Batten.

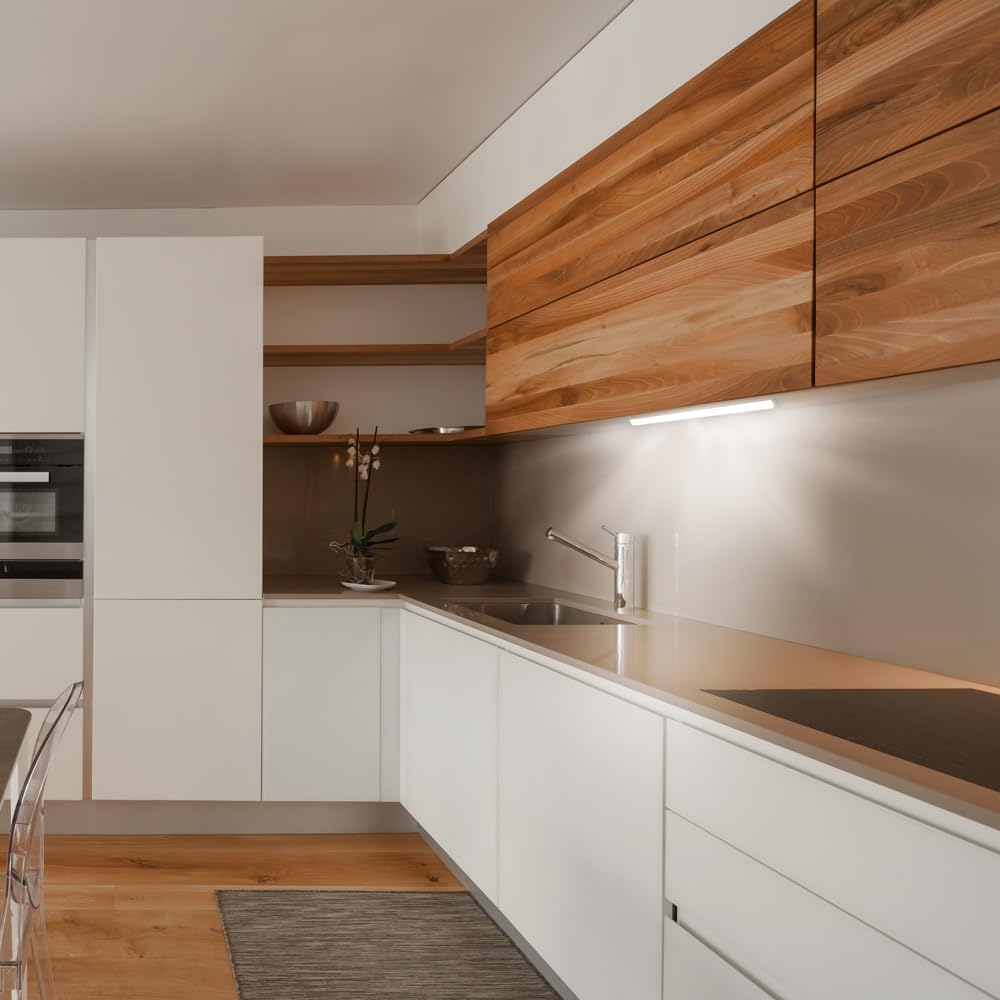

Image: The LED batten installed as under-cabinet lighting in a modern kitchen, demonstrating its application.

Image: Multiple LED battens providing bright, uniform lighting in a garage workshop environment.

6. Pemeliharaan

The HOFTRONIC LED Batten requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Pembersihan: Sebelum membersihkan, pastikan catu daya telah diputus. Usap perlengkapan tersebut dengan kain lembut, kering, atau sedikit kering.amp Gunakan kain. Jangan gunakan pembersih abrasif, pelarut, atau bahan kimia keras, karena dapat merusak lapisan akhir atau komponen listrik.
• Tidak Ada Bagian yang Dapat Diservis Pengguna: Chip LED terintegrasi dan tidak dapat diganti oleh pengguna. Jangan mencoba membuka atau memodifikasi perlengkapan tersebut.
• Pemeriksaan Rutin: Periodically check the fixture and wiring for any signs of damage or loose connections. If any issues are found, disconnect power immediately and contact customer support.

7. Penyelesaian masalah

If you encounter issues with your LED batten, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact HOFTRONIC customer support.

8. Spesifikasi

Image: Visual representation of the LED batten's high performance and key specifications.

Image: EU Energy Label for the product, indicating its energy efficiency class and consumption. For more details, visit the Basis data EPREL.

9. Garansi dan Dukungan

HOFTRONIC products are FCC and CE certified, ensuring quality and safety. This LED batten comes with a 5-year all-in warranty, reflecting its expected lifespan of approximately 30,000 burning hours.

Image: Visual confirmation of the 5-year warranty and 30,000-hour lifespan.

In case of any issues or defects with the product, please contact HOFTRONIC customer service. Our dedicated support team is available to assist you.

For customer support, please refer to the contact information provided on the HOFTRONIC official websitus atau dokumentasi pembelian Anda.
