Makita DHW080ZK 18Vx2 Cold Pressure Washer Instruction Manual

1. Informasi Keselamatan

Always observe basic safety precautions when using this pressure washer to reduce the risk of injury. Read all instructions before operating the appliance.

• Perlindungan Mata: Selalu kenakan kacamata atau kaca mata pengaman.
• Perlindungan Pendengaran: Use ear protection during extended operation.
• Alas kaki: Wear appropriate non-slip footwear.
• Keamanan Listrik: Ensure batteries are correctly installed and charged. Do not operate with damaged batteries or charger.
• Tekanan Air: Never direct the water jet at people, animals, electrical devices, or the unit itself. High pressure can cause injury.
• Permukaan Stabil: Operasikan mesin pencuci bertekanan di permukaan yang stabil dan rata.
• Anak-anak dan Hewan Peliharaan: Jauhkan anak-anak dan hewan peliharaan dari area operasi.
• Suhu Air: Do not use water hotter than 40°C (104°F).
• Bahan kimia: Use only pressure washer safe detergents.

2. Produk Lebihview

The Makita DHW080ZK is a portable and high-performance 18Vx2 cold pressure washer designed for various cleaning tasks. It is suitable for washing natural dirt such as mud, earth, moss, and encrustations from surfaces like driveways, patios, verandas, gazebos, external floors, poolsides, and swimming pools. Its cordless design makes it ideal for use in locations without direct power access, such as campsites for cleaning campers, caravans, small boats, bicycles, motorbikes, quads, or small agricultural machines.

Key Components and Accessories

• Pistol bertekanan tinggi
• Turbo nozzle lance
• Variable jet nozzle lance
• Tube with dip tube (for drawing water from external sources)
• 5-meter high-pressure hose
• Gardena type water connections

The Makita DHW080ZK 18Vx2 Cold Pressure Washer, featuring its integrated water tank and high-pressure spray gun.

A complete set of accessories, including the high-pressure gun, various nozzles, and hoses, provided with the pressure washer.

3. Pengaturan

3.1 Membongkar

Carefully remove all components from the packaging. Ensure all listed accessories are present. Retain packaging for future storage or transport.

3.2 Pemasangan Baterai

This unit requires two 18V Makita LXT batteries (not supplied). Insert fully charged batteries into the designated battery slots on the main unit until they click into place. Ensure they are securely seated.

3.3 Water Source Connection

The DHW080ZK can draw water from its integrated 50-liter tank or an external water source (e.g., garden hose, bucket).

Using the Integrated Water Tank:

1. Open the lid of the 50-liter water tank.
2. Ensure the dip tube with filter is correctly positioned inside the tank.
3. Fill the tank with clean, cold water (max 40°C).
4. Close the tank lid securely.

Bagian dalam view of the 50-liter water tank, showing the water level and the integrated filter for debris.

Using an External Water Source:

1. Connect a standard garden hose (with Gardena type connection) to the water inlet on the pressure washer unit.
2. Pastikan sambungannya rapat untuk mencegah kebocoran.
3. If drawing from a bucket, attach the dip tube to the water inlet and place the filtered end into the bucket.

Detail of the water inlet connection point, showing where the water supply hose attaches to the pressure washer unit.

3.4 High-Pressure Hose and Nozzle Attachment

1. Connect the 5-meter high-pressure hose to the outlet on the main unit. Tighten securely.
2. Attach the other end of the high-pressure hose to the high-pressure gun.
3. Select the desired nozzle (turbo or variable jet) and attach it to the lance. Then, connect the lance to the high-pressure gun.

The pressure washer unit features convenient storage slots for the spray gun and lances, keeping accessories organized.

4. Petunjuk Pengoperasian

4.1 Priming Pompa

Before starting the motor, it is crucial to prime the pump to remove any air. This prevents damage to the pump.

1. Ensure the water source is connected and turned on (if using a garden hose) or the tank is filled.
2. Point the spray gun in a safe direction.
3. Squeeze the trigger on the high-pressure gun and hold it open until a steady stream of water flows out, free of air bubbles. This may take a few moments.

4.2 Memulai Unit

1. Once the pump is primed, release the trigger.
2. Turn the power switch on the main unit to the 'ON' position.
3. Squeeze the trigger on the high-pressure gun to begin spraying. The motor will start automatically.

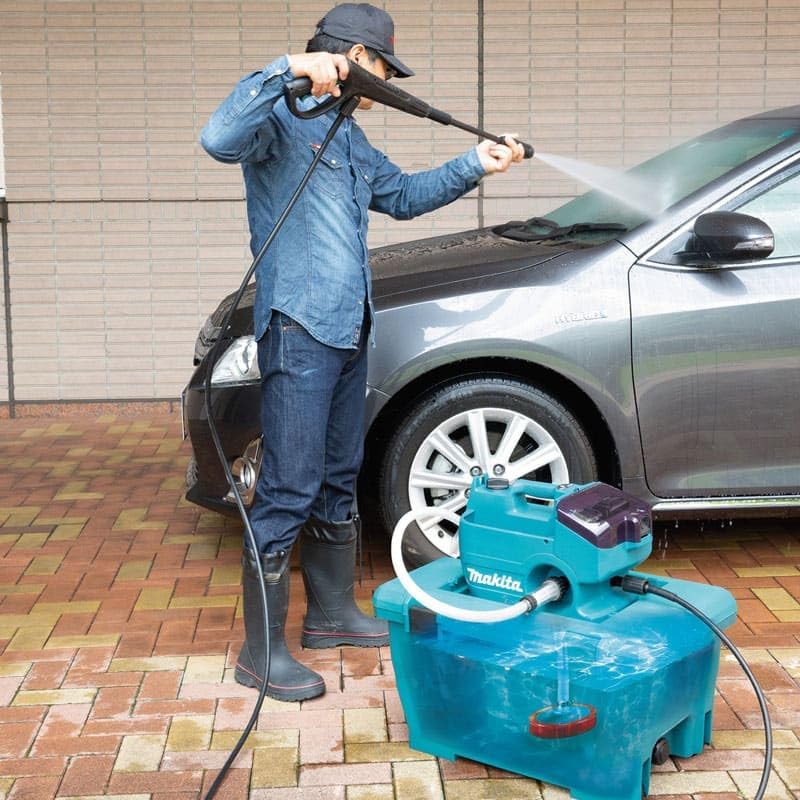

An individual demonstrating the use of the Makita DHW080ZK pressure washer for cleaning a car, highlighting its portability.

4.3 Menggunakan Berbagai Jenis Nozel

• Variable Jet Nozzle: Allows adjustment of the spray pattern from a concentrated stream to a wide fan. Rotate the nozzle head to change the pattern. Suitable for general cleaning and rinsing.
• Nosel Turbo: Provides a concentrated, oscillating jet for aggressive cleaning of stubborn dirt. Use with caution on delicate surfaces.

4.4 Mematikan

1. Lepaskan pemicu pada pistol bertekanan tinggi.
2. Turn the power switch on the main unit to the 'OFF' position.
3. If using an external water source, turn off the water supply.
4. Squeeze the trigger again to release any remaining pressure in the system.
5. Lepaskan sambungan selang bertekanan tinggi dan selang saluran masuk air.

5. Pemeliharaan

Perawatan rutin memastikan kinerja optimal dan memperpanjang umur mesin cuci bertekanan Anda.

5.1 Nozel Pembersih

If the spray pattern becomes irregular or pressure drops, the nozzle may be clogged. Use the provided nozzle cleaning tool (if applicable) or a thin wire to clear any debris from the nozzle opening.

5.2 Inlet Filter Cleaning

The water inlet filter prevents debris from entering the pump. Regularly inspect and clean the filter. Remove the filter, rinse it under running water, and reinsert it.

5.3 Pengeringan dan Penyimpanan

Before storing, especially in freezing temperatures, ensure all water is drained from the unit, hoses, and gun to prevent damage. Run the unit for a few seconds without water to expel any remaining liquid. Store the unit in a dry, frost-free location.

5.4 Perawatan Baterai

Remove batteries from the unit when not in use. Store batteries in a cool, dry place. Follow Makita's guidelines for battery charging and storage.

6. Penyelesaian masalah

Lihat bagian ini untuk masalah umum dan solusinya.

7. Spesifikasi

8. Garansi dan Dukungan

For detailed warranty information, please refer to the official Makita website or the warranty card included with your purchase. For technical support, service, or spare parts, contact your authorized Makita service center or dealer. Always use genuine Makita replacement parts to ensure compatibility and maintain product warranty.
