Panasonic WhisperFit DC Ceiling Mount Bathroom Exhaust Fan with Humidity Sensor (Model FV-0511VFC1)

1. Pendahuluan

The Panasonic WhisperFit DC FV-0511VFC1 is a high-performance ceiling mount bathroom exhaust fan designed to effectively remove humidity and improve indoor air quality. This model features a condensation sensor for automatic operation and Pick-A-Flow technology for customizable airflow. Its quiet operation and energy efficiency make it an ideal solution for maintaining a healthy home environment.

2. Informasi Keselamatan

Harap baca dan pahami semua petunjuk sebelum memulai pemasangan atau pengoperasian. Kegagalan mengikuti petunjuk ini dapat mengakibatkan sengatan listrik, kebakaran, kerusakan properti, atau cedera pribadi.

• Selalu putuskan aliran listrik di panel layanan sebelum memasang, memperbaiki, atau membersihkan unit.
• Pekerjaan instalasi dan pemasangan kabel listrik harus dilakukan oleh orang yang berkualifikasi sesuai dengan semua kode dan standar yang berlaku, termasuk kode konstruksi tahan api.
• Jangan gunakan kipas ini dengan perangkat pengontrol kecepatan solid-state apa pun kecuali jika secara khusus disetujui oleh Panasonic.
• Unit ini dirancang hanya untuk penggunaan ventilasi umum. Jangan gunakan untuk membuang bahan dan uap berbahaya atau mudah meledak.
• To reduce the risk of injury to persons, observe the following: Install the fan at least 7 feet (2.1m) above the floor.

3. Fitur Produk

• Retrofit Bathroom Vent Fan with Humidity Control: This fan features a condensation sensor that helps control bathroom condensation and remove humidity. The automatic sensor turns the fan on when humidity is detected.
• Aliran Udara yang Dapat Disesuaikan: This slim, quiet, Energy Star-certified fan features a DC/ECM motor and Pick-A-Flow technology that allows you to select your desired airflow from 50, 80, or 110 CFM at the flip of a switch for your room size and usage needs.
• Instalasi Mudah: The Flex-Z Fast Bracket simplifies installation with a single-hinge bracket for easy positioning. A low-profile 5-5/8" housing depth fits in 2 x 6 joist size or larger.

4. Pengaturan dan Instalasi

The WhisperFit DC fan is designed for easy installation, particularly for retrofit applications. The Flex-Z Fast bracket allows for flexible positioning and secure mounting.

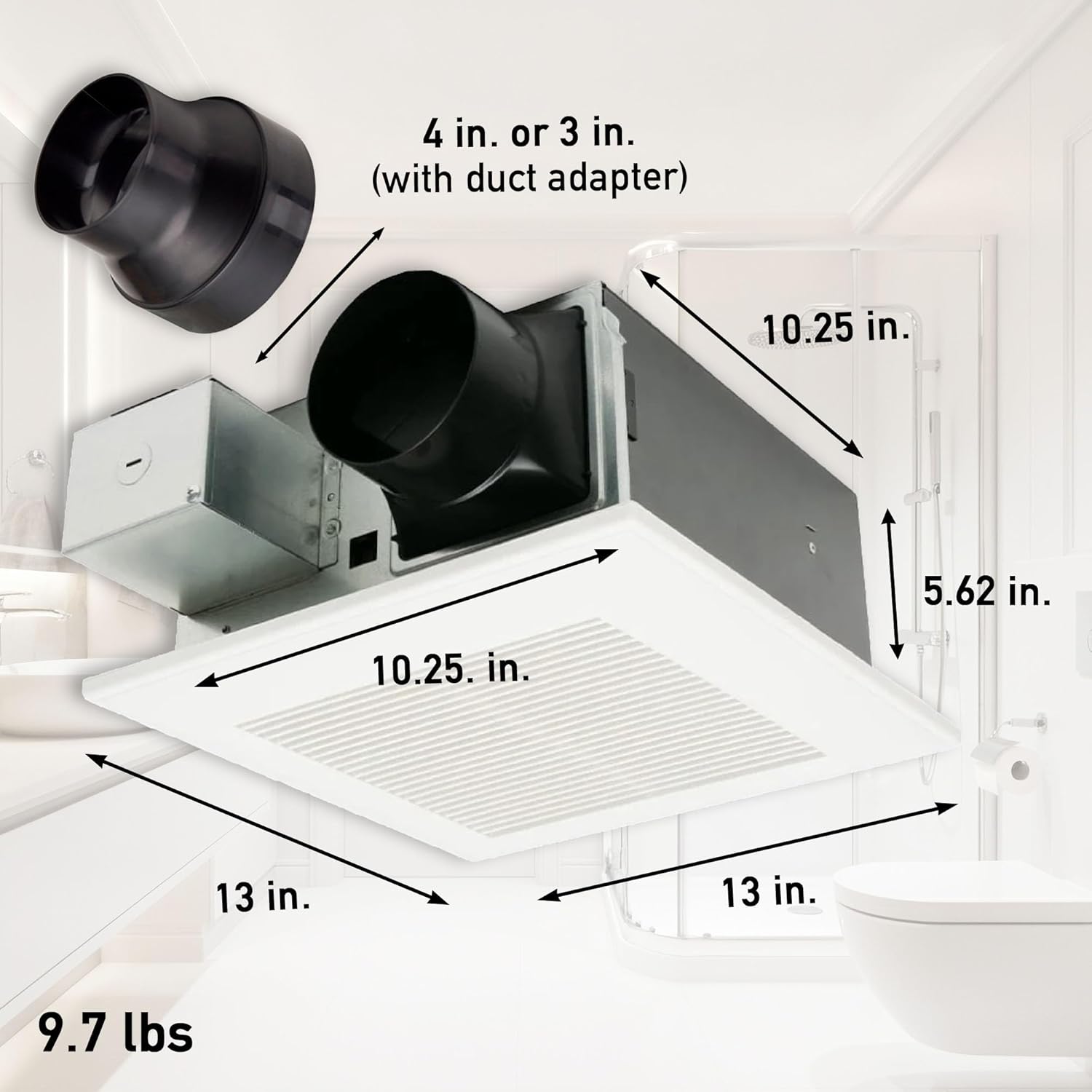

4.1. Dimensions and Ducting

Ensure adequate space for the fan housing and proper ducting. The unit supports both 4-inch and 3-inch ducts with the included adapter.

4.2. Sistem Instalasi Cepat Flex-Z

The Flex-Z Fast bracket simplifies installation from below the ceiling, making it suitable even without attic access.

4.3. Airflow Selection

Before final installation of the grille, select the desired CFM (Cubic Feet per Minute) setting using the switch located on the fan housing. Options include 50, 80, or 110 CFM to match your room size and ventilation needs.

4.4. Video Instalasi

For a visual guide on the installation process, please refer to the official product video below. Professional installation is encouraged.

5. Petunjuk Pengoperasian

The WhisperFit DC fan is designed for simple and efficient operation, especially with its integrated humidity sensor.

5.1. Pengoperasian Sensor Kelembaban

The fan's condensation sensor automatically detects elevated humidity levels in the bathroom and activates the fan to remove moisture. Once humidity levels return to normal, the fan will turn off after a set delay (typically 20 minutes, if configured).

5.2. Operasi Senyap

The WhisperFit DC fan operates at a very low noise level, ensuring a peaceful bathroom environment. The noise level is rated at 0.8 Sones at 110 CFM, and even quieter at lower CFM settings.

6. Pemeliharaan

Regular maintenance ensures optimal performance and longevity of your fan. Always disconnect power before performing any maintenance.

6.1. Cleaning the Grille

Secara berkala, lepaskan kisi-kisi dan bersihkan dengan kain.amp kain. Jangan gunakan pembersih atau pelarut yang bersifat abrasif.

6.2. Cleaning the Fan Motor and Blades

If necessary, carefully clean the fan motor and blades with a soft brush or vacuum cleaner. Avoid getting moisture into electrical components.

7. Penyelesaian masalah

Jika kipas Anda tidak beroperasi seperti yang diharapkan, lihat masalah dan solusi umum berikut:

• Kipas tidak menyala: Check the circuit breaker or fuse. Ensure all wiring connections are secure. Verify the humidity sensor is not obstructed and is set correctly.
• Kipas berisik: Check for loose mounting screws or debris in the fan blades. Ensure ductwork is properly secured and not kinked.
• Ventilasi buruk: Verify the CFM setting is appropriate for your room size. Check for obstructions in the ductwork or fan grille. Ensure the fan is properly ducted to the outside.

For persistent issues, contact a qualified electrician or Panasonic customer support.

8. Spesifikasi

9. Garansi dan Dukungan

For warranty information, technical support, or service inquiries, please refer to the documentation included with your product or visit the official Panasonic websitus. Simpan struk pembelian Anda sebagai bukti pembelian untuk klaim garansi.
