Giantex 8-Shelf Tree Bookshelf Instruction Manual

1. Informasi Keselamatan

Harap baca dan pahami semua petunjuk sebelum perakitan dan penggunaan. Simpan panduan ini untuk referensi di kemudian hari.

• Perangkat Anti-Tumbang: This bookshelf is equipped with two anti-toppling devices. It is crucial to attach the bookshelf securely to a wall to prevent accidental tipping, especially in households with children or pets.
• Bantalan Kaki Anti Selip: Four anti-slip foot pads are included to protect your floor from scratches and enhance the stability of the bookshelf. Ensure they are properly installed on the bottom base.
• Kapasitas Berat: Each shelf can support a maximum weight of 22 lbs (10 kg). Do not exceed this limit to ensure stability and prevent damage.
• Penempatan: Place the bookshelf on a flat, level, and stable surface. Avoid placing it in areas with high humidity or direct sunlight.
• Keselamatan Anak: Do not allow children to climb on the bookshelf. Always use the anti-toppling device.

Image: Detail of the anti-toppling device and its recommended wall attachment for enhanced safety.

2. Isi Paket

Before beginning assembly, ensure all parts and hardware listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

Komponen:

• 1 x Bookshelf (main structure)
• 1 x Buku Petunjuk

Hardware (Quantities may vary slightly based on specific model):

• Screws (various types for assembly)
• Pasak kayu
• Kunci cam
• Anti-toppling devices (2 sets)
• Non-slip foot pads (4 pieces)
• Protective caps for screws
• Small screwdriver (for assembly)

3. Petunjuk Perakitan

Follow these steps carefully for proper assembly. It is recommended to assemble the bookshelf on a soft, clean surface to prevent scratches.

Panduan Video Perakitan:

Video: Official assembly guide for the Giantex 8-Shelf Tree Bookshelf, demonstrating each step of the construction process.

Instruksi Tertulis Langkah demi Langkah:

1. Siapkan Panel: Identify panels 1, 6, and 7. Fix panel 1 with screws A and wooden dowels B. Install screws A into panel 6 and panel 7.
2. Pasang Panel Samping: Identify panels 2 and 4. Install hardware D (metal brackets) and screw F onto panels 2 and 4.
3. Pasang Penopang Vertikal ke Alas: Insert screws C into panels 2 and 3. Attach panel 2 to panel 1 using screw C. Repeat for panel 3 (two instances) and panel 4, ensuring they are securely fastened to panel 1.
4. Connect Back Panel: Fix the back panel 6 to the assembled part from Step 3 using screws C. Ensure all connections are tight.
5. Pasang Panel Bawah: Fix the bottom panel 7 to the assembled part using screws C.
6. Apply Protective Caps and Foot Pads: Install protective caps H to cover all exposed screws. Install the non-slip foot pads I at the bottom base of the bookshelf.
7. Pasang Alat Anti Jatuh: Secure the anti-toppling device to the wall using hardware E (screws) and G (wall anchors). Attach the other end of the device to the top of the bookshelf. This step is critical for safety.

4. Operasi

The Giantex 8-Shelf Tree Bookshelf is designed for versatile storage and display in various rooms.

• Penyimpanan: Utilize the 8 separate shelves to store books, magazines, CDs, and other items. The unique tree-shaped design allows for organized and accessible storage.
• Menampilkan: The open design is ideal for displaying decorative items, photo frames, small plants, and ornaments.
• Penempatan Serbaguna: Suitable for use in a bathroom, living room, entryway, study room, or bedroom. Its compact and vertical structure maximizes space utilization.

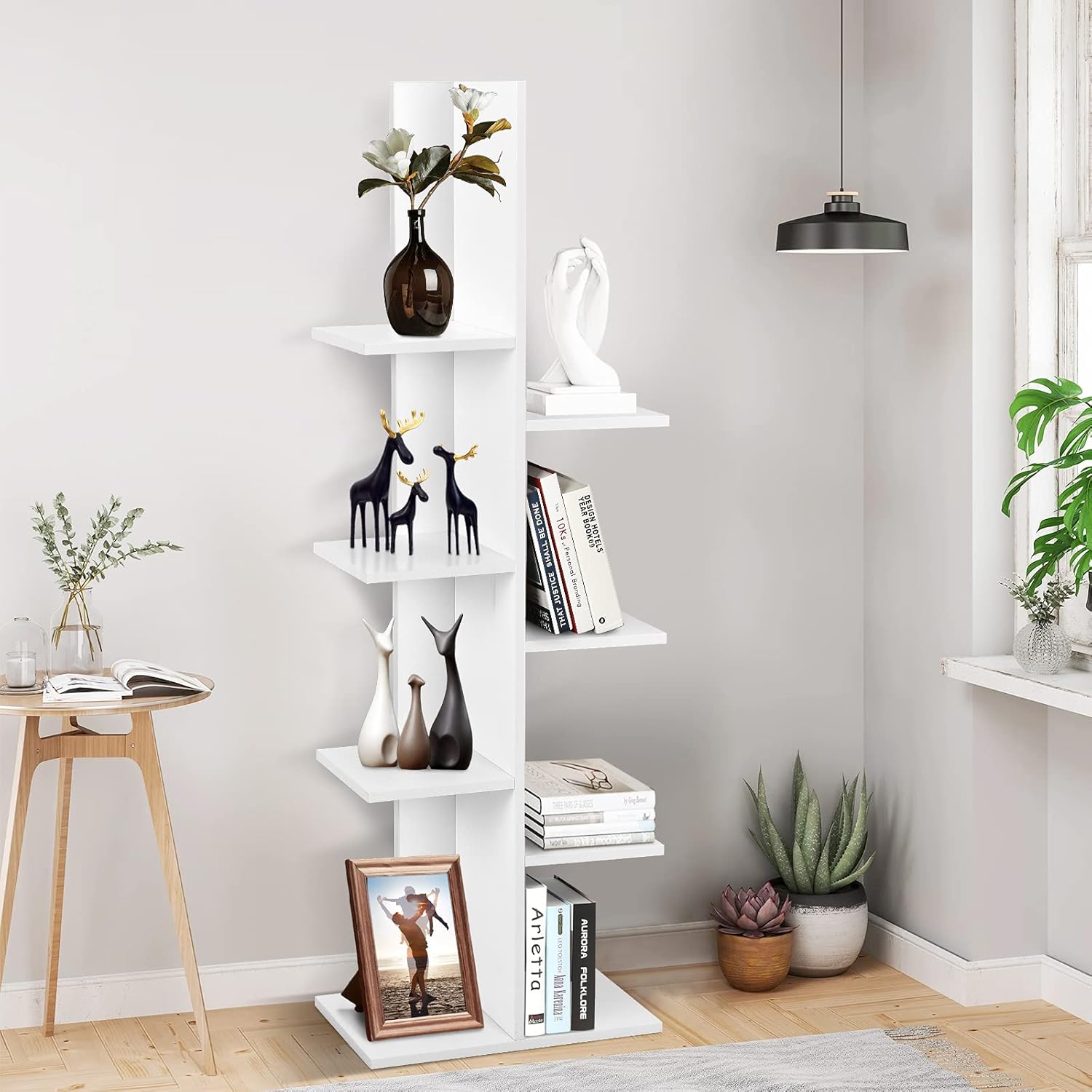

Image: The assembled bookshelf showcasing its storage and display capabilities in a home environment.

5. Pemeliharaan

Proper care will ensure the longevity and appearance of your bookshelf.

• Pembersihan: The melamine veneer surface is smooth and waterproof. Wipe with a dry cloth for daily cleaning. For stubborn marks, use a slightly damp kain dan segera keringkan. Hindari pembersih abrasif.
• Inspeksi: Periksa semua sekrup dan sambungan secara berkala untuk memastikannya tetap kencang. Kencangkan kembali jika perlu.
• Kondisi Lingkungan: Hindari paparan sinar matahari langsung atau perubahan suhu ekstrem yang berkepanjangan, karena dapat memengaruhi bahan kayu.

6. Penyelesaian masalah

Jika Anda menemui masalah selama perakitan atau penggunaan, lihat solusi umum berikut:

• Rak Buku Goyang: Ensure all screws are tightened. Check that the bookshelf is placed on a level surface. Verify that the anti-slip foot pads are correctly installed.
• Bagian yang hilang: Double-check the package contents against the list in Section 2. If parts are genuinely missing, contact Giantex customer support.
• Kesulitan Merakit: Review the assembly video and written instructions carefully. Ensure you are using the correct hardware for each step. Do not force parts together.
• Goresan/Kerusakan: Handle parts carefully during assembly. If minor scratches occur, touch-up pens or furniture markers can be used.

7. Spesifikasi

8. Garansi & Dukungan

For warranty information, product support, or to order replacement parts, please contact Giantex customer service through the retailer where the product was purchased or visit the official Giantex weblokasi.

Please have your model number (GT-GE-10176WH-JZ) and purchase date available when contacting support.
