1. Petunjuk Keselamatan
Harap baca dan pahami semua petunjuk sebelum memulai pemasangan. Kegagalan mengikuti petunjuk ini dapat mengakibatkan sengatan listrik, kebakaran, atau cedera pribadi.
- Keamanan Listrik: Ensure power is turned off at the circuit breaker before installation or maintenance. Consult a qualified electrician if you are unsure about wiring.
- Pemasangan: The ceiling fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting the fan's weight.
- Bohlam: Use only E26 base bulbs, maximum 10W LED or equivalent incandescent. Bulbs are not included.
- Izin: Maintain adequate clearance between the fan blades and any obstructions.
- Kontrol Jarak Jauh: Jauhkan remote control dari air dan suhu ekstrem.
2. Isi Paket
Verifikasi bahwa semua komponen ada dan tidak rusak sebelum melanjutkan instalasi.
- Caged Ceiling Fan Unit (with integrated motor and light sockets)
- Kontrol Jarak Jauh
- Mounting Bracket
- Paket Perangkat Keras (sekrup, mur kawat, dll.)
- Manual Instruksi

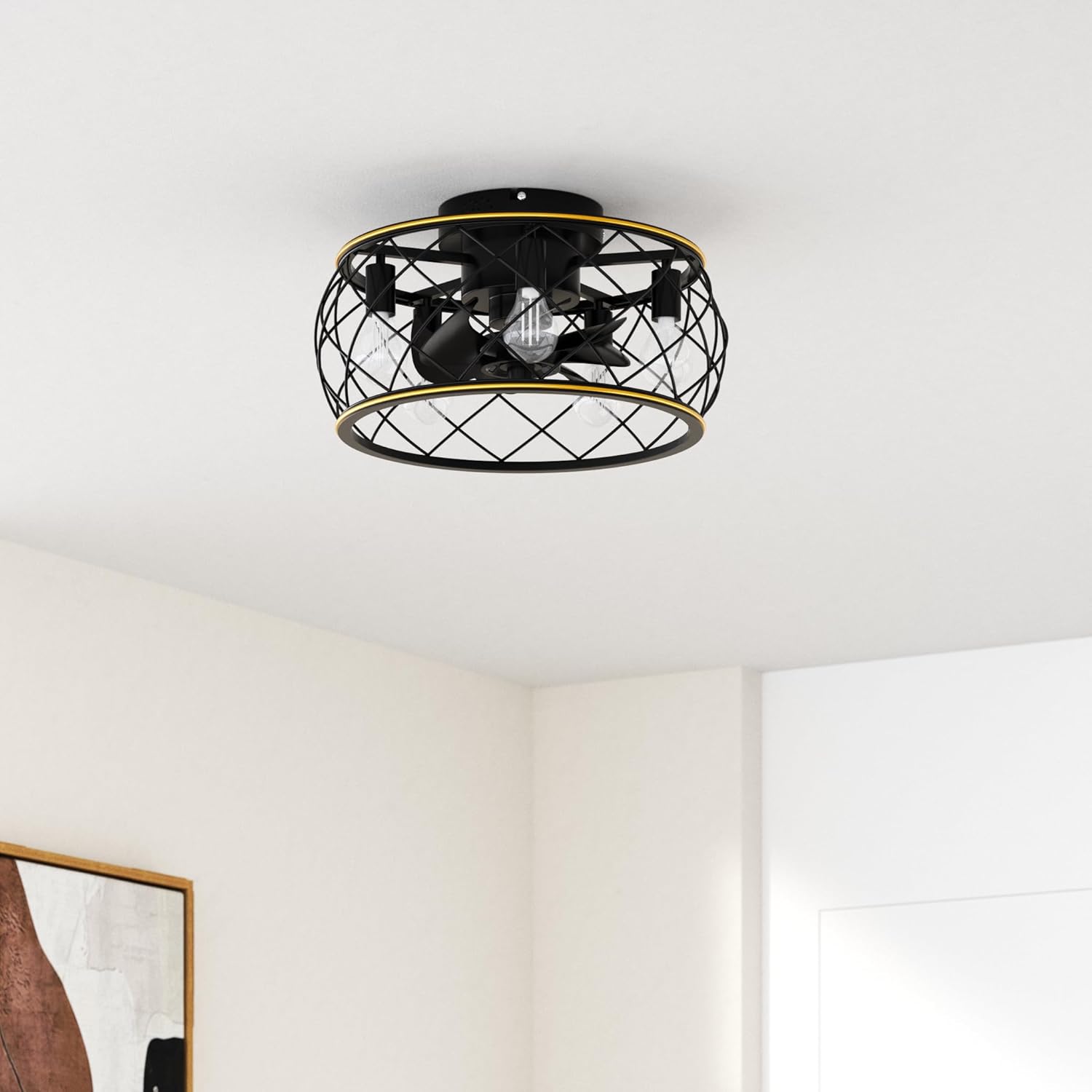

Gambar 1: Selesaiview of the Ohniyou Caged Ceiling Fan with Lights and Remote.
3. Instalasi
Professional installation is recommended for electrical work. Ensure power is disconnected before starting.
- Siapkan Lokasi Pemasangan: Turn off power at the circuit breaker. Remove any existing light fixture.
- Pasang Braket Pemasangan: Secure the mounting bracket to the ceiling junction box using appropriate screws. Ensure it is firmly attached.
- Assemble Fan Unit (if necessary): Some components may require pre-assembly. Refer to the detailed diagrams in the printed manual for specific steps.
- Koneksi Kabel: Connect the fan's wires to the household wiring according to local electrical codes. Typically, connect live to live, neutral to neutral, and ground to ground. Use wire nuts to secure connections.
- Pasangkan Kipas ke Braket Pemasangan: Carefully lift the fan unit and attach it to the installed mounting bracket. Secure with screws.
- Pasang Bola Lampu: Screw five E26 base bulbs (not included) into the sockets.
Video 1: This video demonstrates the installation process for a similar caged ceiling fan, including assembly of the frame, fan blades, and wiring connections. Note that specific steps may vary slightly for your Ohniyou model.
Gambar 2: Close-up view of the fan's flush mount design, 8 black blades, hand-painted gold line detail, and 5 E26 bulb bases.
4. Petunjuk Pengoperasian
Your Ohniyou Caged Ceiling Fan is operated using the included remote control.
Fungsi Kontrol Jarak Jauh:
- Tombol Daya: Menyalakan/mematikan kipas angin dan lampu.
- Lampu Hidup/Mati: Controls the light independently.
- Kecepatan Kipas (1-6): Adjusts the fan speed from low (1) to high (6).
- Pengatur waktu (1 jam, 2 jam, 4 jam): Mengatur kipas agar mati secara otomatis setelah 1, 2, atau 4 jam.
- Forward (F) / Reverse (R): Changes the direction of the fan blades. Use 'F' for downdraft (summer mode) and 'R' for updraft (winter mode).
Image 3: Diagram of the remote control with labeled buttons for fan speed, light control, timer, and forward/reverse functions.
Video 2: This video demonstrates the operation of the Ohniyou Caged Ceiling Fan, showcasing the remote control functions for turning the light and fan on/off, and adjusting fan speeds.
Fungsi Motorik Reversibel:
The reversible motor allows for year-round comfort:
- Summer Downdraft Mode (Forward): Air circulates downward to create a cooling effect.
- Winter Updraft Mode (Reverse): Air circulates upward to redistribute warm air, enhancing heating efficiency.
Image 4: Visual representation of the fan's reversible motor function, illustrating airflow for both summer downdraft and winter updraft modes.
5. Pemeliharaan
Perawatan rutin memastikan kinerja optimal dan umur kipas langit-langit Anda.
- Pembersihan: Dust the fan blades and cage regularly with a soft, damp kain. Jangan gunakan pembersih atau pelarut yang bersifat abrasif.
- Penggantian Bohlam: Ensure power is off before replacing light bulbs. Allow bulbs to cool completely before handling.
- Kencangkan Pengencang: Periksa dan kencangkan semua sekrup dan pengencang secara berkala untuk memastikan pengoperasian yang aman.
6. Penyelesaian masalah
Jika Anda mengalami masalah dengan kipas angin Anda, lihat masalah umum dan solusi berikut:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Kipas tidak mulai | No power, loose wiring, remote battery dead | Check circuit breaker, ensure wiring is secure, replace remote battery. |
| Lampu tidak bekerja | Bulb faulty, loose wiring, remote battery dead | Replace bulb, check wiring, replace remote battery. |
| Kipas berisik | Loose screws, unbalanced blades | Tighten all mounting screws, ensure blades are securely attached. |
| Remote tidak berfungsi | Dead battery, interference | Replace remote battery, ensure no obstructions between remote and fan. |
7. Spesifikasi
- Merek: Ohniyou
- Nama Model: 011
- Dimensi Produk: 20"P x 20"L x 9.7"T
- Berat Barang: 9.53 pon
- Bahan: Logam
- Gaya: Rumah pertanian
- Tipe Instalasi: Siram gunung
- Sumber Daya: AC
- Jil.tage: 120 Volt
- Jumlah Sumber Cahaya: 5
- Basis Bohlam: E26
- Apatage: 30 watts (total for lights)
- Fitur Khusus: Bladeless, Remote Controlled, Reversible Motor
- Pemakaian Dalam/Luar Ruangan: Dalam Ruangan, Luar Ruangan
- Komponen yang Termasuk: Kontrol Jarak Jauh
Image 5: Detailed diagram showing the product dimensions (20 inches diameter, 9.7 inches height) and E26 bulb base requirement.
8. Garansi & Dukungan
This Ohniyou Caged Ceiling Fan comes with a Garansi Terbatas. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty information provided in the product packaging or contact Ohniyou customer support.
For technical assistance, troubleshooting, or replacement parts, please contact Ohniyou customer service through the retailer where the product was purchased or visit the official Ohniyou weblokasi.
