Perkenalan
This manual provides instructions for the VINABTY YKF348-001 replacement remote control, designed for use with various Philips Smart TV models. This remote control offers direct functionality without the need for complex programming.
Gambar: Depan view of the VINABTY YKF348-001 replacement remote control, showing all buttons and their layout.
Pengaturan
1. Pemasangan Baterai
The VINABTY YKF348-001 remote control requires two AAA batteries (not included). Follow these steps to install them:
- Temukan penutup kompartemen baterai di bagian belakang remote control.
- Tekan tab ke bawah dan geser penutup ke bawah untuk membuka kompartemen.
- Masukkan dua baterai AAA, pastikan terminal positif (+) dan negatif (-) sejajar dengan tanda di dalam kompartemen.
- Geser penutup ruang baterai kembali ke tempatnya hingga terkunci dengan aman.

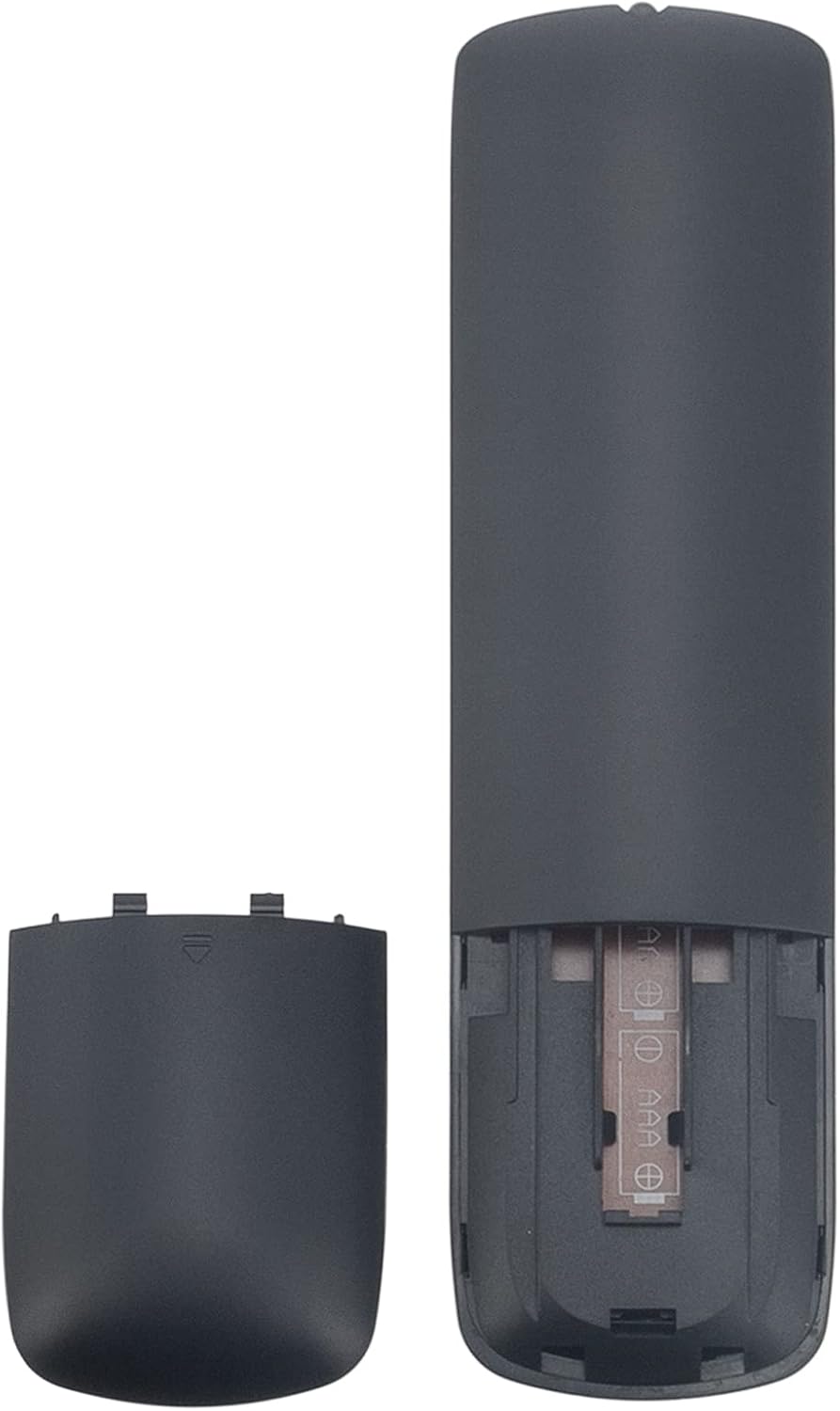

Gambar: Belakang view of the remote control with the battery compartment open, showing where to insert two AAA batteries.
2. Penggunaan Awal
This replacement remote control is designed to work directly with compatible Philips Smart TVs without any additional programming. Once batteries are installed, point the remote control towards your television and begin operation.
Petunjuk Pengoperasian
The VINABTY YKF348-001 remote control features a standard layout for Philips Smart TVs. Below are the functions of key buttons:
- Kekuatan (●): Menghidupkan atau mematikan televisi.
- Panduan televisi: Mengakses panduan program elektronik.
- SMART TV: Opens the Smart TV interface or app menu.
- INFORMASI: Menampilkan informasi tentang program atau input saat ini.
- Papan Navigasi (Atas, Bawah, Kiri, Kanan, OK): Digunakan untuk menavigasi menu dan mengonfirmasi pilihan.
- KEMBALI: Kembali ke menu atau layar sebelumnya.
- SUMBER: Memilih sumber masukan (HDMI, AV, dll.).
- KELUAR: Keluar dari menu atau aplikasi saat ini.
- PILIHAN: Mengakses opsi kontekstual untuk layar saat ini.
- Volumenya (+/-): Menyesuaikan volume televisi.
- Bisu (🔇): Mutes or unmutes the television sound.
- Channel (+/-): Mengganti saluran televisi.
- Tombol Angka (0-9): Directly enters channel numbers or text.
- SUBTITLE: Mengaktifkan atau menonaktifkan subtitle.
- TEKS: Mengakses layanan teletext (jika tersedia).
- Multimedia Controls (Play, Pause, Stop, Rewind, Fast Forward, Record): Mengontrol pemutaran media.
Pemeliharaan
Pembersihan
Untuk membersihkan remote control, usap permukaannya dengan lembut menggunakan kain lembut dan kering. Untuk kotoran yang membandel, sedikit gosok.ampen the cloth with water. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the remote's finish or internal components.
Penggantian Baterai
Replace the AAA batteries when the remote control's performance degrades or it stops responding. Always replace both batteries at the same time with new ones. Do not mix old and new batteries, or different types of batteries, as this can lead to leakage or malfunction.
Penyimpanan
When not in use for extended periods, it is recommended to remove the batteries to prevent potential leakage and damage to the remote control.
Penyelesaian Masalah
- Kontrol jarak jauh tidak merespons:
- Check if the batteries are correctly inserted with the correct polarity (+/-).
- Ganti baterainya dengan baterai AAA yang baru.
- Pastikan tidak ada penghalang antara remote control dan sensor inframerah televisi.
- Confirm that the remote control is pointed directly at the television.
- Beberapa tombol tidak berfungsi:
- This remote is designed for specific Philips TV models. Ensure your TV model is listed under compatibility.
- Clean the remote control surface, especially around the unresponsive buttons, to remove any dirt or debris.
- Jangkauan operasi pendek:
- Ganti baterainya dengan yang baru.
- Ensure no strong light sources (like direct sunlight) are interfering with the infrared signal.
Spesifikasi
| Nomor Model | YKF348-001 |
| Merek | VINABTY |
| Teknologi Konektivitas | Inframerah |
| Perangkat yang Kompatibel | Television (Philips Smart TVs) |
| Fitur Khusus | Tidak memerlukan pemrograman |
| Jumlah Tombol | 44 |
| Tipe Pengendali | Kontrol Tombol |
| Jangkauan Maksimum | 10 Meter |
| Baterai Diperlukan | 2 x AAA (tidak termasuk) |
| Berat Barang | 80 gram |
Kesesuaian
This VINABTY YKF348-001 replacement remote control is compatible with various Philips Smart TV models, including but not limited to:
- Philips Full HD LED 22PFK4209
- Philips Full HD LED 47PFK6109
- Philips Full HD LED 49PUS7809
- Philips Full HD LED 22PFK4209/12
- Philips Full HD LED 22PFK420912
- Philips Full HD LED 24PHK420912
- Philips Full HD LED 24PHK4109/12
If your Philips TV model is not listed, please verify compatibility with the seller before purchase.
Garansi dan Dukungan
Specific warranty information for this replacement remote control is not provided in the product details. For any questions regarding warranty, technical support, or product issues, please contact the seller directly through your purchase platform. They will be able to provide the most accurate and up-to-date assistance.
