Nordica Extraflame Moira Evo 7kW Wood Pellet Stove Instruction Manual

1. Pendahuluan

This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Nordica Extraflame Moira Evo 7kW Wood Pellet Stove. Please read this manual thoroughly before using the appliance to ensure proper function and safety.

1.1 Informasi Keselamatan

• Always follow local building codes and regulations for installation.
• Ensure proper ventilation as specified in the installation guidelines.
• Gunakan hanya pelet kayu yang telah disetujui sebagai bahan bakar.
• Jauhkan bahan yang mudah terbakar dari kompor.
• Jangan menyentuh permukaan panas selama pengoperasian.
• Perawatan rutin sangat penting untuk pengoperasian yang aman dan efisien.

This image shows the interior of the pellet stove's combustion chamber during operation, highlighting the burning wood pellets and the visible flames. This illustrates the primary function of the stove.

2. Pengaturan dan Instalasi

Proper installation is critical for the safe and efficient operation of your pellet stove. It is recommended that installation be performed by a qualified technician.

2.1 Membongkar

• Lepaskan semua bahan kemasan dengan hati-hati.
• Inspect the stove for any signs of damage. Report any damage to your supplier immediately.
• Simpan kemasan untuk kemungkinan pengiriman di masa mendatang.

2.2 Penempatan

• The stove must be placed on a non-combustible surface.
• Maintain minimum clearances from combustible materials as specified in local regulations and the stove's technical data.
• Ensure adequate air supply for combustion.

2.3 Venting System Connection

Connect the stove to an approved direct vent system. All connections must be sealed properly to prevent exhaust leaks. Refer to the technical drawing for vent pipe dimensions and location.

This diagram provides detailed measurements and outlines the various components of the pellet stove, including the rear exhaust vent and air intake, crucial for planning installation and ensuring proper clearances.

3. Petunjuk Pengoperasian

3.1 Fuel Loading

• Buka tutup pelet hopper.
• Isi wadah dengan pelet kayu berkualitas tinggi. Jangan mengisinya terlalu penuh.
• Tutup penutup wadah dengan rapat.

3.2 Menyalakan Kompor

• Ensure the stove is connected to power.
• Press the "ON" button on the control panel or remote control.
• The stove will initiate an automatic ignition sequence. This process typically takes several minutes.
• Monitor the flame establishment.

3.3 Menyesuaikan Keluaran Panas

Use the up and down arrow buttons on the control panel or remote control to adjust the desired heat output level. Higher settings will consume more pellets and produce more heat.

3.4 Turning Off the Stove

• Press the "OFF" button.
• The stove will enter a shutdown cycle, allowing the remaining pellets to burn out and the fan to cool down the unit. Do not disconnect power during this cycle.
• The stove is fully off when the fan stops and the display indicates "OFF".

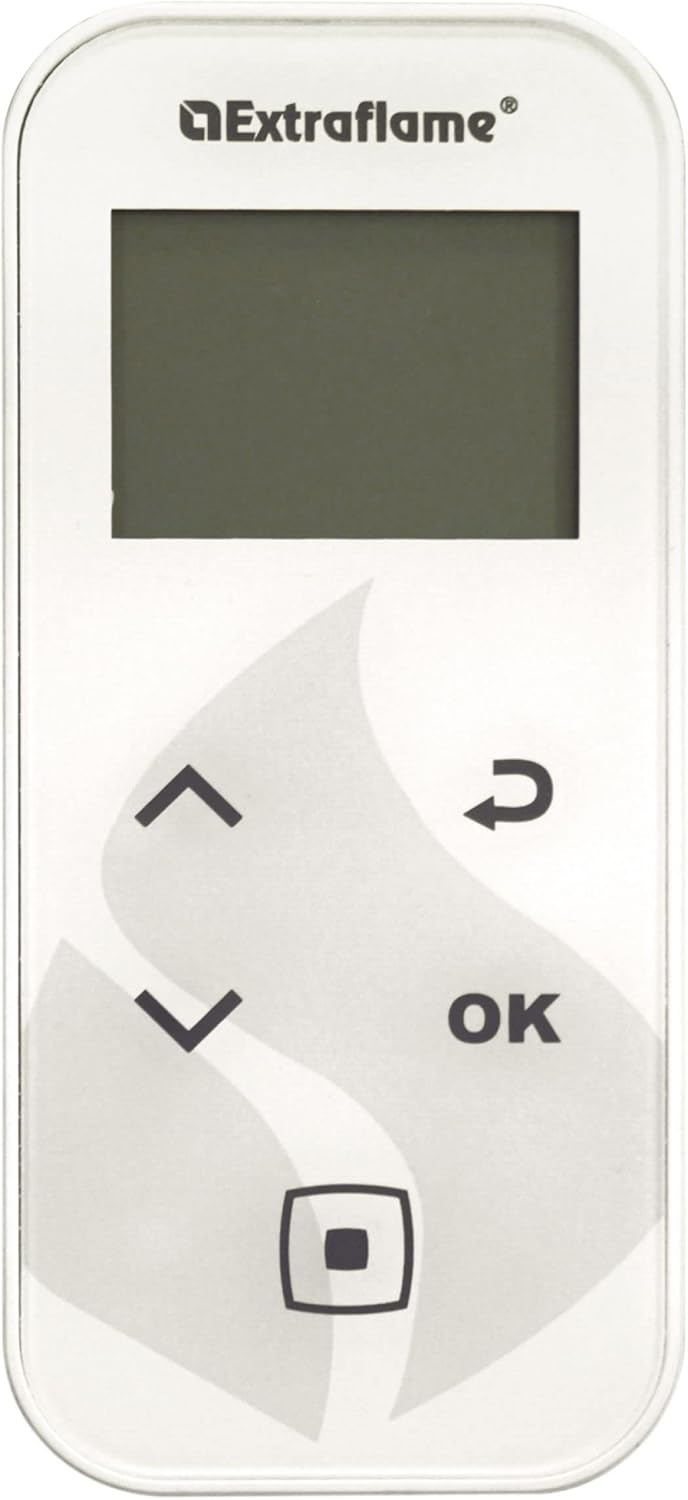

This image displays the remote control unit for the pellet stove, featuring a digital screen, arrow buttons for navigation, an 'OK' button for selection, and a return arrow. This remote allows for convenient adjustment of stove settings from a distance.

4. Pemeliharaan

Regular maintenance ensures optimal performance and extends the lifespan of your pellet stove. Always ensure the stove is cool and disconnected from power before performing any maintenance.

4.1 Pemeliharaan Harian

• Penghapusan Abu: Empty the ash pan daily or as needed. Use a metal container for ash disposal.
• Cara Membersihkan Pot Pembakaran: Bersihkan wadah pembakaran untuk menghilangkan kerak atau pelet yang tidak terbakar.

4.2 Pemeliharaan Mingguan

• Pembersihan Kaca: Clean the ceramic glass with a specialized stove glass cleaner when the stove is cold.
• Inspeksi Hopper: Periksa wadah pelet untuk melihat apakah ada debu atau kotoran.

4.3 Pemeliharaan Tahunan

• Flue Pipe Cleaning: Have the flue pipe and chimney inspected and cleaned by a qualified professional.
• Pemeriksaan Umum: A qualified technician should perform a thorough inspection of all components, including seals, motors, and electrical connections.

5. Penyelesaian masalah

This section provides solutions for common issues. For problems not listed here or if issues persist, contact a qualified service technician.

6. Spesifikasi Teknis

7. Garansi dan Dukungan Pelanggan

For warranty information, please refer to the documentation provided with your purchase or contact your authorized EXTRAFLAME dealer.

For technical assistance or spare parts, please contact EXTRAFLAME customer support or your local service center. Provide your model number (Moira Evo) and ASIN (B0BRYJYYMC) when contacting support.
