Vente-unique MODULO V High Bed with Convertible Bench - Instruction Manual

1. Pendahuluan

Thank you for choosing the Vente-unique MODULO V High Bed with Convertible Bench. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

The MODULO V is a versatile furniture piece featuring a 90 x 190 cm high bed and a convertible bench that transforms into a 135 x 190 cm bed. It is constructed from durable white metal and includes a comfortable black futon for the bench.

Image 1.1: Assembled Vente-unique MODULO V High Bed with Convertible Bench.

2. Informasi Keselamatan

Adherence to these safety guidelines is crucial for preventing injury and ensuring the longevity of your product.

• Perakitan: Ensure all components are correctly assembled and all fasteners are securely tightened before use. Periodically check and re-tighten all screws and bolts.
• Kapasitas Berat: The upper bed has a maximum supported load of 150 kg. The convertible bench has a maximum supported load of 200 kg. Do not exceed these limits.
• Upper Bed Usage: The upper bed is suitable for children aged 6 years and older. Younger children should not use the upper bunk.
• Bahaya Jatuh: Do not allow jumping on the bed. Ensure the safety rail is always in place when the upper bed is in use.
• Ventilasi: Ensure adequate ventilation around the futon to prevent moisture buildup.
• Keselamatan Tangga: Always use the ladder for access to the upper bed. Do not climb on any other part of the bed frame. Ensure the ladder is securely attached.
• Penempatan: Posisikan tempat tidur jauh dari jendela, kabel, atau benda lain yang dapat menimbulkan bahaya tercekik.

3. Isi Paket

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact Vente-unique customer support immediately.

• 1 x MODULO V High Bed Frame (White Metal)
• 1 x Slatted Base for Upper Bed
• 1 x Convertible Bench Frame (Integrated into main frame)
• 1 x MODULO Futon (Black, Cotton/Polyester)
• 1 x Reversible Ladder
• Assembly Hardware (screws, bolts, nuts, Allen key, etc.)
• Instruksi Perakitan (dokumen ini)

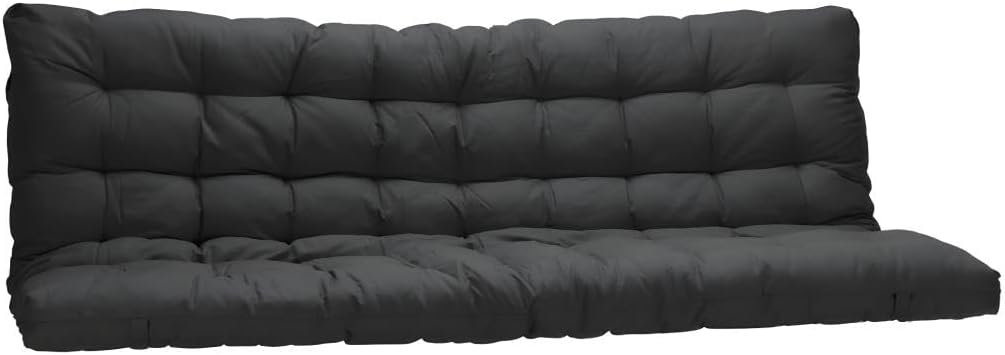

Image 3.1: MODULO Futon for the convertible bench.

4. Pengaturan dan Perakitan

Assembly of the MODULO V High Bed requires two adults. Follow the step-by-step diagrams provided in the separate assembly guide included in your package. Ensure you have sufficient space for assembly.

1. Bongkar Komponen: Keluarkan semua bagian dari kemasan dengan hati-hati dan letakkan di permukaan yang bersih dan lembut untuk mencegah goresan. Periksa kembali dengan daftar isi kemasan.
2. Merakit Rangka Utama: Begin by connecting the main vertical and horizontal metal frame sections as per the diagrams. Do not fully tighten screws until all sections are loosely connected.
3. Pasang Alas Berbilah: Secure the slatted base for the upper bed into the designated slots.
4. Attach Convertible Bench Mechanism: Integrate the convertible bench frame and its mechanism into the lower section of the bed. Ensure smooth operation.
5. Gunung Tangga: Attach the reversible ladder to either side of the bed frame, as desired. Ensure it is firmly secured.
6. Pengencangan Akhir: Once all components are in place and aligned, fully tighten all screws and bolts using the provided tools. Do not overtighten.
7. Place Futon: Position the black futon onto the convertible bench.

Catatan: The upper bed requires a 90 x 190 cm mattress (not included). The convertible bench uses the provided 135 x 190 cm futon.

5. Petunjuk Pengoperasian

The MODULO V offers flexibility with its convertible bench feature.

• Using the Upper Bed: Access the upper bed using the reversible ladder. Ensure the safety rail is always in place.
• Converting the Bench to a Bed: To transform the bench into a 135 x 190 cm bed, carefully follow the mechanism's instructions. Typically, this involves lifting and pulling the seat section forward, then lowering the backrest. Ensure the futon is properly positioned for comfort.
• Converting the Bed to a Bench: To return to the bench configuration, reverse the steps, lifting the backrest and pushing the seat section back until it locks into the bench position.

6. Pemeliharaan

Regular maintenance will help preserve the appearance and functionality of your MODULO V High Bed.

• Membersihkan Rangka Logam: Wipe the white metal frame with a soft, damp kain. Hindari pembersih abrasif atau bahan kimia keras yang dapat merusak lapisan akhir.
• Cleaning the Futon: The black futon can be spot cleaned with a mild detergent and water. Allow it to air dry completely. Refer to the futon's care label for specific instructions.
• Pemeriksaan Pengikat: Periodically (e.g., every 3-6 months) inspect all screws, bolts, and connections. Re-tighten any loose fasteners to ensure stability and safety.
• Pelumasan Mekanisme: If the convertible bench mechanism becomes stiff, apply a small amount of silicone-based lubricant to the moving parts.

7. Penyelesaian masalah

If you encounter issues with your MODULO V High Bed, refer to the following common solutions:

• Tempat tidur terasa goyang: Check all assembly fasteners. Ensure they are fully tightened. Verify that the bed is placed on a level surface.
• Difficulty converting bench: Ensure no obstructions are present. Check that the mechanism is clean and free of debris. Apply lubricant if necessary (see Maintenance).
• Suara mencicit: Identify the source of the noise. Often, it can be resolved by tightening loose connections or applying lubricant to moving parts.
• Bagian yang hilang selama perakitan: Double-check all packaging. If parts are genuinely missing, contact Vente-unique customer support with your purchase details.

8. Spesifikasi

Detailed specifications for the Vente-unique MODULO V High Bed with Convertible Bench:

Image 8.1: Key dimensions of the MODULO V High Bed.

9. Garansi dan Dukungan

Vente-unique products are designed for quality and durability. For information regarding warranty coverage, please refer to your purchase documentation or the Vente-unique weblokasi.

If you require assistance with assembly, have questions about your product, or need to report a missing/damaged part, please contact Vente-unique customer support:

• Dukungan online: Visit the official Vente-unique websitus web atau halaman dukungan pengecer Anda.
• Informasi Kontak: Refer to the contact details provided with your purchase or on the Vente-unique brand store.

Anda juga dapat mengunjungi Vente-unique Brand Store on Amazon untuk informasi lebih lanjut.
