KICKASS 12V Portable Camping Shower (Model KASWRRCG) - Instruction Manual

1. Pendahuluan

The KICKASS 12V Portable Camping Shower is designed for outdoor use, providing a convenient showering solution. It features a built-in pump and is powered by a rechargeable lithium battery. This manual provides essential information for the safe and effective use of your portable shower.

The portable shower is powered by a rechargeable lithium battery, providing up to 60 minutes of operation per charge. It includes two interchangeable shower heads: a regular spray nozzle and a massage jet nozzle. Both offer adjustable water flow via a push-button. The shower features a 7.8-foot hose for extended reach. The compact pump is designed to fit into standard jerry cans for convenient transport and storage. It comes with a USB cable for charging and a carry bag for protection and portability.

2. Apa saja yang termasuk?

Your KICKASS 12V Portable Camping Shower package includes the following components:

• Portable Shower Pump with integrated lithium battery
• Shower Hose (7.8 feet long)
• Regular Spray Shower Head
• Massage Jet Shower Head
• Kabel Pengisian Daya USB
• Carry Bag
• Suction Cup Mount
• Gunung Pengait

Image: All components of the KICKASS portable camping shower, including the pump, hose, two shower heads, USB cable, and mounting accessories.

3. Pengaturan

3.1 Mengisi Baterai

Before first use, fully charge the integrated lithium battery. Connect the provided USB charging cable to the pump unit and a suitable USB power source (e.g., car charger, power bank, or wall adapter). The charging indicator lights on the pump will show the charging status.

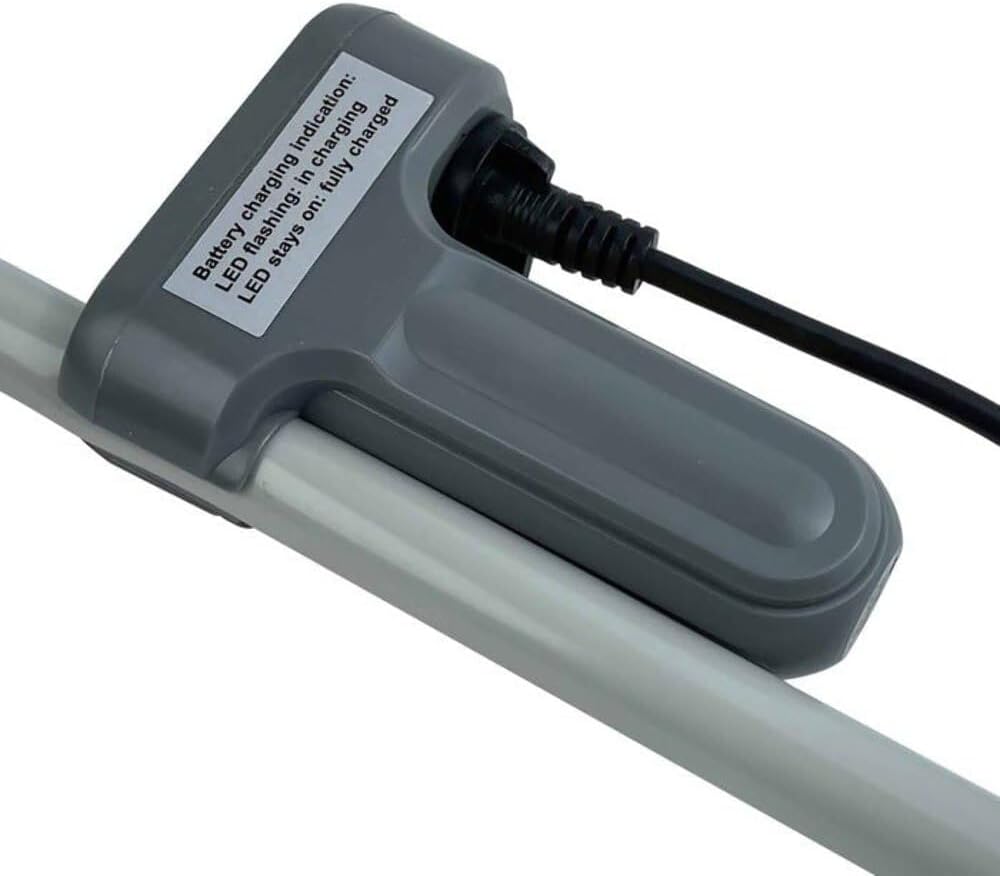

Gambar: Close-up view of the portable shower pump unit, showing the LED charging indicator lights.

3.2 Perakitan

1. Connect the Hose to the Pump: Securely attach one end of the shower hose to the outlet port on the pump unit.
2. Connect the Shower Head: Attach your preferred shower head (regular spray or massage jet) to the other end of the shower hose. Ensure a tight connection to prevent leaks.
3. Siapkan Sumber Air: Place the pump unit into a bucket, jerry can, or any suitable container filled with clean water. Ensure the pump is fully submerged.
4. Mount the Shower Head: Use the provided suction cup or hook mount to position the shower head at a desired height.

Image: The portable shower pump unit is shown placed inside a jerry can, highlighting its design for easy integration with common water containers.

4. Petunjuk Pengoperasian

4.1 Menghidupkan/Mematikan

To turn the shower on, press the power button located on the pump unit. Press the button again to cycle through the two available water flow speeds. To turn the shower off, press the power button until the unit powers down.

4.2 Mengatur Aliran Air

The shower offers two water flow settings. Press the power button once for the standard flow, and press it again for a higher flow rate. Select the speed that best suits your needs to conserve water or for a more powerful rinse.

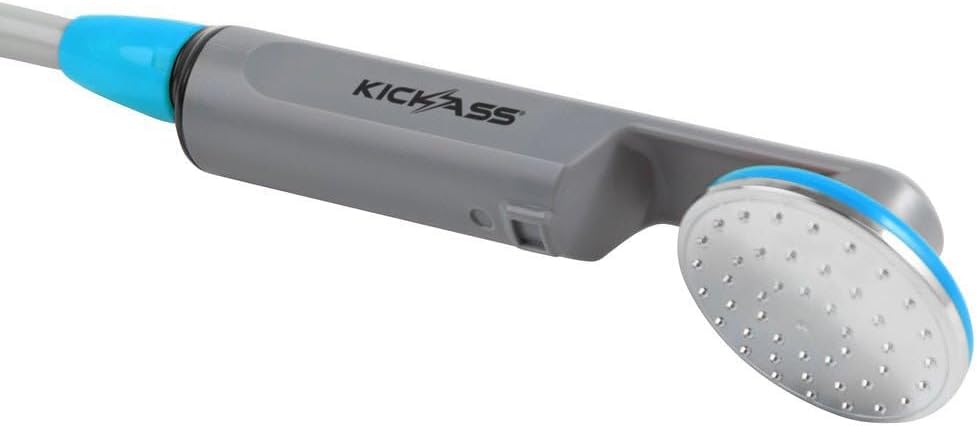

Image: A close-up of the shower head, showing the integrated power button for easy control of water flow.

4.3 Using Different Shower Heads

The portable shower comes with two interchangeable heads. The regular spray nozzle provides a consistent, gentle flow suitable for general showering. The massage jet nozzle offers a more focused and invigorating spray. To switch between heads, simply unscrew the currently attached head and screw on the desired one.

Image: Both the regular spray and massage jet shower heads are displayed, illustrating the interchangeable options.

4.4 Demonstrasi Video

5. Pemeliharaan

5.1 Pembersihan

After each use, especially if used with non-fresh water (e.g., saltwater), rinse the pump, hose, and shower head thoroughly with clean fresh water. This helps prevent corrosion and mineral buildup. Periodically check and clean the filter on the pump intake to ensure optimal water flow.

5.2 Pengisian daya

Recharge the battery as needed. Avoid completely draining the battery to prolong its lifespan. Store the unit with a partial charge if not in use for extended periods.

5.3 Penyimpanan

Ensure all components are dry before storing. Disassemble the hose and shower head from the pump. Store all items neatly in the provided carry bag to protect them from dust and damage.

6. Penyelesaian masalah

• Tidak Ada Aliran Air: Check if the pump is fully submerged in water. Ensure the battery is charged. Verify all hose connections are secure. Check the pump intake filter for blockages.
• Tekanan Air Rendah: Recharge the battery if the indicator lights show low power. Clean the pump intake filter. Ensure there are no kinks in the hose.
• Baterai Tidak Mengisi: Verify the USB cable is correctly connected to both the pump and the power source. Try a different USB cable or power source.
• Kebocoran: Tighten all hose and shower head connections. Check O-rings for proper seating or damage.

7. Spesifikasi

8. Garansi & Dukungan

For warranty information or technical support, please refer to the product packaging or contact KICKASS customer service directly. Contact details can typically be found on the manufacturer's official websitus web atau di halaman penjualan produk.
