DD Audio CB-9515k-D1 15" Subwoofer Instruction Manual

Perkenalan

This manual provides essential information for the proper installation, operation, and maintenance of your DD Audio CB-9515k-D1 15-inch subwoofer. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and longevity of your product. Retain this manual for future reference.

Informasi Keselamatan

Selalu perhatikan tindakan pencegahan keselamatan berikut:

• Disconnect the vehicle's battery negative terminal before any electrical work to prevent short circuits.
• Pastikan semua kabel terpasang dengan benar dan aman untuk mencegah kerusakan akibat bagian yang bergerak atau ujung yang tajam.
• Gunakan kabel dengan ukuran yang sesuai untuk sambungan daya, ground, dan speaker agar mampu menangani kebutuhan daya subwoofer.
• Avoid operating the subwoofer at excessively high volumes for prolonged periods, as this can cause hearing damage and speaker damage.
• Konsultasikan dengan pemasang profesional jika Anda tidak yakin tentang aspek apa pun dari proses pemasangan.

Isi Paket

Verifikasi bahwa semua item ada dalam paket:

• DD Audio CB-9515k-D1 15" Subwoofer
• Sticker (as indicated in product specifications)
• Wire connectors (typically included for basic wiring)

Image: Included accessories, typically consisting of DD Audio brand stickers and red wire connectors for speaker wire connections.

Pengaturan dan Instalasi

Proper installation is crucial for the performance and longevity of your subwoofer. This section outlines general guidelines. Specific enclosure designs and wiring configurations may vary.

Persyaratan Lampiran

The CB-9515k-D1 subwoofer is designed for use in a custom-built enclosure. Refer to the specifications section for recommended enclosure volumes. Both sealed and ported enclosures are suitable, with ported designs generally offering higher output at lower frequencies.

Memasang Subwoofer

Ensure the mounting surface is rigid and free from obstructions. Use appropriate screws to secure the subwoofer to the enclosure. Do not overtighten screws, as this can damage the speaker frame.

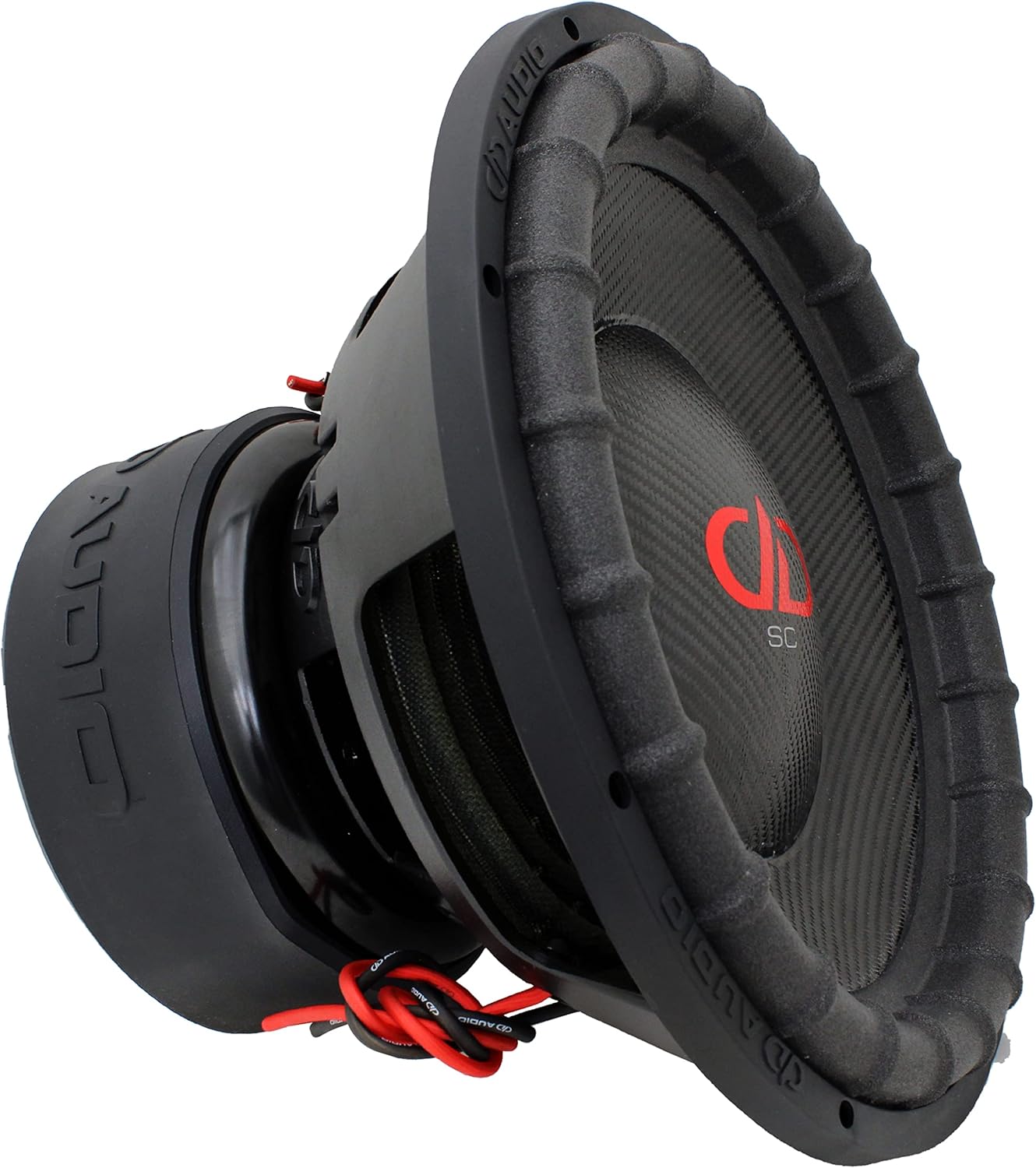

Gambar: Depan view of the DD Audio CB-9515k-D1 subwoofer, showing the carbon fiber cone and surround.

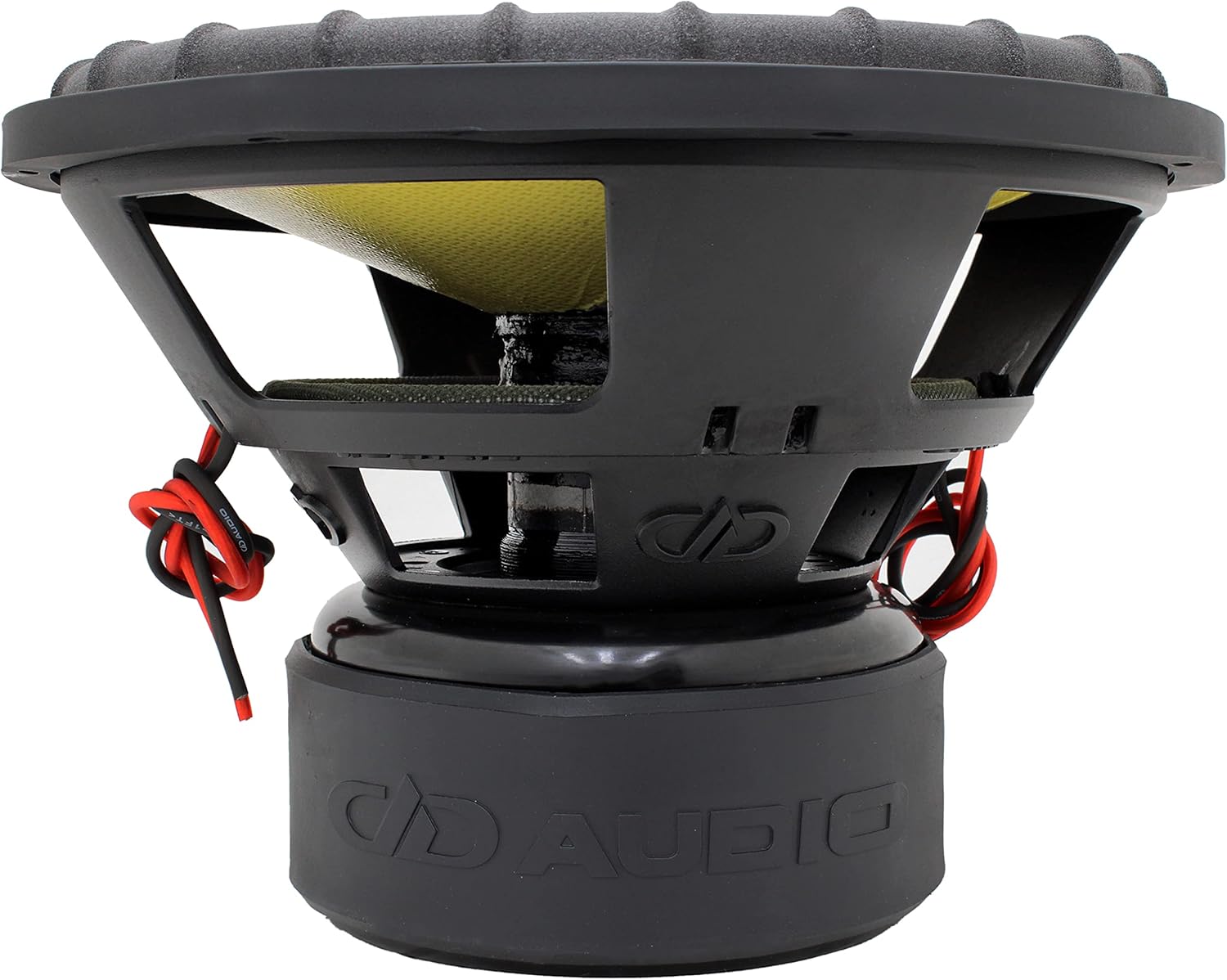

Gambar: Samping view of the DD Audio CB-9515k-D1 subwoofer, illustrating the sturdy cast aluminum frame and suspension components.

Koneksi Kabel

The CB-9515k-D1 features a dual 1-Ohm voice coil configuration. This allows for various wiring options to achieve different final impedances (e.g., 0.5 Ohm, 2 Ohm). Consult your amplifier's specifications to determine the stable impedance it can handle. Connect speaker wires to the subwoofer's terminals, ensuring correct polarity (positive to positive, negative to negative).

Gambar: Belakang view of the DD Audio CB-9515k-D1 subwoofer, displaying the large motor assembly and the dual voice coil terminals for wiring.

Petunjuk Pengoperasian

Initial Power-Up and Break-In

After installation, perform an initial power-up at low volume levels. Gradually increase the volume and bass over the first few hours of use. This 'break-in' period allows the subwoofer's suspension components to loosen and perform optimally. Avoid pushing the subwoofer to its limits during this initial phase.

AmpPengaturan lifier

Atur dengan benar amplifier's gain, crossover, and bass boost settings. The gain control should be set to match the output voltage of your head unit, not as a volume control. Use a low-pass filter (LPF) to send only low frequencies to the subwoofer, typically between 60Hz and 100Hz. Avoid excessive bass boost, as this can lead to distortion and damage.

Kontrol Volume

Operate the subwoofer within its rated power handling (1000-2000W RMS). If you hear distortion, reduce the volume immediately. Distortion indicates that the subwoofer or amplifier is being overdriven, which can cause permanent damage.

Pemeliharaan

The DD Audio CB-9515k-D1 subwoofer requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan konus dan sekeliling subwoofer. Hindari penggunaan bahan kimia keras atau kelembapan berlebihan.
• Inspeksi: Periodically inspect the speaker cone, surround, and dust cap for any signs of damage, tears, or punctures. Check wiring connections for tightness and corrosion.
• Faktor Lingkungan: Protect the subwoofer from direct sunlight, extreme temperatures, and moisture. Ensure adequate ventilation around the enclosure to prevent overheating.

Penyelesaian Masalah

Jika Anda mengalami masalah dengan subwoofer Anda, lihat masalah umum dan solusi berikut:

If these steps do not resolve the issue, contact DD Audio customer support or a qualified car audio technician.

Spesifikasi

The following specifications apply to the DD Audio CB-9515k-D1 15" Subwoofer:

Informasi Garansi

The DD Audio CB-9515k-D1 subwoofer comes with a limited warranty. For specific details regarding warranty coverage, duration, and claims procedures, please refer to the official DD Audio website or contact their customer service directly. Retain your proof of purchase for warranty validation.

Mendukung

For technical assistance, installation questions, or warranty inquiries, please contact DD Audio customer support through their official channels. You can typically find contact information, FAQs, and additional resources on the DD Audio weblokasi:

Visit DD Audio Official Weblokasi
