Perkenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your DB Drive WDX200.4 4-Channel Speaker AmpHarap baca manual ini dengan saksama sebelum mencoba memasang atau mengoperasikan amplifier to ensure proper function and safety. The WDX200.4 is a versatile 4-channel amplifier designed to deliver high-quality audio performance for various applications.
Pengaturan dan Instalasi
Pemasangan yang tepat sangat penting untuk kinerja optimal dan umur pakai yang lebih lama. amppenguat. Disarankan agar pemasangan dilakukan oleh profesional yang berkualifikasi.
Pemasangan
Itu amplifier features a surface mount design. Ensure the mounting location provides adequate ventilation to prevent overheating. Avoid mounting in direct sunlight or near heat sources.
Koneksi Daya
The WDX200.4 operates within a voltage range of 9V to 16V DC. Connect the power and ground cables securely to the robust power and output connectors. Ensure proper gauge wiring is used for power and ground connections to handle the ampKonsumsi arus amplifier.
Koneksi Input
Itu amplifier supports both RCA (low-level) and high-level inputs. This allows for compatibility with both aftermarket and factory head units without the need for additional adapters.
- Masukan RCA: Use RCA cables to connect your head unit's pre-amp keluaran ke ampinput RCA lifier.
- Masukan Tingkat Tinggi: If your head unit does not have RCA outputs, use the high-level input. This input typically connects directly to your head unit's speaker outputs.
Koneksi Speaker
The WDX200.4 is a 4-channel amplifier, providing 200 Watts RMS per channel at 2 ohms. It also supports bridging, allowing for 2 channels of 400 Watts RMS at 4 ohms. Connect your speakers to the appropriate output terminals, ensuring correct polarity.
Gambar: Atas dan bawah view of the DB Drive WDX200.4 4-Channel Speaker Amplifier, illustrating the various input and output terminals for connection.
Penyesuaian Crossover
Itu amplifier features integrated crossovers with High-Pass Filter (HPF), Low-Pass Filter (LPF), and Full-Range adjustments. These allow you to tailor the frequency response for your specific speaker setup (subwoofers, woofers, midranges, tweeters).

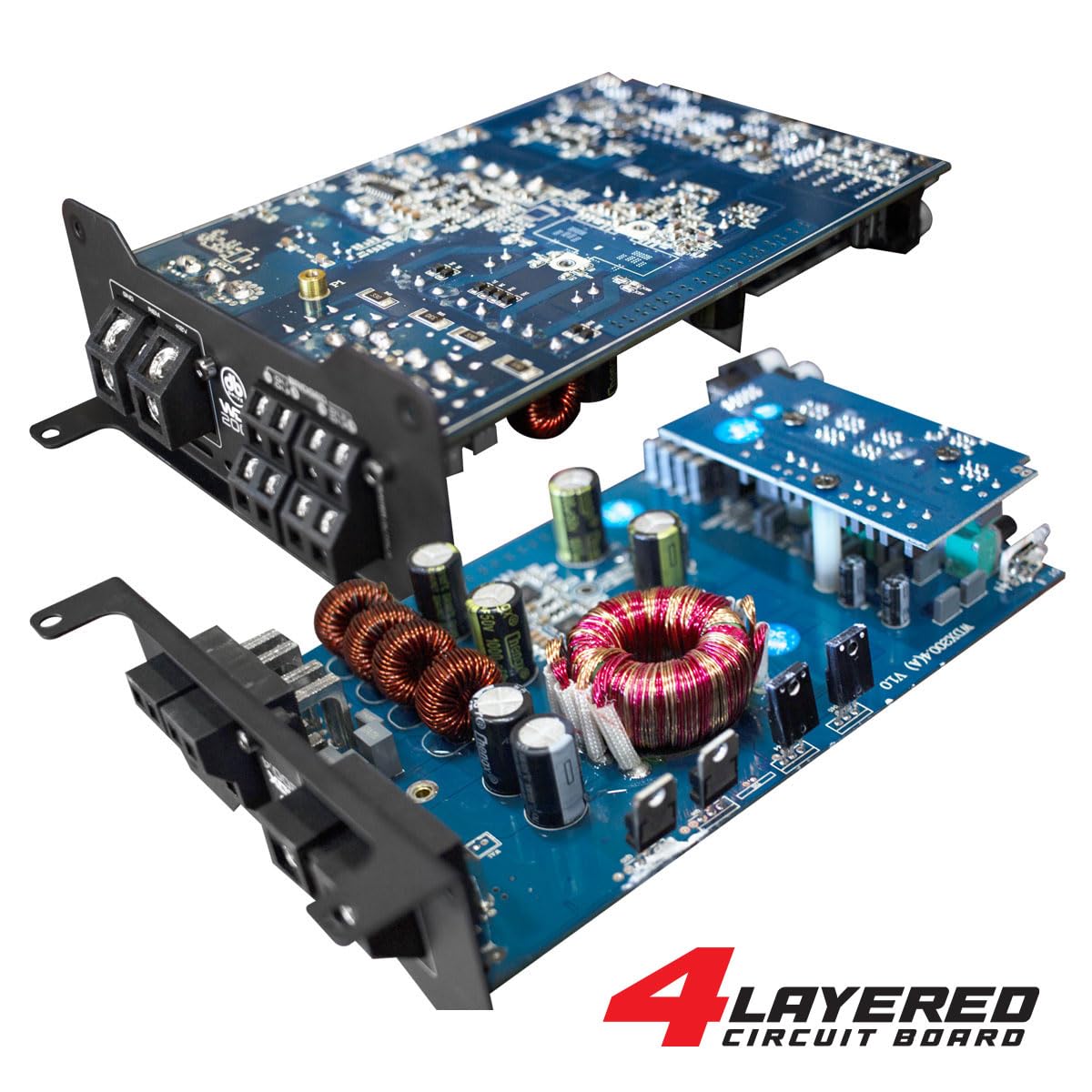

Gambar: Sebuah internal view of the DB Drive WDX200.4 amplifier, highlighting its 4-layered circuit board design for enhanced performance and durability.
Petunjuk Pengoperasian
Setelah diinstal, amplifier requires minimal user interaction for daily operation. The primary adjustments are for input level and crossover settings.
Penyesuaian Level
Adjust the input level controls to match the output voltage of your head unit. Start with the amplifier's level control at minimum and slowly increase it until the desired volume is achieved without distortion.
Pengaturan Crossover
- HPF (Filter Lolos Tinggi): Use this setting for speakers that should only reproduce high frequencies (e.g., tweeters, mid-range speakers). This filters out low bass frequencies.
- LPF (Filter Lolos Rendah): Use this setting for speakers that should only reproduce low frequencies (e.g., subwoofers). This filters out high frequencies.
- FULL (Full-Range): Use this setting for speakers that should reproduce the entire frequency spectrum.
Adjust these settings according to the specifications of your speakers and your desired audio output.
Pemeliharaan
To ensure the longevity and optimal performance of your DB Drive WDX200.4 amplifier, ikuti panduan perawatan berikut:
- Pembersihan: Bersihkan bagian luar secara berkala amplifier with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ventilation openings are free from dust and debris.
- Koneksi: Regularly check all power, ground, and speaker connections to ensure they are secure and free from corrosion. Loose connections can lead to poor performance or damage.
- Ventilasi: Pastikan amplifier always has adequate airflow around it. Blocked vents can lead to overheating and thermal shutdown.
Penyelesaian Masalah
Jika Anda mengalami masalah dengan amplifier, lihat masalah umum dan solusi berikut:
- Tidak Ada Daya: Check the main fuse, power and ground connections, and the remote turn-on wire. Ensure the vehicle's battery has sufficient charge.
- Tidak ada suara: Verify all input and output connections. Check speaker wires for shorts or open circuits. Ensure the head unit is functioning correctly and sending an audio signal. Check crossover settings.
- Suara Terdistorsi: Reduce the input level (gain) on the amplifier. Check for proper crossover settings. Ensure speakers are not overdriven or damaged.
- AmpAmplifier Ter overheating: Pastikan ventilasi yang memadai di sekitar ampPenguat. Periksa impedansi speaker untuk memastikan sesuai. amplifier's capabilities. Reduce the volume or gain settings.
- Mode Perlindungan: Jika amplifier enters protection mode (indicated by a specific LED), it usually signifies an issue such as overheating, a short circuit in the speaker wiring, or an impedance mismatch. Disconnect power, inspect all connections and speaker wiring, and allow the amplifier to cool before reconnecting.
If problems persist after attempting these solutions, consult a qualified car audio technician.
Spesifikasi
| Fitur | Spesifikasi |
|---|---|
| Nomor Model | WDX200.4 |
| Merek | Penggerak DB |
| Jumlah Saluran | 4 |
| Daya Keluaran (Stereo) | 200 Watts RMS per channel at 2 Ohms |
| Output Power (Bridged) | 400 Watts RMS per channel at 4 Ohms (2 channels) |
| Jil.tage | 9 - 16 Volt (DC) |
| Jenis Pemasangan | Pemasangan Permukaan |
| Lintasan | Integrated HPF, LPF, Full-Range |
| Masukan | RCA (Low-Level), High-Level with Automatic Turn-On |
| Sertifikasi | Komisi Komunikasi Federal (FCC) |
Garansi dan Dukungan
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official DB Drive websitus. Simpan bukti pembelian Anda untuk klaim garansi apa pun.
