Panduan Pengguna Dispenser Air Panas Bear HotCup

1. Pendahuluan

This manual provides essential information for the safe and efficient operation of your Bear HotCup Hot Water Dispenser. Please read these instructions thoroughly before first use and retain them for future reference. This appliance is designed to provide instant hot water at various temperatures and volumes for beverages and other household needs.

Image 1.1: The Bear HotCup Hot Water Dispenser, a compact white unit with a transparent water tank, shown dispensing hot water into a glass mug. A digital control panel is visible on the top surface.

2. Informasi Keselamatan

To prevent injury or damage, always observe basic safety precautions when using electrical appliances. This includes, but is not limited to:

• Jangan merendam peralatan, kabel listrik, atau steker dalam air atau cairan lainnya.
• Pastikan voltage yang ditunjukkan pada alat sesuai dengan voltase listrik lokal Andatage sebelum menghubungkan.
• Keep the appliance out of reach of children and pets. The appliance dispenses hot water and can cause burns.
• Always place the appliance on a stable, flat, heat-resistant surface, away from edges.
• Jangan mengoperasikan alat ini jika kabel daya atau steker rusak, atau jika alat ini mengalami malfungsi atau kerusakan dalam bentuk apa pun.
• Cabut alat dari stopkontak saat tidak digunakan dan sebelum membersihkan.
• The appliance features a safety lock to prevent accidental dispensing. Always engage this lock when not actively using the dispenser, especially in households with children or pets.
• The appliance includes boil-dry protection and automatic shutdown in case of overheating.

Image 2.1: An illustration of the dispenser's safety features, including the anti-touch lock button on the control panel, the easily removable drip tray, the water tank with a convenient handle for refilling, and an icon representing automatic shutdown protection against dry burning or overheating.

3. Produk Lebihview

Komponen:

• Main Dispenser Unit: Berisi elemen pemanas dan panel kontrol.
• Tangki Air yang Dapat Dilepas: 3-liter capacity, transparent for easy water level monitoring, with a handle for convenient refilling.
• Panel Kontrol: Touch-sensitive interface for temperature, volume, and safety lock settings.
• Saluran Keluar Air: Di mana air panas disalurkan.
• Baki Tetes: Removable for easy cleaning, collects any spills.

Fitur Utama:

• 6 Temperature Presets: 45°C, 55°C, 70°C, 85°C, 90°C, and Boil (100°C).
• 5 Water Volume Choices: 150ml, 200ml, 250ml, 300ml, 500ml.
• Pemanasan Cepat: Delivers hot water in approximately 3 seconds.
• 3L Kapasitas Besar: Suitable for family and office use.
• Program Pembersihan Otomatis: For internal deep cleaning.
• Kunci Pengaman: Mencegah pengoperasian yang tidak disengaja.
• Operasi Kebisingan Rendah: Beroperasi pada tingkat kebisingan sekitar 43.5dB.
• Cahaya Malam Lembut: Integrated light for visibility in low-light conditions.

4. Pengaturan

4.1 Pembongkaran dan Penempatan

1. Carefully remove the hot water dispenser from its packaging.
2. Lepaskan semua bahan kemasan, stiker, dan label.
3. Place the appliance on a dry, stable, flat, and heat-resistant surface, ensuring adequate ventilation around the unit. Keep it away from walls and other appliances.

4.2 Pembersihan Awal

Before first use, it is recommended to clean the water tank and run a full cycle with clean water.

1. Remove the water tank from the main unit by lifting it using its handle.
2. Wash the water tank with mild detergent and rinse thoroughly with clean water. Do not use abrasive cleaners.
3. Bersihkan bagian luar unit utama dengan adamp kain.
4. Pasang kembali tangki air dengan aman ke unit utama.

4.3 Mengisi Tangki Air

1. Ensure the water tank is properly seated on the main unit.
2. Fill the transparent water tank with fresh, clean drinking water. Do not exceed the 'MAX' fill line.
3. For optimal performance and longevity, use filtered water to minimize limescale buildup.

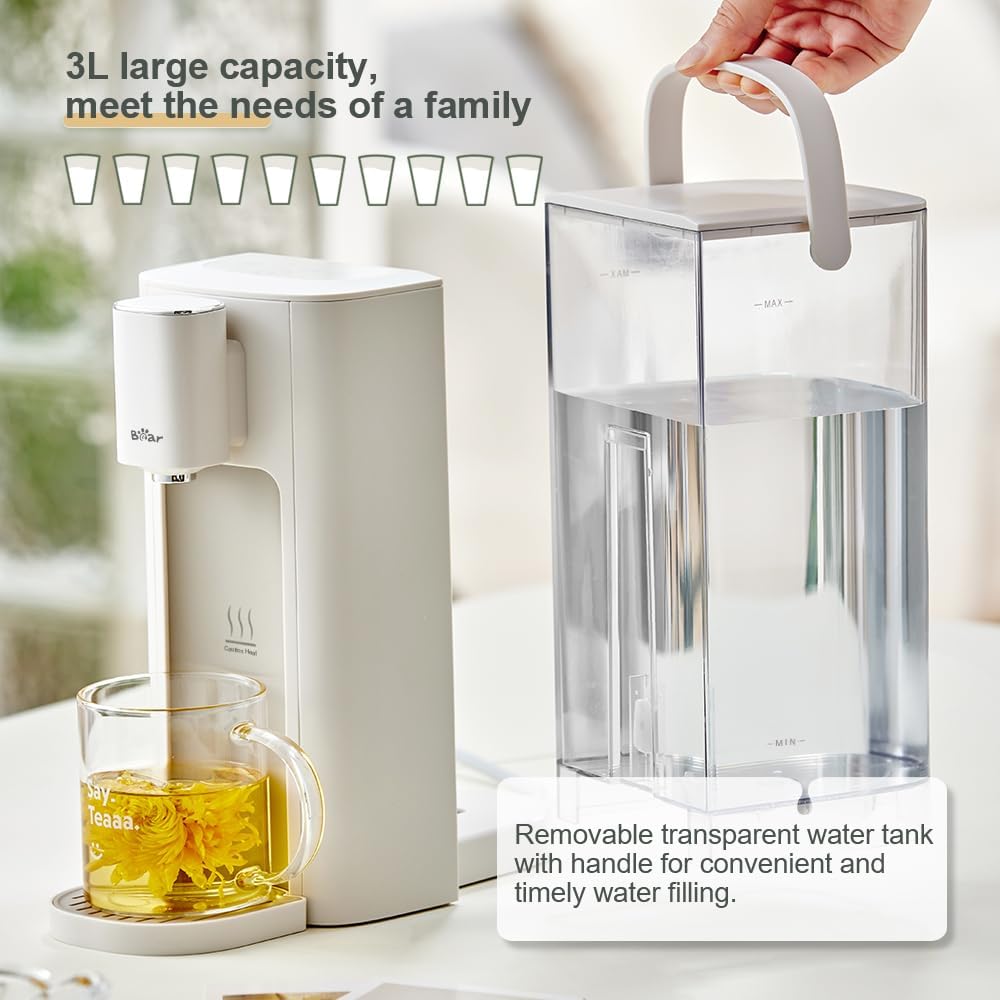

Image 4.1: The 3-liter transparent water tank of the dispenser, shown being removed for convenient filling. The tank features a handle for easy transport and clear 'MIN' and 'MAX' indicators.

4.4 Sambungan Daya

1. Sambungkan kabel daya ke stopkontak listrik yang diarde.
2. The appliance will emit a sound, and the display will illuminate, indicating it is in standby mode.

5. Petunjuk Pengoperasian

5.1 Panel Kontrol Selesaiview

The dispenser features a touch-sensitive control panel on its top surface. The display shows the selected temperature and volume.

Gambar 5.1: Gambaran detail view of the dispenser's large HD waterproof touch screen. It displays the selected water volume (e.g., 200ml) and features clear icons for functions such as safety lock, temperature adjustment, water dispensing, and cleaning.

5.2 Menghidupkan/Mematikan

• To power on, ensure the appliance is plugged in. It will enter standby mode.
• To power off, unplug the appliance from the mains.

5.3 Engaging/Disengaging Child Lock

The child lock prevents accidental dispensing of hot water.

• When the appliance is in standby, the child lock is automatically engaged (indicated by a lock icon).
• To disengage, touch and hold the lock icon on the control panel for a few seconds until it unlocks.
• The lock will automatically re-engage after a period of inactivity.

5.4 Pemilihan Suhu

The dispenser offers 6 temperature presets:

• 45°C (for milk)
• 55°C (for honey water)
• 70°C (for green tea)
• 85°C (for coffee)
• 90°C (for black tea)
• Boil (100°C)

Touch the 'Temperature' icon on the control panel repeatedly to cycle through the available temperature settings. The selected temperature will be displayed.

Image 5.2: This image illustrates the versatility of the dispenser's temperature settings, showing recommended temperatures for different beverages such as milk (45°C), honey water (55°C), green tea (70°C), coffee (85°C), and black tea (90°C).

5.5 Selecting Water Volume

The dispenser offers 5 water volume choices:

• 150 ml-an
• 200 ml-an
• 250 ml-an
• 300 ml-an
• 500 ml-an

Touch the 'Water Volume' icon on the control panel repeatedly to cycle through the available volume settings. The selected volume will be displayed.

5.6 Menyalurkan Air

1. Place a cup or container on the drip tray, centered under the water outlet.
2. Ensure the child lock is disengaged.
3. Select your desired temperature and water volume.
4. Touch the 'Dispense' (water drop) icon on the control panel to start dispensing.
5. The dispenser will automatically stop once the selected volume is reached.
6. To stop dispensing manually, touch the 'Dispense' icon again.

5.7 Low Noise and Night Light Feature

The dispenser operates with low noise (approximately 43.5dB) and includes a soft night light at the water outlet, making it suitable for use without disturbance, even at night.

Image 5.3: The dispenser shown in a low-light environment, emphasizing its quiet operation (43.5dB) and the soft night light feature, which allows for use without needing to turn on additional room lighting, thus preventing sleep disturbance.

6. Pemeliharaan

Regular cleaning and maintenance will ensure the longevity and optimal performance of your hot water dispenser.

6.1 Pembersihan Eksterior

• Selalu cabut steker alat sebelum membersihkan.
• Usap permukaan luar dispenser dengan kain lembut dan halus.amp kain. Jangan gunakan pembersih atau pelarut yang bersifat abrasif.

6.2 Pembersihan Baki Penampung Tetesan

• The drip tray is removable for easy cleaning. Slide it out from the front of the unit.
• Empty any collected water and wash the tray with warm, soapy water. Rinse thoroughly and dry before reinserting.

6.3 Pembersihan Tangki Air

• Lepaskan tangki air dari unit utama.
• Wash the tank with mild detergent and rinse thoroughly.
• Ensure the tank is completely dry before refilling and reattaching.

6.4 Automatic Cleaning Program

This program helps to remove accumulated water and deep clean the interior of the appliance.

1. Pastikan tangki air terisi air bersih.
2. Place an empty container with a capacity of at least 500ml under the water outlet.
3. Simultaneously press the 'Water Volume' and 'Water Temperature' buttons on the control panel.
4. The appliance will initiate an automatic cleaning cycle. Allow it to complete.
5. Discard the water collected in the container.

6.5 Kerak

Over time, mineral deposits (limescale) can build up inside the appliance, especially in hard water areas. Descaling is recommended periodically.

• Use a descaling solution suitable for hot water appliances, following the manufacturer's instructions.
• Alternatifnya, larutan cuka putih dan air (rasio 1:1) dapat digunakan. Isi tangki air dengan larutan penghilang kerak.
• Run the automatic cleaning program or dispense several cycles of hot water until the tank is empty.
• Rinse the water tank thoroughly and run several cycles with fresh, clean water to flush out any remaining descaling solution.

7. Penyelesaian masalah

If you encounter issues with your hot water dispenser, please refer to the following common problems and solutions:

Jika masalah berlanjut setelah mencoba solusi ini, silakan hubungi dukungan pelanggan.

8. Spesifikasi

Image 8.1: Dimensional drawing of the Bear HotCup Hot Water Dispenser, indicating its approximate measurements of 129mm in width, 295mm in depth, and 276mm in height.

9. Garansi dan Dukungan

Your Bear HotCup Hot Water Dispenser comes with a Garansi 1 tahun terhitung sejak tanggal pembelian, meliputi cacat produksi dalam penggunaan normal.

For any product inquiries, troubleshooting assistance, or warranty claims, please contact our customer support team. We are committed to solving any problems within 24 hours.

Harap simpan bukti pembelian Anda untuk validasi garansi.
