Perkenalan
Thank you for choosing the APPASO APS3004BTG Gold Kitchen Faucet. This 3-in-1 multifunctional faucet combines hot and cold water delivery with a dedicated connection for a water filtration system (sold separately). It features a high-arch design, a pull-down sprayer with multiple functions, and durable stainless steel construction. This manual provides essential information for safe installation, proper operation, routine maintenance, and troubleshooting to ensure optimal performance and longevity of your faucet.

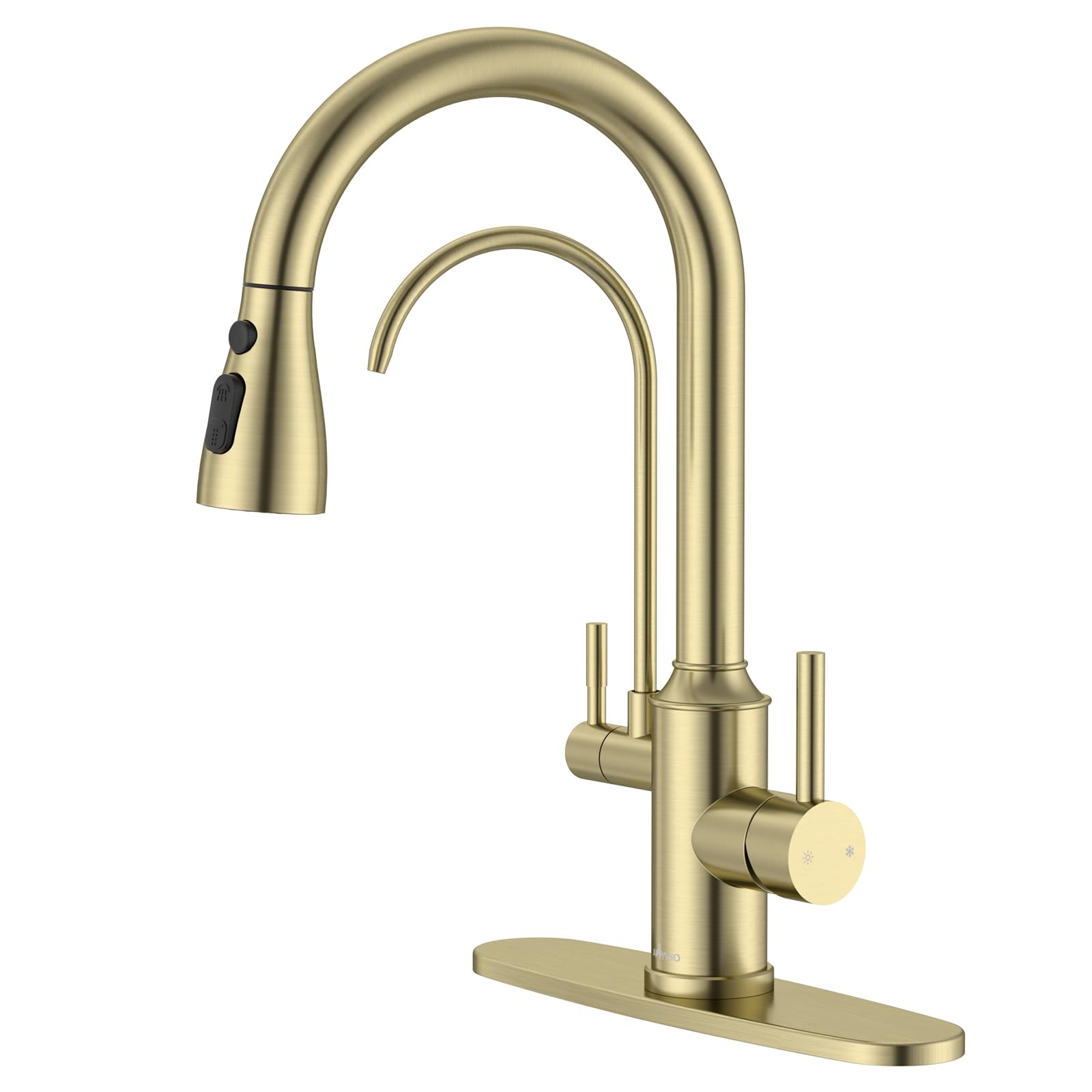

Figure 1: APPASO APS3004BTG Gold Kitchen Faucet
Pengaturan dan Instalasi
Before beginning installation, ensure you have all necessary tools and components. Turn off the main water supply to your kitchen sink. Review the following steps carefully.
1. Isi Paket
Gambar 2: Komponen yang Termasuk
Verify all parts are present before proceeding. Refer to the included parts list in your physical manual for detailed identification.
2. Countertop and Hole Requirements
- Ketebalan Meja: Maximum 4cm (1-3/5 inches), Minimum 1.2cm (0.5 inches).
- Ukuran Lubang Pemasangan: 3.2-3.5cm (1-1/5 to 1-1/2 inches).
- This faucet is designed for single-hole installation but includes a 10-inch deck plate for 1-hole to 3-hole sink configurations.
Figure 3: Faucet Dimensions and Mounting Requirements
3. Langkah-langkah Instalasi
Follow these steps for proper installation. For a visual guide, refer to the installation video below.
- Insert the faucet body into the mounting hole on the countertop. If converting a 3-hole sink, place the deck plate first.
- From underneath the sink, secure the faucet using the provided mounting hardware (washer and nut). Tighten firmly to prevent movement.
- Connect the hot and cold water supply lines to your angle stops. The red marked hose is for hot water, and the blue marked hose is for cold water.
- Connect the dedicated water filter line to your under-counter water filtration system (not included). The faucet provides a 1/4 inch OD and 3/8 inch OD option for connection.
- Attach the pull-down sprayer hose to the quick-connect fitting under the faucet. Ensure a secure connection.
- Install the counterweight onto the pull-down hose, typically 6-8 inches from the quick-connect fitting, to ensure proper retraction of the sprayer.
- Setelah semua sambungan aman, nyalakan perlahan pasokan air utama dan periksa kebocoran.
Figure 4: Water Line Connection Diagram
Figure 5: Installation Schematic Under Countertop
Panduan Video Instalasi
Video 1: APPASO Kitchen Faucet Installation Guide. This video demonstrates the step-by-step process of installing the APPASO kitchen faucet, including securing it to the countertop and connecting the water lines.
Petunjuk Pengoperasian
Your APPASO faucet offers versatile functionality for various kitchen tasks.
1. Hot and Cold Water Control
The main handle controls the flow and temperature of the hot and cold water. Move the handle left for hot water, right for cold water, and adjust vertically for flow intensity.
2. Filtered Water Dispenser
The smaller, dedicated handle on the left side of the faucet activates the filtered water flow. This requires connection to an external water filtration system (not included).
Figure 6: 3-in-1 Faucet Functionality
3. Pull-Down Sprayer Functions
The pull-down sprayer offers three distinct modes, selectable via buttons on the spray head:
- Mode Aliran: For filling pots and general use.
- Mode Semprotan: For rinsing dishes and wider coverage.
- Double Broom Mode: A powerful, concentrated spray for stubborn cleaning.
- Modus Jeda: Temporarily stops water flow without turning off the main handle.
Figure 7: Sprayer Modes (Stream, Spray, Double Broom)
Figure 8: Pull-Down Sprayer with 20-inch Reach and 360-degree Swivel
Product Functionality Video
Video 2: Gold Kitchen Faucet with Water Filter. This short video demonstrates the faucet's general operation and water flow.
Pemeliharaan
Regular maintenance will help preserve the appearance and functionality of your APPASO faucet.
1. Membersihkan Keran
- Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed gold finish.
- Bilas hingga bersih dengan air bersih dan keringkan dengan kain lembut untuk mencegah timbulnya bercak air.
2. Aerator Maintenance
If water flow becomes restricted or irregular, the aerator may be clogged. Unscrew the aerator from the spray head, clean any debris or mineral deposits, and reattach it securely.
3. Ceramic Valve
The faucet is equipped with a stable ceramic valve designed for over 500,000 switches, ensuring long-term leak-free performance.
Figure 9: Durable SUS304 Stainless Steel and Ceramic Valve
Penyelesaian Masalah
Lihat tabel berikut untuk masalah umum dan solusinya.
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Low water flow (hot or cold) | Aerator tersumbat; katup pemutus tertutup sebagian; saluran pasokan tertekuk. | Clean the aerator. Ensure shut-off valves are fully open. Check supply lines for kinks. |
| Faucet leaks from base | Mur pemasangan longgar; cincin-O aus. | Tighten the mounting nut under the sink. If leaking persists, contact customer support for replacement O-rings. |
| Sprayer not retracting properly | Improperly positioned counterweight; obstruction under the sink. | Adjust the counterweight position on the hose. Clear any obstructions preventing hose movement. |
| Sprayer modes not changing | Debris in spray head buttons; internal malfunction. | Ensure buttons are free of debris. If issue persists, contact customer support. |
| Weak hot water flow specifically | Restriction in hot water supply line or valve. | Check hot water supply line for kinks or blockages. Ensure hot water shut-off valve is fully open. If problem continues, consult a plumber. |
Spesifikasi
| Fitur | Detil |
|---|---|
| Nama Model | APS3004BTG |
| Merek | APLIKASI |
| Bahan | Baja Tahan Karat SUS304 |
| Jenis Selesai | Emas Disikat |
| Jenis Pemasangan | Dek Gunung |
| Jumlah Lubang | 1 (with 10-inch deck plate for 1-3 hole installation) |
| Jumlah Pegangan | 2 (Main handle for H/C, separate handle for filtered water) |
| Desain Cerat | High Arch Gooseneck, 360° Swivel |
| Sprayer Features | Pull-Down, 3-Function (Stream, Spray, Double Broom), Pause Mode |
| Pull-Down Hose Length | 20 inci |
| Maximum Flow Rate (Regular) | 1.8 Gallons Per Minute (GPM) @ 60 PSI |
| Maximum Flow Rate (Filter) | 1.7 Gallons Per Minute (GPM) @ 60 PSI |
| Hot/Cold Water Line Connection | 3/8 inci |
| Filter Water Supply Connection | 1/4 inch OD and 3/8 inch OD options |
| Jenis Katup | Katup Cakram Keramik |
| Aerator | Germany Imported Neoperl Aerator (TPI: M24 x 1) |
| Dimensi Produk | 17"Panjang x 3"Lebar x 13"T |
| Berat Barang | 4.49 pon (2.04 Kilogram) |
Jaminan
APPASO products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official APPASO webSitus ini untuk syarat dan ketentuan garansi yang terperinci. Simpan bukti pembelian Anda untuk klaim garansi.
Dukungan Pelanggan
If you have any questions, require assistance with installation, or encounter any issues not covered in this manual, please contact APPASO customer support. Contact information can typically be found on the product packaging, the official APPASO websitus, atau melalui pengecer Anda.
