Value Series Commercial Sandwich & Salad Prep Table User Manual

1. Pendahuluan

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Value Series Commercial Sandwich & Salad Prep Table, Model 69K-939. Please read this manual thoroughly before operating the unit and retain it for future reference.

The Value Series 69K-939 is a 29-inch wide, one-door refrigerated prep table designed for commercial food service applications. It features a stainless steel exterior, an adjustable shelf, eight 1/6-size polycarbonate food pans, a full-length polyethylene cutting board, and an electronic thermostat with a digital LED temperature display.

2. Petunjuk Keselamatan Penting

Untuk mengurangi risiko kebakaran, sengatan listrik, atau cedera, selalu ikuti tindakan pencegahan keselamatan dasar saat menggunakan alat ini.

• Keamanan Listrik: Ensure the unit is connected to a properly grounded 115V, 60 Hz, 1 Phase power supply with a standard NEMA 5-15P plug. Do not use extension cords.
• Refrigeran yang Mudah Terbakar: This unit contains flammable refrigerant. Handle with care and ensure proper ventilation. Only qualified service personnel should perform repairs involving the refrigerant system.
• Penempatan: Position the unit on a stable, level surface. Allow adequate clearance around the unit for proper ventilation.
• Pembersihan: Disconnect power before cleaning. Use mild detergents and avoid abrasive cleaners.
• Pemeliharaan: Only authorized personnel should perform maintenance and repairs.

Gambar 1: Belakang view of the unit with important warning labels regarding flammable refrigerant and electrical safety. Always observe these warnings.

3. Pengaturan dan Instalasi

3.1 Membongkar

Keluarkan unit dari kemasannya dengan hati-hati. Periksa apakah ada kerusakan akibat pengiriman. Laporkan kerusakan apa pun segera kepada kurir dan pemasok.

3.2 Penempatan

Place the unit in a location with good air circulation, away from direct sunlight or heat sources. Ensure the unit is level using the adjustable casters. Lock the two braking casters to secure the unit in place.

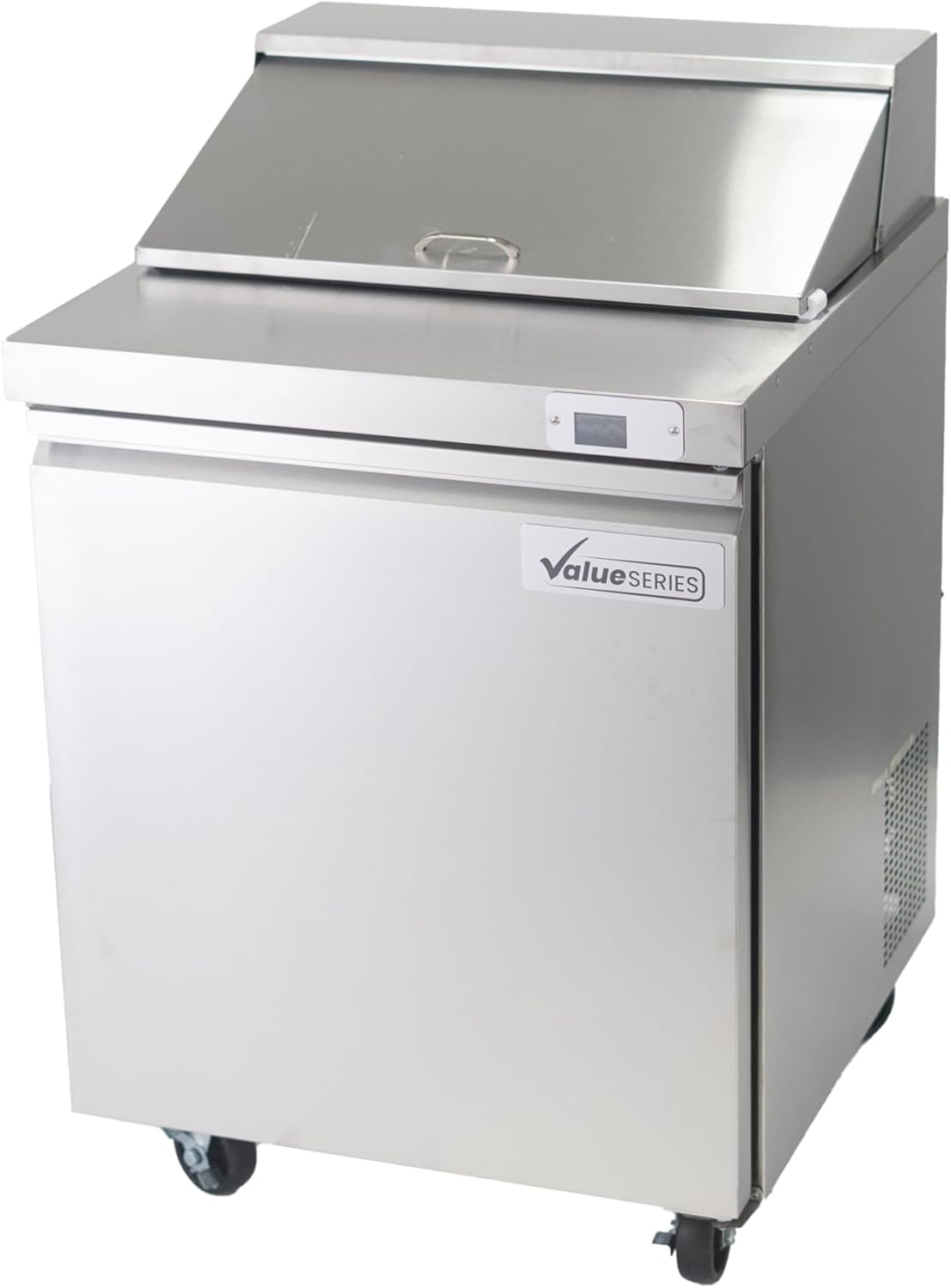

Gambar 2: The Value Series Prep Table on its heavy-duty casters, allowing for convenient mobility and repositioning. Two casters are equipped with brakes for stability.

3.3 Pembersihan Awal

Before first use, clean the interior and exterior surfaces with a mild detergent and warm water. Rinse thoroughly and dry.

3.4 Sambungan Daya

Connect the unit to a dedicated 115V, 60 Hz, 1 Phase grounded electrical outlet. Do not overload the circuit.

4. Operasi

4.1 Kontrol Suhu

The unit features an electronic thermostat and a digital LED temperature display. The temperature can be adjusted to maintain optimal serving temperatures for ingredients. Refer to the control panel for specific temperature setting instructions.

Gambar 3: The digital LED temperature display allows for precise temperature monitoring and adjustment, ensuring ingredients are kept at safe and optimal temperatures.

4.2 Food Pan Usage

The unit comes standard with eight 1/6-size polycarbonate food pans. These pans are designed to hold various ingredients for easy access during food preparation. Ensure pans are properly seated to maintain cold temperatures.

Gambar 4: The prep area with food pans filled with ingredients and the cutting board in use. The insulated top cover helps maintain temperature when closed.

4.3 Rak yang Dapat Disesuaikan

The refrigerated base includes an adjustable shelf for storing additional ingredients or supplies. Adjust the shelf height as needed to accommodate different items.

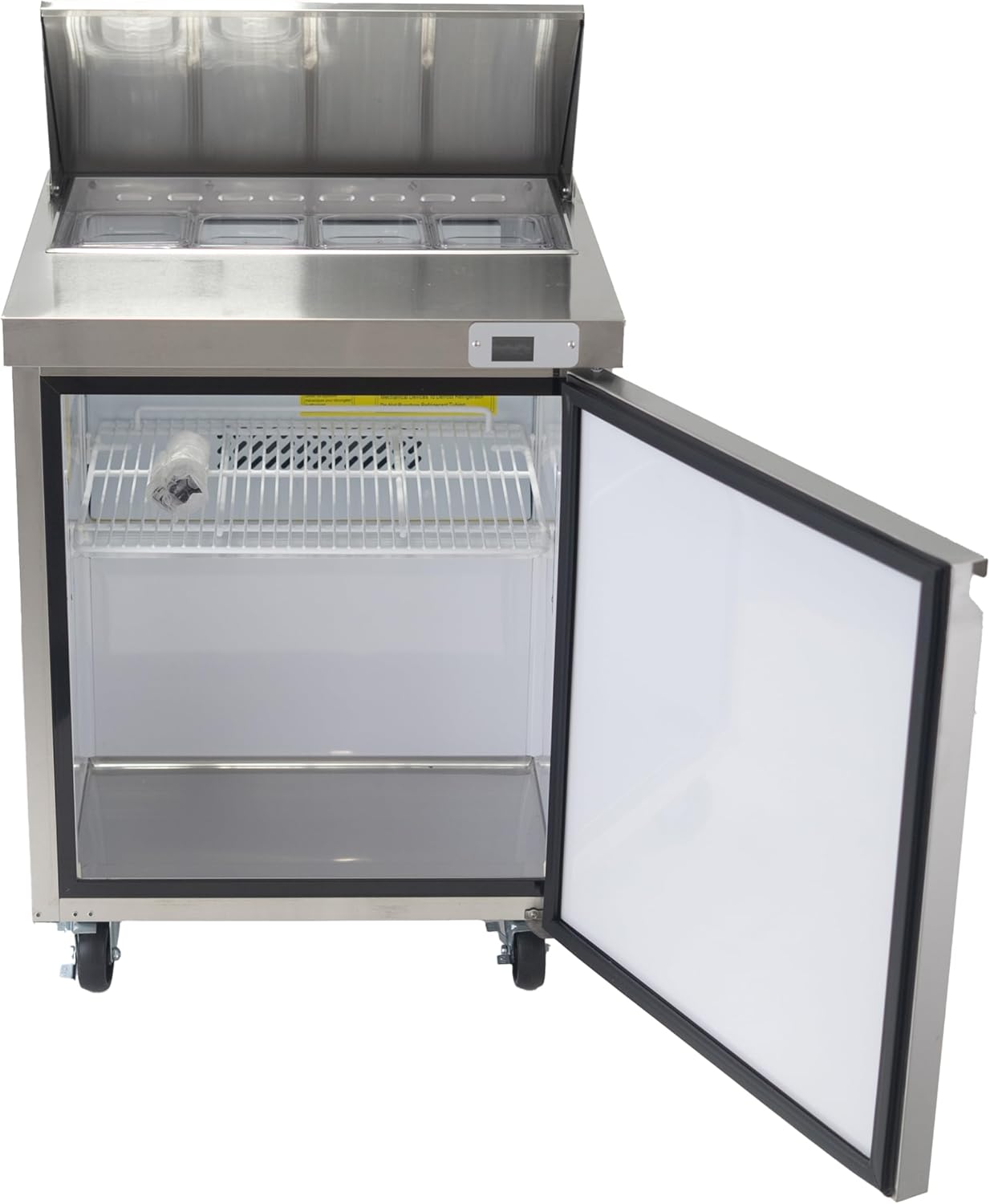

Gambar 5: The interior of the refrigerated compartment, highlighting the adjustable shelf for flexible storage options.

5. Pemeliharaan

Perawatan rutin memastikan kinerja optimal dan umur pakai unit Anda lebih lama.

5.1 Membersihkan Unit

• Putuskan daya sebelum membersihkan.
• Bersihkan bagian luar baja tahan karat dengan kain lembut dan pembersih baja tahan karat yang tidak abrasif.
• Remove food pans and the cutting board for separate cleaning. Wash with warm, soapy water, rinse, and sanitize.
• Clean the interior with a mild detergent and warm water. Wipe dry to prevent water spots.

5.2 Pembersihan Koil Kondensor

The condenser coil should be cleaned regularly (monthly or as needed) to maintain cooling efficiency. A dirty coil can lead to increased energy consumption and reduced performance.

• Putuskan daya ke unit.
• Locate the condenser coil, typically at the rear or side of the unit.
• Use a stiff brush or vacuum cleaner to remove dust and debris from the coil fins.
• Ensure the area around the condenser is free from obstructions to allow proper airflow.

5.3 Gasket Pintu

Inspect door gaskets regularly for tears or damage. Clean gaskets with warm, soapy water to ensure a tight seal. A damaged or dirty gasket can compromise temperature retention.

6. Penyelesaian masalah

Sebelum menghubungi layanan,view masalah umum dan solusi berikut:

Jika masalah tetap berlanjut setelah mencoba solusi-solusi ini, hubungi petugas servis yang berkualifikasi.

7. Spesifikasi

8. Garansi dan Dukungan

This Value Series Commercial Sandwich & Salad Prep Table comes with a Garansi 6 bulan for commercial applications only. For warranty claims or technical support, please contact your authorized dealer or the manufacturer directly. Ensure you have your model number (69K-939) and proof of purchase available when seeking support.
