Petunjuk Keselamatan Penting
Please read all instructions carefully before using your EUHOMY portable freezer. Retain this manual for future reference.
- Catu Daya: Pastikan voltase catu dayatage matches the specifications of the appliance (12/24V DC or 110-240V AC).
- Ventilasi: Pastikan ventilasi di sekitar unit memadai. Jangan menghalangi lubang ventilasi.
- Penempatan: Avoid placing the unit in direct sunlight or near heat sources. Ensure it is placed on a stable, level surface.
- Paparan Air: Do not expose the appliance to rain or excessive moisture.
- Pembersihan: Putuskan sambungan daya sebelum membersihkan. Gunakan iklanamp kain; jangan direndam dalam air.
- Anak-anak: Jauhkan dari jangkauan anak-anak.
- Kerusakan: Jangan dioperasikan jika kabel daya atau steker rusak. Hubungi dukungan pelanggan untuk mendapatkan bantuan.
Produk Selesaiview
The EUHOMY portable freezers are designed for versatile use, offering reliable cooling and freezing for various environments, including vehicles, camping, and home. This manual covers both the 22QT and 26QT models.

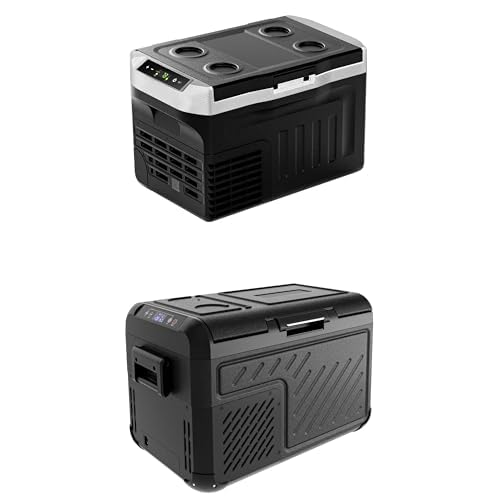

An image showing both the EUHOMY 22QT and 26QT portable freezers side-by-side, highlighting their compact design and dual-zone capabilities.
Fitur Utama:
- Wide temperature range: -4°F to 68°F (-20°C to 20°C).
- Dual power compatibility: 12/24V DC for vehicles and 110-240V AC for home use.
- Variable frequency compressor for rapid cooling.
- Energy-saving ECO mode.
- Built-in LED light and removable partitions for organization.
- Quiet operation (approximately 45 decibels).
- Battery protection system to prevent vehicle battery drain.
- 26QT Model Specific: Reversible door and LCD display panel.
Pengaturan
1. Pembongkaran dan Penempatan Awal
- Carefully remove the portable freezer from its packaging.
- Periksa unit untuk melihat tanda-tanda kerusakan. Jika rusak, jangan operasikan dan hubungi dukungan pelanggan.
- Place the freezer on a firm, level surface. Ensure there is at least 6 inches (15 cm) of space around all sides for proper ventilation.
- Allow the unit to stand upright for at least 6 hours before connecting to power, especially if it was transported horizontally. This allows the compressor oil to settle.
2. Koneksi Daya
Your EUHOMY portable freezer can be powered by either DC (12/24V) or AC (110-240V) power sources.
- Daya DC (Penggunaan Kendaraan):
Connect the provided 12/24V DC power cord to the DC input port on the freezer and then to your vehicle's cigarette lighter socket or 12V power outlet. Ensure the vehicle engine is running or the battery has sufficient charge to prevent draining.
- AC Power (Home/Wall Outlet Use):
Connect the provided 110-240V AC adapter to the AC input port on the freezer, then plug the adapter into a standard wall outlet. The unit will automatically detect the power source.
3. Initial Cooling
After connecting to power, the unit will begin to cool. It is recommended to pre-cool the freezer for at least 30 minutes before loading it with items, especially if you intend to use it as a freezer.
Petunjuk Pengoperasian
1. Panel Kontrol Berakhirview
The control panel typically includes a display, temperature adjustment buttons (+/-), a mode button, and a power button.
- Tombol Daya: Tekan untuk menghidupkan atau mematikan unit.
- Tombol Suhu (+/-): Tekan untuk menaikkan atau menurunkan suhu yang diinginkan.
- Tombol MODE: Press to cycle through cooling modes (e.g., MAX, ECO).
- SET Button (if applicable): Used for advanced settings like battery protection level.
2. Pengaturan Suhu
- Turn on the freezer by pressing the Power button.
- Gunakan + or - buttons to set your desired temperature. The display will show the set temperature, then revert to the current internal temperature.
- Kisaran suhunya adalah dari -4°F hingga 68°F (-20°C hingga 20°C).
3. Cooling Modes (MAX/ECO)
Tekan tombol MODE tombol untuk beralih antara:
- Mode MAX: Provides maximum cooling power for rapid temperature reduction. This mode consumes more energy.
- Modus Eko: An energy-saving mode that reduces power consumption, ideal for maintaining temperature over longer periods.
4. Battery Protection Setting
This feature prevents your vehicle's battery from draining completely. The freezer will automatically shut off if the input voltage turun di bawah level tertentu.
- With the unit ON, press and hold the MENGATUR button (if available) for a few seconds until the battery protection indicator flashes.
- Tekan tombol MENGATUR button repeatedly to cycle through the protection levels (e.g., H for High, M for Medium, L for Low).
- Lepaskan MENGATUR button to confirm your selection. High protection is recommended for vehicle batteries.
5. Fitur Internal
- Lampu LED: The internal LED light illuminates when the lid is opened, assisting visibility in low-light conditions.
- Removable Partitions: Use the provided partitions to organize the internal space for different items or to create separate cooling zones if your model supports it.
- 26QT Reversible Door: The 26QT model features a reversible door for flexible access. Refer to the separate diagram for instructions on changing the door hinge direction.
Pemeliharaan
1. Pembersihan
- Selalu putuskan sambungan catu daya sebelum membersihkan.
- Lap permukaan interior dan eksterior dengan damp kain dan deterjen ringan.
- Jangan gunakan pembersih abrasif, bahan kimia keras, atau benda tajam, karena dapat merusak permukaan.
- Pastikan unit benar-benar kering sebelum menyambungkan kembali daya.
2. Mencairkan
Frost buildup can reduce cooling efficiency. Defrost the unit when the frost layer is about 0.2 inches (5 mm) thick.
- Matikan unit dan putuskan sambungannya dari catu daya.
- Hapus semua konten.
- Biarkan tutupnya terbuka agar embun beku mencair secara alami. Anda bisa meletakkan handuk di dalamnya untuk menyerap air.
- Do not use sharp objects or heating devices to speed up defrosting, as this can damage the cooling system.
- Once defrosted, wipe the interior dry before restarting.
3. Penyimpanan
When storing the portable freezer for an extended period:
- Clean and defrost the unit thoroughly.
- Biarkan tutupnya sedikit terbuka untuk mencegah bau dan pertumbuhan jamur.
- Simpan di tempat yang kering dan berventilasi baik, jauhkan dari sinar matahari langsung dan suhu ekstrem.
Penyelesaian Masalah
If you encounter issues with your EUHOMY portable freezer, refer to the following common problems and solutions:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Unit tidak menyala. | No power, faulty power cord, vehicle battery low. | Check power connection. Ensure vehicle engine is running or battery is charged. Try a different power outlet. |
| Tidak mendinginkan secara efektif. | Blocked vents, excessive ambient temperature, lid not sealed, too many items. | Ensure proper ventilation. Avoid direct sunlight. Check lid seal. Do not overfill. Set to MAX mode. |
| Layar menampilkan kode kesalahan. | Kesalahan internal spesifik. | Lihat kode kesalahan spesifik dalam manual lengkap (jika tersedia) atau hubungi dukungan pelanggan. |
| Unit berisik. | Normal compressor operation, unit not level. | Ensure the unit is on a stable, level surface. Some compressor noise is normal. |
If the problem persists after trying these solutions, please contact EUHOMY customer support.
Spesifikasi
| Fitur | Spesifikasi |
|---|---|
| Merek | EHOMI |
| Nomor Model | 22QT, 26QT |
| Capacity (22QT) | 21 Liter (0.75 Kaki Kubik) |
| Capacity (26QT) | 25 Liters (approx. 0.88 Cubic Feet) |
| Kisaran Suhu | -4°F hingga 68°F (-20°C hingga 20°C) |
| Masukan Daya | Tegangan 12V/24V DC, 110-240V AC |
| Metode Pendinginan | Kompresor |
| Sistem Pencairan | Otomatis |
| Tingkat Kebisingan | Sekitar 45 dB |
| Faktor Bentuk | Portabel |
| Jenis Instalasi | Countertop (or portable vehicle use) |
Garansi dan Dukungan
Your EUHOMY portable freezer comes with a Dukungan teknis selama 2 tahun periode.
For any questions, technical assistance, or warranty claims, please contact EUHOMY customer support. Have your model number and purchase information ready when contacting support.
Contact information is typically found on the product packaging, official website, or purchase receipt.
