BILT HARD 46cc 4-Cycle Gas Powered Tiller Cultivator Instruction Manual

1. Pendahuluan

This manual provides essential information for the safe and efficient operation of your BILT HARD 46cc 4-Cycle Gas Powered Tiller Cultivator. This powerful tool is designed for breaking through hard soil, preparing seedbeds, plowing, tilling, ditching, and weeding in various environments such as farms, orchards, and gardens. Its 46cc 4-stroke engine delivers 1,400W peak power, ensuring consistent performance with low vibration and emissions. The tiller features 6 steel forward-rotating blades and 4 angled tines for efficient soil aeration and mixing, achieving a 16-inch working width and 8-inch tilling depth.

2. Informasi Keselamatan

PERINGATAN: Kegagalan mengikuti petunjuk keselamatan ini dapat mengakibatkan cedera serius atau kematian.

• Always wear protective clothing, including gloves, safety glasses, and ear protection.
• Jauhkan anak-anak dan hewan peliharaan dari area operasi.
• Never leave the tiller running unattended.
• Always turn off the tiller and allow the engine to cool before refueling.
• Never operate the tiller on hard surfaces or in reverse.
• Always follow the manufacturer's instructions for maintenance and storage.

3. Pengaturan & Perakitan

The BILT HARD Tiller Cultivator requires minimal assembly. Ensure all components are present before beginning.

3.1 Unboxing dan Identifikasi Komponen

Carefully remove all parts from the packaging. Identify the main unit, handle components, wheels, and any included tools.

Figure 3.1: Tiller components after unboxing.

3.2 Menangani Perakitan

Attach the upper and lower handle bars to the main unit using the provided knobs and fasteners. Ensure all connections are secure. The ergonomic dual-grip handle is designed for balanced maneuverability.

Gambar 3.2: Rinci view of tiller components and handle assembly points.

3.3 Wheel Attachment and Adjustment

Attach the two position adjustable wheels to the rear of the tiller. These wheels can be adjusted to control tilling depth and for easy transport. Secure them with the cotter pins or fasteners as indicated in the manual.

Figure 3.3: The adjustable wheels allow for varied tilling depths and easy movement.

3.4 Pengisian Bahan Bakar dan Oli

This is a 4-cycle engine, meaning it uses a no-mix fuel system. Fill the fuel tank with unleaded gasoline and the oil tank with appropriate 4-cycle engine oil separately. Refer to the engine manual for specific oil type and capacity. Ensure both caps are securely tightened after filling.

4. Petunjuk Pengoperasian

4.1 Menyalakan Mesin

The tiller is equipped with an automatic reset choke lever and compression release system for quick and easy startup. Push the primer bulb several times until fuel is visible. Set the choke lever to the "Choke" position. Pull the starter grip and rope firmly until the engine starts. Once started, gradually move the choke lever to the "Run" position.

4.2 Tilling Operation

Engage the thumb throttle and power switch on the one-hand control panel. Guide the tiller over the soil, allowing the 6 steel forward-rotating blades and 4 angled tines to break up the ground. The 16-inch working width and 8-inch tilling depth ensure efficient soil preparation. Adjust the wheels as needed to control the depth of tilling.

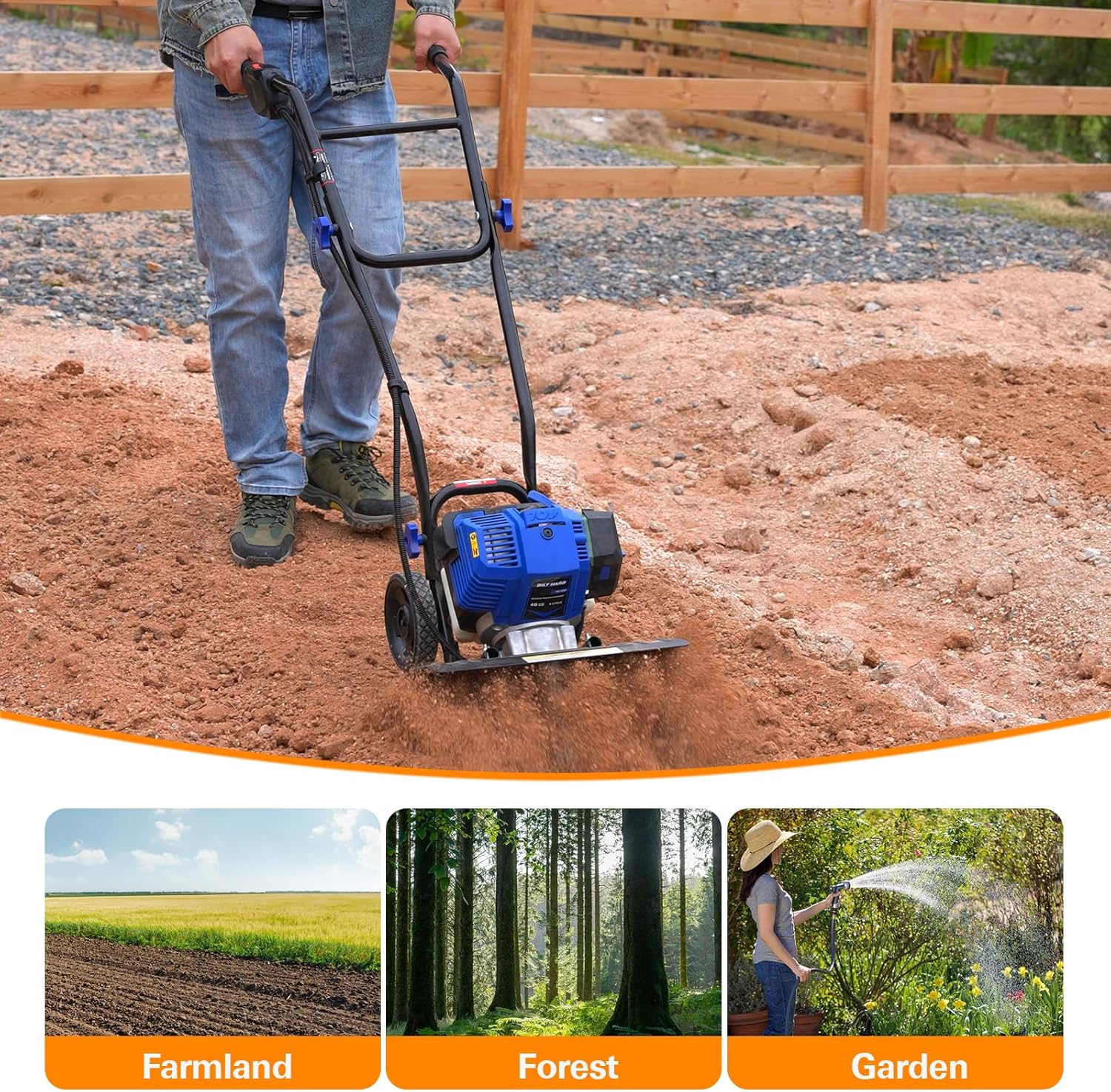

Figure 4.2: The tiller efficiently breaks up soil for garden preparation.

4.3 Aplikasi

This tiller is versatile for various tasks:

• Plowing: For initial breaking of new ground.
• Tilling: To prepare seedbeds and mix soil amendments.
• Penyiangan: To remove unwanted vegetation between rows.
• Meninggalkan: For creating small trenches.

Figure 4.3: The tiller is suitable for various garden and farm applications.

5. Pemeliharaan

Regular maintenance ensures the longevity and optimal performance of your tiller.

• Oli Mesin: Check engine oil level before each use and change according to the engine manual's schedule. Use SAE 80W 90 gear oil (EP grade) for the turbine/gearbox assembly.
• Filter Udara: Bersihkan atau ganti filter udara secara teratur, terutama dalam kondisi berdebu.
• Busi: Periksa dan bersihkan busi secara berkala. Ganti jika sudah aus.
• Tines: Inspect tines for wear or damage. Replace worn tines to maintain tilling efficiency. Remove any debris or tangled vegetation from the tines after each use.
• Penyimpanan: For convenient storage, the handles are foldable, saving space. Ensure the fuel tank is empty and the engine is clean before long-term storage.

6. Penyelesaian masalah

If you encounter issues with your tiller, refer to the following common troubleshooting steps:

• Mesin Tidak Mau Hidup:
  • Periksa level bahan bakar dan pastikan bensin yang digunakan adalah bensin baru.
  • Verify oil level.
  • Ensure the choke is set correctly for starting.
  • Periksa busi apakah ada kotoran atau kerusakan.
• Kehilangan Daya:
  • Bersihkan atau ganti filter udara.
  • Check for debris tangled in the tines.
  • Ensure proper fuel and oil mixture (if applicable, though this is a 4-cycle engine).
• Getaran Berlebihan:
  • Inspect tines for damage or imbalance.
  • Periksa apakah ada pengencang yang longgar.

7. Spesifikasi

Figure 7.1: Visual representation of the tiller with its key machine parameters.

Figure 7.2: Working capability dimensions including working width and tilling depth.

Figure 7.3: Overall dimensions of the BILT HARD Tiller.

8. Dukungan & Garansi

BILT HARD is committed to your satisfaction and stands behind the quality of this tiller. For any questions or assistance, please reach out to us via Amazon email. Our dedicated support team is ready to assist, ensuring a smooth and enjoyable experience with your product.

Informasi Garansi: If purchased from a third-party seller, a 90-day limited warranty applies. If purchased directly from BILT HARD, a full 12-month warranty is provided.
