Brightever A0312 Outdoor Wall Light Instruction Manual

1. Produk Lebihview

The Brightever A0312 Outdoor Wall Light is a modern LED fixture designed for exterior use. It features a durable matte metal frame, crystal bubble glass, and integrated LED chips. This product is waterproof, corrosion-resistant, and energy-efficient, providing 1000 lumens of 3000K warm white light.

Image 1: Brightever A0312 Outdoor Wall Light with its unique crystal bubble glass design.

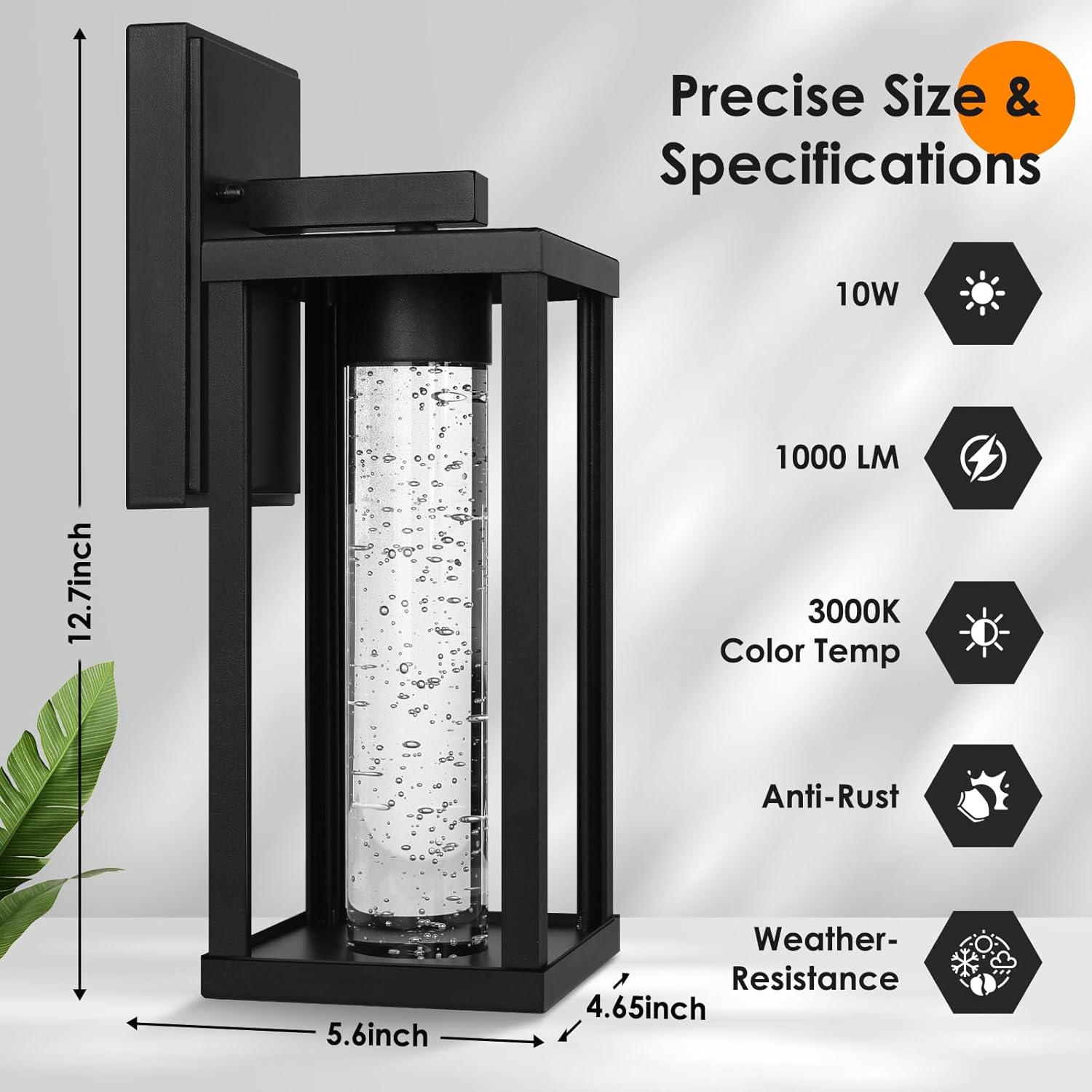

Image 2: Product dimensions and key specifications including wattage, lumen, and color temperature.

2. Informasi Keselamatan

• Always turn off power at the circuit breaker before installation, servicing, or removing the fixture.
• Konsultasikan dengan teknisi listrik yang berkualifikasi jika Anda tidak terbiasa dengan instalasi listrik.
• Pastikan semua sambungan listrik aman dan sesuai dengan peraturan dan ketentuan setempat.
• Jangan mencoba memodifikasi perlengkapan. Modifikasi apa pun dapat membatalkan garansi dan menimbulkan bahaya keselamatan.

3. Isi Paket

Paket ini berisi barang-barang berikut:

• Brightever A0312 Outdoor Wall Light Fixture (2 units)
• Perangkat Keras Pemasangan
• Manual Instruksi

4. Panduan Instalasi

The Brightever A0312 Outdoor Wall Lights come pre-assembled for quick and easy installation. All necessary mounting hardware is included.

Tangga:

1. Mempersiapkan untuk Instalasi: Matikan daya pada pemutus arus utama.
2. Lepaskan Perlengkapan Lama (jika ada): Carefully disconnect and remove any existing wall light fixture.
3. Pasangkan Pelat Pemasangan: Secure the provided mounting plate to your junction box using the included screws. Ensure it is firmly attached.
4. Hubungkan Kabel: Connect the electrical wires from the fixture to the corresponding wires from your junction box. Typically, black wire to black (live), white wire to white (neutral), and green/bare copper wire to green/bare copper (ground). Use wire nuts to secure connections.
5. Pasang Perlengkapan: Carefully align the fixture with the mounting plate and secure it with the decorative nuts or screws provided. Ensure wires are tucked neatly into the junction box.
6. Pulihkan Daya: Nyalakan kembali daya pada pemutus arus.

Gambar 3: Close-up view of the mounting plate and wiring connections, illustrating the installation readiness.

5. Petunjuk Pengoperasian

The Brightever A0312 Outdoor Wall Light features integrated LED technology, eliminating the need for traditional bulbs. The light is controlled via a standard wall switch (not included) connected to your home's electrical system.

• Daya Hidup/Mati: Gunakan sakelar dinding yang terhubung ke lampu untuk menghidupkan atau mematikan lampu.
• Keluaran Cahaya: The integrated 10W LED chips provide 1000 lumens of 3000K warm white light.

6. Pemeliharaan

The Brightever A0312 Outdoor Wall Light is designed for minimal maintenance due to its integrated LED and durable construction.

• Pembersihan: Untuk membersihkan perlengkapan tersebut, pastikan daya listrik dimatikan. Usap dengan kain lembut,amp Gunakan kain. Hindari pembersih abrasif atau pelarut yang dapat merusak lapisan akhir atau kaca.
• Umur LED: The integrated LED has a life expectancy of over 50,000 hours, meaning no bulb replacement is needed.
• Tahan Cuaca: The fixture is designed to be waterproof, rust-proof, and corrosion-resistant, suitable for various outdoor environments.

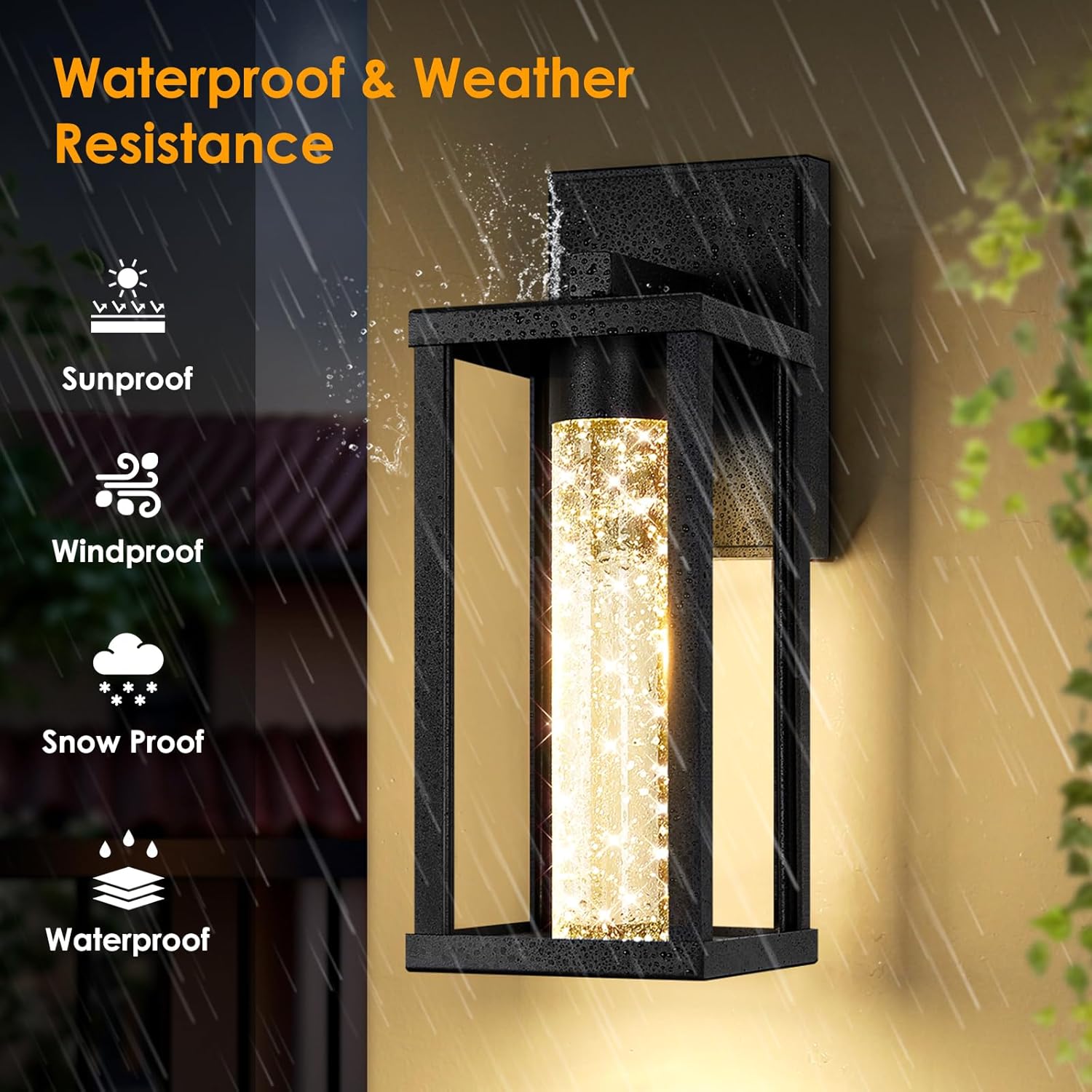

Image 4: The light fixture enduring water spray, highlighting its waterproof and weather-resistant design.

7. Penyelesaian masalah

If your Brightever A0312 Outdoor Wall Light is not functioning correctly, please refer to the following common issues and solutions:

• Lampu tidak menyala:
  • Periksa pemutus sirkuit untuk memastikan daya listrik dialirkan ke perlengkapan tersebut.
  • Verify all wire connections are secure and correctly matched (black to black, white to white, ground to ground).
  • Pastikan sakelar dinding berada pada posisi 'ON'.
• Cahaya berkedip:
  • Periksa sambungan kabel yang longgar.
  • Pastikan voltage supply is stable and within the specified range (120 Volts).

If issues persist after attempting these steps, please contact Brightever customer support for assistance.

8. Spesifikasi

9. Garansi & Dukungan

For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official Brightever website. Protection plans are available for purchase separately to extend coverage.

Manufacturer: Brightever
