Ecolight LED Outdoor Street Light 30W - Neutral White 4000K IP65 Instruction Manual

1. Pendahuluan

Thank you for choosing the Ecolight LED Outdoor Street Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new LED floodlight. Please read this manual thoroughly before installation and keep it for future reference.

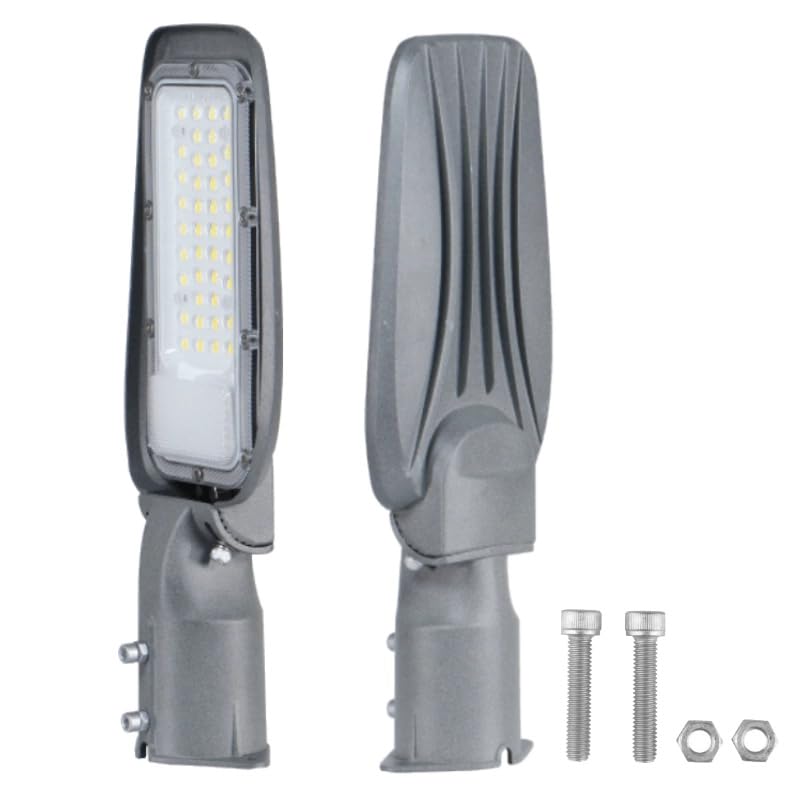

Figure 1: Ecolight LED Outdoor Street Light 30W

2. Informasi Keselamatan

• Keamanan Listrik: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations. Ensure power is disconnected before installation or maintenance.
• Pembumian: The fixture must be properly grounded to prevent electric shock.
• Pemasangan: Ensure the mounting surface or pole is structurally sound and can support the weight of the fixture.
• Suhu Operasional: Do not operate the fixture outside its specified temperature range.
• Sumber Cahaya: Jangan menatap langsung ke sumber cahaya LED saat sedang menyala, karena dapat menyebabkan kerusakan mata.
• Kerusakan: Do not use the fixture if any part is damaged. Contact customer support for replacement parts.

3. Isi Paket

Verify that all components are present and undamaged upon opening the package. If any items are missing or damaged, please contact your retailer.

• 1 x Ecolight LED Outdoor Street Light (30W, 4000K)
• Mounting hardware (2 x mounting screws, 2 x nuts for screws)
• 1 x Buku Petunjuk

4. Fitur Produk

• Konstruksi Tahan Lama: Made from aluminum and polycarbonate, ensuring longevity and resistance to outdoor elements.
• Desain Tahan Cuaca: IP65 rated for water and dust resistance, suitable for harsh outdoor conditions.
• Indeks Rendering Warna Tinggi (CRI): CRI ≥80 provides natural and accurate color perception.
• Kemiringan yang Dapat Disesuaikan: Lamp can be tilted up to 30 degrees, allowing for precise light direction adjustment.
• Aplikasi serbaguna: Ideal for street lighting, roads, park paths, parking lots, sports fields, courtyards, garages, and gardens.
• Hemat Energi: Utilizes SMD2835 LED technology for bright illumination at 30W power consumption.

5. Spesifikasi

6. Instalasi

The Ecolight LED Street Light offers flexible installation options, including pole mounting and wall mounting. Always ensure the power supply is disconnected before beginning installation.

6.1 Pemasangan Tiang

1. Prepare the Pole: Ensure the pole is sturdy and capable of supporting the fixture's weight. The recommended installation height is between 26-39 feet (approximately 8-12 meters).
2. Pasang Perlengkapan: Secure the street light fixture to the top of the pole using the provided mounting hardware (screws and nuts). Ensure it is firmly tightened to prevent movement.
3. Sesuaikan Sudut: The fixture can be tilted up to 30 degrees. Adjust the angle to achieve the desired illumination area.
4. Sambungan Listrik: Connect the fixture's wiring to the main power supply (AC 220-240V) according to local electrical codes. Ensure proper grounding.

Gambar 2: Contohample of pole mounting for an Ecolight LED Street Light.

6.2 Pemasangan di Dinding

1. Pilih lokasi: Choose a suitable wall location that can support the fixture and provide adequate illumination.
2. Titik Bor Markus: Use the fixture's mounting bracket as a template to mark the drill points on the wall.
3. Lubang Bor: Bor lubang yang sesuai untuk sekrup pemasangan.
4. Perlengkapan Aman: Attach the fixture to the wall using the provided mounting hardware. Ensure it is securely fastened.
5. Sesuaikan Sudut: Adjust the tilt of the lamp up to 30 degrees for optimal light distribution.
6. Sambungan Listrik: Connect the fixture's wiring to the main power supply (AC 220-240V) according to local electrical codes. Ensure proper grounding.

Gambar 3: Contohample of wall mounting for an Ecolight LED Street Light.

7. Petunjuk Pengoperasian

Once properly installed and connected to the power supply, the Ecolight LED Street Light will operate automatically if connected to a light sensor or timer system. If connected to a manual switch, simply toggle the switch to turn the light ON or OFF.

• Nyalakan: Ensure the power supply is connected and the switch (if applicable) is in the ON position.
• Operasi Otomatis: For systems with photocells or timers, the light will activate at dusk and deactivate at dawn, or according to programmed schedules.
• Operasi Manual: If controlled by a manual switch, use the switch to control the light.

8. Pemeliharaan

Regular maintenance ensures optimal performance and extends the lifespan of your Ecolight LED Street Light. Always disconnect power before performing any maintenance.

• Pembersihan: Periodically clean the outer surface of the fixture, especially the LED lens, with a soft, damp Gunakan kain untuk membersihkan debu dan kotoran. Jangan gunakan pembersih abrasif atau pelarut.
• Inspeksi: Regularly inspect the fixture, mounting hardware, and wiring for any signs of damage, corrosion, or loose connections. Tighten any loose screws.
• Tidak Ada Bagian yang Dapat Diservis Pengguna: Sumber cahaya LED terintegrasi dan tidak dapat diganti oleh pengguna. Jangan mencoba membuka perlengkapan lampu ini.

9. Penyelesaian masalah

10. Garansi dan Dukungan

For warranty information, technical support, or replacement parts, please contact your retailer or Ecolight customer service. Please have your model number (EC20409x) and purchase date available when contacting support.

Note: The product was first available on Amazon.it on December 6, 2024.
