Doublepow LP40 Pro Wireless Earbuds Instruction Manual

Perkenalan

Thank you for choosing the Doublepow LP40 Pro Wireless Earbuds. These earbuds feature advanced Bluetooth 5.3 technology, providing stable and low-latency audio transmission. Designed for comfort and high-fidelity sound, they include a built-in microphone with call noise cancellation for clear communication. This manual will guide you through the setup, operation, and maintenance of your new earbuds.

Image: Doublepow LP40 Pro Wireless Earbuds and their charging case.

Apa yang ada di dalam kotak

Harap periksa isi paket untuk memastikan semua item ada:

• Doublepow LP40 Pro Wireless Earbuds (Left and Right)
• Kotak Pengisian Daya
• Kabel Pengisian Daya USB-C
• Panduan Pengguna
• Additional ear tips (if included)

Produk Selesaiview

Desain dan Kenyamanan

The LP40 Pro earbuds feature a semi in-ear ergonomic design, ensuring a secure and comfortable fit for extended wear. Each earbud weighs approximately 3.1 grams, making them ultra-lightweight. The charging case is compact and weighs only 30 grams, fitting easily into a pocket.

Image: Illustration of the semi in-ear design, showing how the earbud fits comfortably in the ear.

Teknologi Audio

Equipped with 13mm high-efficiency dynamic drivers, the LP40 Pro delivers powerful bass, full mid-range, and crisp, clear, balanced stereo sound. The built-in microphone utilizes call noise cancellation to suppress ambient noise, ensuring clear and lifelike sound during calls.

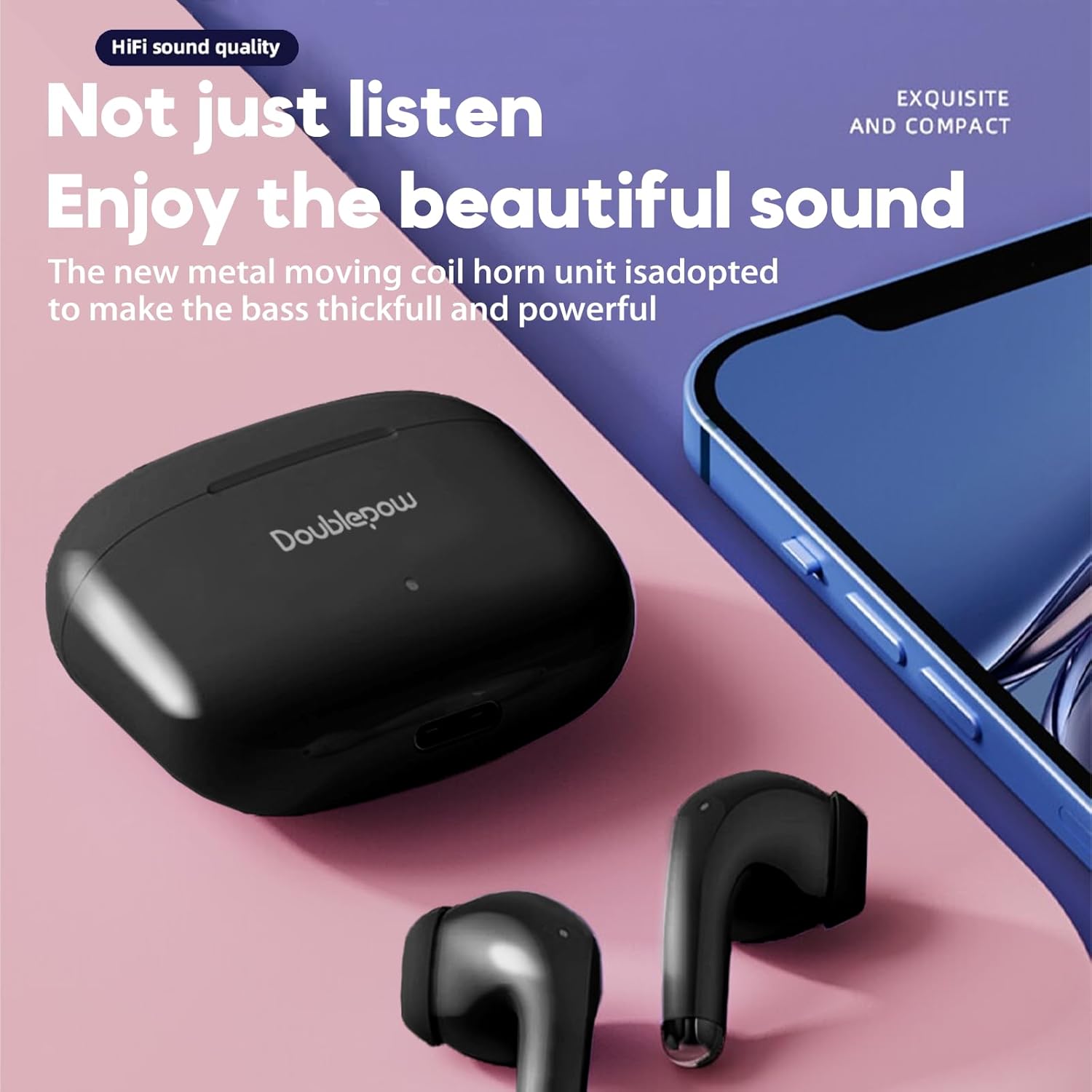

Image: Diagram illustrating the internal metal moving coil horn unit, which contributes to the earbud's sound quality.

Kontrol Sentuh

The earbuds feature smart touch control for convenient operation. The capacitive touch interface allows you to manage various functions with simple gestures:

• Putar/Jeda: Ketuk sekali di salah satu earbud.
• Kontrol Volume: Tap and hold (specific gesture may vary, refer to quick start guide).
• Lagu Berikutnya: Ketuk dua kali earbud kanan.
• Lagu Sebelumnya: Ketuk dua kali earbud kiri.
• Jawab/Tutup Panggilan: Ketuk sekali pada salah satu earbud saat ada panggilan masuk atau panggilan aktif.
• Tolak Panggilan: Ketuk dan tahan salah satu earbud saat ada panggilan masuk.
• Aktifkan Voice Assistant: Ketuk tiga kali salah satu earbud.

Pengaturan

Mengisi Daya Earbud dan Casing

Before first use, fully charge the earbuds and charging case. Use the provided USB-C charging cable to connect the case to a power source. The indicator light on the case will show charging status.

• Pengisian daya hingga penuh memerlukan waktu sekitar 1.5 jam.
• The earbuds provide about 5-6 hours of playback on a single charge.
• The charging case provides multiple additional charges, extending total playback time to approximately 24 hours.

Image: The charging case with a USB-C cable connected, illustrating the Type-C charging feature.

Memasangkan dengan Perangkat Anda

1. Pastikan earbud terisi dayanya.
2. Buka casing pengisi daya. Earbud akan otomatis masuk ke mode berpasangan.
3. Pada perangkat Anda (smartphone, tablet, laptop), buka pengaturan Bluetooth dan aktifkan Bluetooth.
4. Pencarian untuk available devices and select "Doublepow LP40 Pro" from the list.
5. Setelah terhubung, Anda akan mendengar nada konfirmasi, dan earbud siap digunakan.

After the initial pairing, the earbuds will automatically connect to the last paired device when you open the charging case, provided Bluetooth is enabled on your device and it is within range (up to 10 meters).

Image: Visual representation of the earbuds automatically pairing with a smartphone, highlighting the 10-meter connection distance.

Mengoperasikan Earbud

Putar Musik

• Putar/Jeda: Ketuk sekali di salah satu earbud.
• Lagu Berikutnya: Ketuk dua kali earbud kanan.
• Lagu Sebelumnya: Ketuk dua kali earbud kiri.
• Volume Naik/Turun: Use your device's volume controls or the specific touch gesture (refer to quick start guide for exact gesture).

Manajemen Panggilan

• Menjawab/Mengakhiri Panggilan: Ketuk sekali di salah satu earbud.
• Tolak Panggilan: Ketuk dan tahan salah satu earbud selama 2 detik.

Asisten Suara

• Aktifkan Voice Assistant: Triple-tap either earbud to activate your device's voice assistant (e.g., Siri, Google Assistant).

Monaural and Binaural Use

The LP40 Pro earbuds support both monaural (single earbud) and binaural (both earbuds) use. You can use one earbud independently while the other is in the charging case, or use both for a stereo experience.

Image: Graphic demonstrating the flexibility of using the earbuds either individually (monaurally) or as a pair (binaurally).

Pemeliharaan

To ensure the longevity and optimal performance of your Doublepow LP40 Pro earbuds, follow these maintenance guidelines:

• Pembersihan: Bersihkan earbud dan casing pengisi daya secara teratur dengan kain lembut, kering, dan bebas serat. Hindari penggunaan bahan abrasif atau bahan kimia keras.
• Penyimpanan: Jika tidak digunakan, simpan earbud dalam kotak pengisi dayanya untuk melindunginya dari debu dan kerusakan.
• Tahan Air: The LP40 Pro earbuds have an IPX5 waterproof rating, meaning they are resistant to splashes and sweat. Do not submerge them in water or expose them to heavy rain. Ensure they are dry before placing them back in the charging case.
• Suhu: Hindari memaparkan earbud pada suhu ekstrem (panas atau dingin) atau sinar matahari langsung dalam jangka waktu lama.

Penyelesaian Masalah

Jika Anda mengalami masalah dengan earbud Anda, coba solusi berikut:

• Earbud tidak dapat dipasangkan:
  • Pastikan kedua earbud terisi dayanya.
  • Matikan dan nyalakan Bluetooth perangkat Anda.
  • Place both earbuds back in the charging case, close the lid, wait a few seconds, then open it again to re-enter pairing mode.
  • Hapus perangkat dari daftar Bluetooth ponsel Anda dan coba pasangkan lagi.
• Tidak ada suara atau volume rendah:
  • Periksa tingkat volume pada perangkat dan earbud Anda.
  • Pastikan earbud terhubung dengan benar ke perangkat Anda.
  • Bersihkan segala kotoran dari speaker earbud.
• Earbud tidak mengisi daya:
  • Pastikan kabel pengisian daya tersambung dengan aman ke casing dan sumber daya.
  • Periksa apakah wadah pengisi daya itu sendiri memiliki daya.
  • Bersihkan kontak pengisian daya pada kedua earbud dan bagian dalam casing.
• Koneksi sering terputus:
  • Pastikan perangkat Anda berada dalam jangkauan Bluetooth 10 meter.
  • Hindari halangan antara perangkat Anda dan earbud.
  • Minimalkan gangguan dari perangkat nirkabel lainnya.

If the issue persists, please refer to the manufacturer's support information.

Spesifikasi

Image: A visual comparison highlighting key differences between the LP40 and LP40 Pro models, including driver diameter and waterproof rating.

Informasi Keselamatan

Please read and follow these safety precautions to prevent damage to your device or injury to yourself:

• Jangan membongkar, memperbaiki, atau memodifikasi earbud atau wadah pengisi daya.
• Jauhkan perangkat dari suhu ekstrem, sinar matahari langsung, dan kelembapan tinggi.
• Hindari menjatuhkan atau membenturkan perangkat dengan keras.
• Jangan menggunakan earbud dengan volume terlalu tinggi dalam waktu lama, karena hal ini dapat menyebabkan kerusakan pendengaran.
• Jauhkan dari jangkauan anak-anak dan hewan peliharaan.

Garansi dan Dukungan

For warranty information, technical support, or further assistance, please refer to the warranty card included in your product packaging or visit the official Doublepow website. Contact details for customer service may also be found on your purchase receipt.
