EPOMAKER Aula F108 Wireless Mechanical Keyboard User Manual

1. Pendahuluan

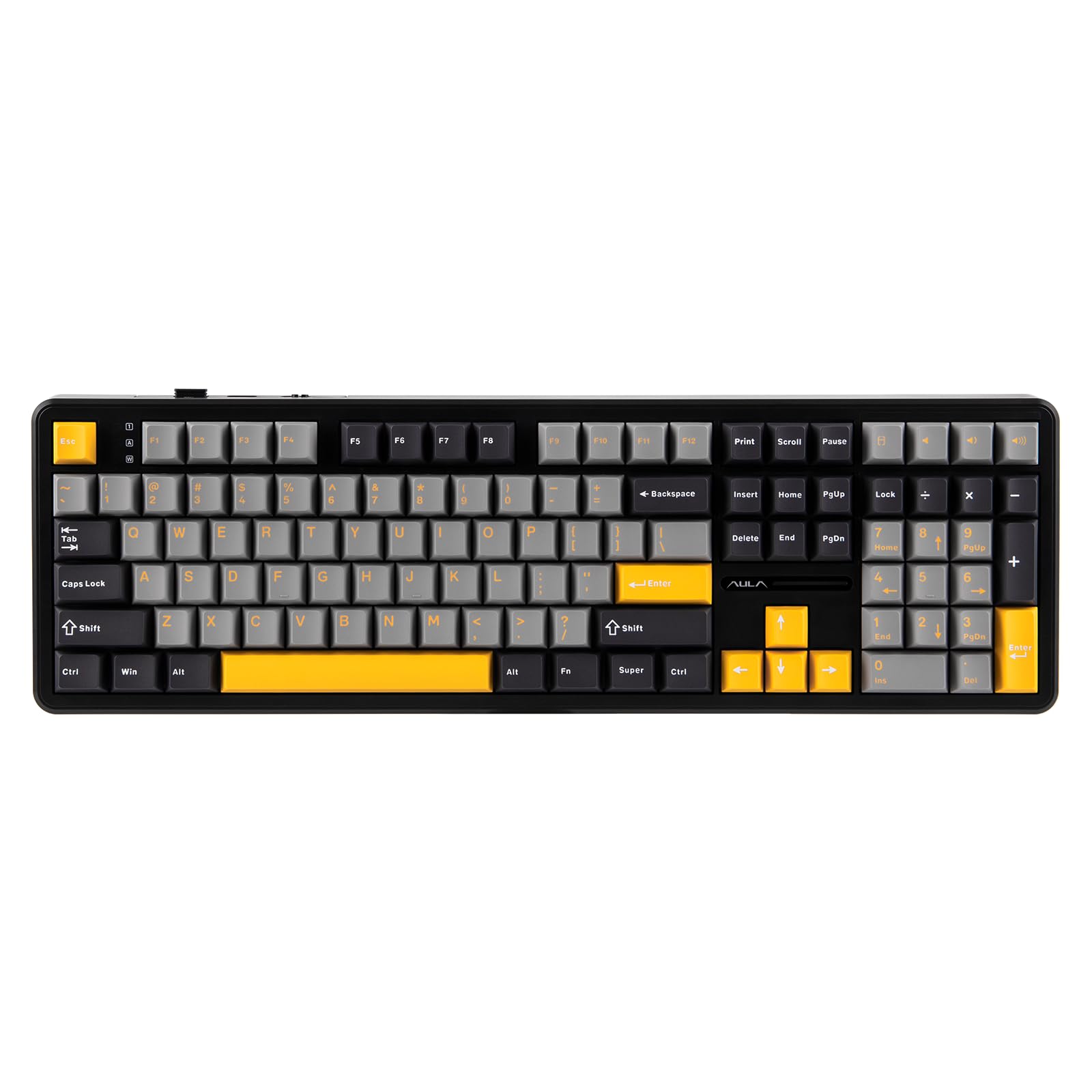

The EPOMAKER Aula F108 is a full-size wireless mechanical gaming keyboard designed for versatility and performance. It features 108 hot-swappable and programmable keys, RGB backlighting, and multi-device compatibility across Mac, PC, and Android platforms. This manual provides detailed instructions for setting up, operating, and maintaining your keyboard.

2. Isi Paket

Pastikan semua item ada dalam paket:

• EPOMAKER Aula F108 Wireless Mechanical Keyboard
• Tutup Tombol & Penarik Sakelar
• Panduan Pengguna
• Kabel USB-C ke USB-A yang dapat dilepas
• Extra Mechanical Switches (4 pieces)
• 2.4GHz USB Receiver (stored in the keyboard)

3. Pengaturan

3.1 Mode Konektivitas

The F108 keyboard supports three connectivity modes: 2.4GHz Wireless, Bluetooth (BT), and Wired (USB-C).

3.1.1 Koneksi Nirkabel 2.4GHz

1. Locate the 2.4GHz USB receiver stored in the slot on the back of the keyboard.
2. Colokkan penerima USB ke port USB yang tersedia di komputer Anda.
3. Toggle the switch on the back of the keyboard to the "2.4G" position.
4. The keyboard should automatically connect. The RGB light strip indicator will confirm connection.

3.1.2 Bluetooth (BT) Connection

1. Toggle the switch on the back of the keyboard to the "BT" position.
2. Tekan dan tahan tombol FN + 1, FN + 2, atau FN + 3 key combination for 3 seconds to enter pairing mode. The corresponding key's backlight will flash quickly.
3. On your device (PC, Mac, Android), search for Bluetooth devices and select "AULA F108" or similar.
4. Once connected, the backlight of the selected key will turn off after 2 seconds.
5. The keyboard can store up to 3 Bluetooth profiles. Switch between them using FN + 1, FN + 2, atau FN + 3.

3.1.3 Koneksi USB-C Berkabel

1. Hubungkan kabel USB-C yang tersedia ke port Type-C pada keyboard.
2. Hubungkan ujung kabel USB-A ke port USB yang tersedia di komputer Anda.
3. Toggle the switch on the back of the keyboard to the "Wired" position.
4. Keyboard ini akan berfungsi sebagai perangkat berkabel dan mengisi daya secara bersamaan.

3.2 Informasi Baterai

The EPOMAKER Aula F108 is equipped with a 4000mAh rechargeable battery. The battery life can last up to 100 hours with the backlight off, and approximately 10 hours with RGB backlight on. The keyboard charges via the USB-C port.

4. Petunjuk Pengoperasian

4.1 Key Functions and Combinations

The F108 is a full-size 108-key keyboard with anti-ghosting capabilities, allowing for accurate and simultaneous input. Many functions are accessible via the FN kombinasi tombol.

4.2 Kontrol Lampu Latar RGB

The keyboard features per-key RGB lighting and side RGB strips. You can customize lighting modes, colors, saturation, brightness, and dynamic patterns.

• FN + \ |: Cycle through various RGB lighting effects.
• FN + ↑ / ↓: Sesuaikan kecerahan lampu latar.
• FN + ← / →: Sesuaikan kecepatan lampu latar.
• FN + Z/X/C: Change backlight color (specific modes).
• FN + Spacebar: Atur ulang pencahayaan RGB ke pengaturan default.

4.3 Programmable Keys and Software

The F108 keyboard is fully programmable. Utilize the dedicated software to remap keys, assign macros, and adjust sensitivity for enhanced input speed and gaming competitiveness. Catatan: Mac software may not be available.

The software allows for:

• Pemetaan Ulang Kunci
• Rekaman Makro
• Efek Cahaya Kustom
• System Settings adjustments
• Music Rhythm synchronization

4.4 Ergonomi

The keyboard features a 2-stage kickstand and a low front height with Cherry profile keycaps to reduce finger fatigue and wrist strain during extended use.

5. Pemeliharaan

5.1 Pembersihan

Regularly clean your keyboard to ensure optimal performance and longevity. Use a soft, dry cloth to wipe down the keycaps and chassis. For deeper cleaning, use the provided keycap puller to remove keycaps and clean underneath with compressed air or a brush.

5.2 Penggantian Sakelar (Dapat Diganti Saat Mesin Hidup/Hot-Swappable)

The F108 is hot-swappable, allowing you to easily change 3/5-pin mechanical switches without soldering. Use the provided switch puller to carefully remove switches. Insert new switches by aligning the pins with the sockets and pressing gently until they click into place.

6. Penyelesaian masalah

6.1 Masalah Konektivitas

• Keyboard not connecting via 2.4GHz: Ensure the USB receiver is securely plugged in and the keyboard switch is set to "2.4G". Try a different USB port.
• Kegagalan pemasangan Bluetooth: Ensure the keyboard is in pairing mode (FN + 1/2/3 for 3 seconds). Check your device's Bluetooth settings and try re-pairing. Ensure no other devices are interfering.
• Koneksi kabel tidak berfungsi: Verify the USB-C cable is properly connected to both the keyboard and the computer. Ensure the keyboard switch is set to "Wired". Try a different USB-C cable or port.

6.2 Masalah Pencahayaan

• Lampu latar tidak menyala: Ensure the keyboard is powered on and not in sleep mode. Adjust brightness using FN + ↑.
• Pencahayaan tidak konsisten: Check for software conflicts or try resetting the RGB lighting to default (FN + Spacebar).

6.3 Key Response Issues

• Tombol tidak merespons: Check if the keyboard is properly connected. For hot-swappable switches, ensure the switch is fully seated in its socket. Try replacing the switch with one of the spares.
• Ketik dua kali atau input yang terlewat: This could be due to switch issues. Try replacing the problematic switch.

6.4 Reset Pabrik

If you encounter persistent issues, a factory reset may resolve them. Refer to the programming software for the factory reset option or consult the quick operation guide included in the package.

7. Spesifikasi

8. Garansi & Dukungan

For warranty information, technical support, or further assistance, please visit the official EPOMAKER store or contact their customer service. You can find more information at the Toko EPOMAKER di Amazon.
