1. Informasi Keselamatan Penting
Harap baca dan pahami semua petunjuk sebelum perakitan dan penggunaan. Simpan panduan ini untuk referensi di kemudian hari.
- Always follow the assembly instructions carefully. Ensure all parts are securely fastened before use.
- Use caution when adjusting the leg pads to prevent injury or instability.
- Do not overload the table. The maximum load capacity for the top surface is 100 lbs (45 kg), and each internal shelf is 50 lbs (22.7 kg). Overloading may cause the table to tip over, resulting in injury or damage.
- Jauhkan anak-anak dan hewan peliharaan dari area perakitan. Komponen kecil dapat menyebabkan bahaya tersedak.
- Ensure the charging station is connected to a properly grounded outlet. Do not expose the charging station to moisture.
2. Produk Lebihview
The ONBRILL Oval End Table is designed for versatile use in various settings, offering both storage and convenient charging capabilities.
Fitur Utama:
- Stasiun Pengisian Daya Terintegrasi: Equipped with 2 standard power outlets, 1 USB port, and 1 Type-C port for convenient device charging.
- Sliding Tambour Door: Provides easy access to the storage compartment while maintaining a clean aesthetic.
- Adjustable Internal Shelf: Allows customization of storage space to accommodate various item sizes.
- Pelindung Kaki yang Dapat Diatur: Memastikan stabilitas pada permukaan lantai yang tidak rata.
- Konstruksi Tahan Lama: Made from wood and metal components for lasting use.
Dimensi Produk:
16"P x 20"L x 23.5"T (40.6 cm P x 50.8 cm L x 59.7 cm T)
Item Weight: 20 Pounds (9.07 kg)

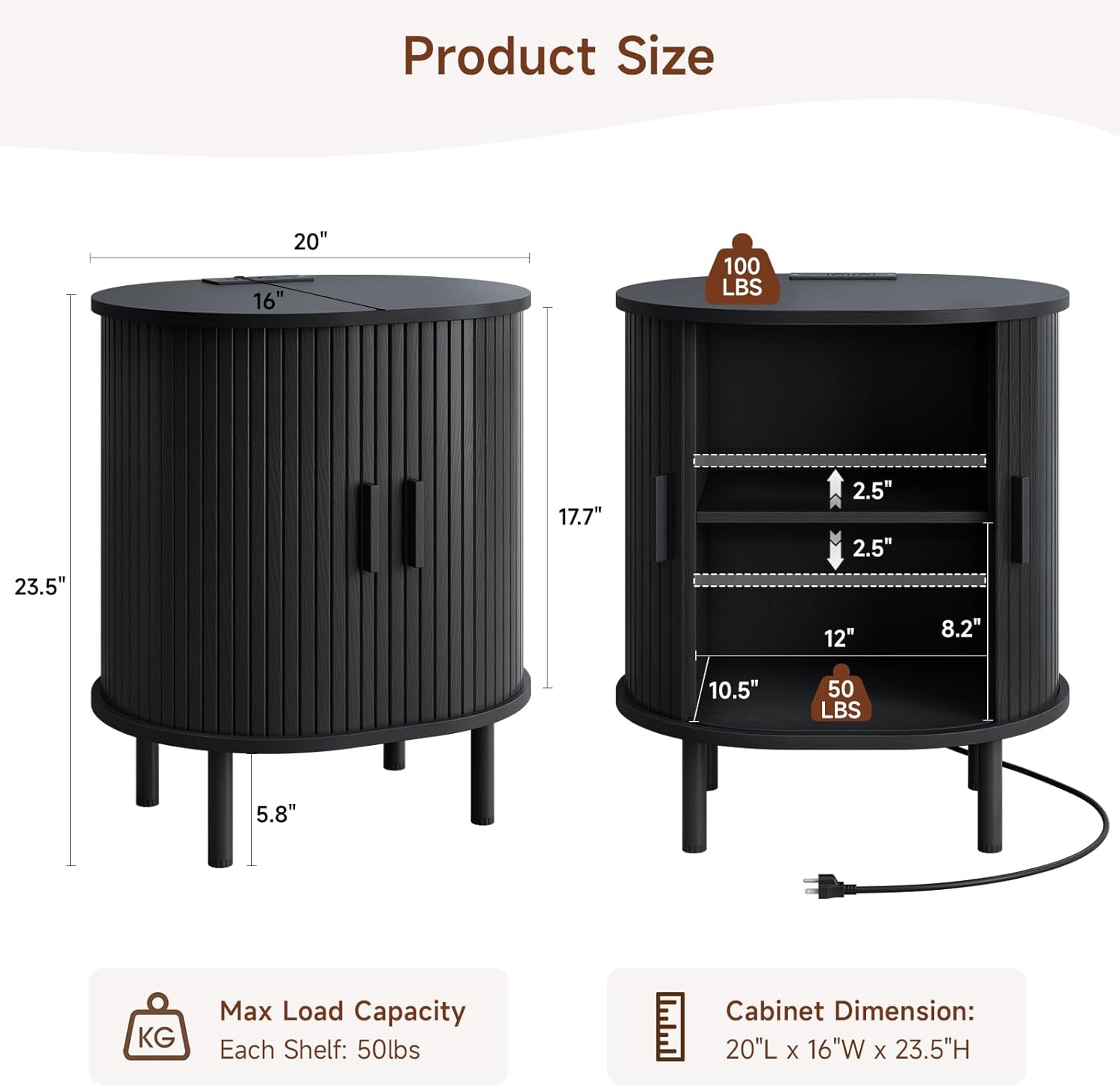

Gambar 2.1: Dimensi Produk dan Kapasitas Beban
3. Petunjuk Perakitan
All parts and accessories are numbered for easy identification. Follow the steps below carefully. Tools recommended for assembly include a hammer and screwdriver.
Panduan Video Perakitan:
Video 3.1: ONBRILL End Table Installation Guide
This video provides a comprehensive visual guide for assembling your ONBRILL Oval End Table. It demonstrates each step from unboxing to final setup, including the installation of the charging station and adjustable shelf.
Perakitan Langkah-demi-Langkah:
- Prepare Side Panels: Insert cam bolts (B) into the designated holes on the side panels (parts 3 and 4). Ensure they are screwed in firmly.
- Attach Crossbar: Connect the crossbar (part 5) between the two side panels (3 and 4) using cam locks (A). Tighten the cam locks to secure the connection.
- Sisipkan Panel Bawah: Slide the bottom panel (part 6) into the grooves of the assembled side structure.
- Attach Top Panel (Base): Secure the oval base panel (part 2) to the top of the assembled structure using cam bolts (C) and screws (D).
- Masukkan Panel Belakang: Carefully slide the back panel (part 6, if applicable, or the second bottom panel) into the rear grooves of the structure.
- Prepare Top Surface: Insert cam bolts (B) into the underside of the main oval top surface (part 1).
- Attach Main Top Surface: Align the main oval top surface (part 1) with the assembled structure and secure it using cam locks (A) and screws (C).
- Pasang Kaki: Attach the four legs (L) to the bottom of the table using the provided screws (F). Ensure they are tightly fastened.
- Install Shelf Pins: Insert the shelf pins (K) into the desired height adjustment holes on the inner side panels.
- Pasang Gagang Pintu: Secure the handles (part 9) to the tambour doors (parts 7 and 8) using screws (E). Ensure the process hole at the end of the handle faces downwards.
- Insert Tambour Doors: Carefully slide the tambour doors (parts 7 and 8) into the top and bottom grooves of the table structure.
- Adjust Shelf: Place the adjustable shelf (part 10) onto the installed shelf pins (G) at your preferred height.
- Pasang Stasiun Pengisian Daya: Feed the power cord (H) through the designated hole on the top surface. Insert the charging station into its recess and secure it with screws (I).
4. Petunjuk Pengoperasian
Menggunakan Stasiun Pengisian Daya:
Stasiun pengisian daya terintegrasi menyediakan akses daya yang nyaman untuk perangkat Anda.
- Plug the table's power cord into a standard 125V/12A wall outlet.
- Use the 2 AC outlets for larger electronics.
- Connect your devices to the 5V/2A USB port or 5V/2A Type-C port for charging smartphones, tablets, and other compatible devices.
Gambar 4.1: Stasiun Pengisian Daya yang Sedang Digunakan
Sliding Tambour Door:
The tambour door slides smoothly along the curved track to reveal or conceal the storage compartment. Gently push or pull the handles to open and close the door.
Adjusting the Internal Shelf:
The internal shelf can be adjusted to different heights to suit your storage needs.
- Singkirkan semua barang dari rak.
- Carefully lift the shelf and remove the four shelf pins (G) from their current holes.
- Reinsert the shelf pins into the desired set of holes at the new height. Ensure all four pins are at the same level.
- Pasang kembali rak ke atas pin.
Gambar 4.2: Mekanisme Rak yang Dapat Disesuaikan
Adjusting Leg Pads:
The adjustable leg pads help stabilize the table on uneven floors. Rotate the bottom of each leg pad clockwise to raise or counter-clockwise to lower until the table is stable and level.
5. Pemeliharaan
- Pembersihan: Wipe the table surface with a soft, dry cloth. For stubborn marks, use a slightly damp cloth with mild soap, then dry immediately. Avoid abrasive cleaners or harsh chemicals, as they may damage the finish.
- Tumpahan: Segera bersihkan tumpahan apa pun untuk mencegah noda atau kerusakan pada kayu.
- Inspeksi: Periksa semua sekrup dan sambungan secara berkala untuk memastikannya tetap kencang. Kencangkan kembali jika perlu.
- Penempatan: Avoid placing the table in direct sunlight or near heat sources, as this can cause fading or warping.
6. Penyelesaian masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Meja goyang/tidak stabil. | Uneven floor or loose leg pads. | Adjust the leg pads by rotating them until the table is stable. Ensure all assembly screws are tightened. |
| Stasiun pengisian daya tidak berfungsi. | Power cord not plugged in, outlet issue, or device incompatibility. | Ensure the table's power cord is securely plugged into a working wall outlet. Test the outlet with another device. Verify your device is compatible with the USB/Type-C ports. |
| Pintu geser kaku atau macet. | Debris in the track or misalignment. | Inspect the top and bottom tracks for any obstructions and remove them. Ensure the door is properly seated in the grooves. |
| Rak tidak pas atau tidak rata. | Shelf pins incorrectly installed. | Ensure all four shelf pins are inserted into corresponding holes at the same height. |
7. Spesifikasi
- Merek: ONBRILL
- Nomor Model: ON COT-123
- Dimensi Produk: 16"Panjang x 20"Lebar x 23.5"T
- Berat Barang: 20 pon
- Bahan Bingkai: Kayu
- Jenis Bahan: Logam, kayu
- Warna: Black (for this variant)
- Membentuk: Bulat telur
- Desain Meja: Meja Ujung
- Selesai furnitur: Bernoda
- Komponen yang Termasuk: Adjustable Leg Pads, Adjustable Shelf, Charging Station, Sliding Door
- Perakitan yang Diperlukan: Ya
- Alat yang Direkomendasikan untuk Perakitan: Hammer, Screw Driver
- Pemakaian Dalam/Luar Ruangan: Dalam
- Keluaran Stasiun Pengisian Daya: 2x 125V/12A AC Outlets, 1x 5V/2A USB Port, 1x 5V/2A Type-C Port
- Panjang Kabel Daya: 6.56 kaki (2 meter)
8. Garansi dan Dukungan
For warranty information, product support, or to report missing/damaged parts, please contact ONBRILL customer service. Refer to your purchase documentation for specific contact details or visit the official ONBRILL weblokasi.
Pelayanan pelanggan: Please refer to the contact information provided with your purchase or on the ONBRILL official weblokasi.
