ciciglow A4 Photo Portable 900 DPI Document Scanner User Manual

1. Pendahuluan

This manual provides essential instructions for the safe and efficient operation of your ciciglow A4 Photo Portable 900 DPI Document Scanner. Please read this manual thoroughly before using the device and retain it for future reference.

The ciciglow A4 Photo Portable Scanner is a compact and lightweight device designed for on-the-go document and photo scanning. It offers three resolution modes (300dpi, 600dpi, 900dpi) and supports both JPEG and PDF file formats. Its portability and ease of use make it suitable for various applications, including business, home, and outdoor use.

Image 1.1: The ciciglow A4 Photo Portable 900 DPI Document Scanner in green.

2. Isi Paket

Sebelum melanjutkan pengaturan, harap pastikan bahwa semua item yang tercantum di bawah ini ada dalam paket Anda:

• Handheld Image Scanner
• Tas Penyimpanan
• Data Cable (USB 2.0)
• Kain Pembersih
• User Manual (dokumen ini)

Image 2.1: All items included in the ciciglow A4 Photo Portable Scanner package.

3. Pengaturan

3.1. Pemasangan Baterai

1. Locate the battery compartment on the scanner.
2. Buka penutup kompartemen.
3. Insert two (2) AA batteries (not included), ensuring correct polarity (+/-).
4. Tutup penutup ruang baterai dengan rapat.

3.2. Pemasangan Kartu Memori

A storage card (1GB-32GB, not included) is required to save scanned documents.

1. Locate the memory card slot on the side of the scanner.
2. Insert a compatible storage card into the slot until it clicks into place.
3. Untuk melepasnya, dorong kartu perlahan ke dalam hingga terlepas.

Gambar 3.1: Samping view of the scanner indicating the USB port and memory card slot.

4. Petunjuk Pengoperasian

4.1. Perangkat Berakhirview

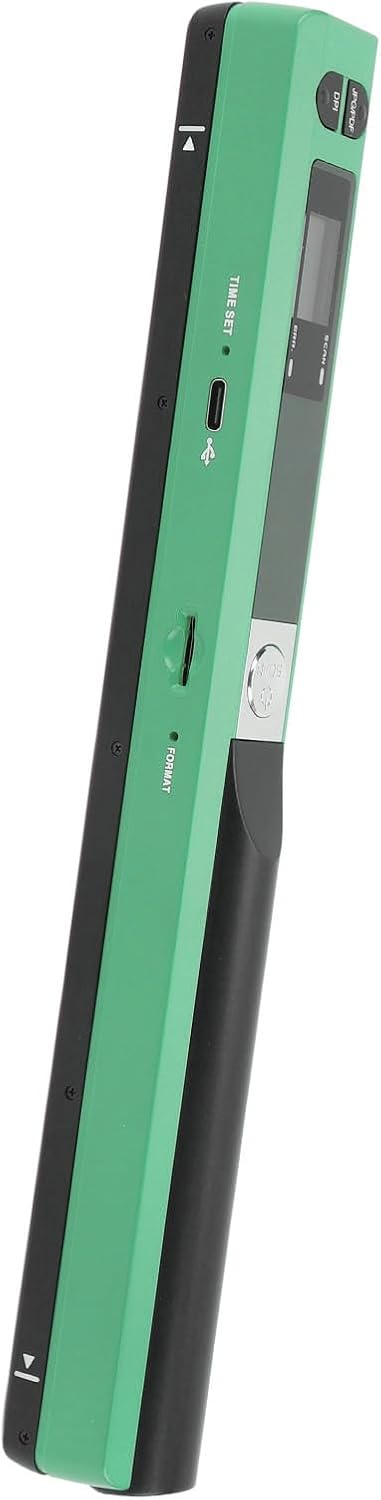

Gambar 4.1: Atas view of the scanner with labeled controls.

• Power/Scan Button: Press to turn on/off, press to start/stop scanning.
• JPG/PDF Button: Press to switch between JPEG and PDF file format.
• Tombol DPI: Press to cycle through 300dpi, 600dpi, and 900dpi resolution settings.
• Tombol Pengaturan Waktu: Used for setting the device's internal clock (refer to advanced settings).
• Tampilan Layar: Shows current settings (DPI, file format, battery status, scan count).

4.2. Prosedur Pemindaian Dasar

1. Nyalakan: Tekan dan tahan tombol Daya/Pindai button until the display screen illuminates.
2. Pilih Format: Tekan tombol JPG/PDF button to choose your desired output format (JPEG or PDF).
3. Pilih Resolusi: Tekan tombol DPI button to select the scanning resolution (300dpi, 600dpi, or 900dpi). Higher DPI results in better quality but larger file ukuran.
4. Position Document: Place the scanner flat on the document you wish to scan, ensuring the document is aligned with the scanner's scanning area.
5. Mulai Pindai: Tekan tombol Daya/Pindai button once to begin scanning. Slowly and steadily glide the scanner across the document. Maintain even pressure and speed for optimal results.
6. Stop Scan: Tekan tombol Daya/Pindai button again to stop scanning. The scanned image will be automatically saved to the inserted memory card.
7. Matikan: Tekan dan tahan tombol Daya/Pindai button to turn off the device when not in use. The scanner also features a 3-minute auto power-off function to conserve battery.

4.3. Transferring Scanned Files

To transfer scanned photos or documents to your computer:

1. Pastikan pemindai dalam keadaan mati.
2. Connect the scanner to your PC using the provided USB 2.0 data cable.
3. The scanner will be recognized as a removable storage device.
4. Open the scanner's folder on your computer to access and copy the scanned files.
5. Lepaskan perangkat dari komputer Anda dengan aman sebelum mencabut kabel USB.

5. Pemeliharaan

5.1. Membersihkan Pemindai

Regular cleaning ensures optimal scanning performance and image quality.

• Use the provided cleaning cloth to gently wipe the scanning lens and exterior surfaces of the device.
• Do not use liquid cleaners, abrasive materials, or solvents, as these can damage the scanner.
• Pastikan pemindai dimatikan sebelum dibersihkan.

5.2. Penyimpanan

When not in use, store the scanner in the provided storage bag to protect it from dust and scratches. Keep the device in a cool, dry place away from direct sunlight and extreme temperatures.

6. Penyelesaian masalah

Jika Anda mengalami masalah dengan pemindai Anda, silakan lihat solusi umum berikut:

• Pemindai tidak menyala:
  Ensure that two fresh AA batteries are correctly installed with the proper polarity.
• Poor scan quality (streaks, blurry images):
  Clean the scanning lens with the provided cleaning cloth. Ensure you are gliding the scanner smoothly and evenly across the document. Check the DPI setting; higher DPI generally yields better quality.
• Dipindai files not saving:
  Verify that a compatible memory card (1GB-32GB) is properly inserted into the scanner. Ensure the card is not full.
• Tidak dapat mentransfer files ke PC:
  Ensure the scanner is powered off before connecting to the PC. Try a different USB port or cable. Ensure the memory card is properly inserted in the scanner.
• Scanner freezes or becomes unresponsive:
  Lepaskan dan pasang kembali baterai untuk melakukan reset lunak.

Jika masalah berlanjut setelah mencoba langkah-langkah ini, hubungi dukungan pelanggan.

7. Spesifikasi

8. Garansi dan Dukungan

Untuk informasi garansi atau dukungan teknis, silakan merujuk ke dokumentasi yang diberikan saat pembelian atau hubungi penjual Anda. Simpan struk pembelian Anda sebagai bukti pembelian.
